Toyota COROLLA Headlamp — Figure 8101

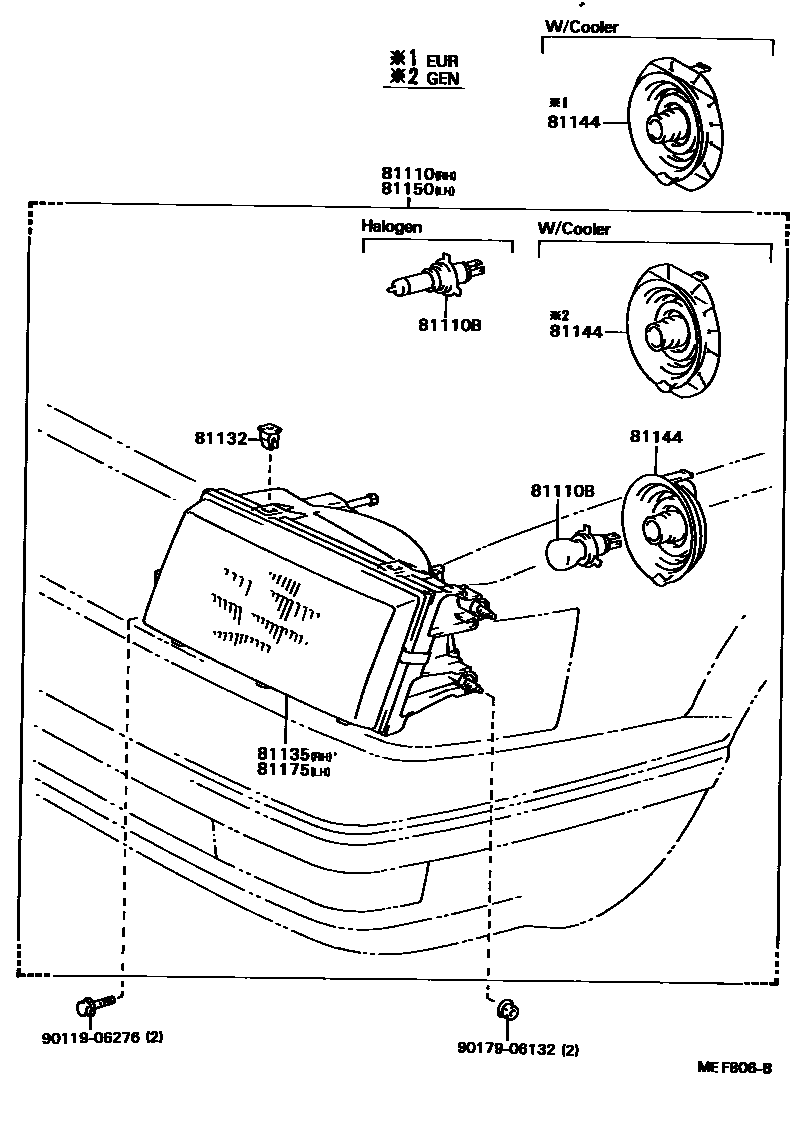

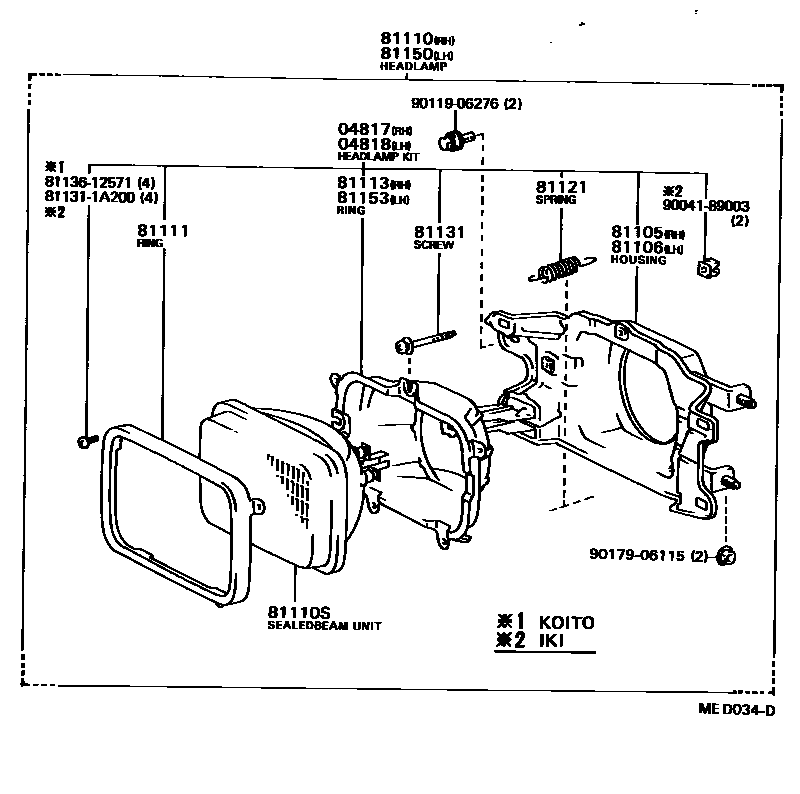

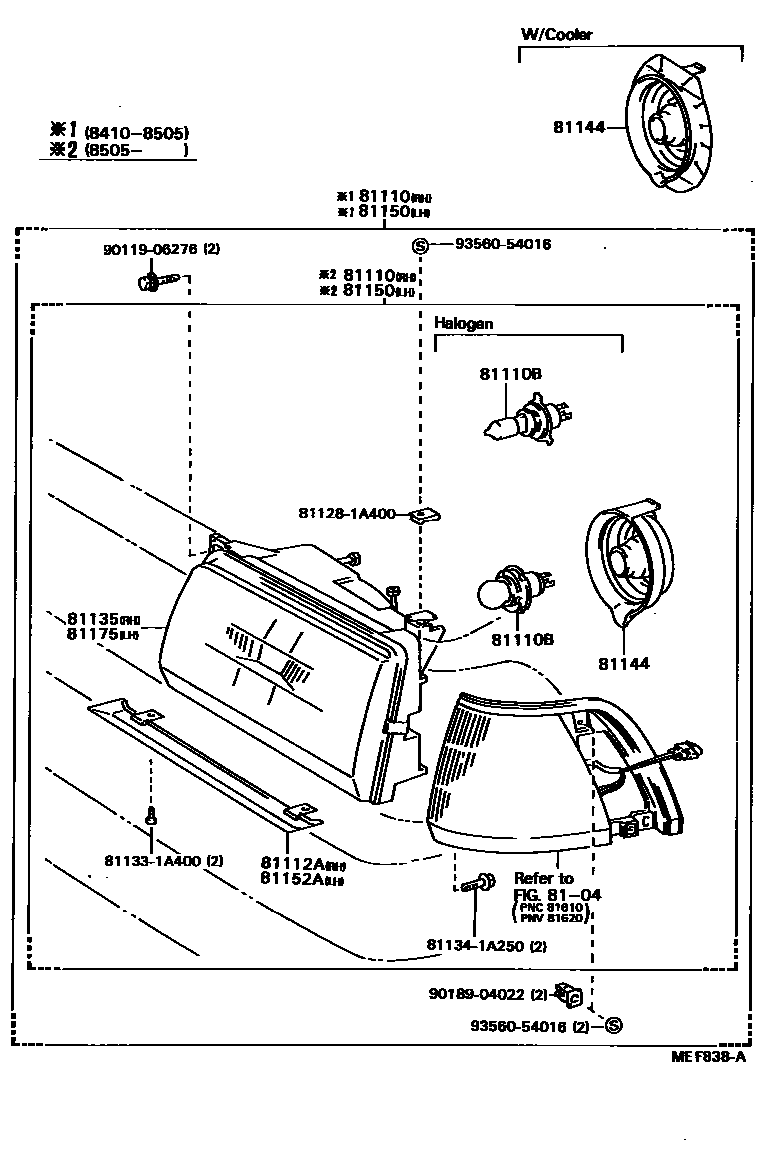

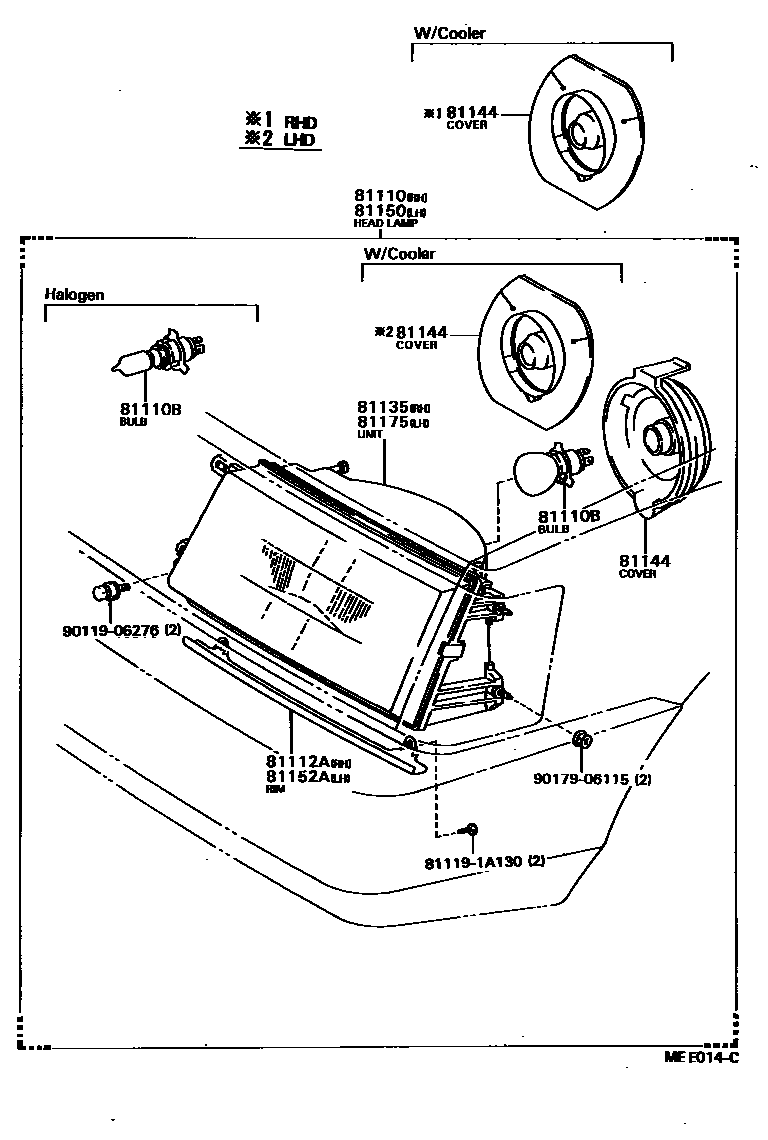

Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04817 | Right headlight assembly (without closed headlight) | 04817-12120 |
| 04818 | Left headlight assembly (without closed headlight) | 04818-12120 |
| 81105 | Right headlight housing sub-assembly | 81105-1A190 |
| 81106 | Left headlight housing sub-assembly | 81106-1A140 |
| 81110 | Right headlight assembly | 81110-1A142 · 81110-1A152 · 81110-1A161 · 81110-1A172 · 81110-1A182 · 81110-1A372 · 81110-1A382 · 81110-1A391 · 81110-1A421 · 81110-1A431 · 81110-1A441 · 81110-1A451 · 81110-1A461 · 81110-80310 · 81110-80311 · 81110-80312 · 81110-80313 · 81110-80314 · 81110-80315 · 81110-80316 · 81110-80317 · 81110-80318 · 81110-80361 · 81110-80362 · 81110-80363 · 81110-80441 · 81110-80442 · 81110-80443 · 81110-80444 · 81110-80445 · 81110-80448 · 81110-80449 · 81110-80450 · 81110-80451 · 81110-80452 · 81110-80453 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13015 · 90981-13016 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04003 · 90981-04004 · 90981-04020 |
| 81111 | Closed headlight retaining ring | 81111-1A190 |
| 81112A | Right headlight frame | 81112-1A130 · 81112-1A400 |
| 81113 | Right No. 1 closed lamp seat | 81113-1A190 |
| 81121 | headlight spring | 81121-16020 |
| 81131 | Headlight adjustment screw | 81131-14670 |
| 81132 | Headlight self-locking nut | 81137-22530 |
| 81135 | Right headlight assembly assembly | 81130-1A141 · 81130-1A142 · 81130-1A151 · 81130-1A152 · 81130-1A171 · 81130-1A172 · 81130-1A181 · 81130-1A182 · 81135-1A130 · 81135-1A140 · 81135-1A150 · 81135-1A170 · 81135-1A180 · 81135-1A420 · 81135-1A430 · 81135-1A450 · 81135-1A460 |
| 81144 | No. 1 headlight cover | 81139-1A120 · 81139-20730 |
| 81150 | Left headlight assembly | 81150-1A092 · 81150-1A102 · 81150-1A111 · 81150-1A122 · 81150-1A132 · 81150-1A321 · 81150-1A331 · 81150-1A341 · 81150-1A351 · 81150-1A361 · 81150-80307 · 81150-80308 · 81150-80309 · 81150-80310 · 81150-80311 · 81150-80312 · 81150-80313 · 81150-80314 · 81150-80315 · 81150-80433 · 81150-80434 · 81150-80435 · 81150-80436 · 81150-80437 · 81150-80440 · 81150-80441 · 81150-80442 · 81150-80443 |
| 81152A | Left headlight frame | 81152-1A080 · 81152-1A300 |
| 81153 | No. 1 closed lamp seat on the left | 81153-1A140 |
| 81175 | Left headlight assembly assembly | 81170-1A091 · 81170-1A092 · 81170-1A101 · 81170-1A102 · 81170-1A121 · 81170-1A122 · 81170-1A131 · 81170-1A132 · 81175-1A080 · 81175-1A090 · 81175-1A100 · 81175-1A120 · 81175-1A130 · 81175-1A320 · 81175-1A330 · 81175-1A350 · 81175-1A360 |
