Toyota COROLLA accelerator pedal connecting rod — Figure 7801

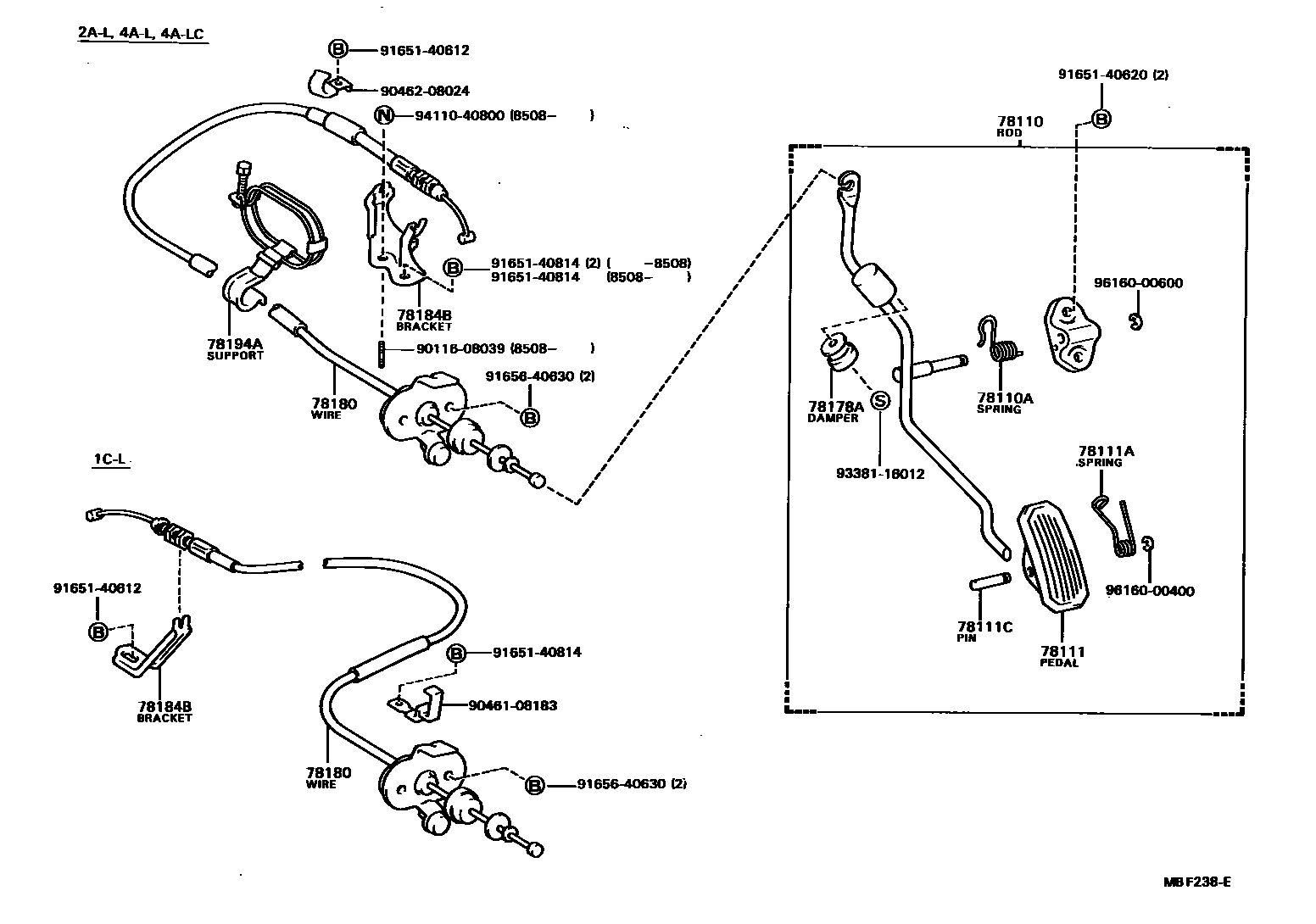

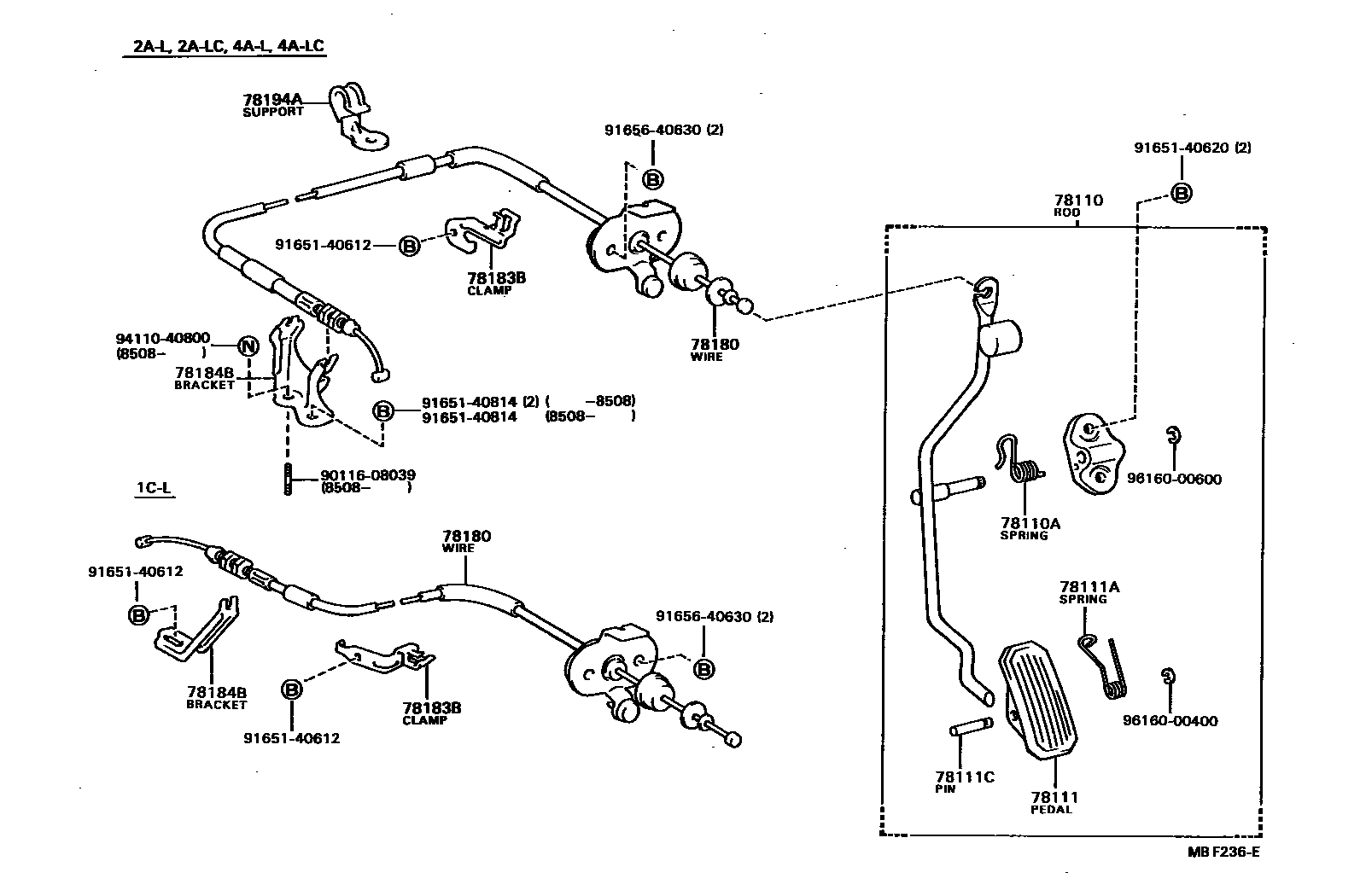

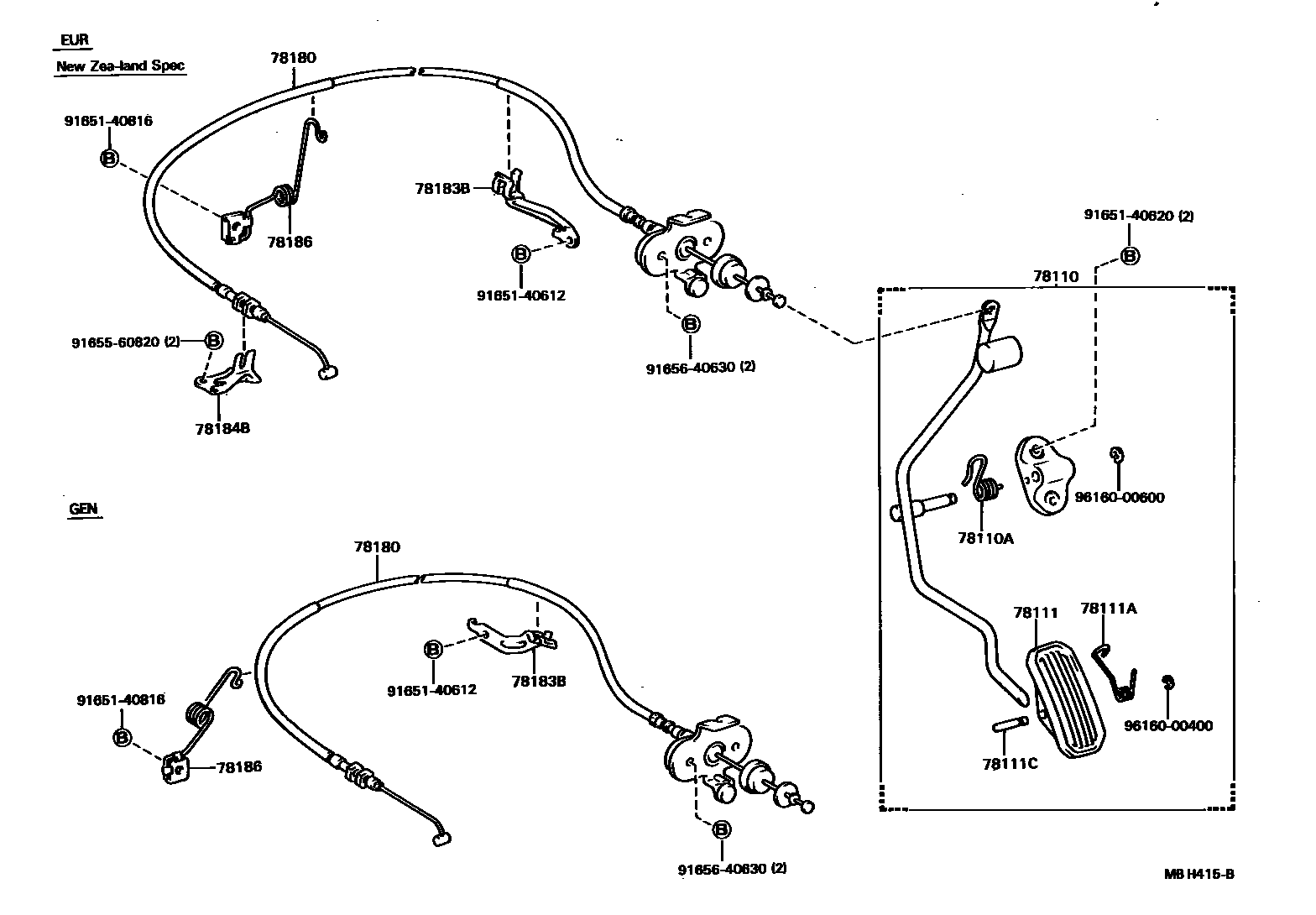

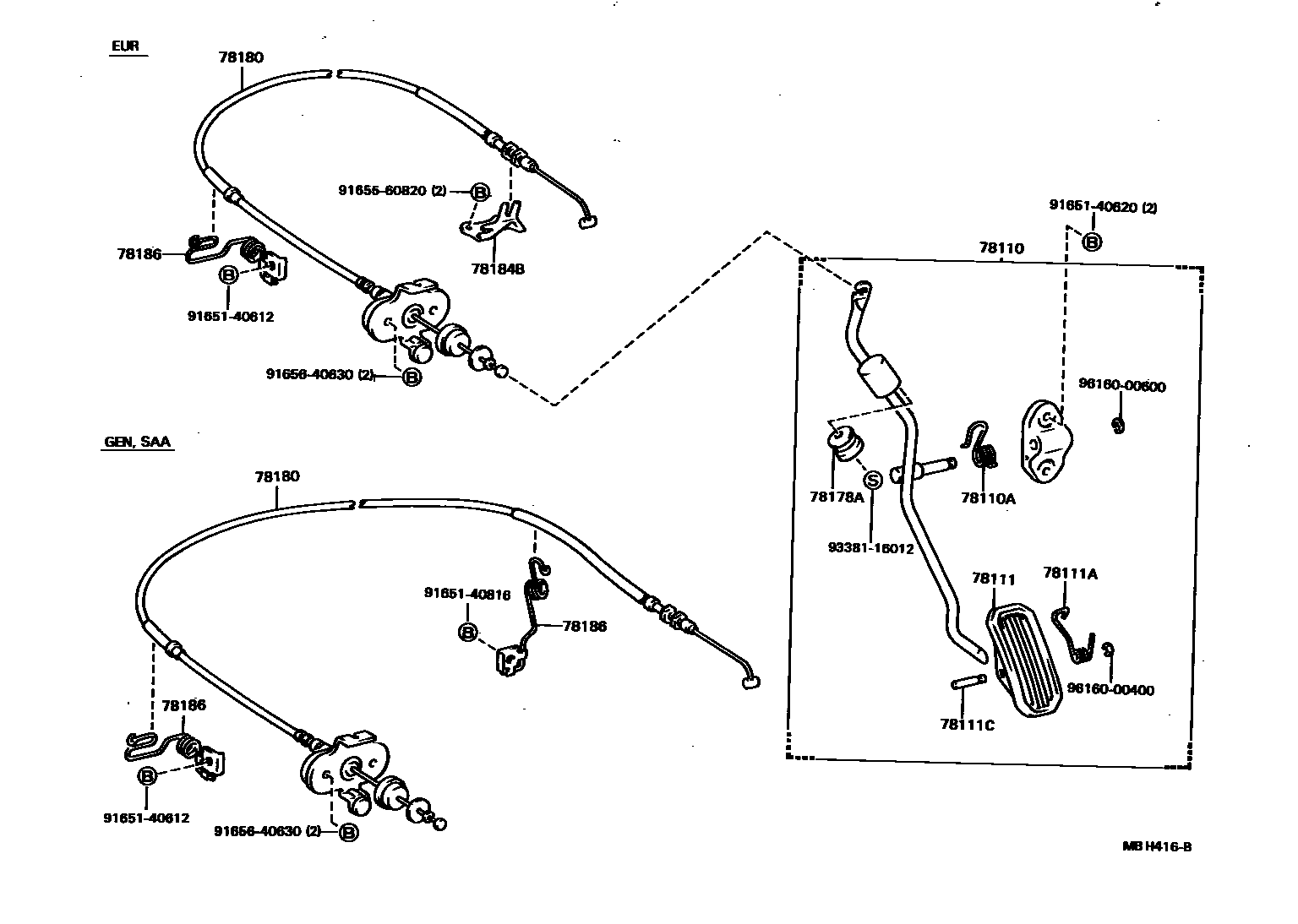

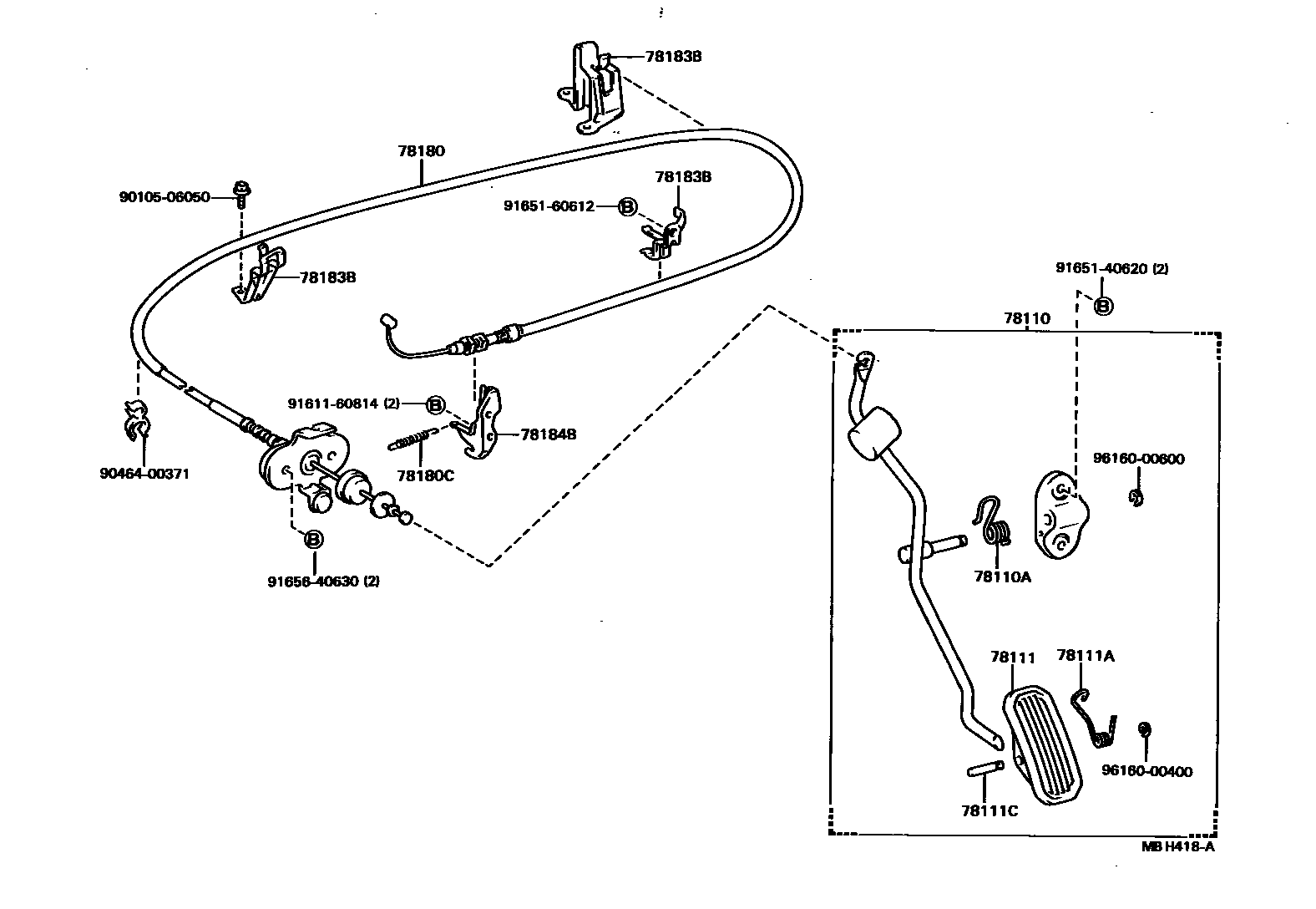

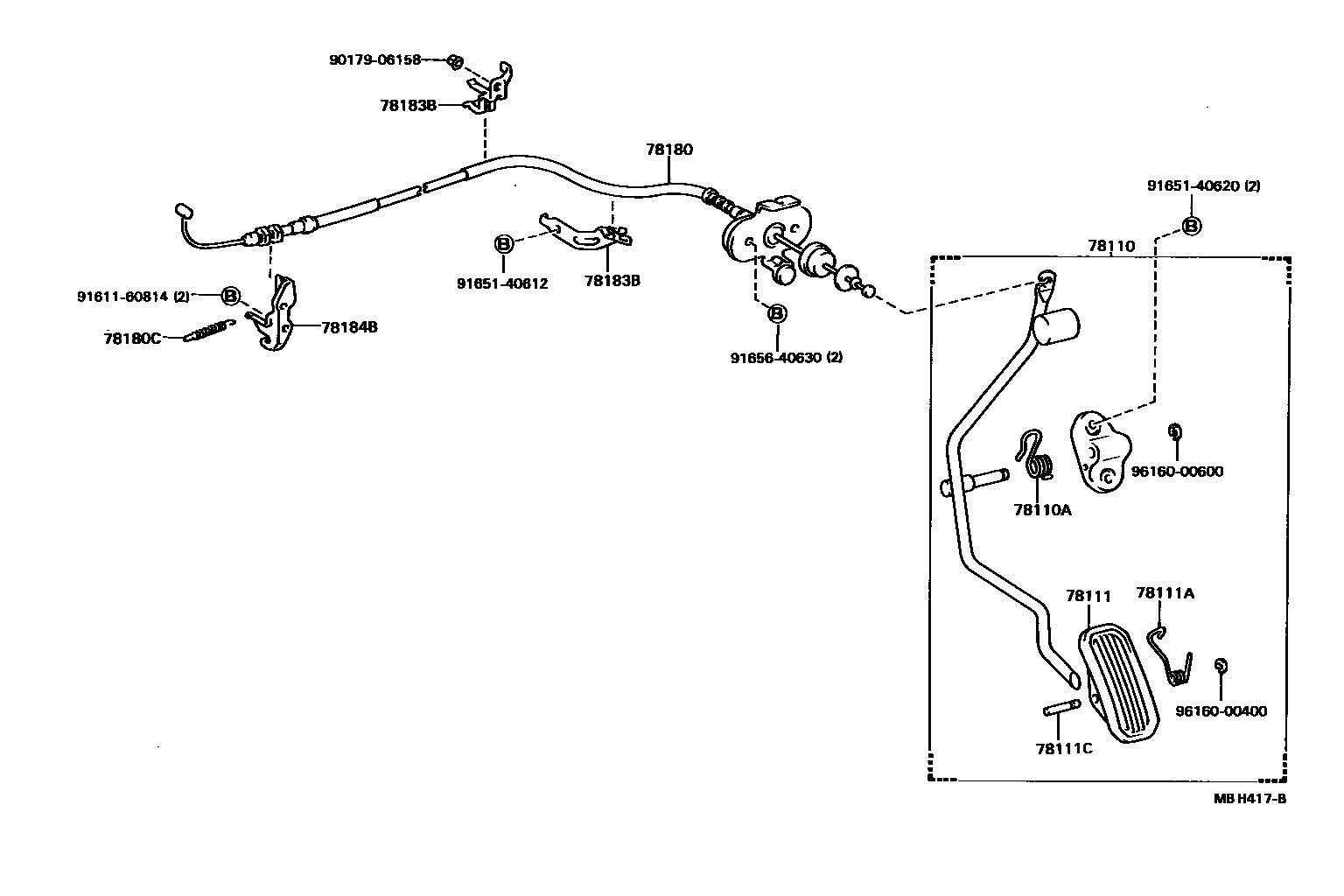

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 7 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110 | Accelerator pedal lever assembly | 78120-12010 · 78120-12020 · 78120-12030 · 78120-12040 · 78120-12050 · 78120-12060 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-12030 |
| 78180 | Throttle cable assembly | 78180-12440 · 78180-12480 · 78180-12490 · 78180-12500 · 78180-12570 · 78180-12650 · 78180-12651 · 78180-12660 · 78180-12670 · 78180-12680 · 78180-12690 · 78180-12700 · 78180-12720 |
| 78180C | Tension spring (for throttle cable) | 90507-10016 |
| 78183B | Accelerator pedal control cable clip | 78183-12050 · 78183-12060 · 78183-12070 · 78183-12080 · 78183-12090 |
| 78184B | Throttle pedal control cable bracket | 78184-10070 · 78184-12160 · 78184-12170 · 78184-12190 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12170 · 78186-12180 · 78186-12190 · 78186-12200 |
| 78194A | No. 4 accelerator pedal control cable bracket | 78194-12020 · 78194-12030 · 78194-12040 · 78194-12041 |
| 78310 | Choke door cable assembly | 84506-12020 · 84506-12030 · 84506-12040 · 84506-12050 |
| 78310A | Choke cable retaining ring | 90480-13055 |
| 78310B | Choke cable clip | 90464-00117 |
| 78311 | Choke control cable button | 78311-12021 |
