Toyota COROLLA 后防护条 — Figure 7504

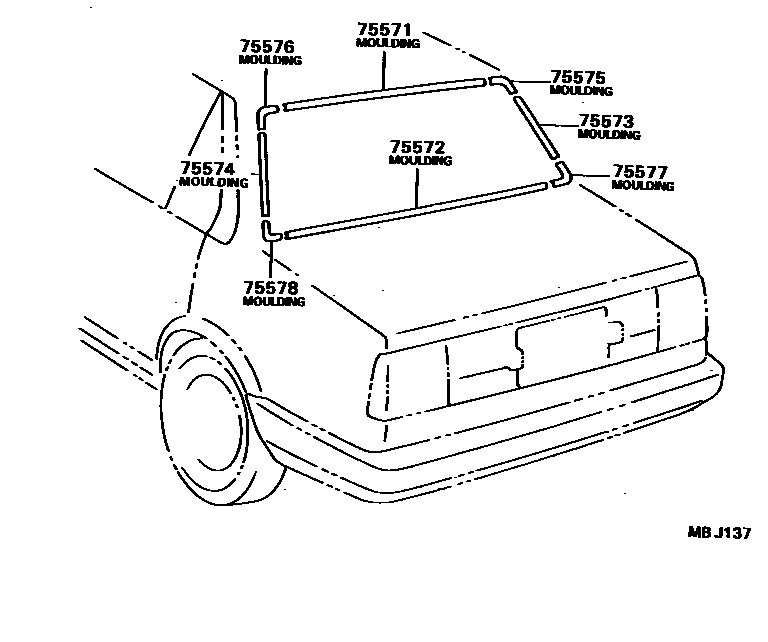

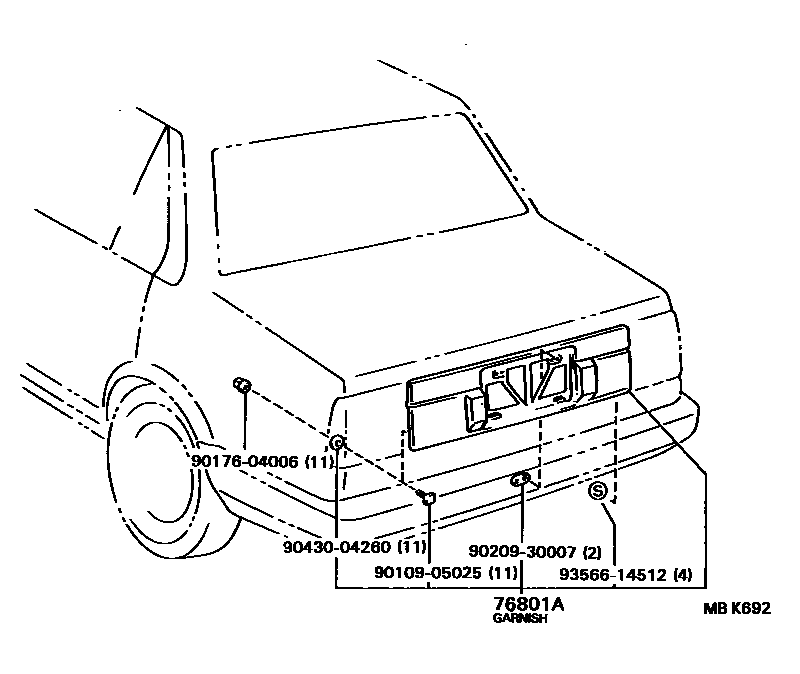

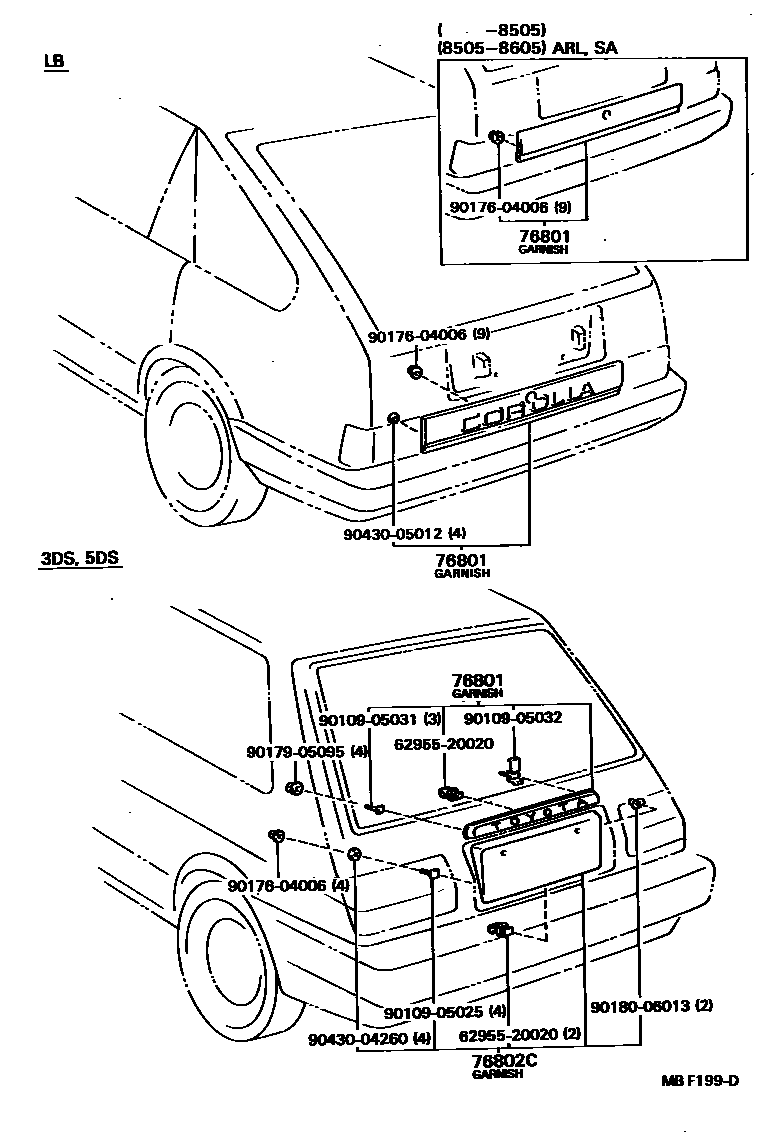

Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 75571-12240 |
| 75572 | Protective strip under rear window | 75575-12180 |
| 75573 | Right protective strip on rear window side | 75573-12220 |
| 75574 | Protective strip on the left side of the rear window | 75573-12220 |
| 75575 | Protective strip on the upper right side of the rear window corner | 75581-12140 |
| 75576 | Protective strip on the upper left corner of the back window | 75581-12140 |
| 75577 | Protective strip on the lower right corner of the back window | 75583-12120 |
| 75578 | Protective strip at lower left corner of rear window | 75583-12120 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-12100 · 76801-12160 · 76801-12170 · 76801-19115 · 76801-19125 · 76801-19165 · 76801-19175 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-12011 |
| 76802C | No. 2 rear door exterior decorative strip sub-assembly | 76802-12010 |
