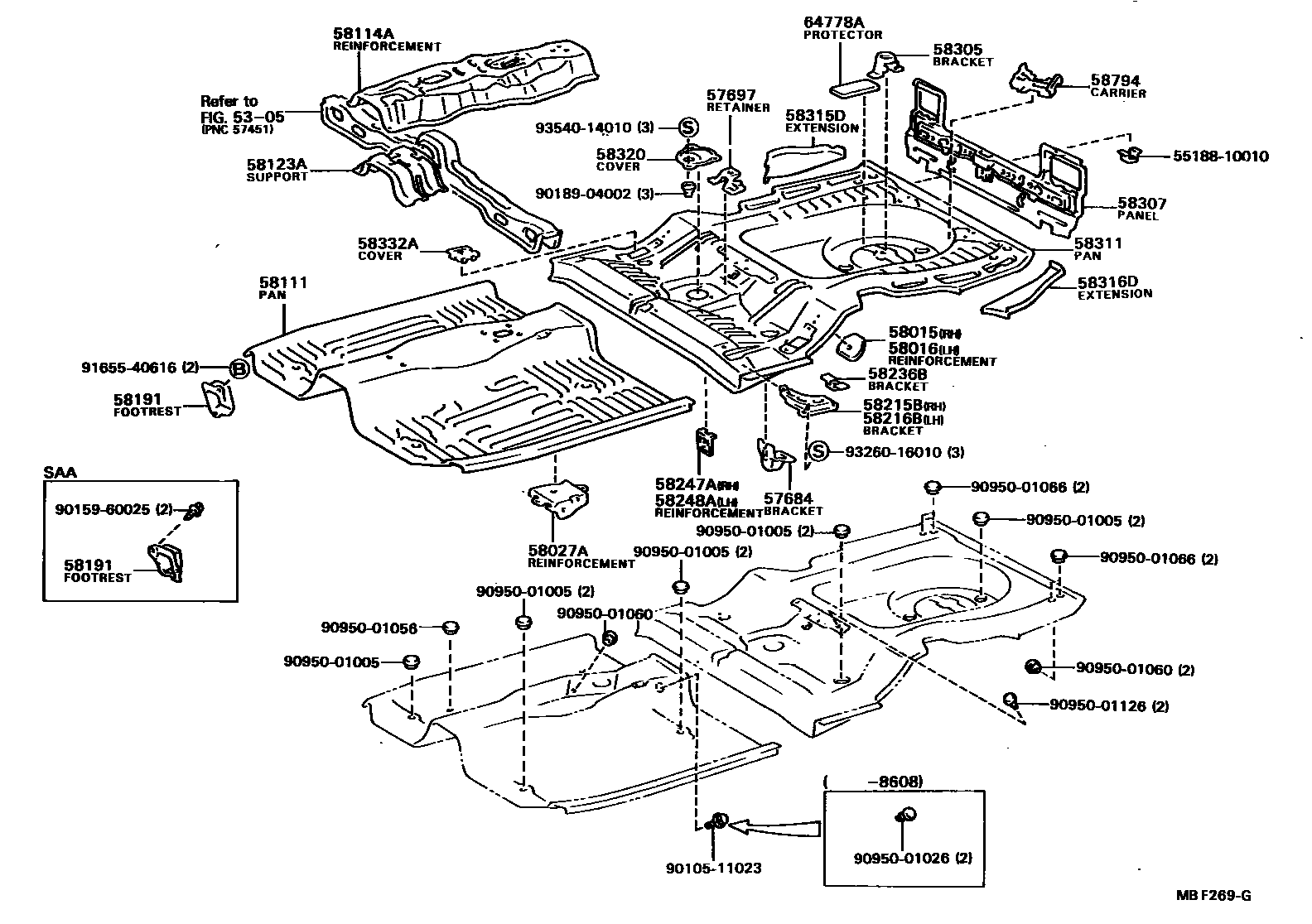

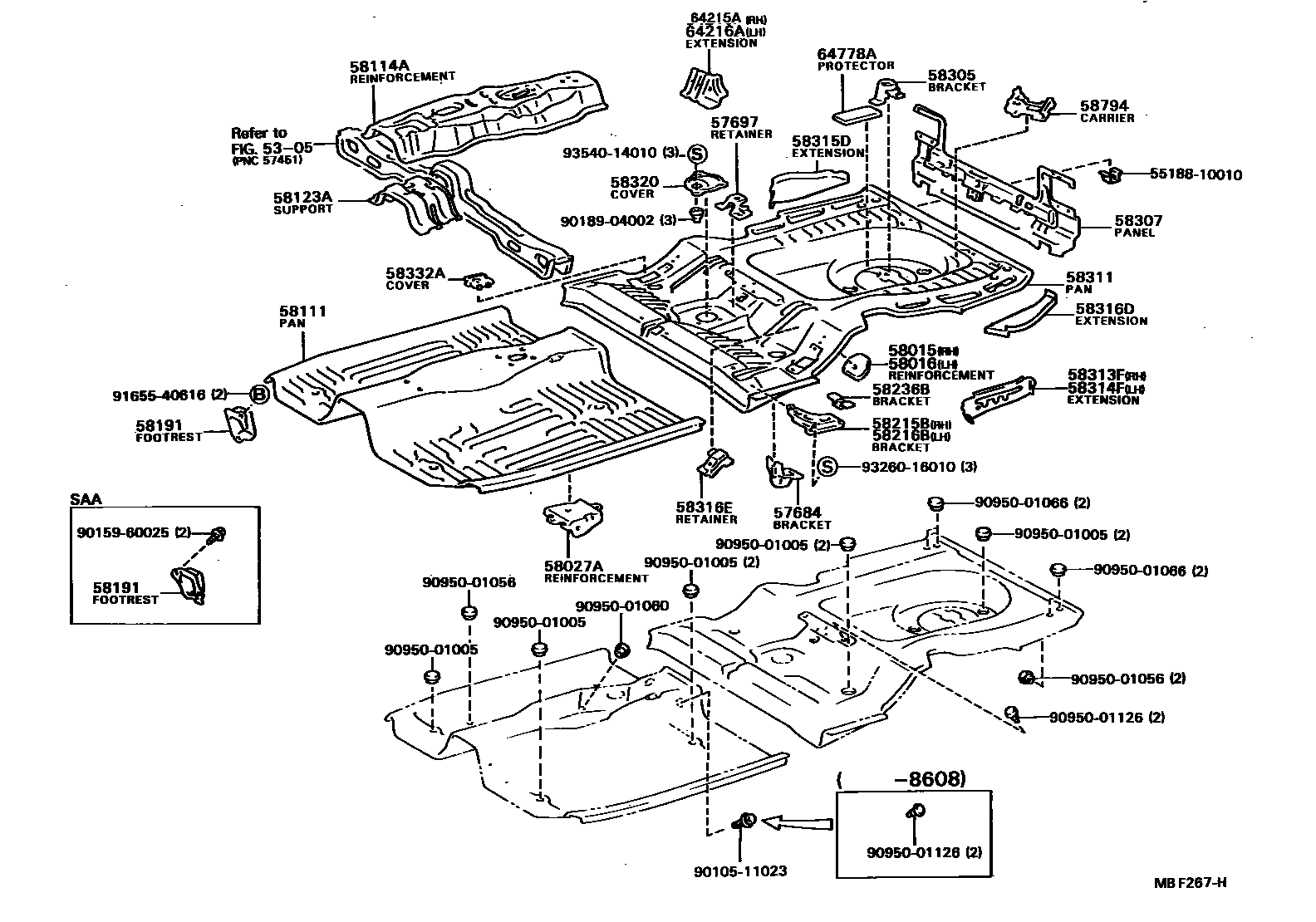

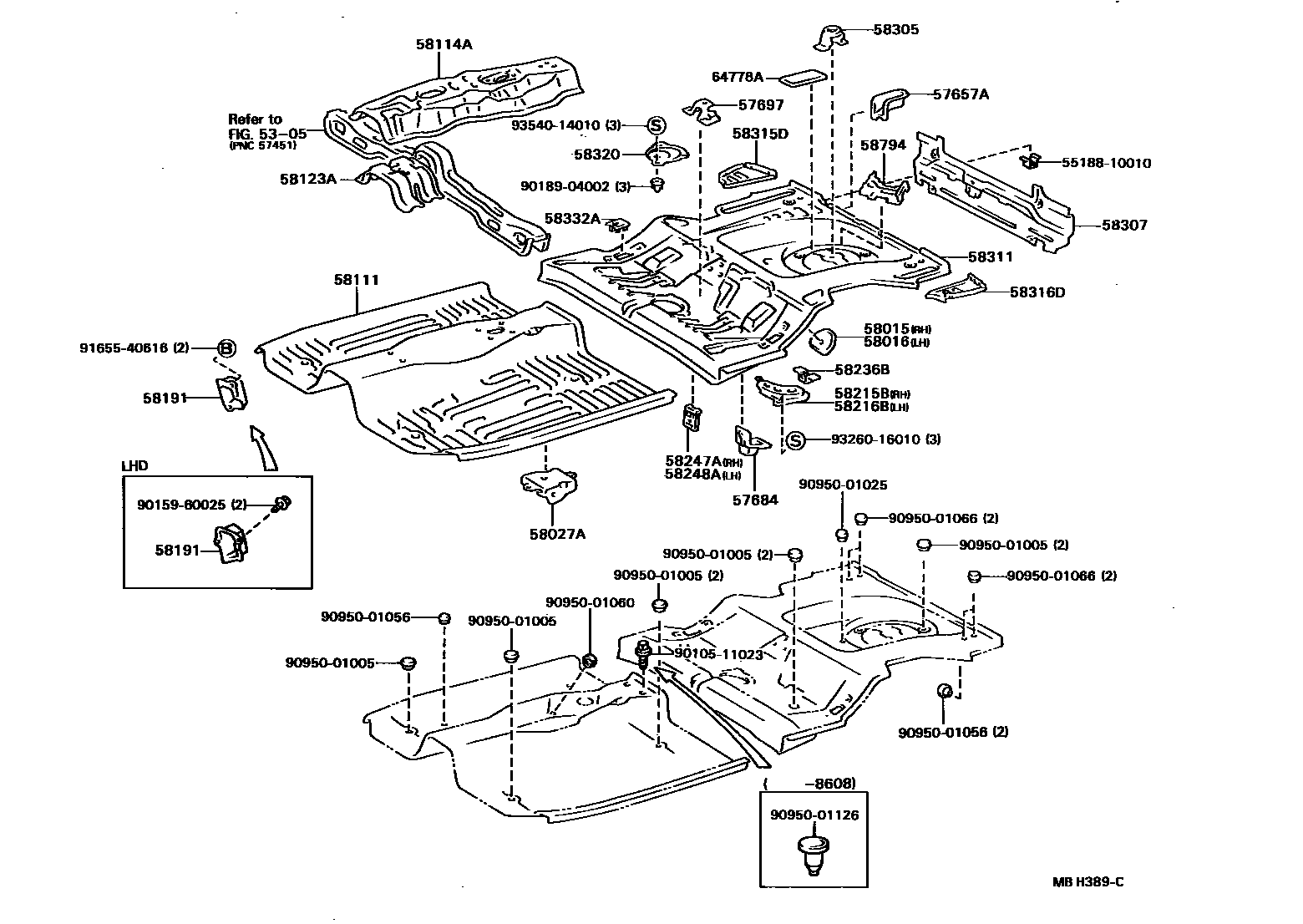

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57657A | No. 2 exhaust pipe mounting bracket | 57657-16010 |
| 57684 | fuel tank rear bracket | 57686-16011 · 57687-16011 |
| 57697 | Rear seat cushion fixings | 57697-16010 |
| 58015 | Right seat belt anchor to floor pan reinforcement | 58015-12010 · 58015-16010 |
| 58016 | Left-hand seat belt anchor to floor pan reinforcement | 58015-12010 · 58015-16010 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12010 · 58027-12020 |
| 58111 | front floor pan | 58111-12170 |
| 58114A | front floor reinforcement | 58114-12020 |
| 58123A | shift lever bracket | 58013-12010 |
| 58191 | Front floor footrest | 58191-12060 · 58192-12020 · 58192-12030 |
| 58215B | Rear right seat mounting bracket | 58215-16010 |
| 58216B | Rear left seat mounting bracket | 58216-16010 |
| 58236B | Central floor insulation pad bracket | 58236-14010 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-16010 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-16010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 |
| 58307 | Body lower back panel sub-assembly | 58307-12820 · 58307-12840 · 58307-12860 |
| 58311 | rear floor pan | 58311-12100 · 58311-12110 · 58311-16050 |
| 58313F | Rear floor pan to right side apron extension | 58313-12170 · 58313-12180 |
| 58314F | Rear floor pan to left side apron extension | 58314-12170 · 58314-12180 |
| 58315D | Rear floor pan right extension | 58315-12010 · 58315-12020 |
| 58316D | Rear floor pan left extension | 58316-12010 · 58316-12020 |
| 58316E | Rear seat assembly mounting bracket | 58316-16030 |
| 58320 | Rear floor access hole cover | 58325-16020 |
| 58332A | Rear floor side access hole cover | 58331-16010 · 58332-16010 |
| 58794 | jack bracket | 58791-12090 · 58791-16031 |
| 64215A | Right extension from rear floor to glove box | 64215-12010 |
| 64216A | Rear floor to glove box left extension | 64216-12010 |
| 64778A | Spare tire protection device | 64778-12010 · 64778-12020 |
