Toyota COROLLA 后保险杠及附件 — Figure 5202

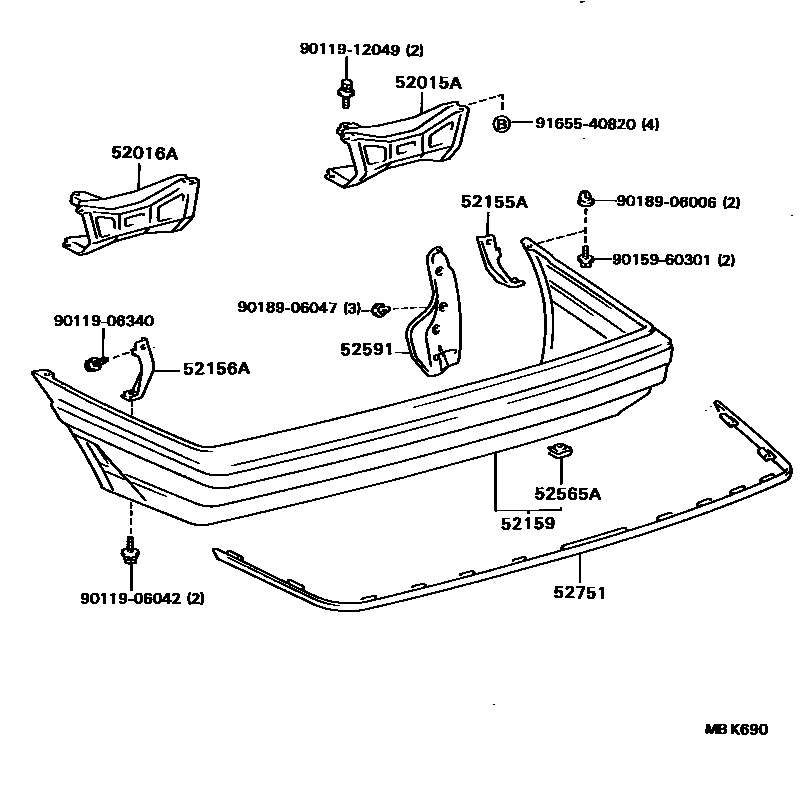

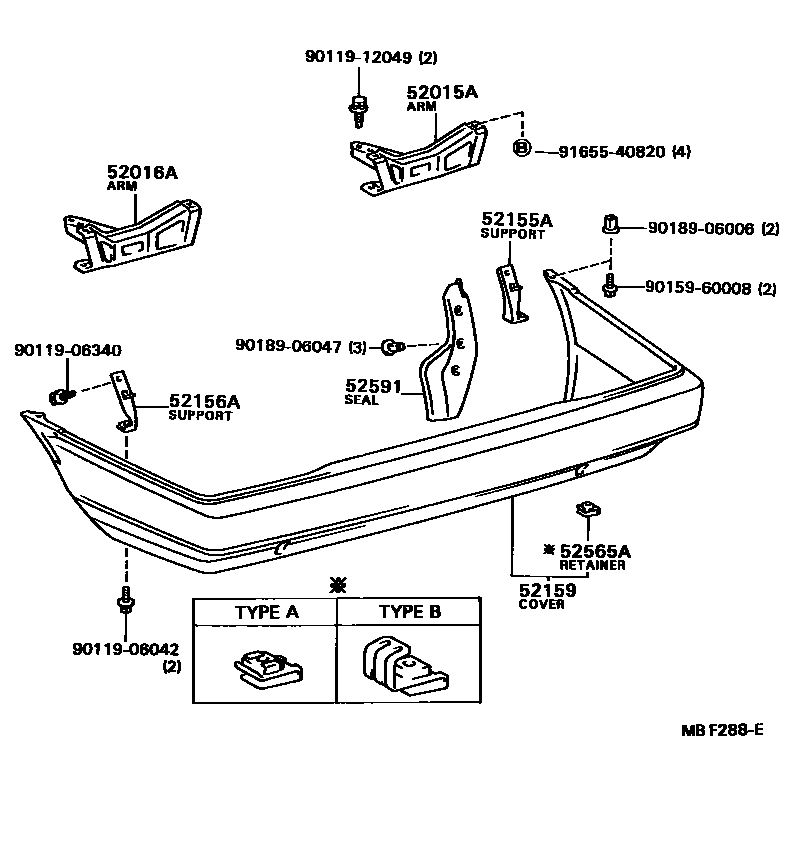

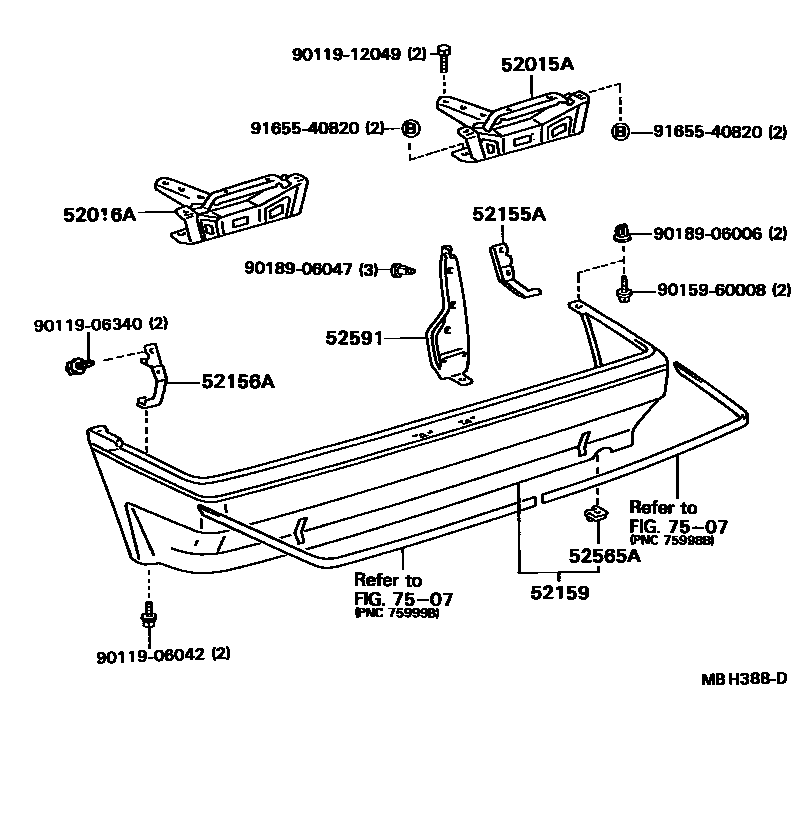

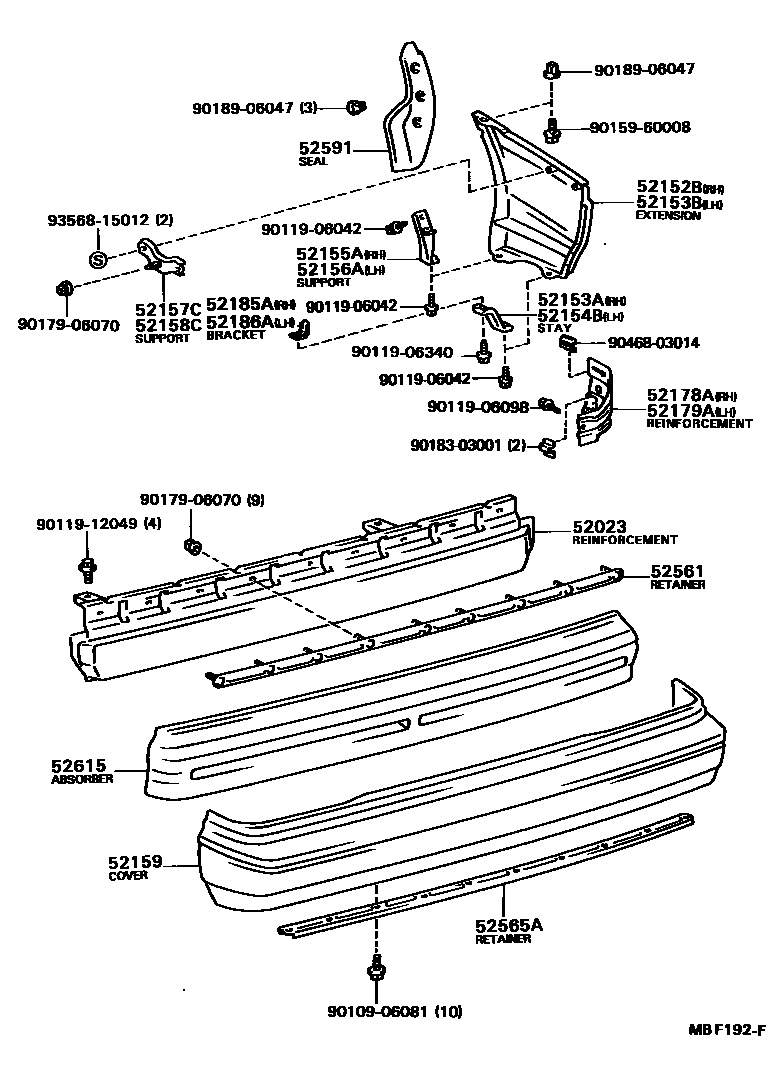

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12140 · 52015-12141 · 52015-12180 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12140 · 52016-12141 · 52016-12170 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12070 · 52023-12071 · 52023-12080 · 52023-12081 |
| 52152B | Rear bumper right extension | 52152-12150 |
| 52153A | Rear bumper right side stay | 52154-12050 · 52154-12060 |
| 52153B | Rear bumper left extension | 52153-12140 |
| 52154B | Rear bumper left support | 52154-12050 · 52154-12060 |
| 52155A | Rear bumper right side bracket | 52155-12120 · 52155-12130 · 52155-12140 |
| 52156A | Rear bumper left bracket | 52156-12100 · 52156-12110 · 52156-12120 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-12080 |
| 52158C | Rear bumper No. 2 left side bracket | 52157-12080 |
| 52159 | rear bumper cover | 52159-12130 · 52159-12131 · 52159-12140 · 52159-12141 · 52159-12170 · 52159-12180 · 52159-12280 · 52159-12500 |
| 52178A | Rear bumper right corner reinforcement | 52178-12020 |
| 52179A | Rear bumper left corner reinforcement | 52179-12030 |
| 52185A | Rear bumper right side bracket | 52185-12090 |
| 52186A | Rear bumper left bracket | 52185-12090 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12050 |
| 52565A | Rear bumper lower fixing bracket | 52565-12030 · 52565-12040 · 52565-12050 |
| 52591 | Rear bumper right seal | 52591-12020 · 52591-12030 · 52591-12040 |
| 52615 | Rear bumper energy absorber | 52615-12060 · 52615-12070 |
| 52751 | Rear bumper protection strip | 52751-12030 · 52751-12060 |
