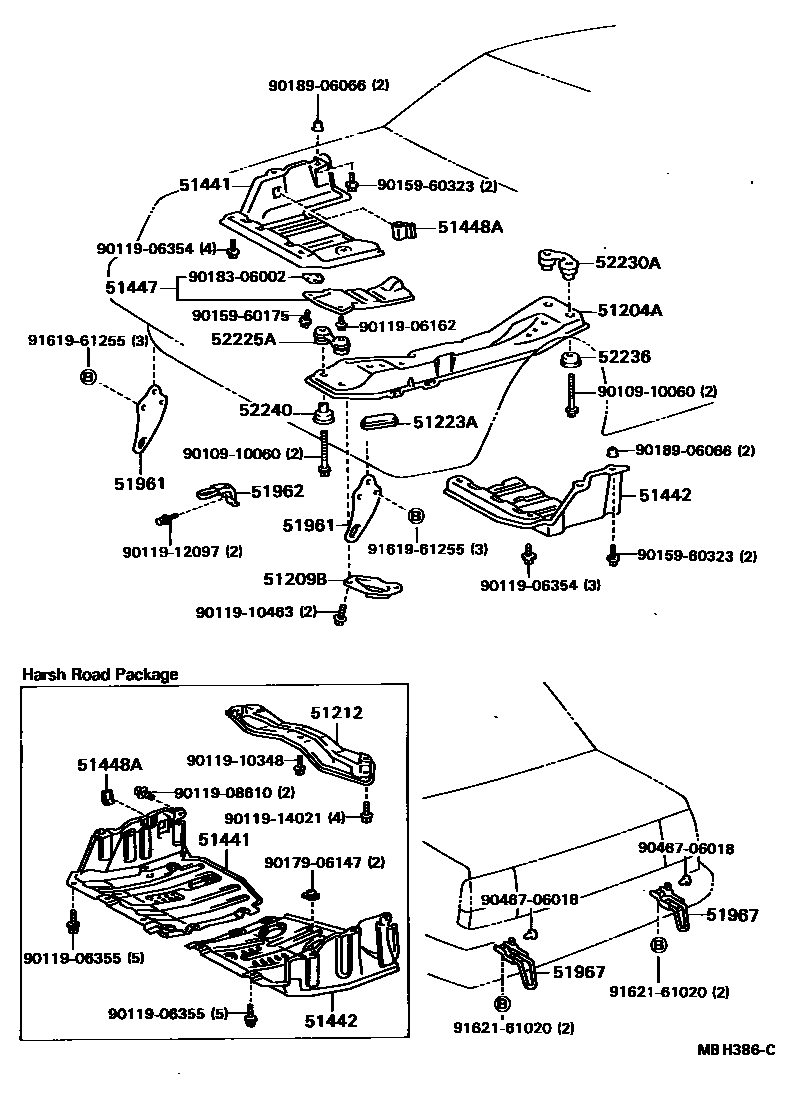

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51204A | Engine center mount beam sub-assembly | 51204-12020 · 51204-12030 · 51204-12031 · 51204-12032 · 51204-12050 · 51204-12051 · 51204-12052 |
| 51209B | Center beam front protective cover sub-assembly | 51209-20010 |
| 51212 | Front suspension lower cross member | 51212-20070 |
| 51223A | Engine mounting hole cover | 51223-20020 |
| 51441 | No. 1 engine bottom cover | 51408-12010 · 51408-20010 · 51441-12130 · 51441-12131 · 51441-20080 |
| 51442 | No. 2 engine bottom cover | 51409-20010 · 51442-20010 · 51442-20020 |
| 51447 | Engine underhood deflector | 51447-12070 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51961 | No. 1 hook | 51963-12080 · 51963-12110 · 51963-12120 · 51963-20060 |
| 51962 | Hook No. 2 | 51960-12020 · 51960-12030 |
| 51967 | Rear transport hook | 51095-12010 · 51095-12030 · 51095-16020 |
| 52225A | Fixed buffer pad on front center beam | 52225-20010 |
| 52230A | Fixed buffer pad assembly on rear center beam | 52230-20010 |
| 52236 | Fixed cushion pad under rear center beam | 52236-20010 |
| 52240 | Fixed buffer pad assembly under front center beam | 52240-20010 |
