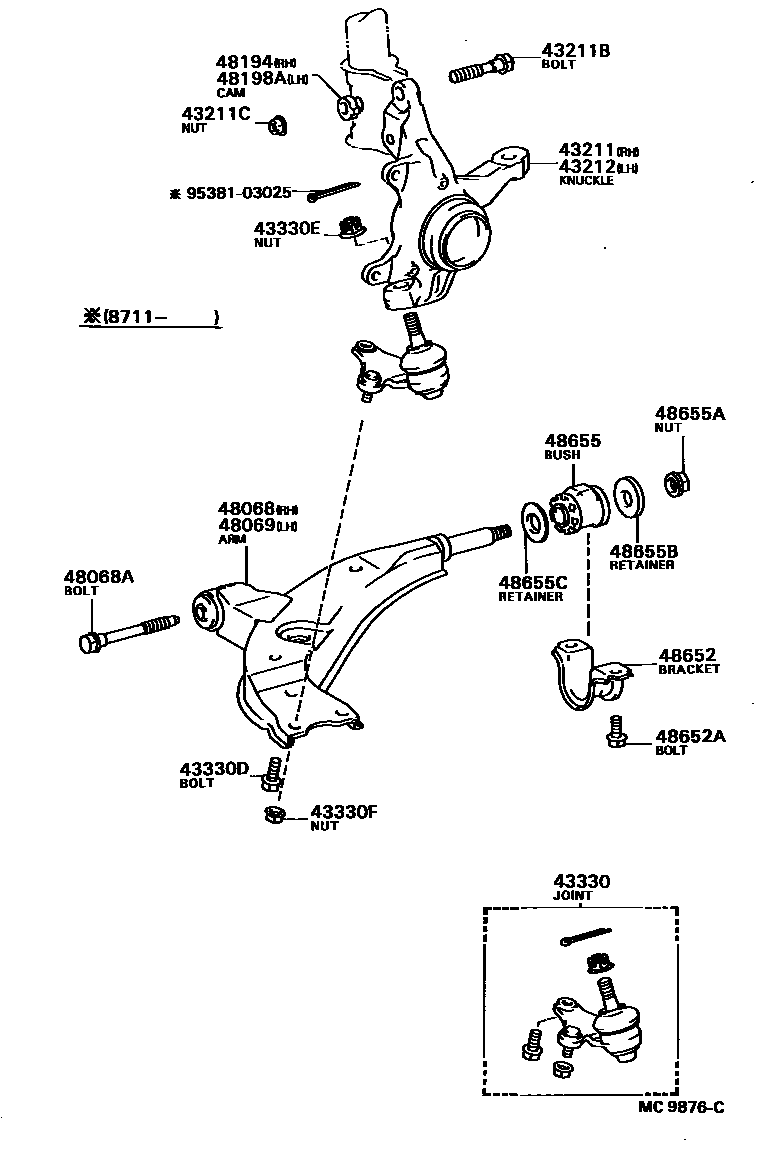

Toyota COROLLA 前桥控制臂和转向节 — Figure 4802
Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-12070 · 43211-12080 · 43211-20090 |
| 43211B | Bolts (for securing the shock absorber) | 90105-12042 · 90105-15001 |
| 43211C | Nut (for fixing the shock absorber) | 90179-12025 · 90179-15001 |
| 43212 | left steering knuckle | 43212-12030 · 43212-12040 · 43212-20050 |
| 43330 | Front lower ball joint assembly | 43330-29135 · 43330-29136 · 43330-29137 · 43330-29138 · 43330-29139 · 43330-29205 |
| 43330D | Bolt (for front lower ball joint) | 90105-10069 · 90119-10407 |
| 43330E | Castle nut (used to secure the front lower ball joint) | 90171-14003 · 90179-14015 |
| 43330F | Nut (used to secure the front lower ball joint) | 90179-10054 · 90179-10087 · 90179-10103 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-20150 · 48068-20151 |
| 48068A | Bolt (for front suspension lower arm) | 90105-12081 · 90119-12083 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-20150 · 48069-20151 |
| 48194 | Right camber angle adjustment cam | 48194-16010 · 48194-16011 · 48194-32010 · 48194-32020 |
| 48198A | Left camber angle adjustment cam | 48198-16010 · 48198-16011 · 48198-32010 · 48198-32020 |
| 48652 | Front lower arm brace | 48652-20030 |
| 48652A | Bolt (for front lower arm bracket) | 90105-12061 |
| 48655 | No. 2 lower arm bushing | 48655-20030 |
| 48655A | Nut (for suspension No. 2 lower arm bushing) | 90179-14006 |
| 48655B | No. 1 Cushion Pad Block (for Suspension No. 2 Lower Arm Bushing) | 90948-02060 |
| 48655C | No. 2 Cushion Pad Block (for Suspension No. 2 Lower Arm Bushing) | 90948-02061 |
