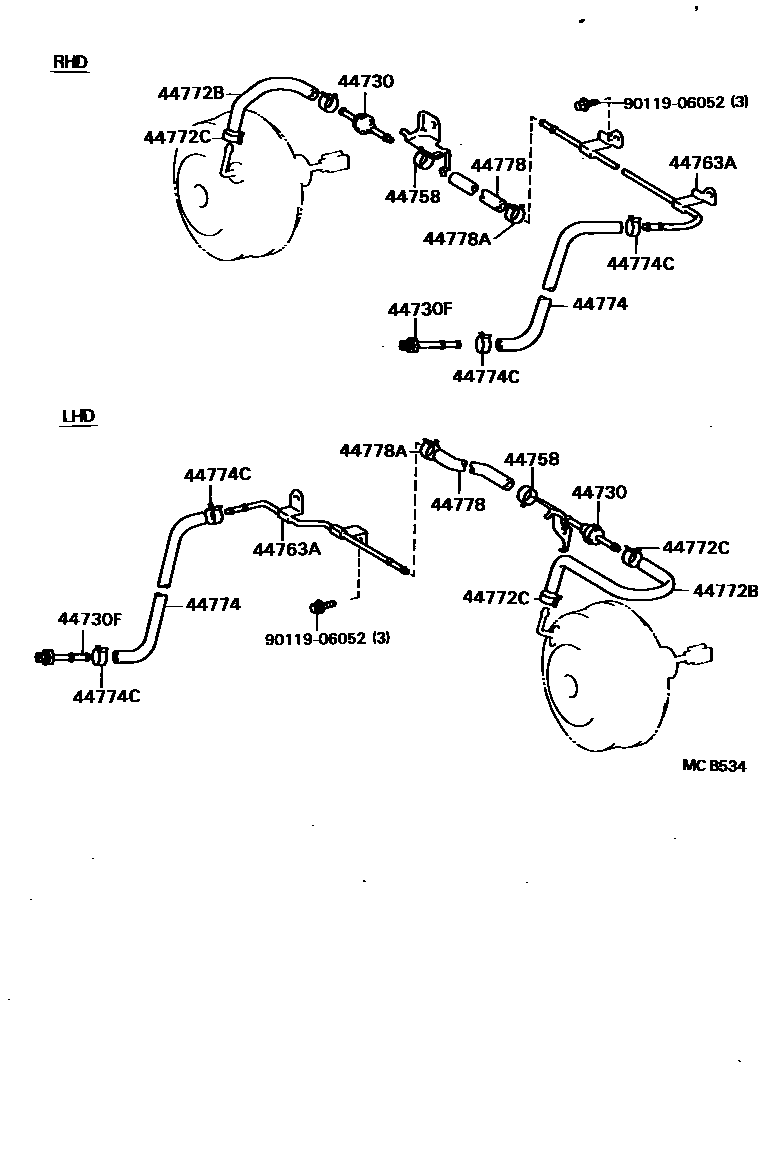

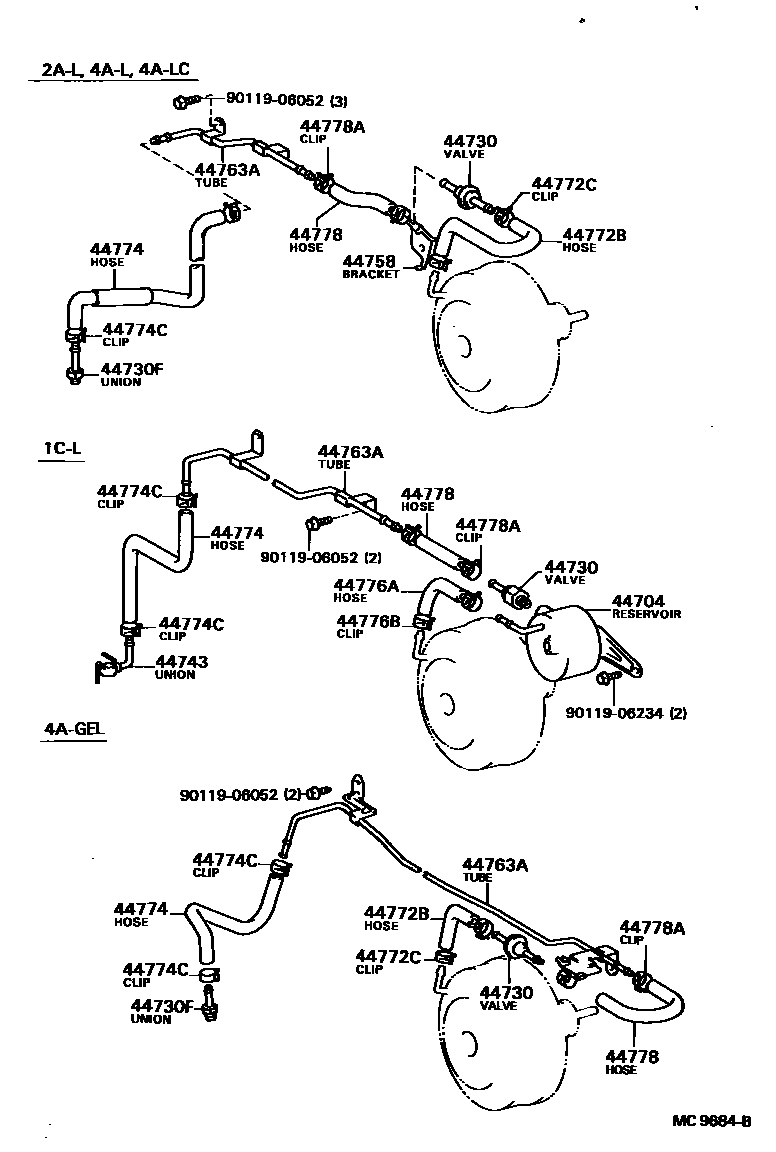

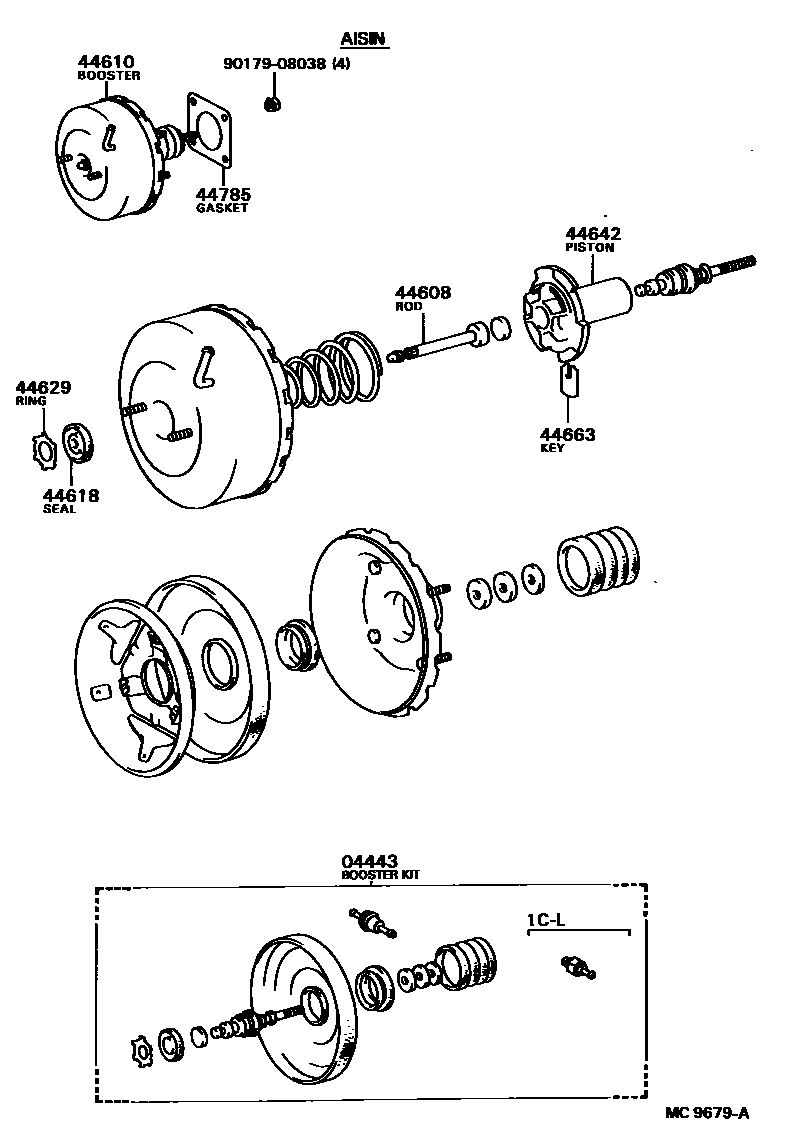

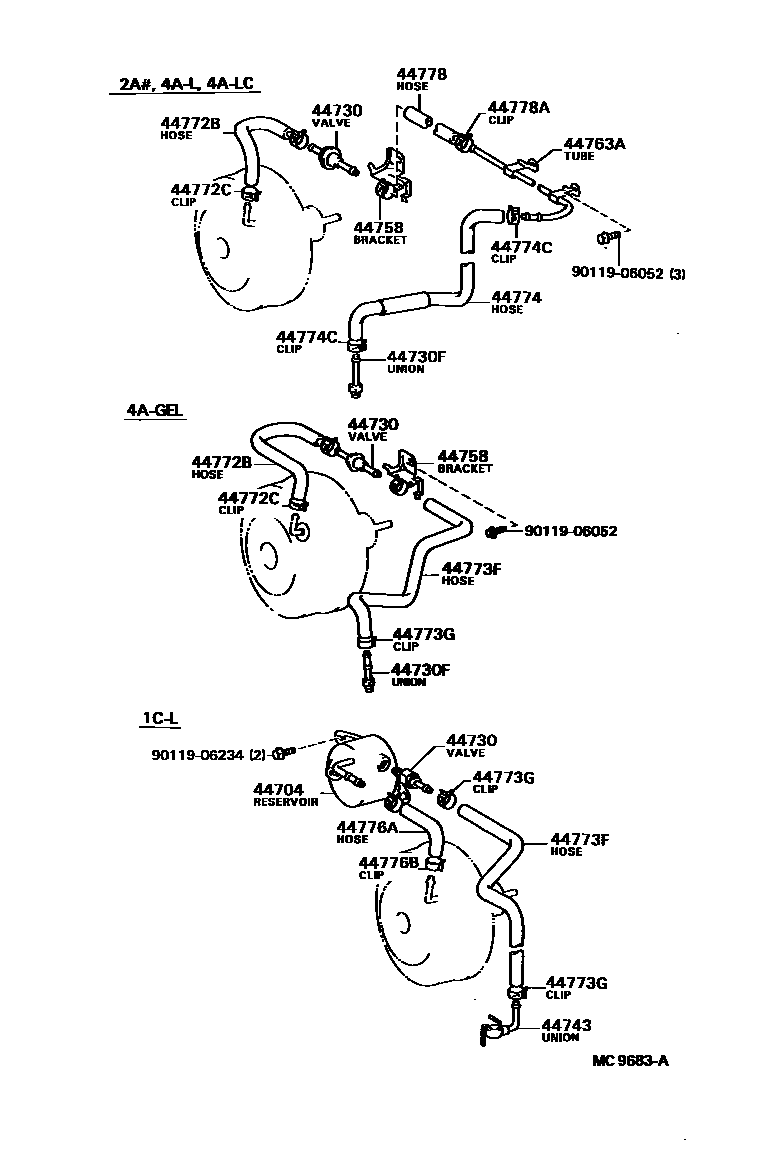

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04443 | brake booster components | 04443-12300 · 04443-12310 · 04443-12340 · 04443-12350 · 04443-12440 |
| 44608 | Booster push rod sub-assembly | 44606-12520 |
| 44610 | brake booster assembly | 44610-12510 · 44610-12520 · 44610-12530 · 44610-12540 · 44610-12580 · 44610-12590 |
| 44618 | Booster body sealing ring | 44621-28120 |
| 44629 | annular inner ring | 44628-28120 |
| 44642 | brake booster piston | 44642-12520 · 44642-16050 |
| 44663 | valve stop key | 44635-28120 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-12010 · 44704-12020 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 · 44730-60040 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51028 · 90404-51034 |
| 44743 | Connector (for vacuum pump) | 90405-09075 · 90405-09080 |
| 44758 | Vacuum check valve bracket | 44758-12210 · 44758-12220 · 44758-12260 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12010 · 44763-12020 · 44763-12030 · 44763-12060 |
| 44772B | Hoses (check valve to brake booster) | 44772-12190 · 44772-12200 · 44772-12201 · 44772-12300 · 44772-12310 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16002 |
| 44773F | Hoses (connector to check valve) | 44773-12290 · 44773-12350 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16002 |
| 44774 | Hoses (joints to connector tubes) | 44774-12030 · 44774-12040 · 44774-12050 · 44774-12060 · 44774-12070 · 44774-12080 · 44774-12081 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16002 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-12010 · 44776-12020 |
| 44776B | Clamp (for vacuum reservoir to brake booster) | 90467-16002 |
| 44778 | Hoses (connector to check valve) | 44772-12240 · 44772-12320 · 95441-09110 · 95441-09140 |
| 44778A | Clip (for connector to check valve hose) | 90467-16002 |
| 44785 | brake booster pad | 44785-32010 |
