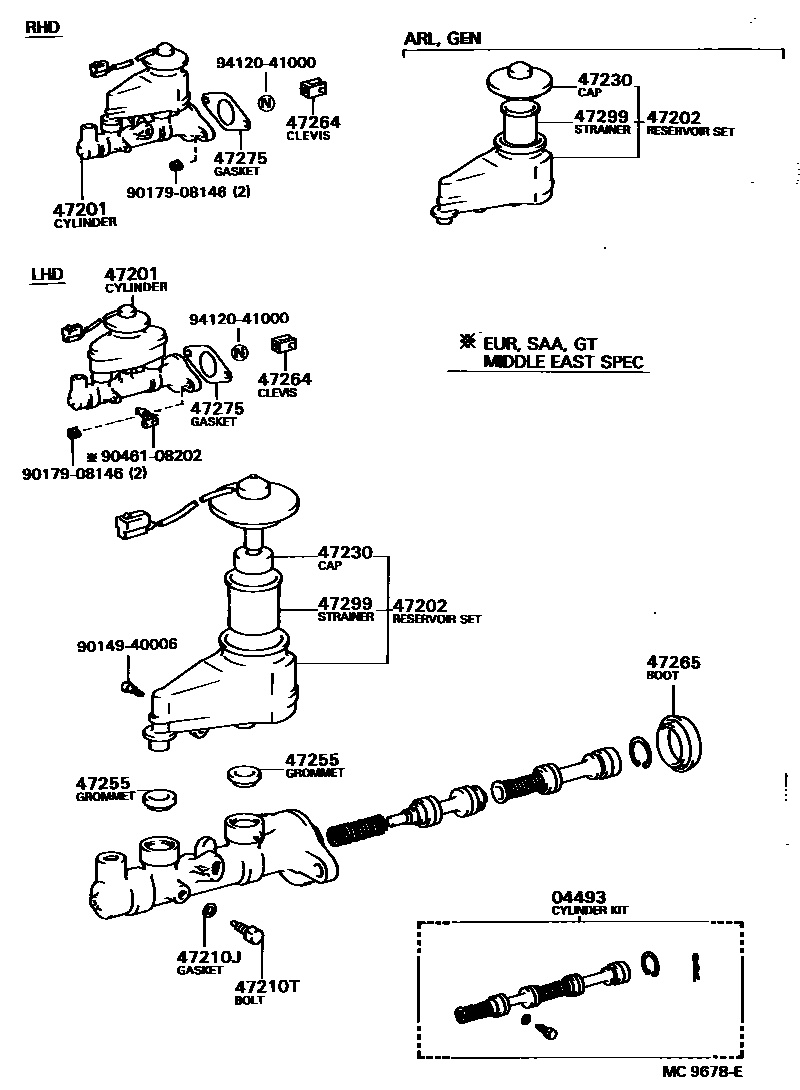

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-12130 · 04493-12140 |
| 47201 | Brake master cylinder sub-assembly | 47201-12400 · 47201-12410 · 47201-12420 · 47201-12430 · 47201-12440 · 47201-12450 · 47201-12480 · 47201-12490 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47202-12320 · 47202-12330 · 47202-12340 · 47202-12350 · 47202-12360 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 · 84460-12060 · 84460-12070 · 84460-12080 |
| 47255 | Master pump reservoir seal | 47255-10010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-10080 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-14010 |
| 47299 | Brake master cylinder reservoir filter | 47299-32010 |
