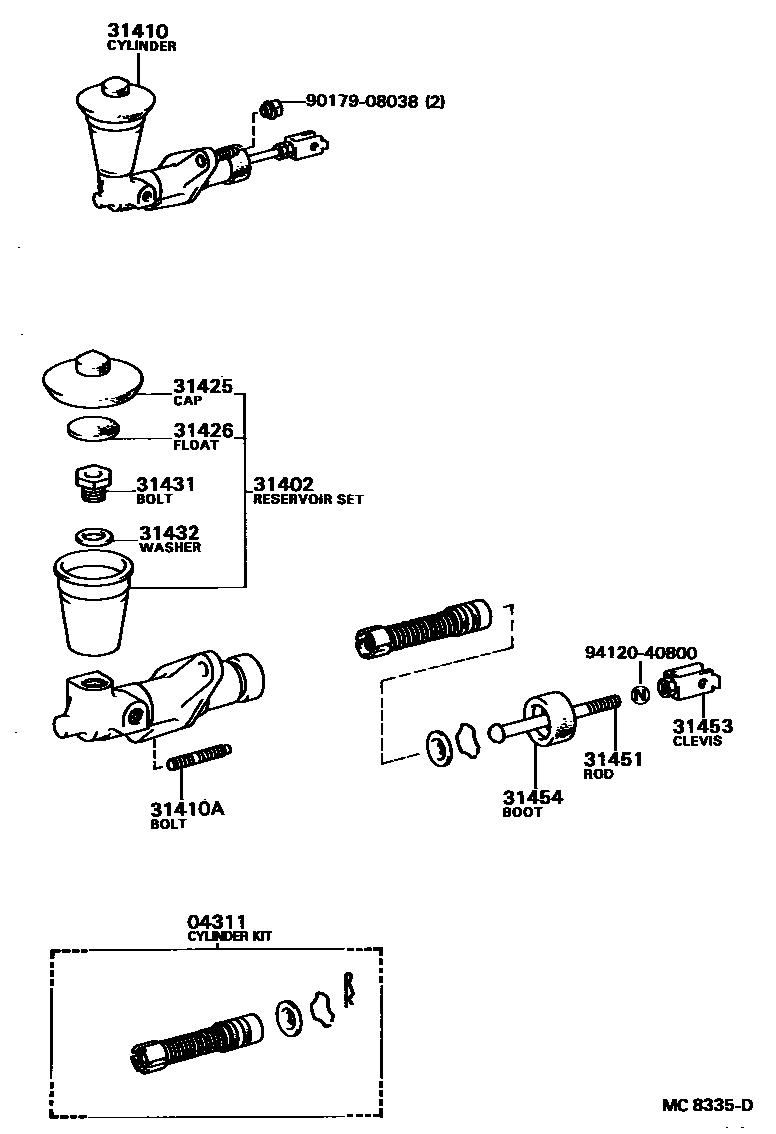

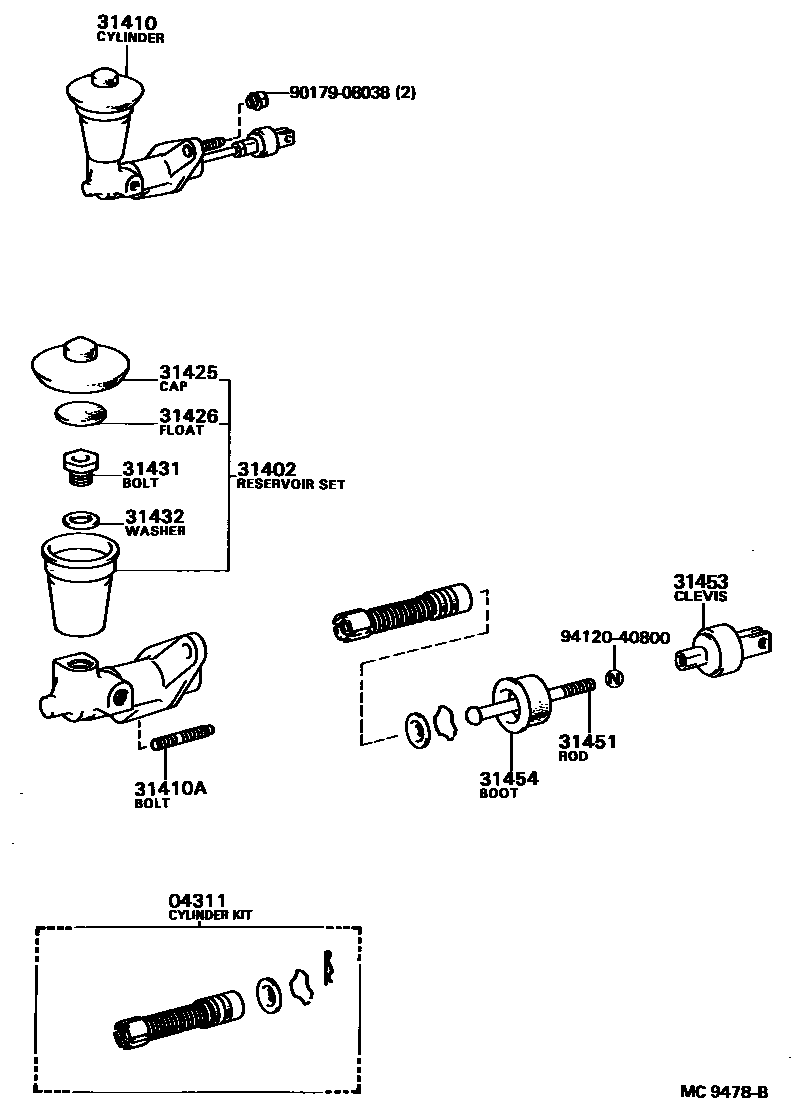

Toyota COROLLA 离合器总泵 — Figure 3103
Toyota COROLLA EPC diagram 3103, 离合器总泵, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12030 · 04311-17030 · 04311-22020 · 04311-22021 · 04311-22022 · 04311-30080 · 04311-32010 · 04311-32011 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-12010 · 31402-30030 |
| 31410 | Clutch master cylinder assembly | 31410-12110 · 31410-12111 · 31410-12112 · 31410-12120 · 31410-12121 · 31410-12122 · 31410-12130 · 31410-12150 · 31410-12151 · 31410-12152 · 31410-12160 · 31410-12161 · 31410-32040 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08146 |
| 31425 | Clutch master cylinder reservoir tank filler cap | 31440-35010 · 47230-20040 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31431 | Clutch master cylinder reservoir fixing bolt | 47231-30010 |
| 31432 | Clutch reservoir retaining bolt washer | 47232-30010 |
| 31451 | Clutch master cylinder push rod | 31451-12040 · 31451-12060 · 31451-14010 · 31451-20050 · 31451-22060 · 31451-22070 · 31451-30060 · 31451-32010 · 31451-32020 · 31451-32040 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-28011 · 31404-30041 · 31453-22010 · 31453-35010 |
| 31454 | Clutch master cylinder dust boot | 31454-14010 · 31454-24010 |
