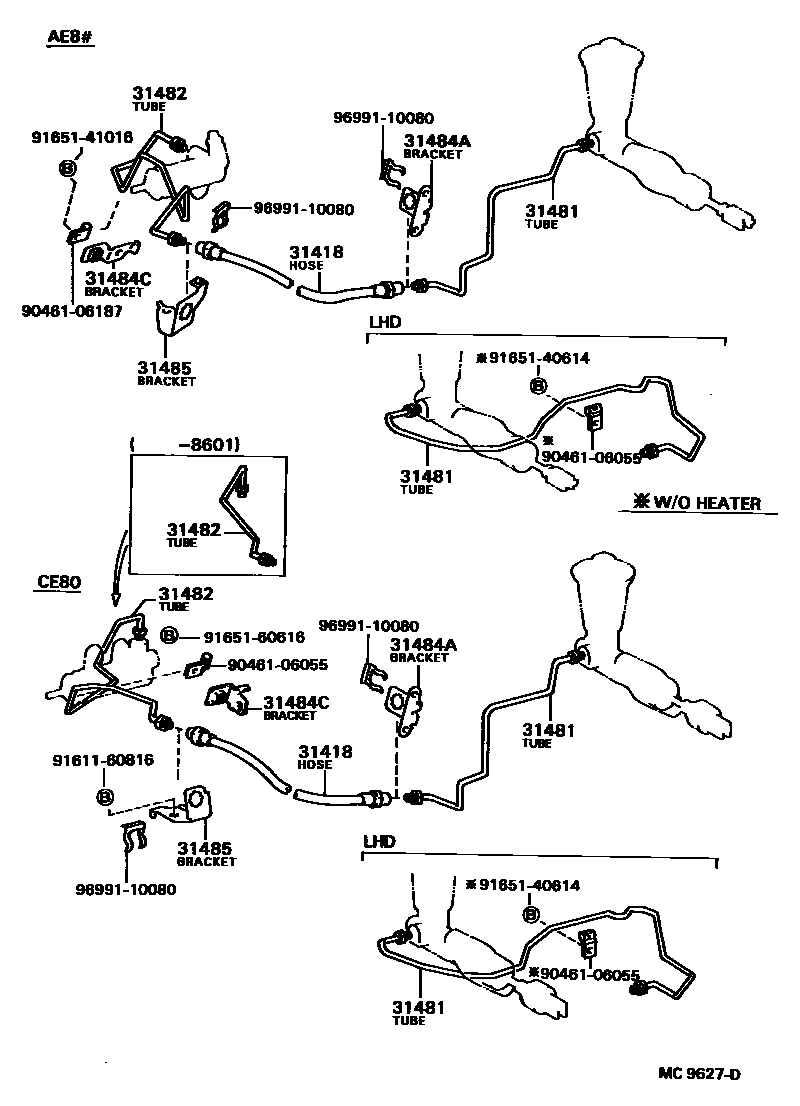

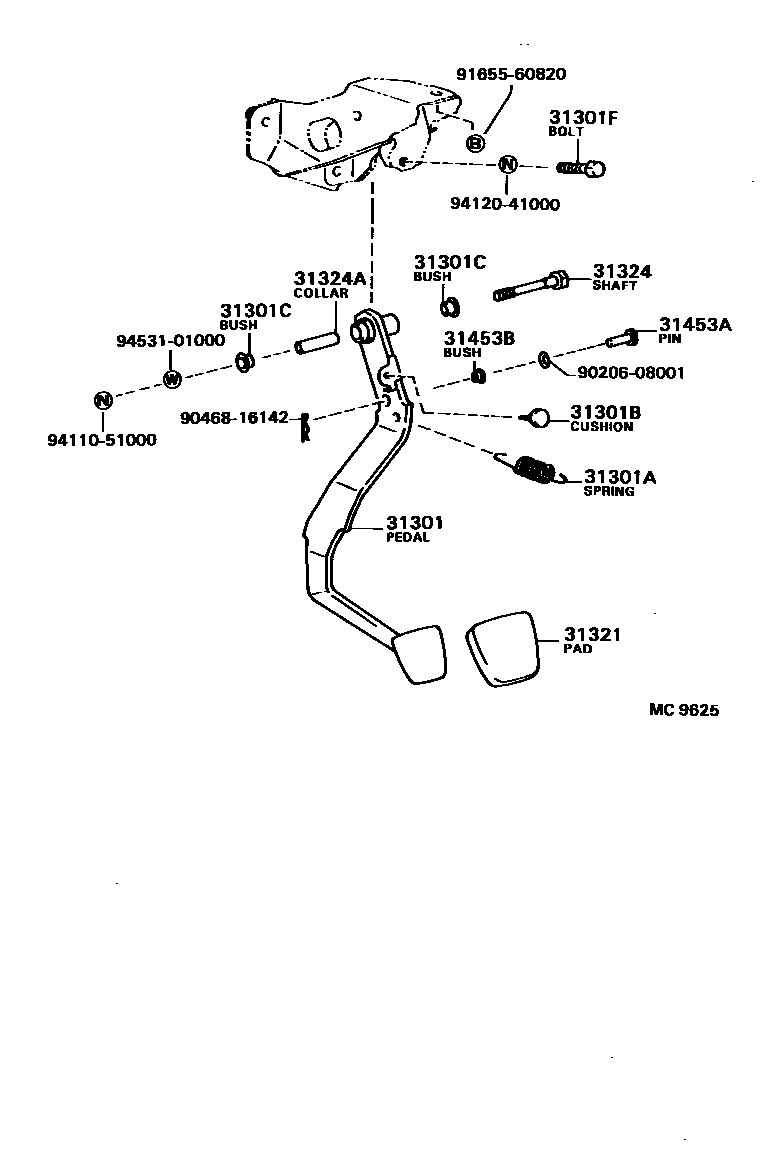

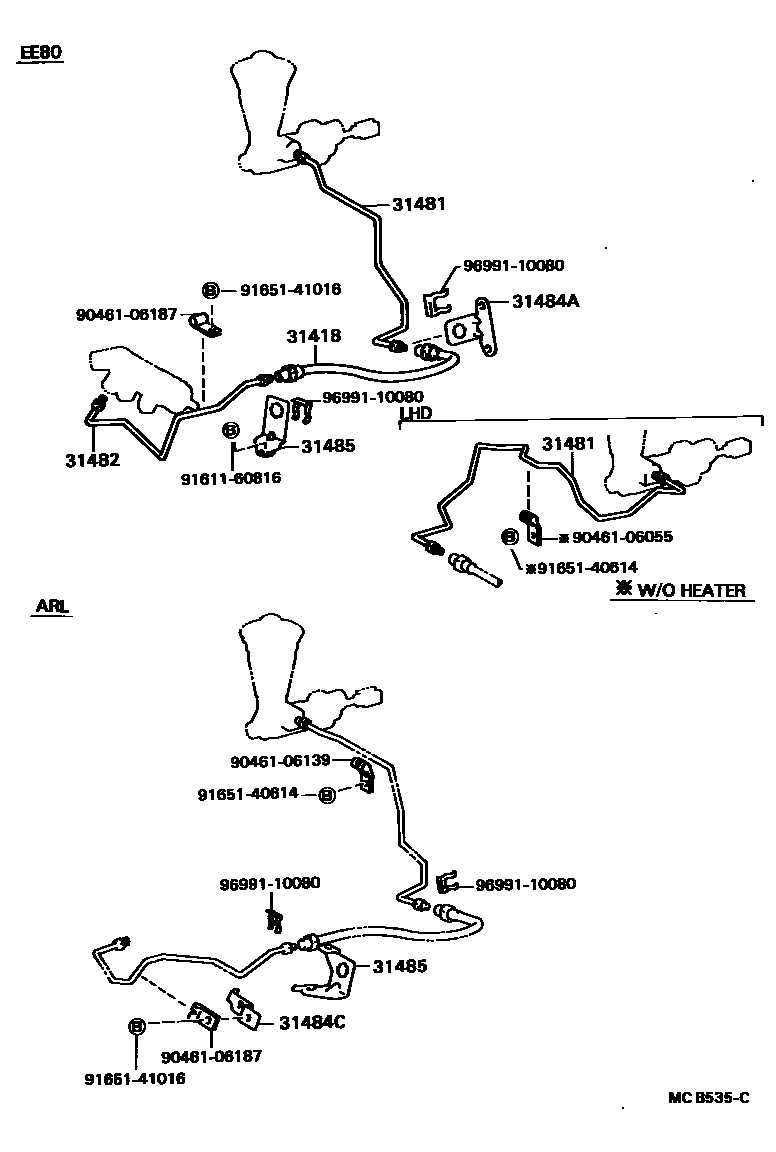

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-12220 · 31301-12250 |
| 31301A | Spring (for clutch pedal) | 90506-14002 · 90506-14052 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06008 |
| 31301C | Bushing (for clutch pedal) | 90386-13192 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31321 | clutch pedal pad | 31321-12030 · 31321-12040 |
| 31324 | clutch pedal shaft | 90101-10015 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31418 | clutch hose | 90931-01002 · 90931-01003 · 90931-01004 · 96816-50335 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90240-08006 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12100 · 31481-12110 · 31481-12150 · 31481-12160 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-12010 · 31482-12020 · 31482-12030 · 31482-32010 · 31482-32020 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-12050 |
| 31484C | No. 1 clutch tube bracket | 31484-12100 · 31484-32050 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12060 · 31484-12080 · 31484-12090 · 31484-32020 |
