Toyota COROLLA 化油器 — Figure 2103

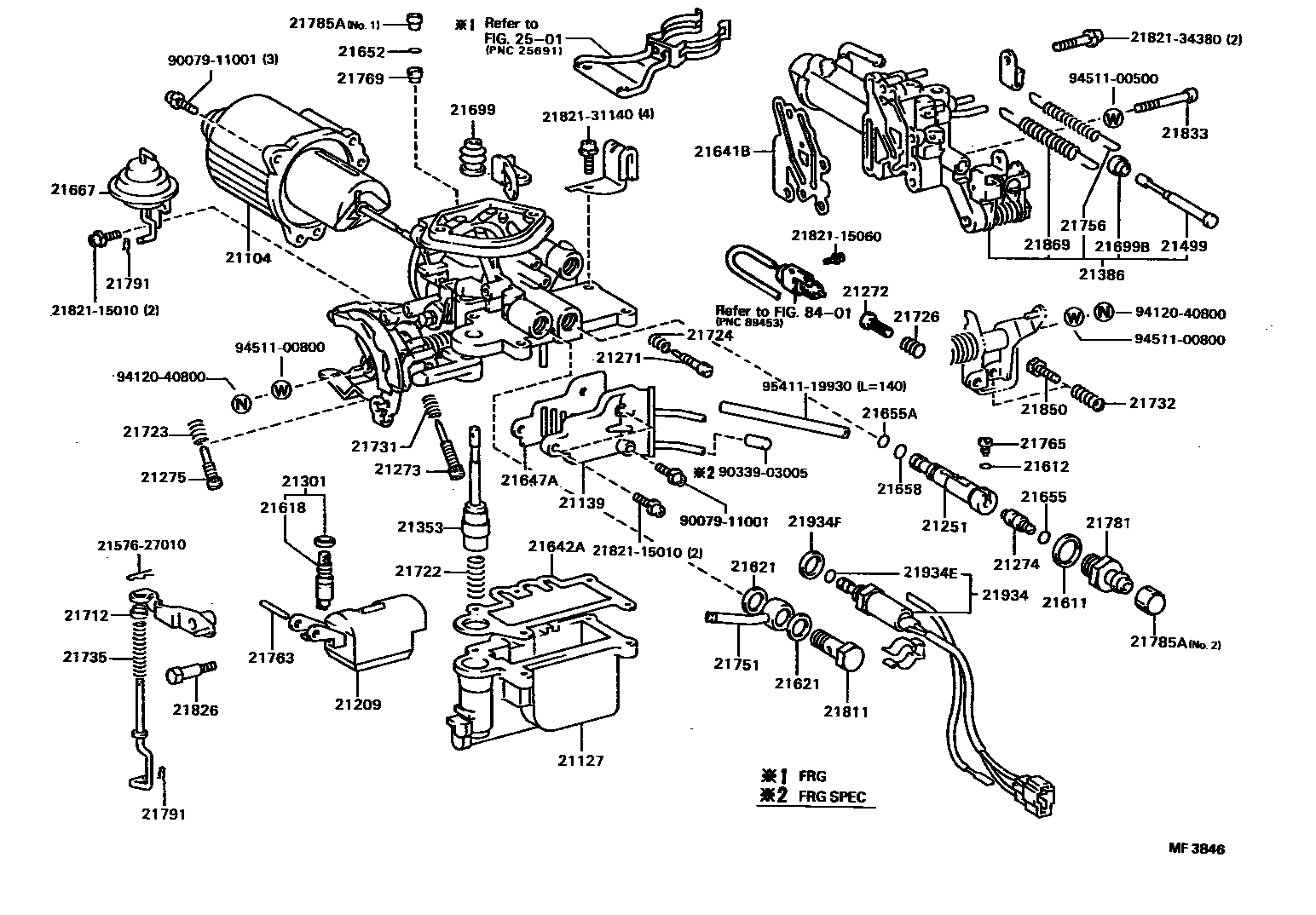

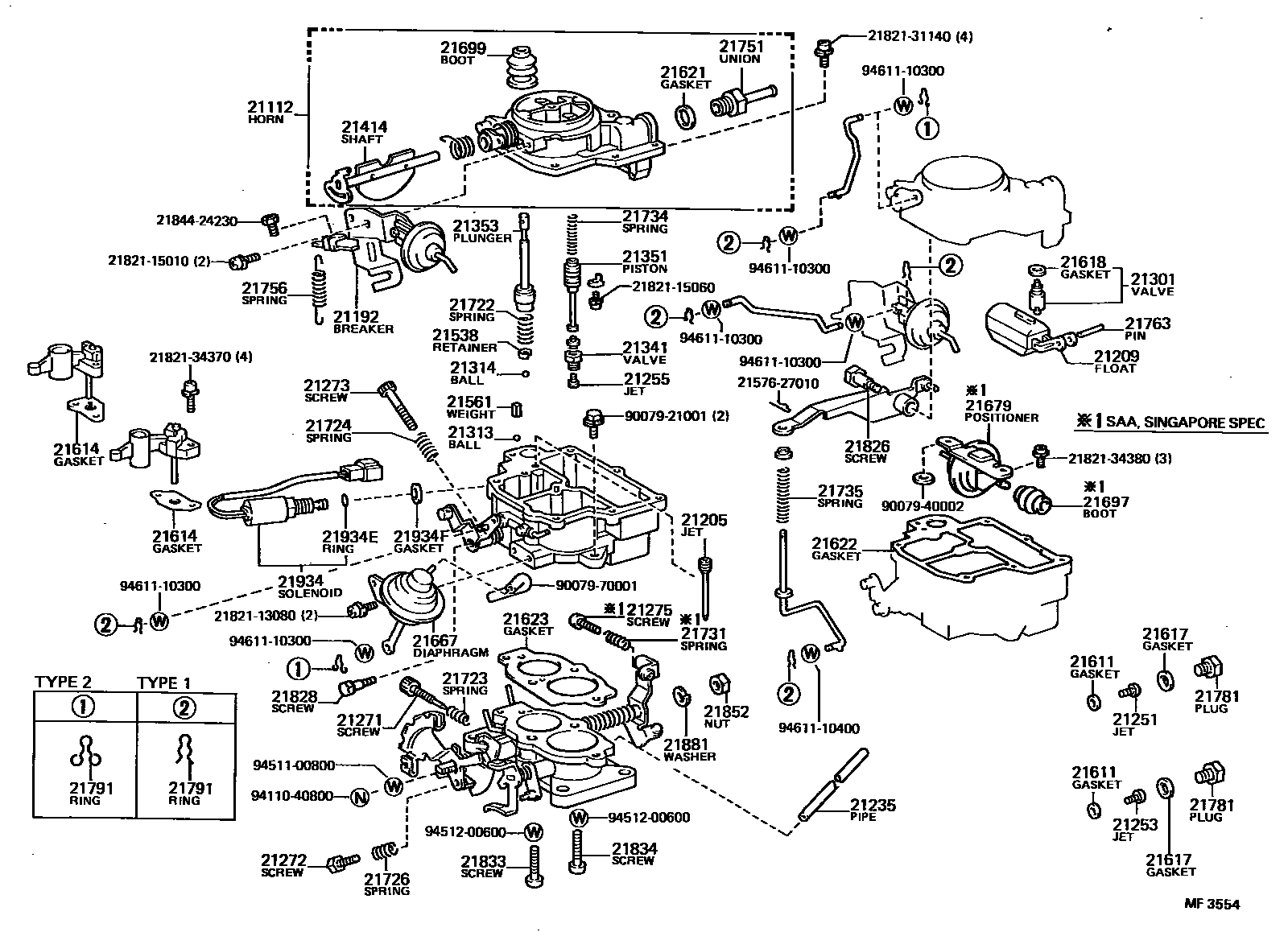

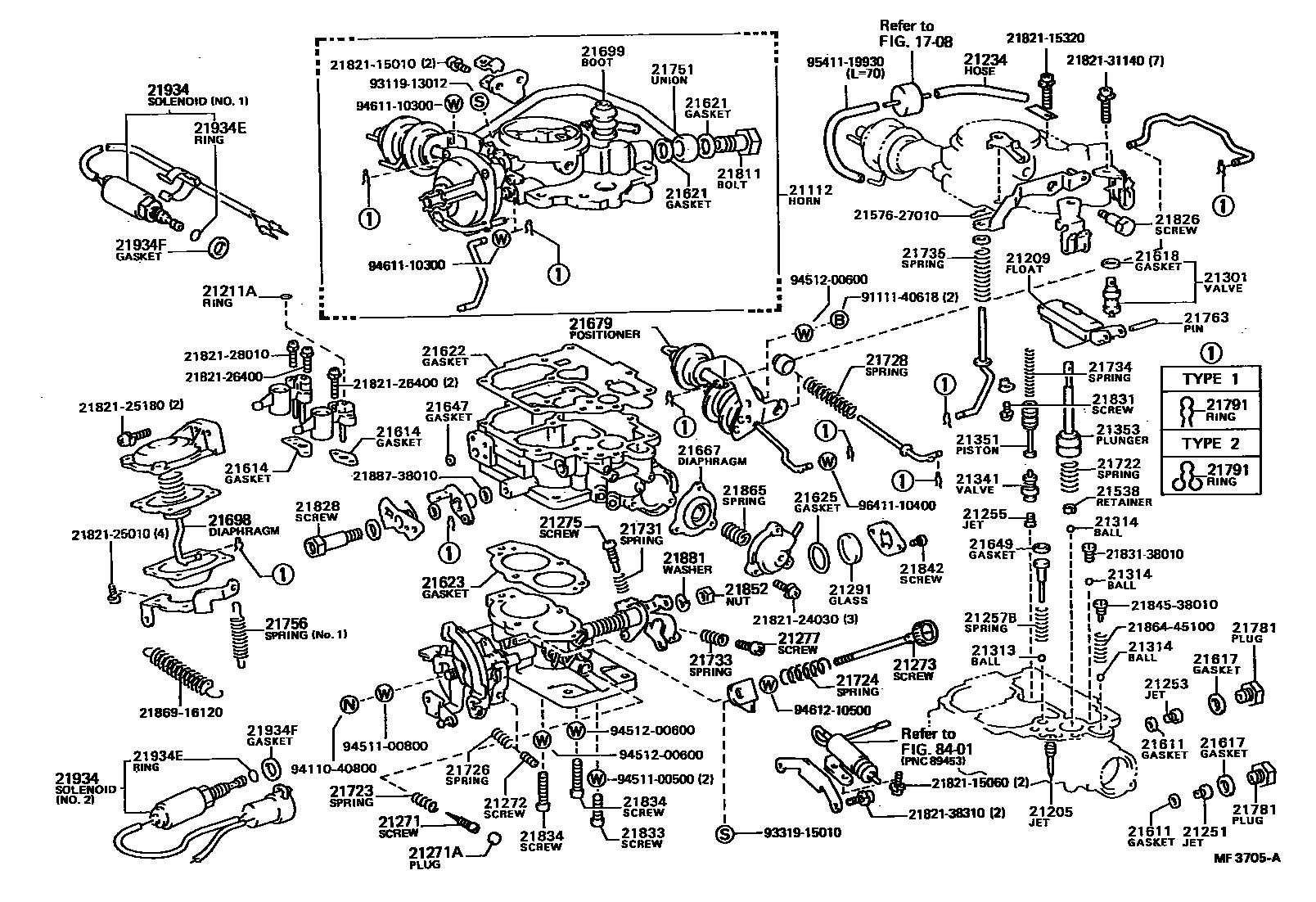

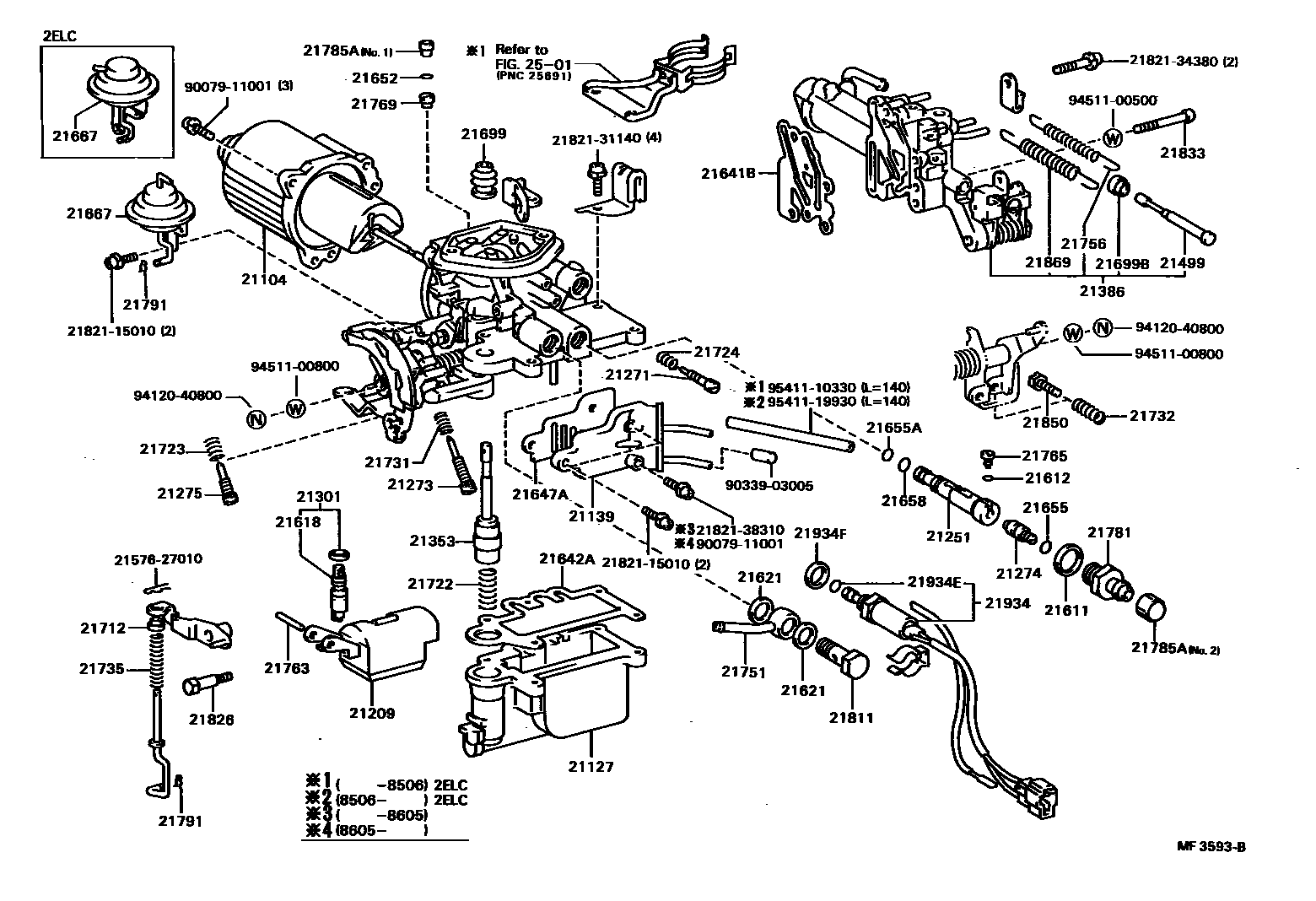

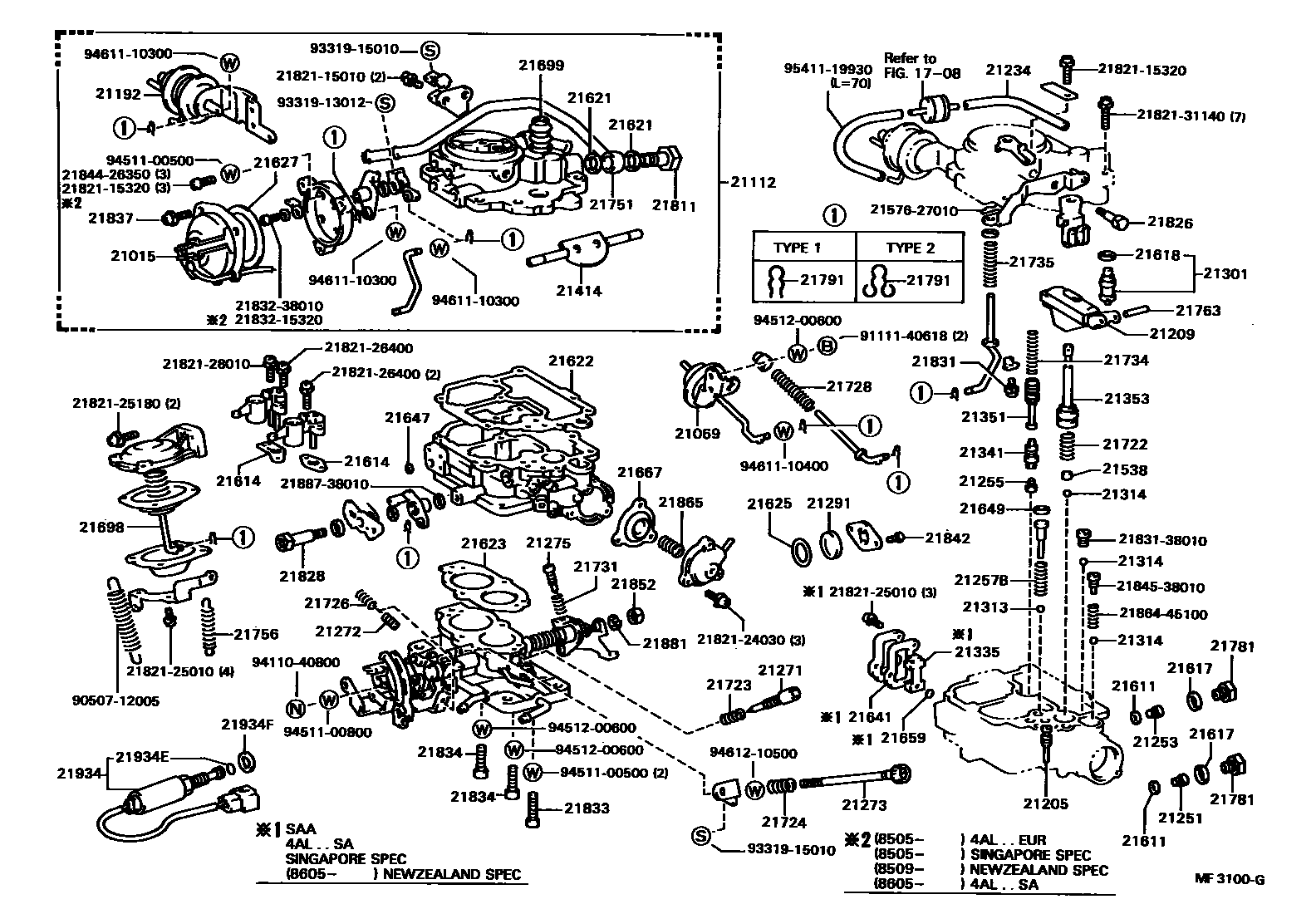

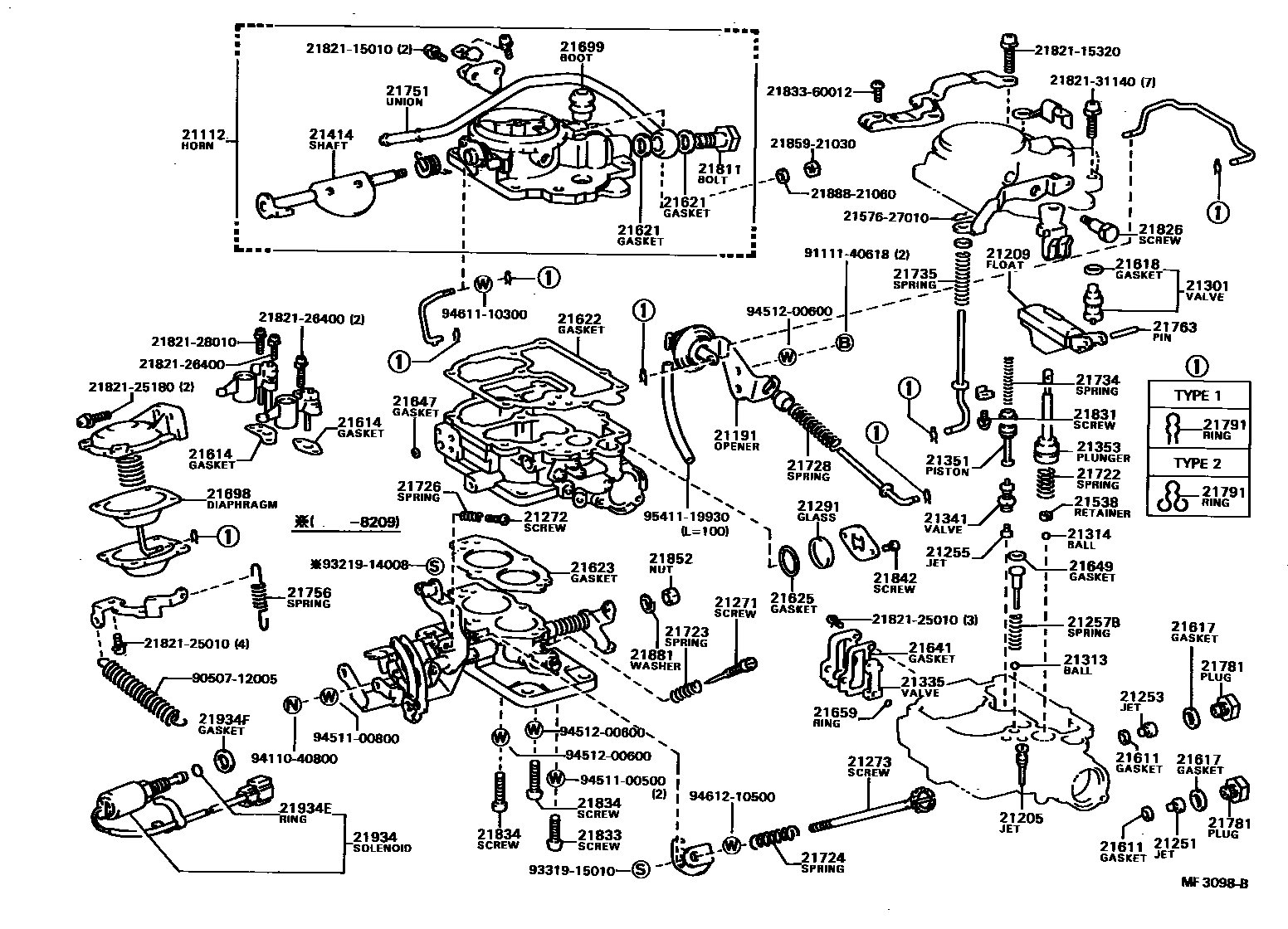

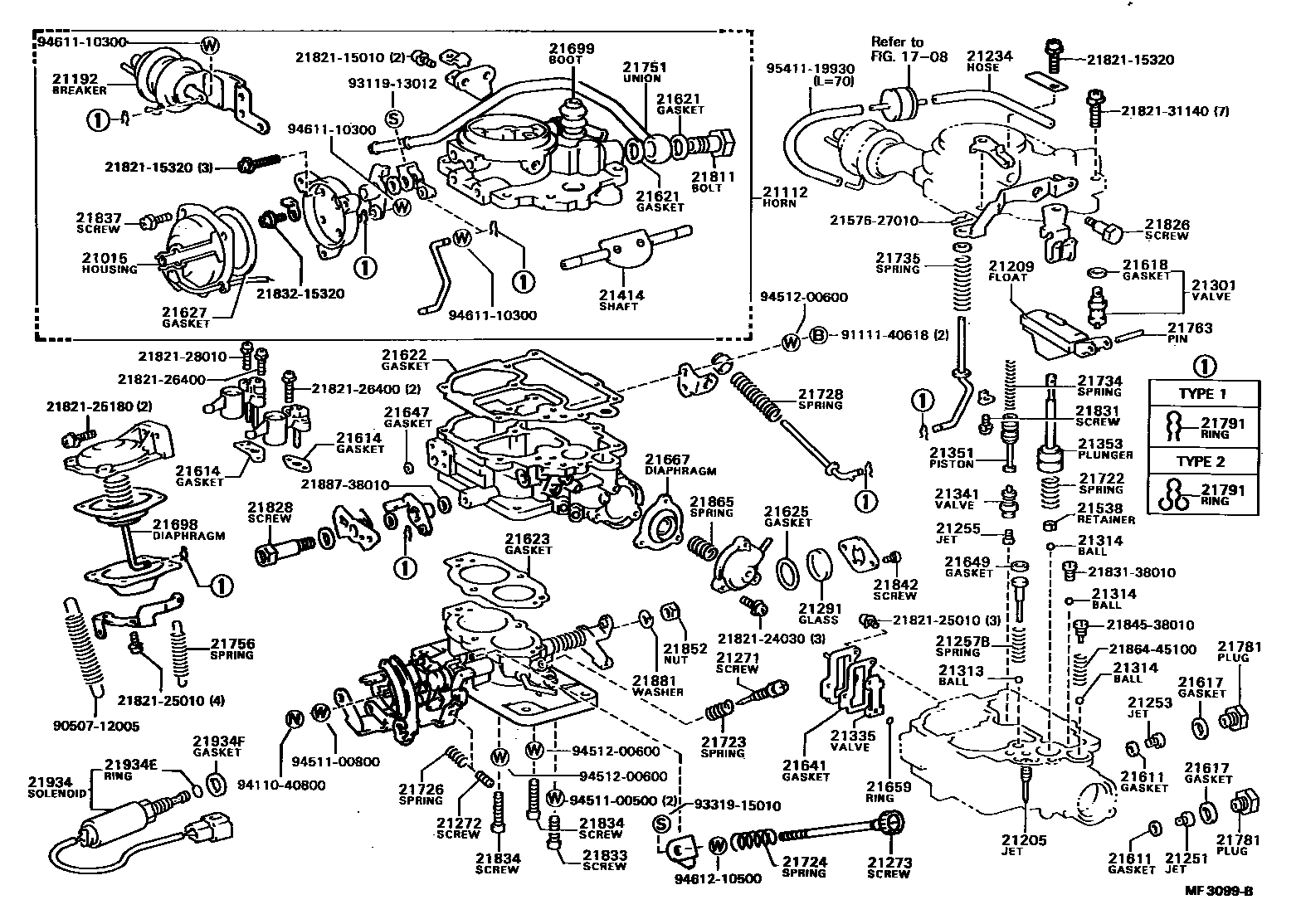

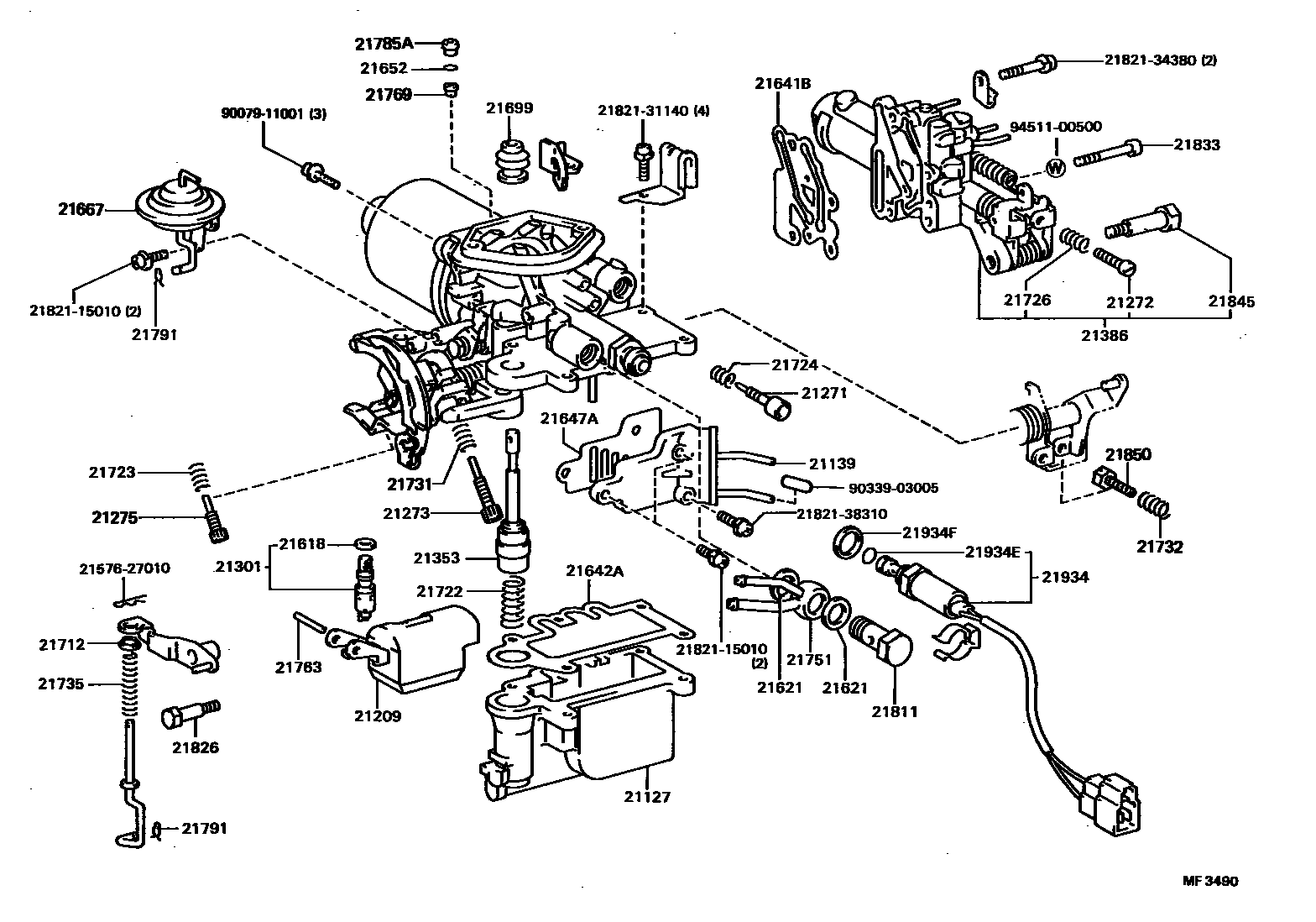

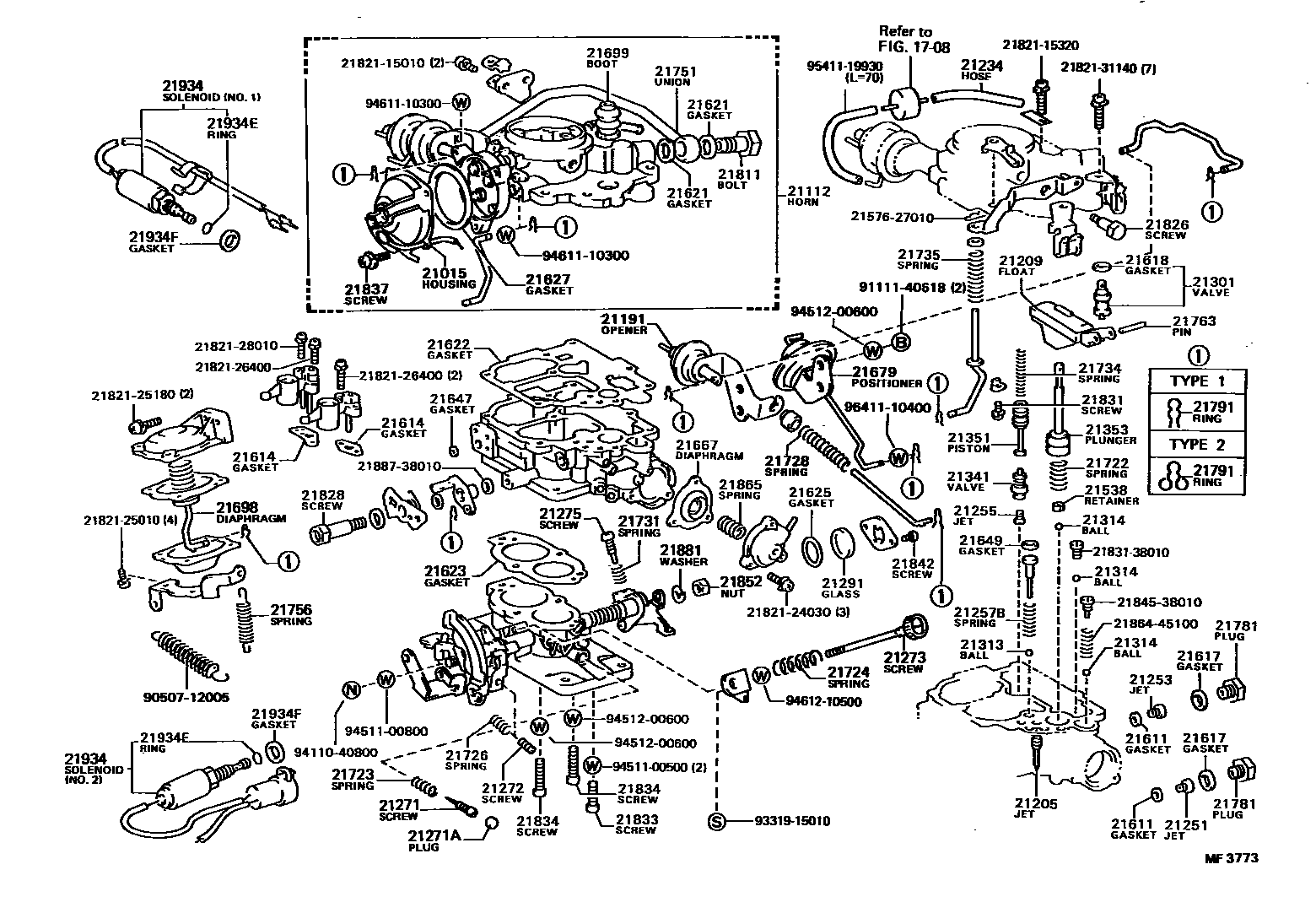

Toyota COROLLA EPC diagram 2103, 化油器, with 9 images and 100 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-15050 · 21015-16140 |
| 21069 | Deceleration buffer sub-assembly | 21069-15040 · 21069-15290 |
| 21104 | Suction chamber sub-assembly | 21014-11140 · 21014-11150 · 21014-11151 · 21014-11153 · 21014-11154 · 21014-11160 · 21014-11162 · 21014-11290 · 21014-11410 |
| 21112 | Air intake bell mouth | 21112-10050 · 21112-11190 · 21112-14130 · 21112-14131 · 21112-14140 · 21112-14141 · 21112-14150 · 21112-16120 · 21112-16210 · 21112-16240 |
| 21127 | float room | 21127-11090 · 21127-11150 · 21127-11270 |
| 21139 | Adapter (for carburetor connecting pipe) | 21139-11090 · 21139-11150 · 21139-11390 |
| 21191 | opener | 21191-15320 · 21191-25231 |
| 21192 | breaker | 21192-10050 · 21192-14130 |
| 21205 | Idle speed measuring hole assembly | 21205-24510 · 21205-25200 · 21205-26800 · 21205-27040 · 21205-31430 |
| 21209 | Float sub-assembly | 21209-11090 · 21209-13310 · 21209-15020 |
| 21211A | Ring (for small venturis) | 21659-38110 |
| 21234 | pipe or hose | 21249-13090 |
| 21235 | Connecting pipe or connecting hose | 21235-10050 · 21235-11190 |
| 21251 | first main measuring hole | 21251-11090 · 21251-15460 · 21251-15461 · 90999-41099 · 90999-41100 · 90999-41103 · 90999-41104 · 90999-41105 |
| 21253 | Deputy main measuring hole | 90999-42150 · 90999-42153 · 90999-42162 · 90999-42177 |
| 21255 | Power measuring hole | 90999-43040 · 90999-43047 · 90999-43060 · 90999-43068 · 90999-43080 |
| 21257B | Spring (for accelerating the nozzle) | 21864-26020 |
| 21271 | Idle speed adjustment screw | 21271-11150 · 21271-15160 · 21271-15230 · 21271-24100 · 21271-24390 · 21271-26371 · 21271-26440 |
| 21271A | Idle speed limiter plug | 21785-13210 |
| 21272 | First gear idle speed adjustment screw | 21276-11090 · 21828-11180 · 21828-25180 · 21844-33010 · 90079-13001 |
| 21273 | Throttle adjustment screw | 21273-11090 · 21273-14130 · 21273-24231 |
| 21274 | First throttle adjustment screw | 21275-11090 · 21275-15460 |
| 21275 | Adjustment screw | 21273-60151 · 21275-10050 · 21842-28090 · 21844-33010 |
| 21277 | Low idle speed adjustment screw | 21844-15230 |
| 21291 | oil level gauge glass | 21291-34320 |
| 21301 | Needle valve sub-assembly | 21301-11140 · 21301-13310 · 21301-15160 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-11020 · 21314-60010 |
| 21335 | thermostat valve | 21335-38310 |
| 21341 | enrichment valve | 21304-30010 |
| 21351 | enrichment piston | 21351-24230 · 21351-33080 |
| 21353 | pump plunger | 21305-22011 · 21353-11140 · 21353-11150 · 21353-33010 |
| 21386 | compensator | 21386-11140 · 21386-11150 · 21386-11151 · 21386-11270 · 21386-11290 · 21386-11410 |
| 21414 | choke shaft | 21054-10050 · 21054-14051 · 21054-15050 |
| 21499 | push rod (for carburetor) | 21499-11140 · 21499-11150 · 21499-11230 · 21499-11270 |
| 21538 | One way ball fixing | 21538-31010 |
| 21561 | Pump drain counterweight | 21561-22010 |
| 21611 | Main gage hole gasket | 21611-15250 · 21611-22010 |
| 21612 | Enrichment valve gasket | 21612-15250 |
| 21614 | Venturi gasket | 21614-22010 · 21614-24360 · 21614-33010 · 21614-33080 |
| 21617 | Main oil gallery plug gasket | 21617-30010 |
| 21618 | Needle seat gasket | 21618-14010 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21622 | Air intake bell gasket | 21622-15330 · 21622-16090 · 21622-24360 |
| 21623 | Body hem pads | 21623-13080 · 21623-25180 |
| 21625 | oil level gauge gasket | 21655-60200 |
| 21627 | Coil housing gasket | 21627-28090 |
| 21641 | Gasket (for thermostat valve cover) | 21641-23012 |
| 21641B | compensator pad | 21641-11090 |
| 21642A | float chamber liner | 21642-11090 |
| 21647 | Diaphragm housing cover gasket | 21649-33080 |
| 21647A | Joint gasket | 21647-11090 |
| 21649 | Gasket (for pump drain weight stop) | 21641-33011 |
| 21652 | O-ring (for suction chamber adjustment) | 21652-15250 |
| 21655 | O-ring (for tappet) | 21655-60010 |
| 21655A | O-ring (for idle speed measuring hole) | 21655-15250 |
| 21658 | O-ring (for main pipe) | 21658-15250 |
| 21659 | O-ring (for thermostat valve) | 21641-24030 |
| 21667 | Diaphragm | 21667-11090 · 21667-11150 · 21667-13010 · 21667-38310 · 21667-72080 |
| 21679 | locator | 21679-13011 · 21679-16120 · 21679-16240 |
| 21697 | Dust boot (for sliding link) | 21699-41010 |
| 21698 | Diaphragm | 21669-15320 |
| 21699 | Dust boot (for pump plunger) | 21699-28150 |
| 21699B | Dust boot (for compensator) | 21699-11090 |
| 21712 | Sliding connecting rod bushing | 21712-38010 |
| 21722 | Pump damping spring | 21722-22010 |
| 21723 | Idle speed adjustment spring | 21723-11041 · 21723-15160 · 21723-21030 |
| 21724 | Throttle valve adjustment spring | 21723-14130 · 21723-38010 · 21864-24230 |
| 21726 | First gear idle speed adjustment spring | 21723-15260 · 21723-21030 · 21723-38010 · 21723-60010 |
| 21728 | Throttle return spring | 21756-25181 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21723-21030 |
| 21732 | Throttle valve adjustment spring | 21726-15251 |
| 21733 | Low idle adjustment spring | 21723-21030 |
| 21734 | Thickening piston spring | 21734-13440 · 21734-22010 · 21734-33080 · 21734-33081 |
| 21735 | Pump rod spring | 21735-11090 · 21735-11150 · 21735-15250 · 21735-15270 · 21735-21032 · 21735-23010 |
| 21751 | Oil pipe joint | 21751-10050 · 21894-11150 · 21894-15081 |
| 21756 | Return spring (for throttle shaft) | 21756-15080 · 21756-15250 · 21864-13290 |
| 21763 | floating lever pin | 21763-26350 · 21763-38010 |
| 21765 | Pin (for pump plunger) | 21765-15250 |
| 21769 | Pin (for suction chamber adjustment) | 21769-15250 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-11090 · 21781-15230 · 21781-15460 · 21781-15461 |
| 21785A | Plate screw plug (for suction chamber adjustment) | 21672-15250 · 21785-11090 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-13010 · 21791-60010 |
| 21811 | Oil pipe joint bolt | 21811-11060 |
| 21826 | Pump rod fixing screw | 21826-24470 · 21826-31012 |
| 21828 | First gear idle speed fixing screw | 21828-13310 · 21845-15230 |
| 21831 | Enrichment piston limit screw | 21821-15060 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21833-31012 · 21833-33010 · 21835-40010 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21834-31010 · 21834-31140 · 21844-26400 |
| 21837 | Coil housing fixing screws | 21821-25010 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21842-33010 |
| 21845 | Screws (for rod assembly) | 21273-38010 |
| 21850 | Throttle switch adjustment screw | 21272-11090 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21865 | spring | 21865-15230 |
| 21869 | Spring (for main measuring hole) | 21869-15250 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-11180 · 21062-11400 · 21062-13100 · 21062-14130 · 21062-14131 · 21062-16011 · 21062-16240 · 21072-16121 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 · 21656-15250 |
| 21934F | padding | 21633-15250 · 21649-38010 |
