Toyota COROLLA 起动机 — Figure 1904

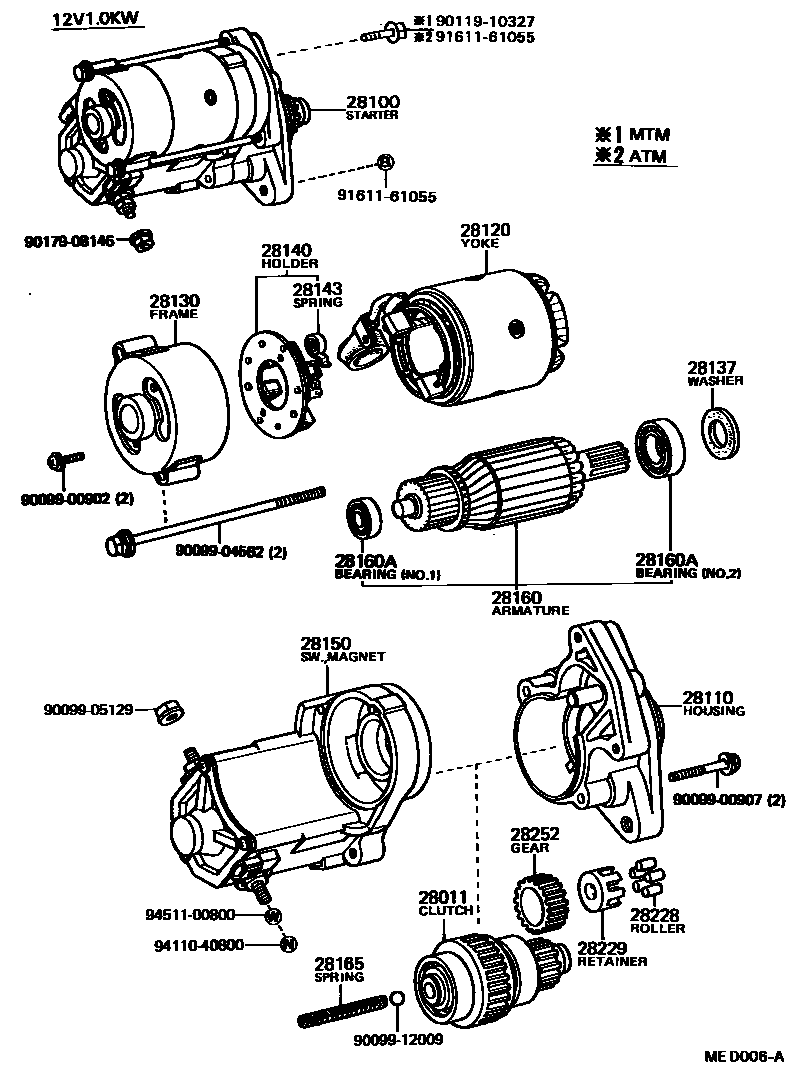

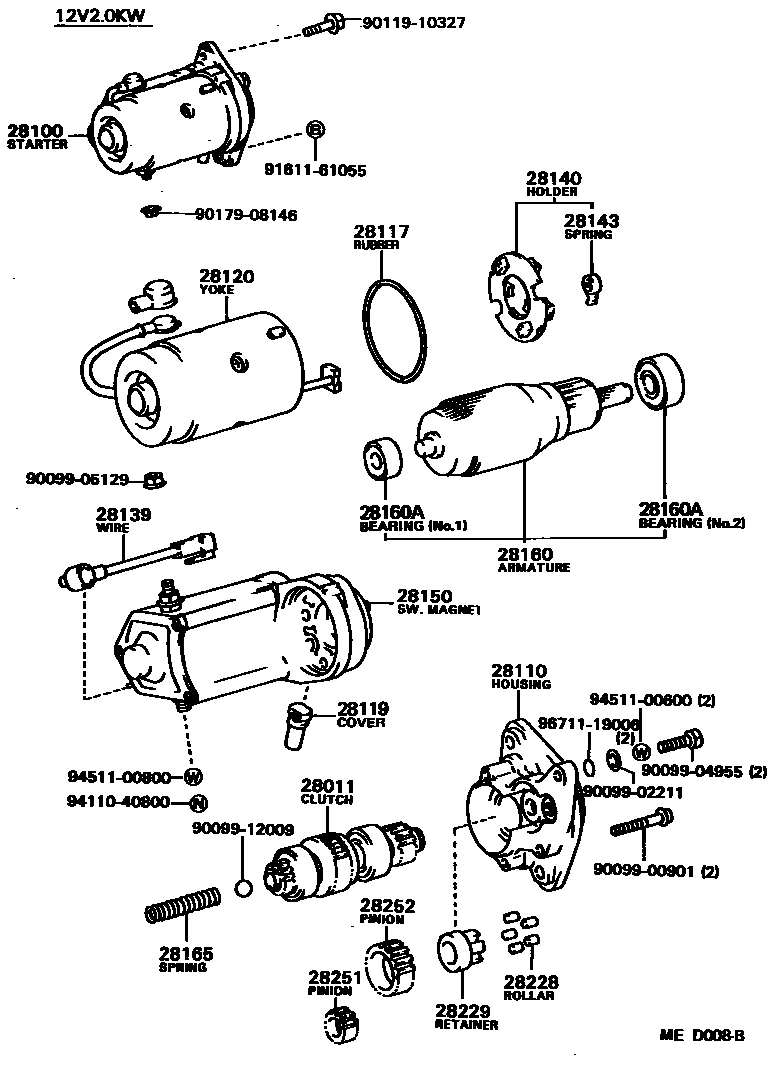

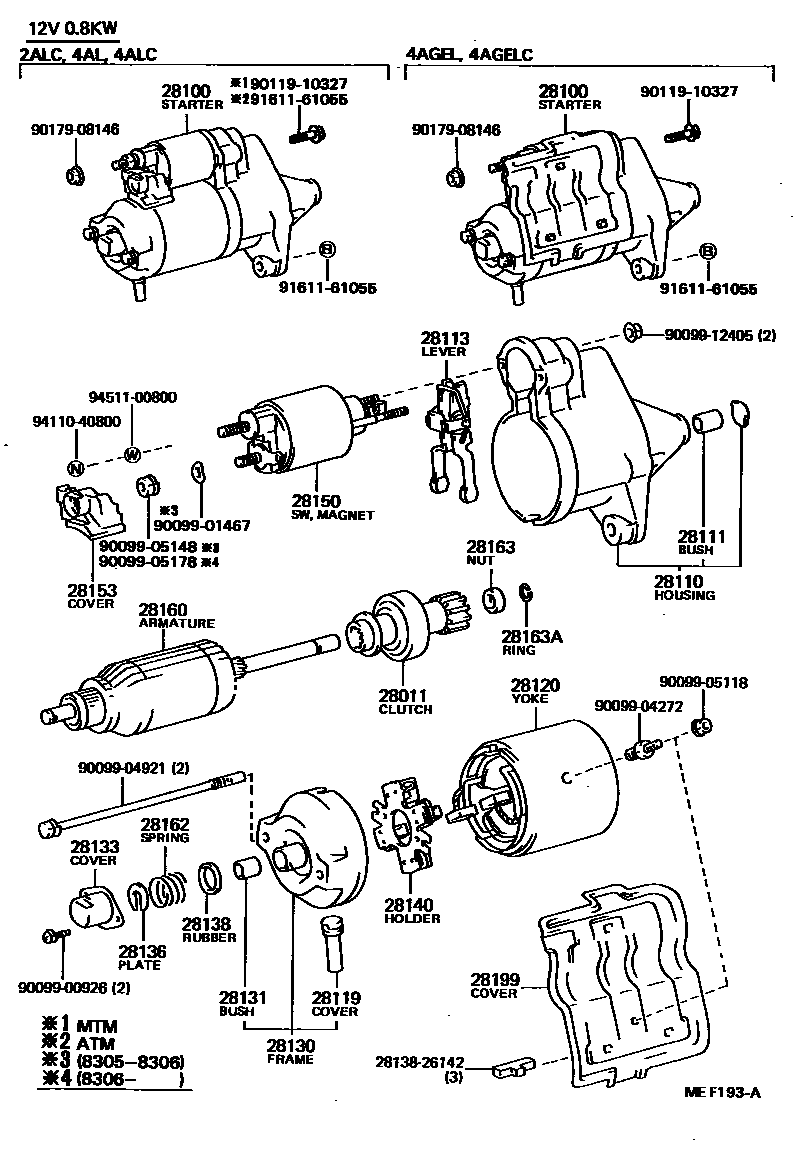

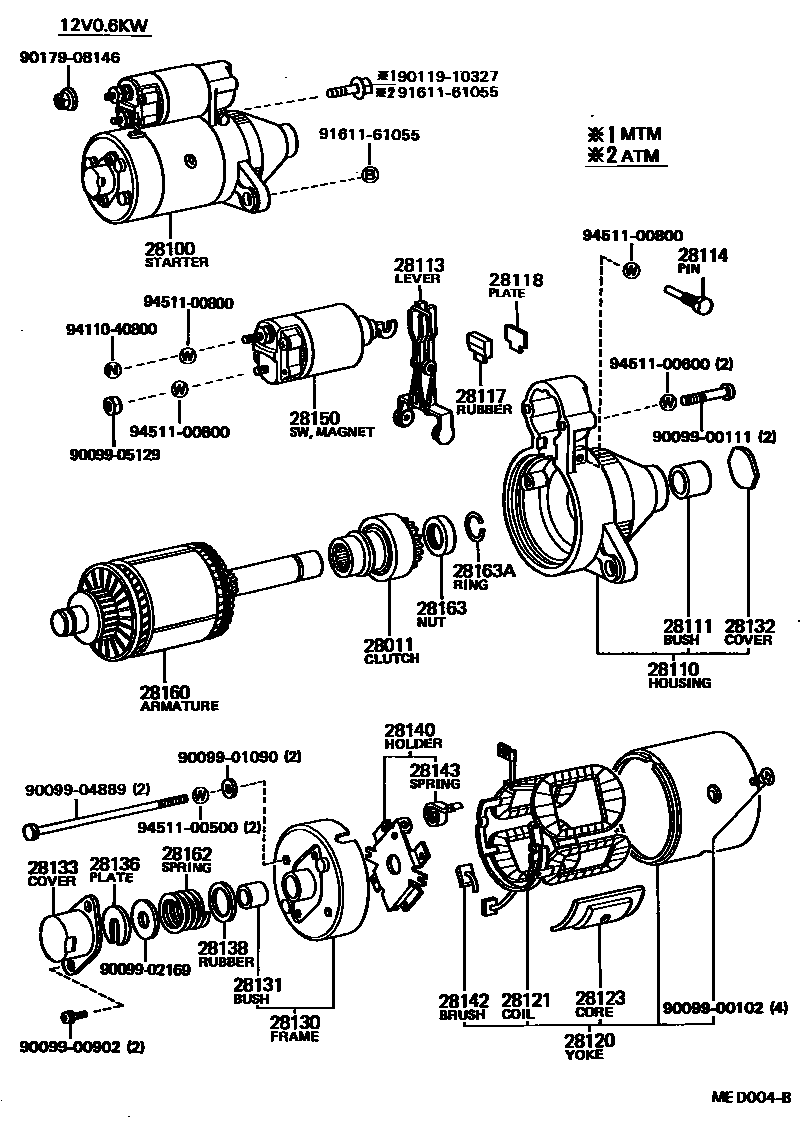

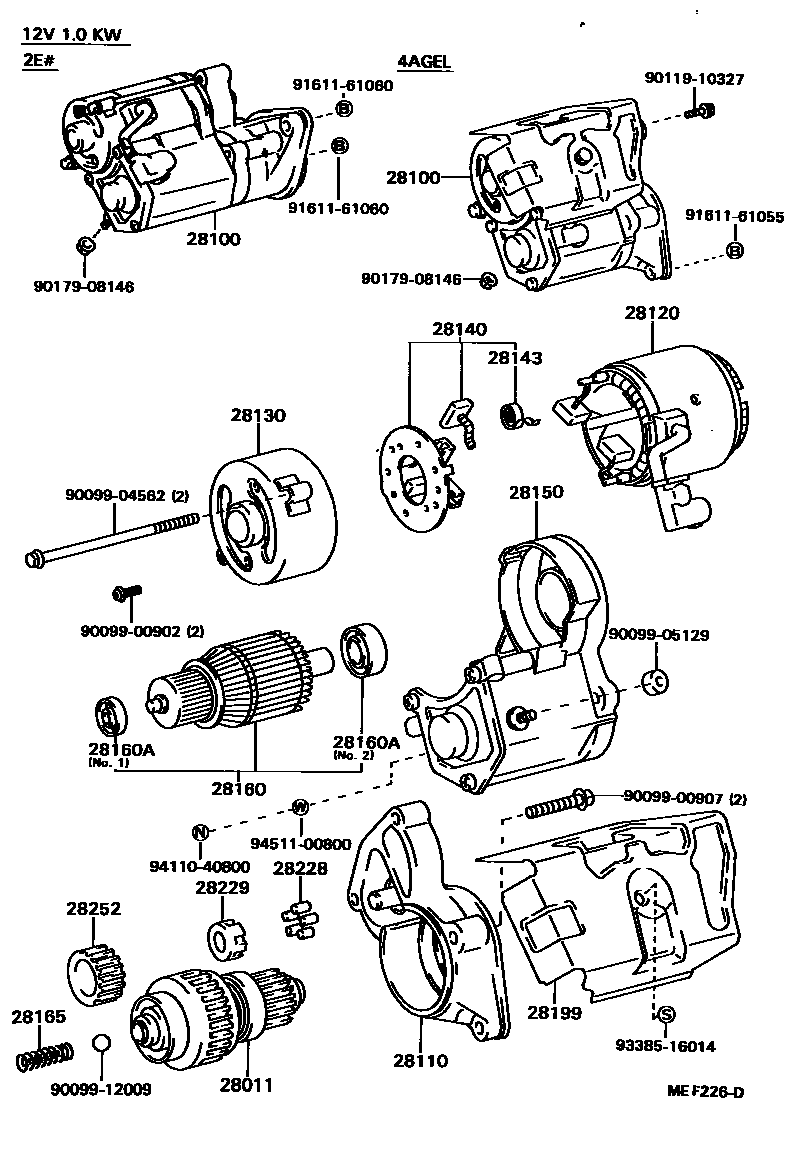

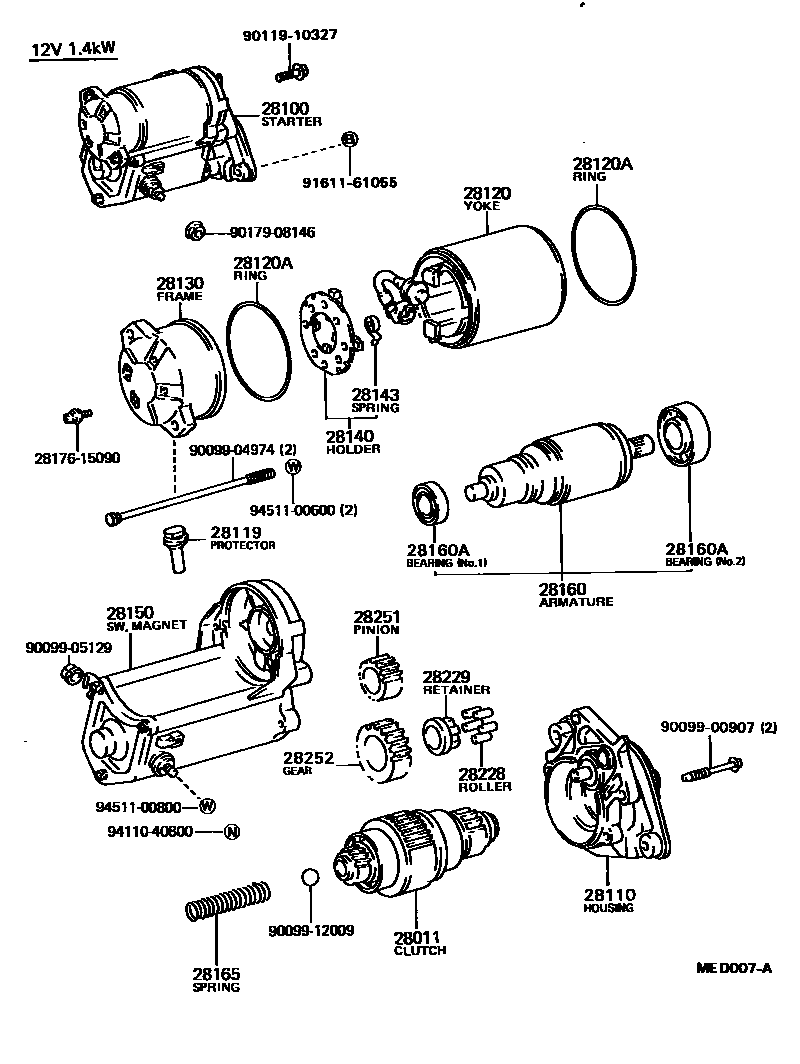

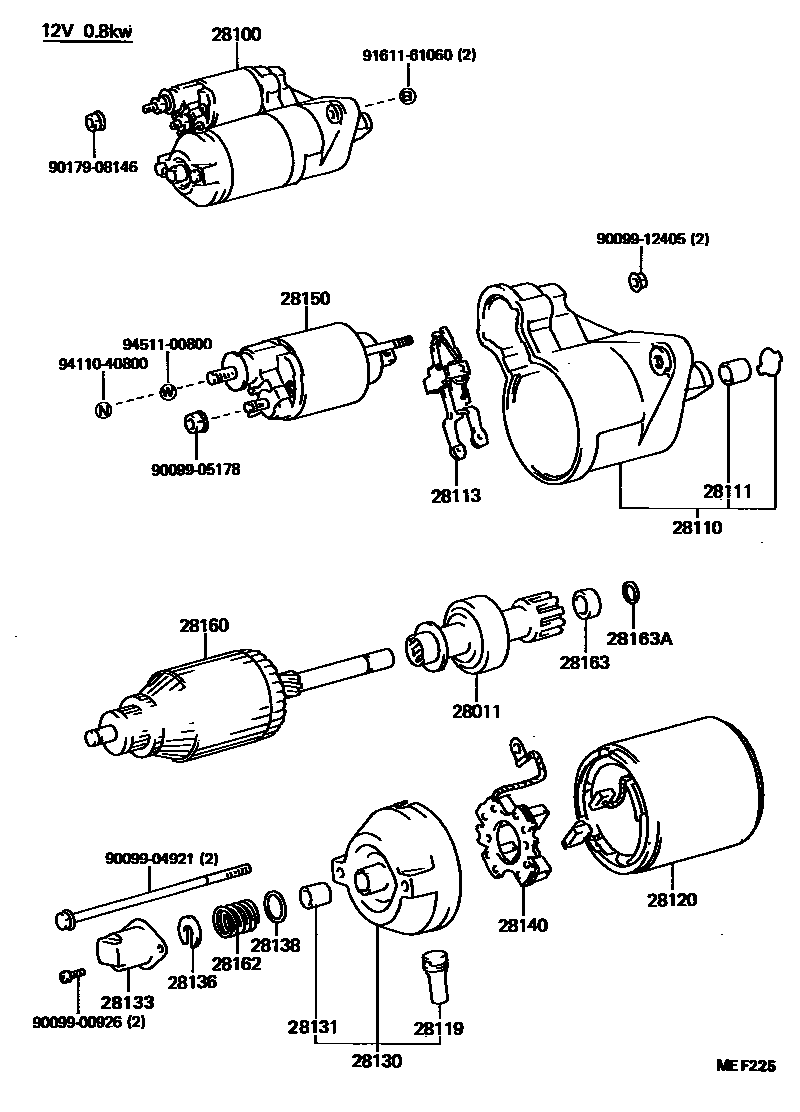

Toyota COROLLA EPC diagram 1904, 起动机, with 7 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-10030 · 28011-15010 · 28011-22020 · 28011-26042 · 28011-64010 · 28011-64020 |
| 28100 | Starter assembly | 28100-10030 · 28100-10040 · 28100-15060 · 28100-15070 · 28100-15140 · 28100-15170 · 28100-15180 · 28100-64020 · 28100-64070 |
| 28110 | Starter drive end housing assembly | 28110-10030 · 28110-10040 · 28110-15060 · 28110-15070 · 28110-15110 · 28110-15130 · 28110-15140 · 28110-64070 · 28115-64020 |
| 28111 | Bushing (for starter housing) | 28111-51011 |
| 28113 | starter pinion drive rod | 28113-15011 · 28113-41011 |
| 28114 | starter drive lever | 28114-25010 |
| 28117 | Rubber sheet (for starter yoke) | 28117-41013 · 90099-14058 |
| 28118 | Plate (for starter yoke) | 28118-41013 |
| 28119 | Starter end frame cover | 28119-54070 · 28199-15090 · 28199-77090 |
| 28120 | Starter yoke assembly | 28120-15010 · 28120-15090 · 28120-22011 · 28120-26071 · 28120-26140 · 28120-64020 |
| 28120A | O-ring (for starter yoke) | 90099-14064 |
| 28121 | starter excitation coil | 28121-22011 |
| 28123 | Starter pole core | 28123-10011 |
| 28130 | Starter commutator end frame assembly | 28130-13010 · 28130-13020 · 28130-15010 · 28130-15040 · 28130-15090 · 28130-21011 · 28130-34060 · 28130-37010 |
| 28131 | Commutator end frame bushing | 28131-20010 · 90099-10039 · 90099-10040 · 90099-10134 |
| 28132 | Starter bearing cap (for drive end housing) | 28166-24030 |
| 28133 | Bearing caps (for end frame caps) | 28132-15010 · 28132-41011 |
| 28136 | starter lock plate | 28136-15010 · 28136-41011 |
| 28137 | Starter felt pad gasket | 90099-02323 |
| 28138 | Rubber sheet (for starter bearing cap) | 28138-15010 · 28138-41011 |
| 28139 | Lead No. 1 (for starter) | 28139-64010 |
| 28140 | Starter brush holder assembly | 28140-15010 · 28140-15090 · 28140-22011 · 28140-26070 · 28140-54070 |
| 28142 | starter brush | 28142-10011 |
| 28143 | starter brush spring | 28143-40040 · 90099-17112 · 90099-17115 |
| 28150 | Starter electromagnetic switch assembly | 28150-13011 · 28150-15070 · 28150-22011 · 28150-34080 · 28150-37010 · 28150-64020 · 28150-64070 |
| 28153 | Electromagnetic switch cover | 28159-15010 |
| 28160 | Starter armature assembly | 28160-15010 · 28160-15090 · 28160-22011 · 28160-26070 · 28160-54070 |
| 28160A | starter armature bearing | 28253-45020 · 28253-54070 · 90099-10113 · 90099-10131 · 90099-10143 · 90099-10144 |
| 28162 | starter brake spring | 28162-15010 · 28162-41011 |
| 28163 | Starter pinion snap nut or snap ring | 28163-40011 |
| 28163A | Snap ring (for starter pinion stop nut) | 90099-07047 |
| 28165 | Starter solenoid switch return spring | 28165-26040 |
| 28199 | starter cover | 28159-15160 · 28199-63050 |
| 28228 | Starter idler clutch roller | 28228-26040 |
| 28229 | Starter idler gear fixing | 28229-26040 |
| 28251 | Starter drive pinion | 28251-15090 · 28251-54070 |
| 28252 | starter idler gear | 28254-45020 · 28254-54070 |
