Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 4 images and 12 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — MA6093A
Oil Filter — MA6093A (198305 – 999999)
Toyota COROLLA Oil Filter EPC diagram — MA6558B
Oil Filter — MA6558B (198305 – 999999)
Toyota COROLLA Oil Filter EPC diagram — MA7826A
Oil Filter — MA7826A (198410 – 999999)

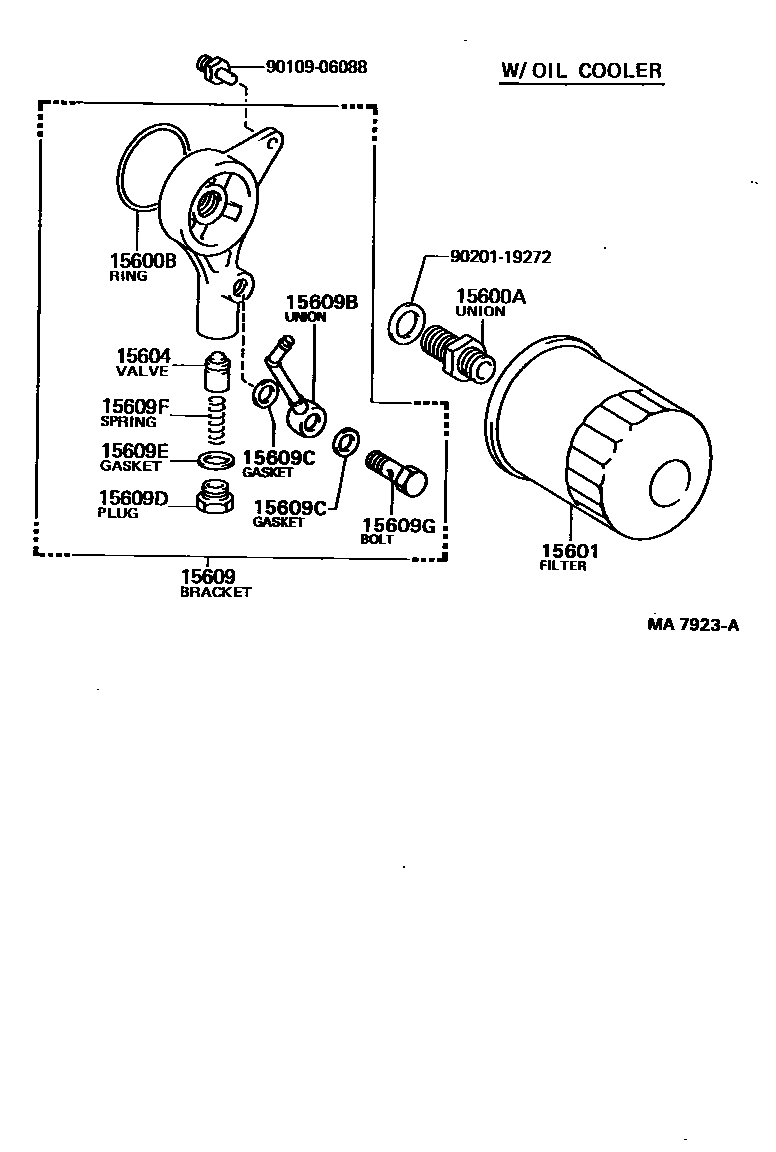

Toyota COROLLA Oil Filter EPC diagram — MA7923A
Oil Filter — MA7923A (198410 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19001 · 90404-19004 · 90404-19007 · 90405-19003
15600BNo. 1 O-ring (for oil filter)96732-31060
15601Oil filter sub-assembly15600-13051 · 15600-25010 · 15601-13010 · 15601-13011 · 90915-03001 · 90915-03004
15604Oil safety valve sub-assembly15131-38030
15609Oil filter bracket sub-assembly15608-64010 · 15608-64011 · 15670-16030
15609BConnector (for oil filter bracket)90029-40004
15609CGasket (for oil filter holder connector)90430-14235
15609DStraight threaded plug with head (for oil filter bracket)15133-20010 · 90341-16009 · 90344-53002
15609EHeaded straight thread plug liner15134-20010 · 90430-16242
15609FSpring (for oil filter bracket)15132-21010
15609GConnector bolt (for oil filter bracket)90401-14003
15691oil filter gasket15691-64020 · 15691-64030
