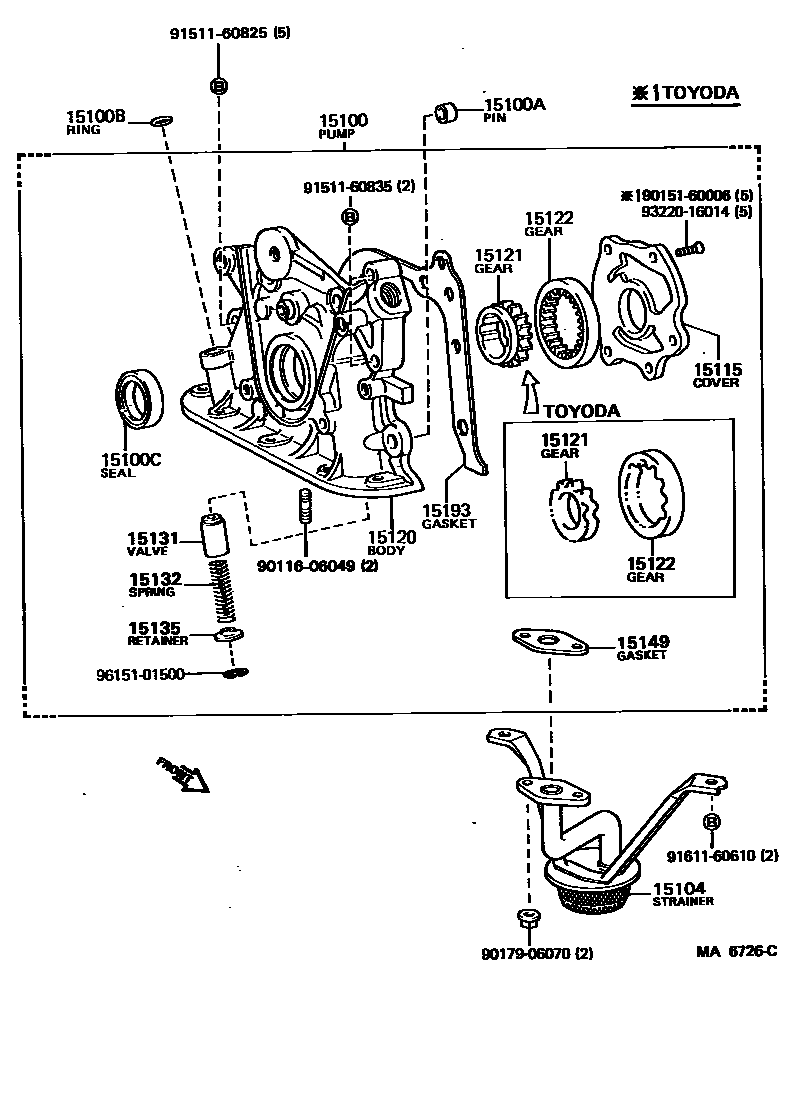

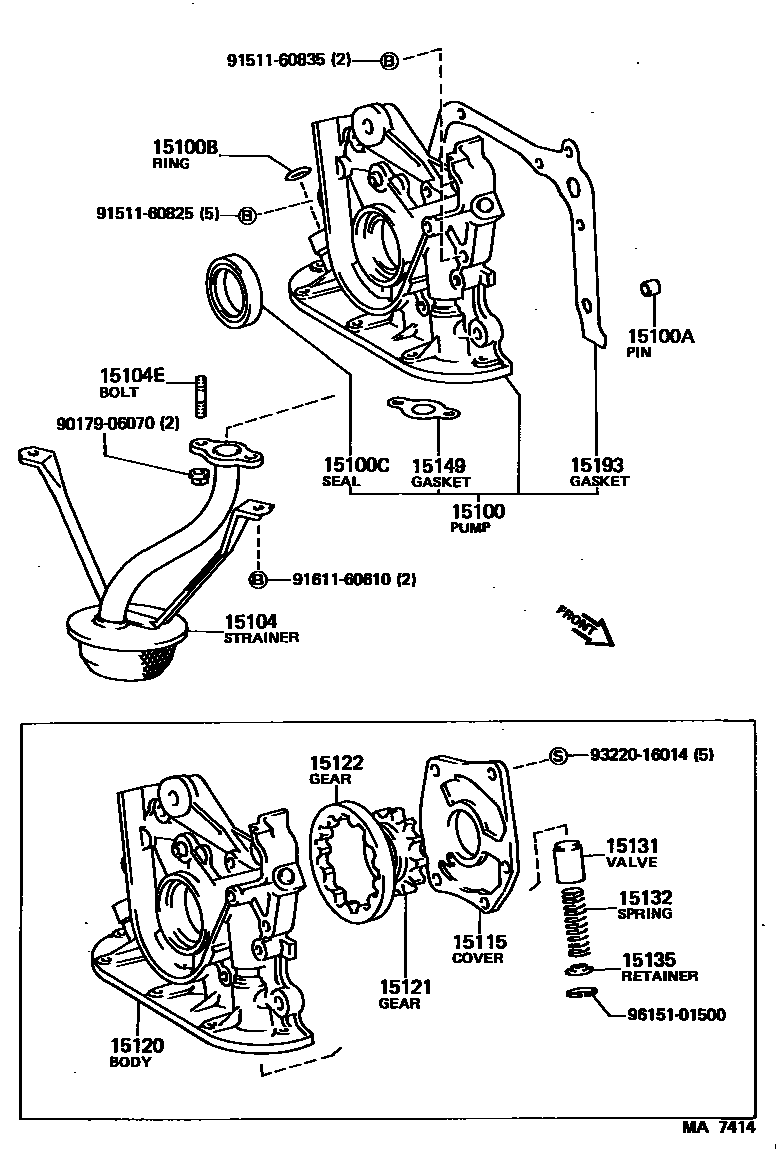

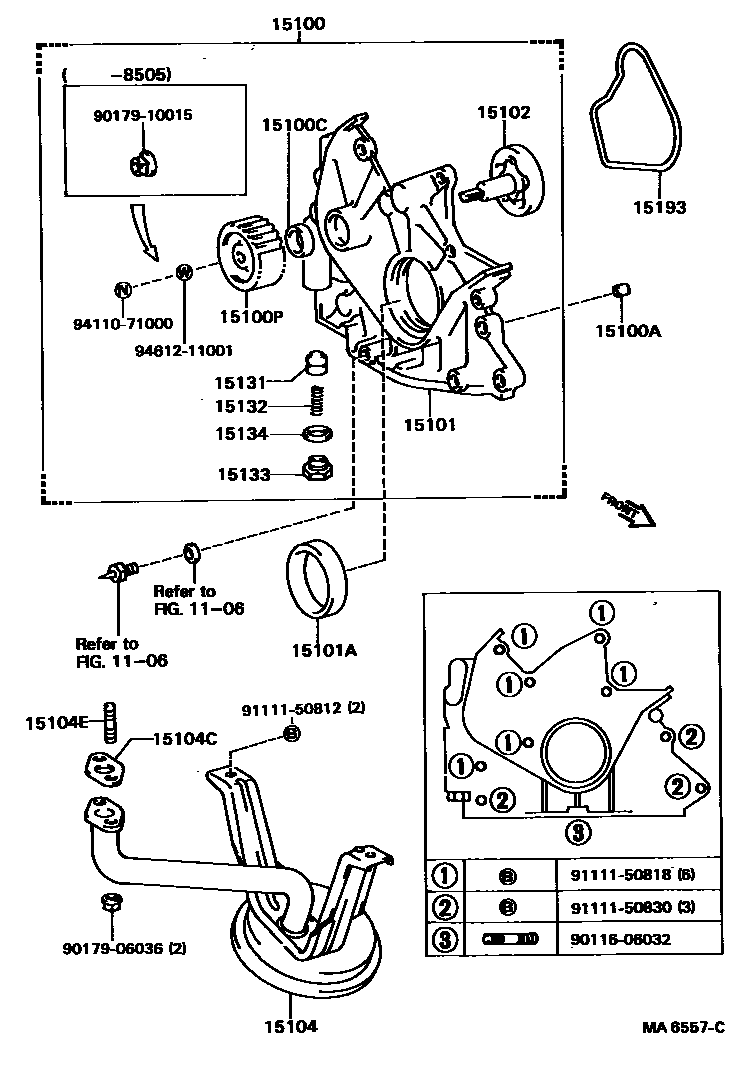

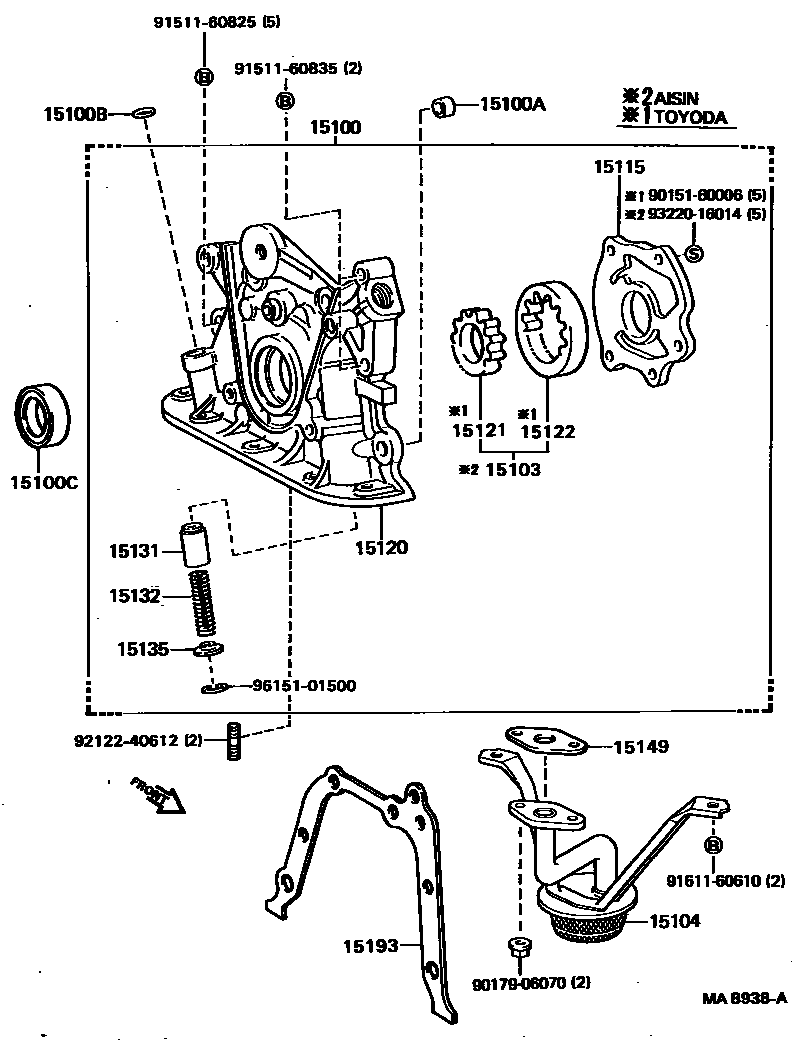

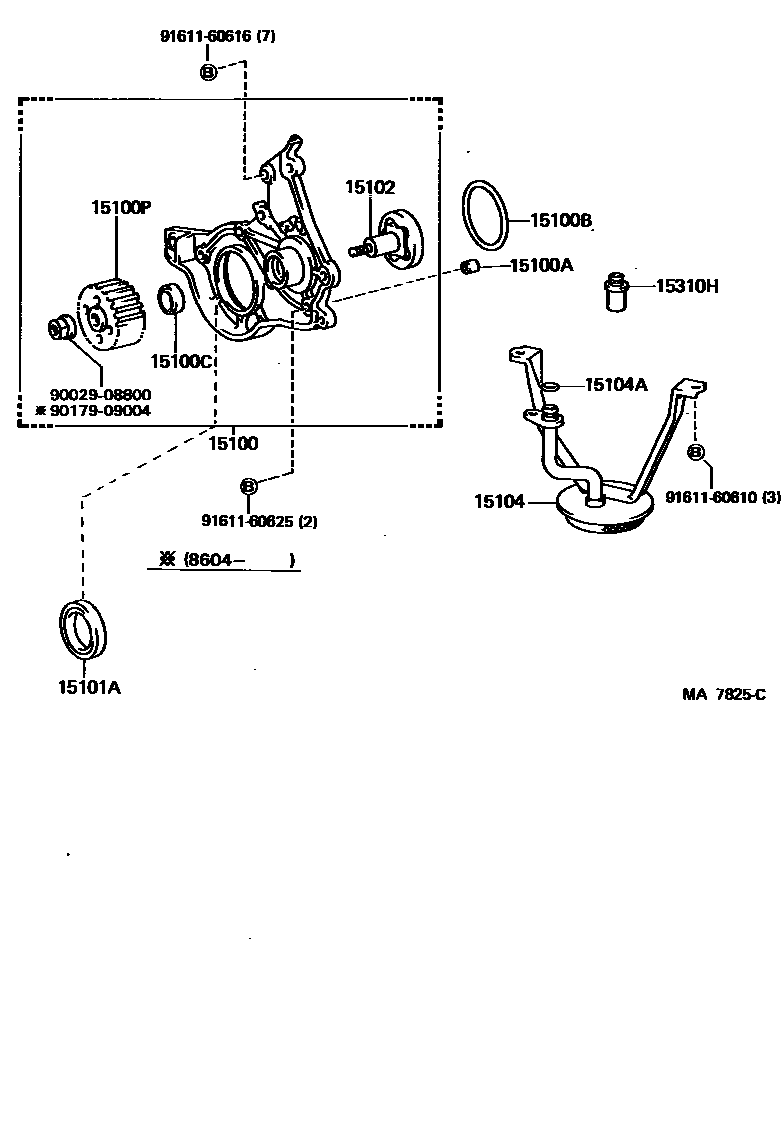

Toyota COROLLA Engine Oil Pump — Figure 1501
Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-10010 · 15100-10020 · 15100-11050 · 15100-15020 · 15100-19015 · 15100-19025 · 15100-64011 |
| 15100A | Ring pin (for oil pump assembly) | 90253-09001 · 90253-11021 |
| 15100B | O-ring (for oil pump) | 96711-19010 · 96721-24056 |
| 15100C | Seals (for oil pump) | 15165-64010 · 90029-21005 · 90029-21007 · 90311-32001 |
| 15100P | Oil pump drive shaft pulley | 13524-10010 · 13524-11010 · 13524-64010 |
| 15101 | Oil pump body sub-assembly | 15101-64011 |
| 15101A | Seals (for crankshaft) | 90311-35017 · 90311-42003 · 90311-42015 |
| 15102 | Oil pump rotor assembly | 15102-10012 · 15102-11040 · 15102-64010 |
| 15103 | Oil pump gear assembly | 15103-15020 |
| 15104 | Oil filter sub-assembly | 15104-10010 · 15104-10020 · 15104-15080 · 15104-64020 · 15104-64021 |
| 15104A | O-ring (for oil filter) | 96721-24015 |
| 15104C | Gasket (for oil filter) | 15149-64010 |
| 15104E | Stud bolts (for oil filter) | 90116-06022 · 90116-06032 · 90116-06049 |
| 15115 | oil pump cover | 15115-15010 · 15115-15020 · 15115-15030 · 15115-16010 |
| 15120 | Oil pump body sub-assembly | 15101-15020 · 15101-15030 · 15120-15011 · 15120-16010 |
| 15121 | Oil pump driving gear | 15121-15010 · 15121-15030 · 15121-16010 |
| 15122 | Oil pump driven gear | 15122-15010 · 15122-15030 · 15122-16010 |
| 15131 | Oil pump pressure reducing valve | 15131-15030 · 15131-24010 · 15131-64020 |
| 15132 | Oil pump pressure reducing valve spring | 15132-15030 · 15132-40010 · 15132-76011 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-20010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-15010 · 15135-15030 |
| 15149 | Oil filter flange gasket | 15149-15010 |
| 15193 | oil pump gasket | 15193-64021 · 15197-15011 |
| 15310H | Oil regulator assembly | 15310-10010 |
