Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

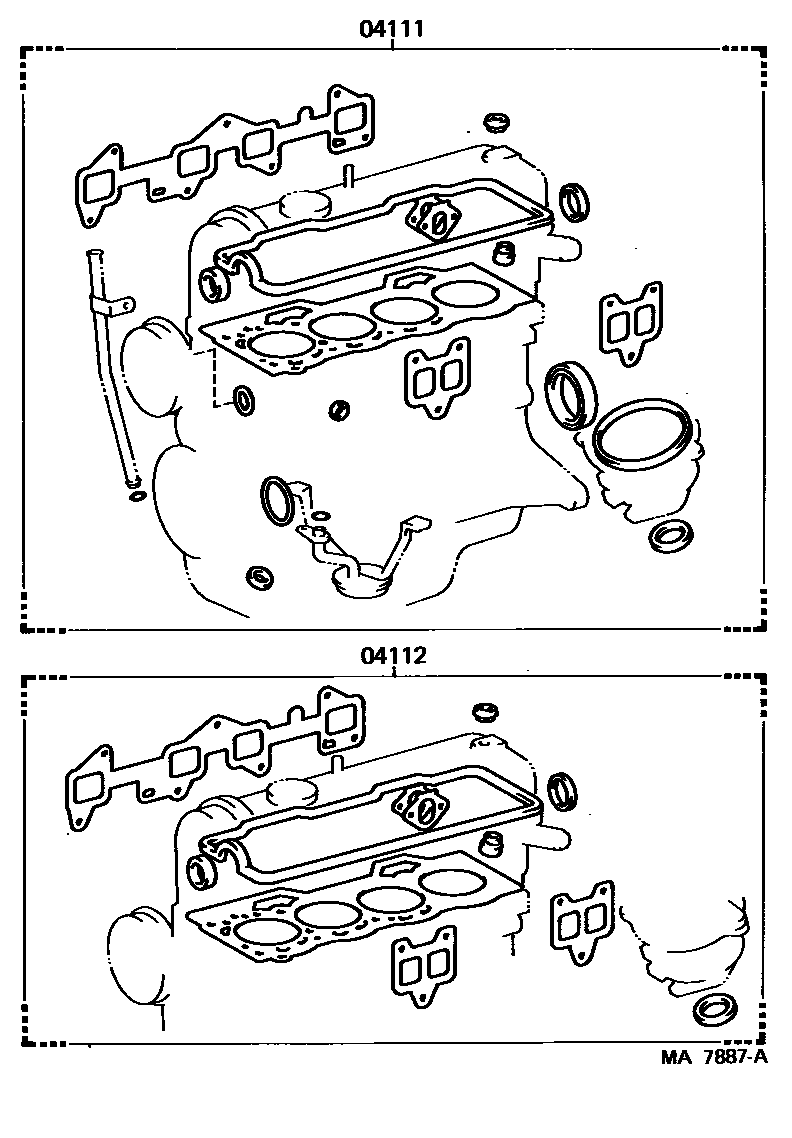

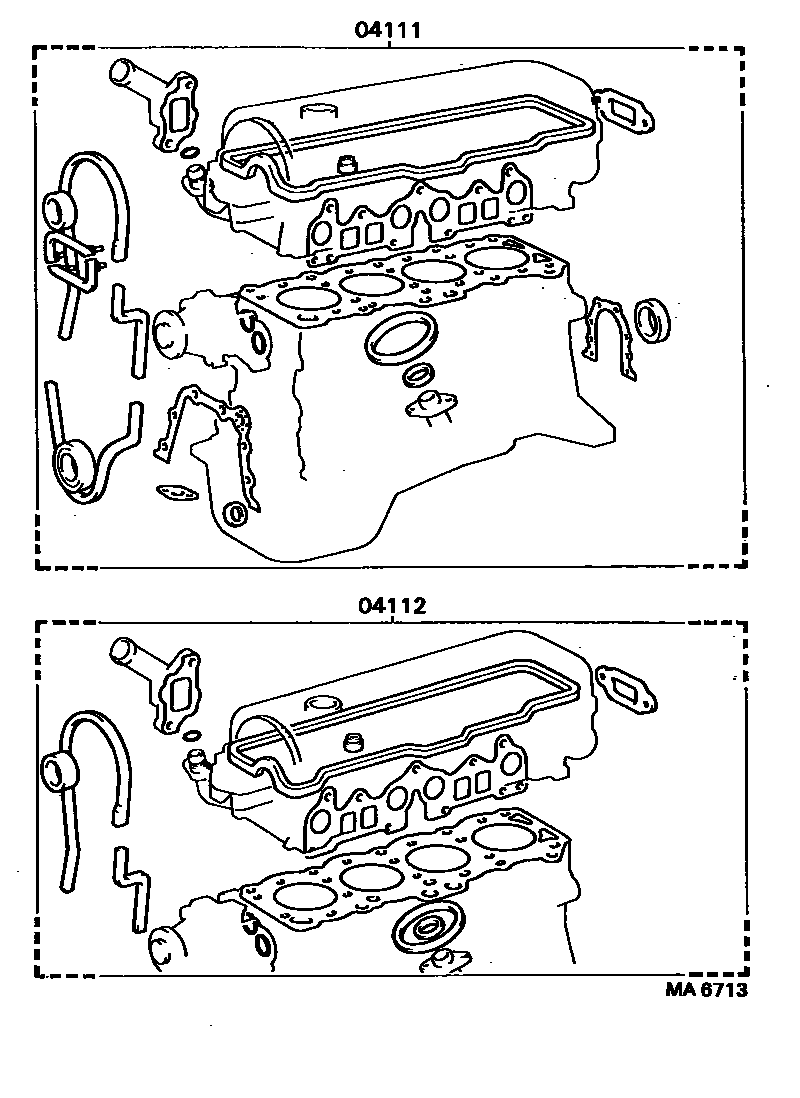

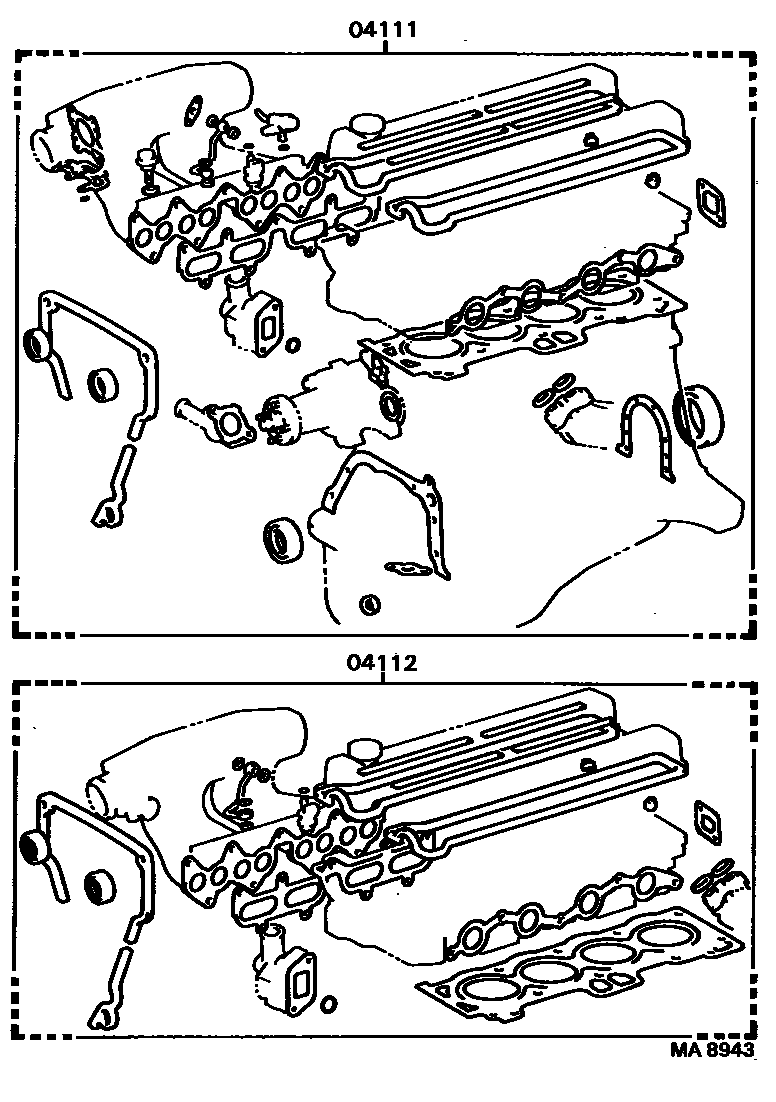

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-11020 · 04111-11021 · 04111-14050 · 04111-16040 · 04111-16042 · 04111-16071 · 04111-16072 · 04111-16090 · 04111-64012 · 04111-64040 · 04111-64041 · 04111-64060 · 04111-64061 |
| 04112 | Engine valve grinding pad assembly | 04112-11010 · 04112-14050 · 04112-16040 · 04112-16042 · 04112-16071 · 04112-16072 · 04112-16090 · 04112-64010 · 04112-64040 · 04112-64041 · 04112-64060 |
