Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

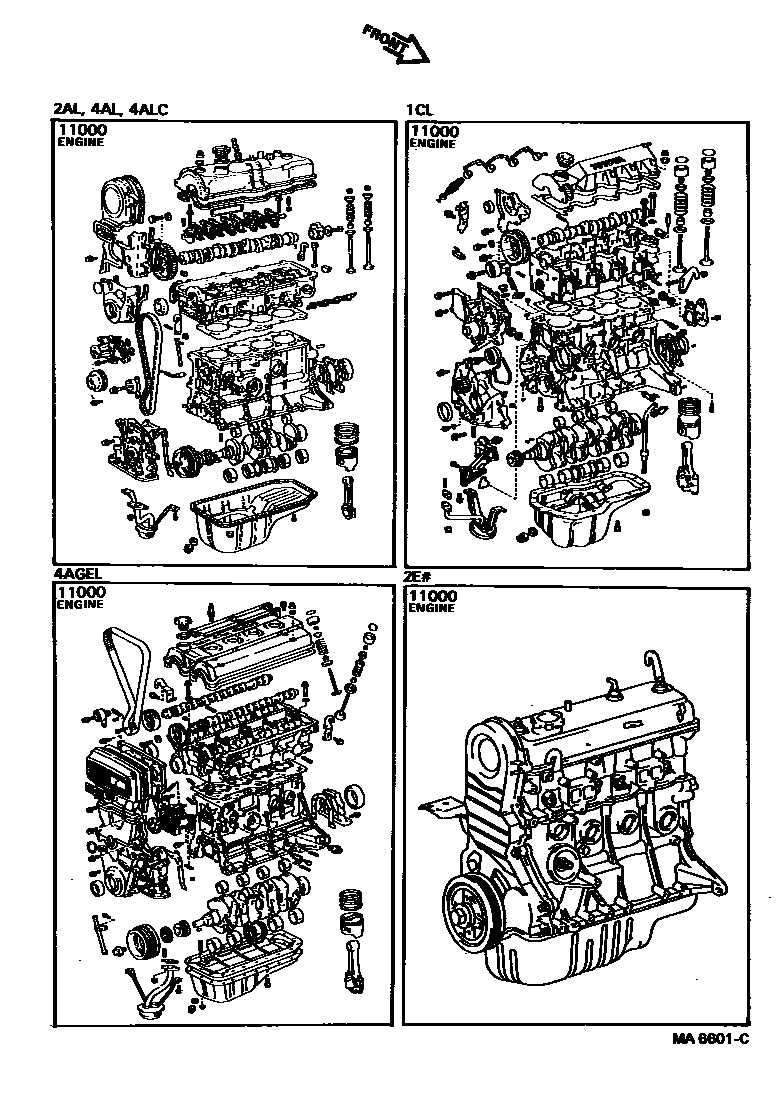

Toyota COROLLA Partial Engine Assembly EPC diagram — MA6601C
Partial Engine Assembly — MA6601C (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-11120 · 19000-11121 · 19000-11130 · 19000-11131 · 19000-14070 · 19000-16030 · 19000-16040 · 19000-16050 · 19000-16230 · 19000-16240 · 19000-16280 · 19000-16290 · 19000-64040 · 19000-64041 · 19000-64180 · 19000-64181 · 19000-64200 · 19000-64201
