Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

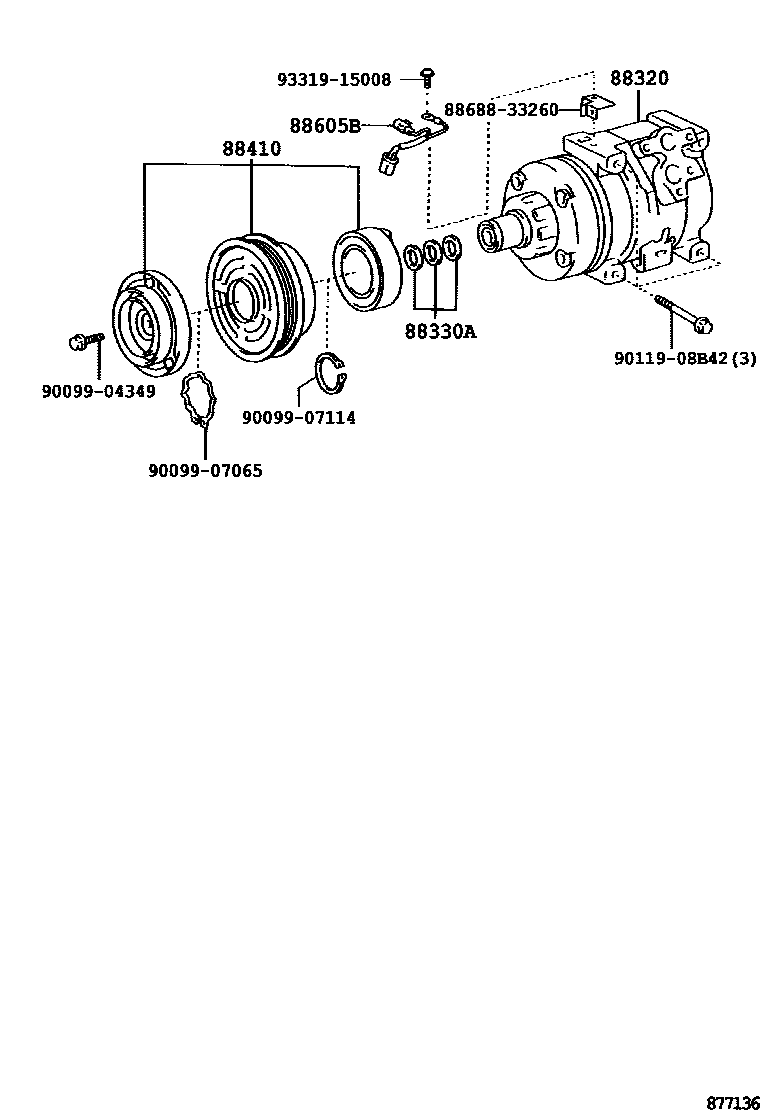

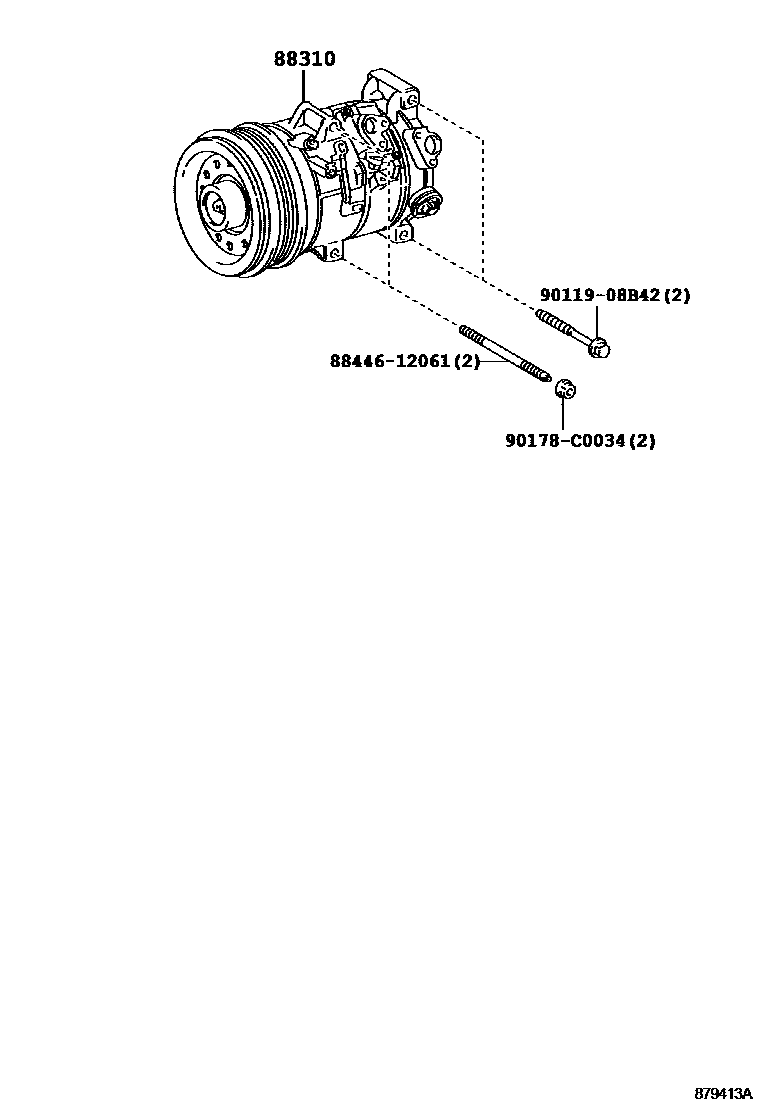

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-02500 |
| 88320 | Cooler Compressor Assembly | 88320-02120 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-02130 |
| 88605B | Air conditioning wiring harness sub-assembly | 88605-35420 |
