Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

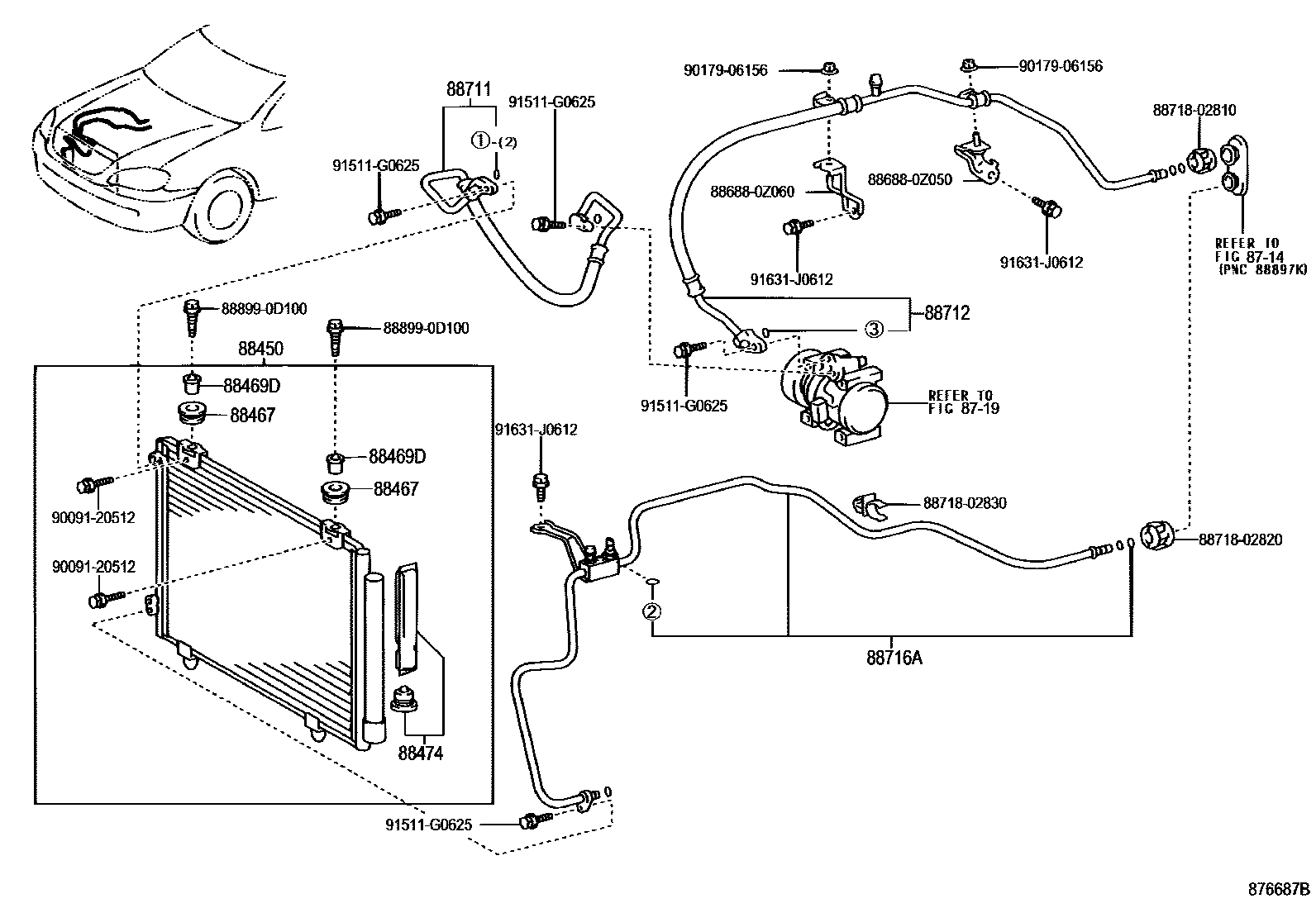

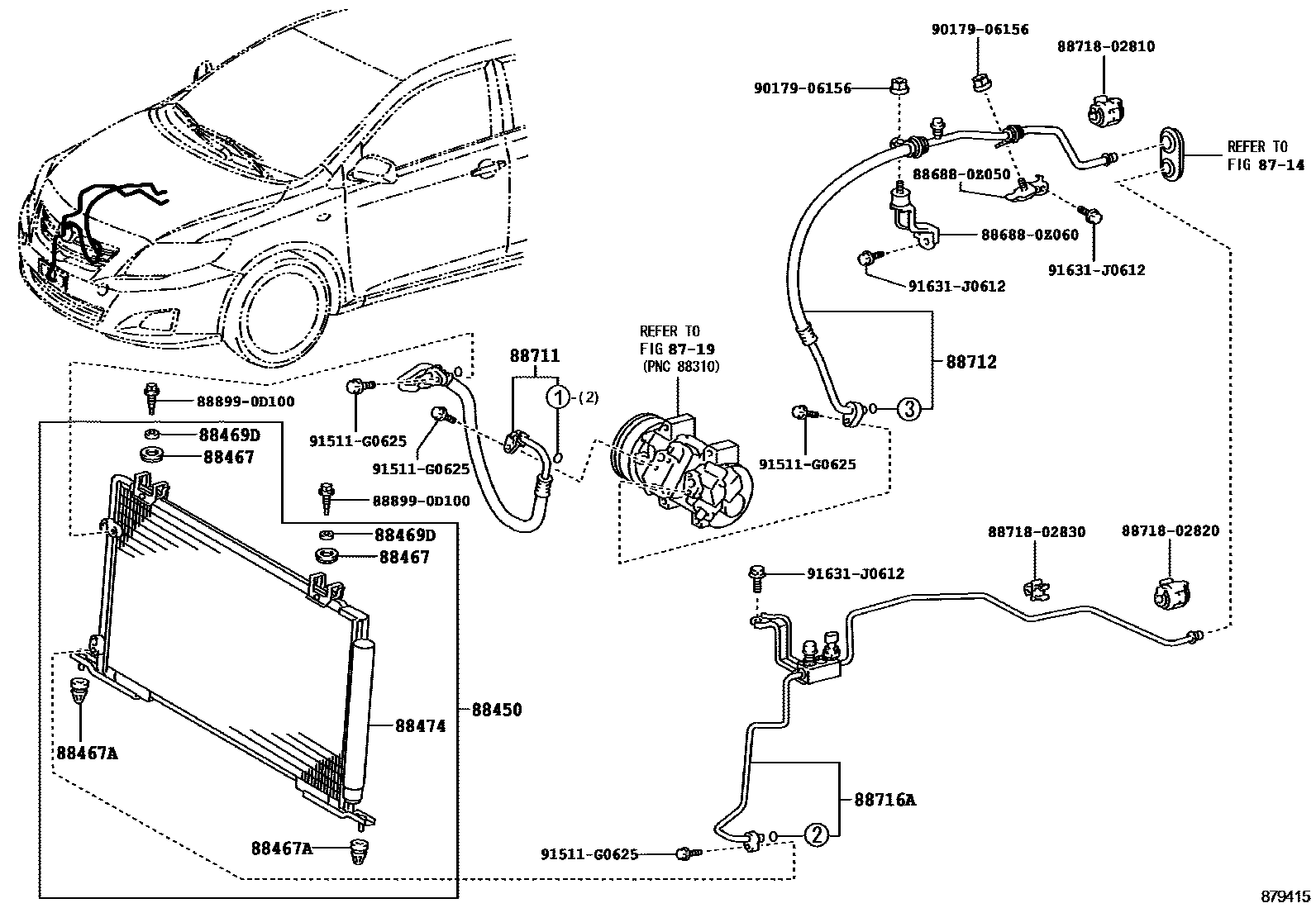

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88450 | Condenser assembly with liquid reservoir | 88450-02270 · 88450-02340 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-05010 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-02300 · 88703-02480 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-02550 · 88704-02730 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-02710 · 88710-0Z050 |
