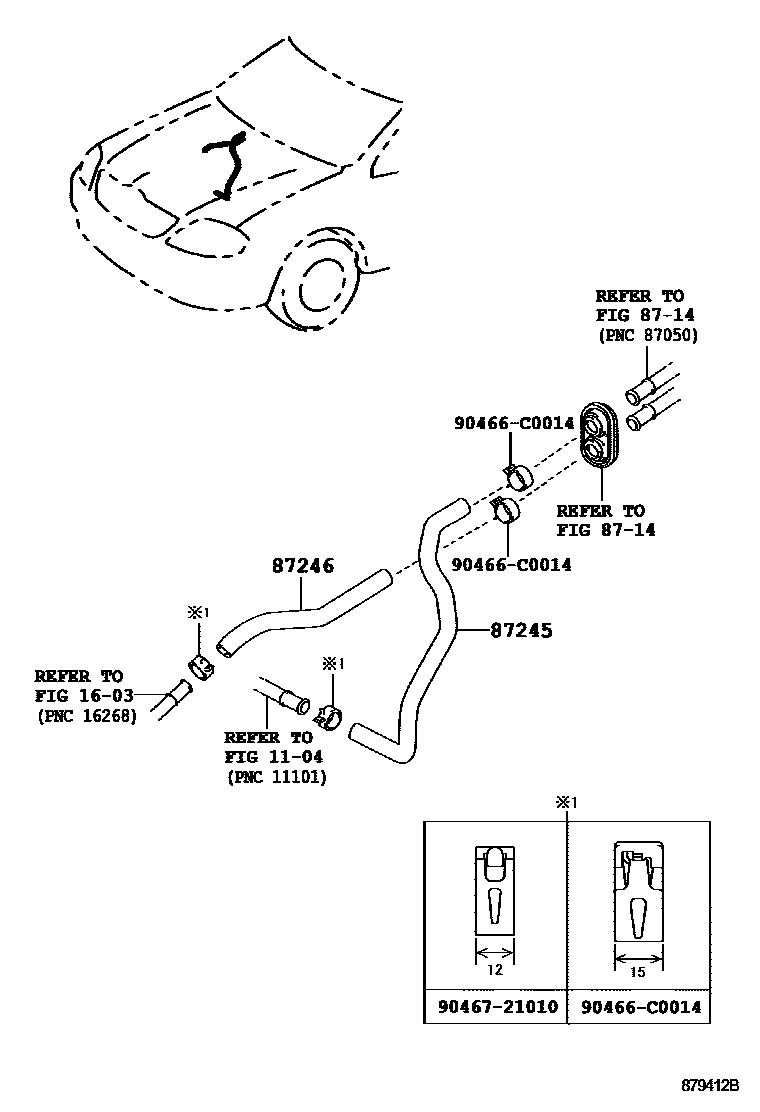

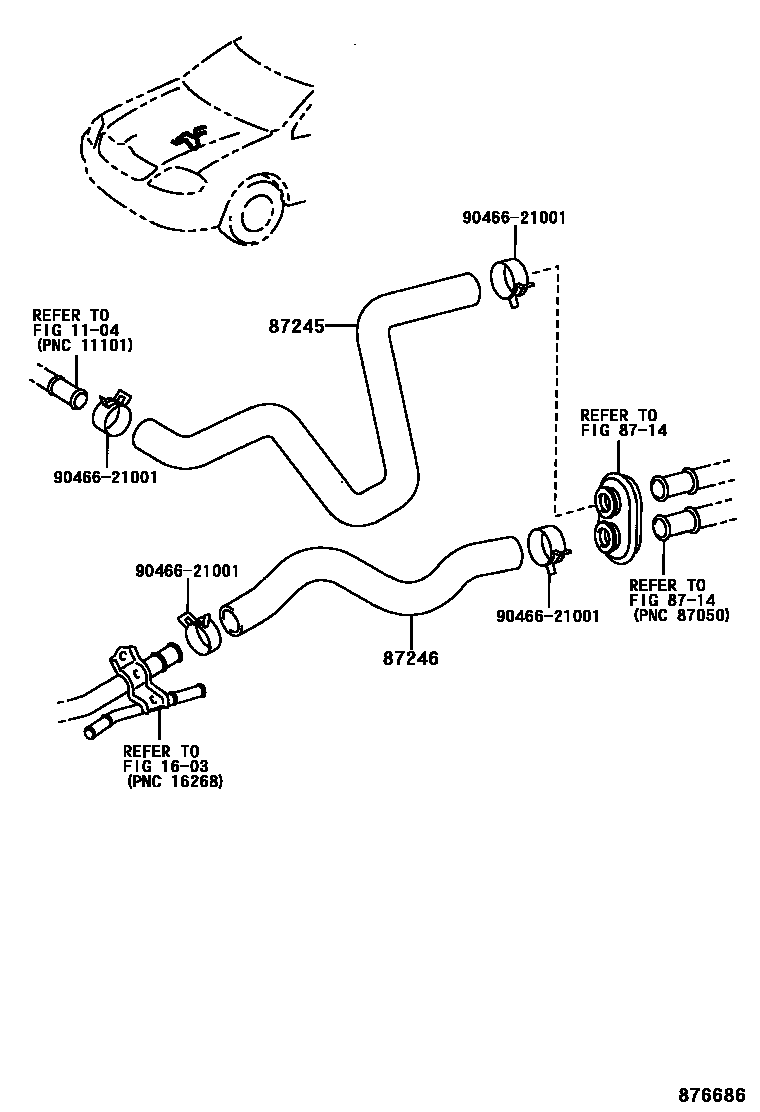

Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716
Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-02850 · 87245-02D00 |
| 87246 | Heater outlet hose | 87245-02860 · 87245-02D10 |
