Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 31 PNC and OE references.
PNC and OE references

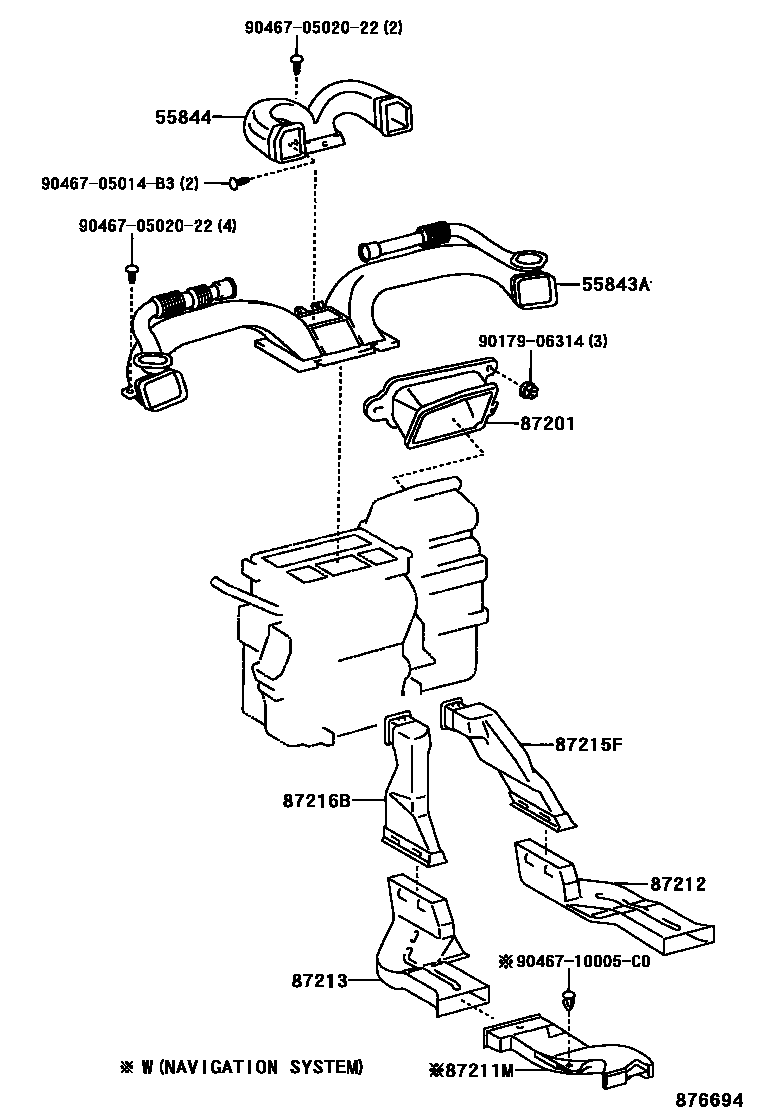

| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-02170 · 55843-02270 · 55843-02271 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-02140 |

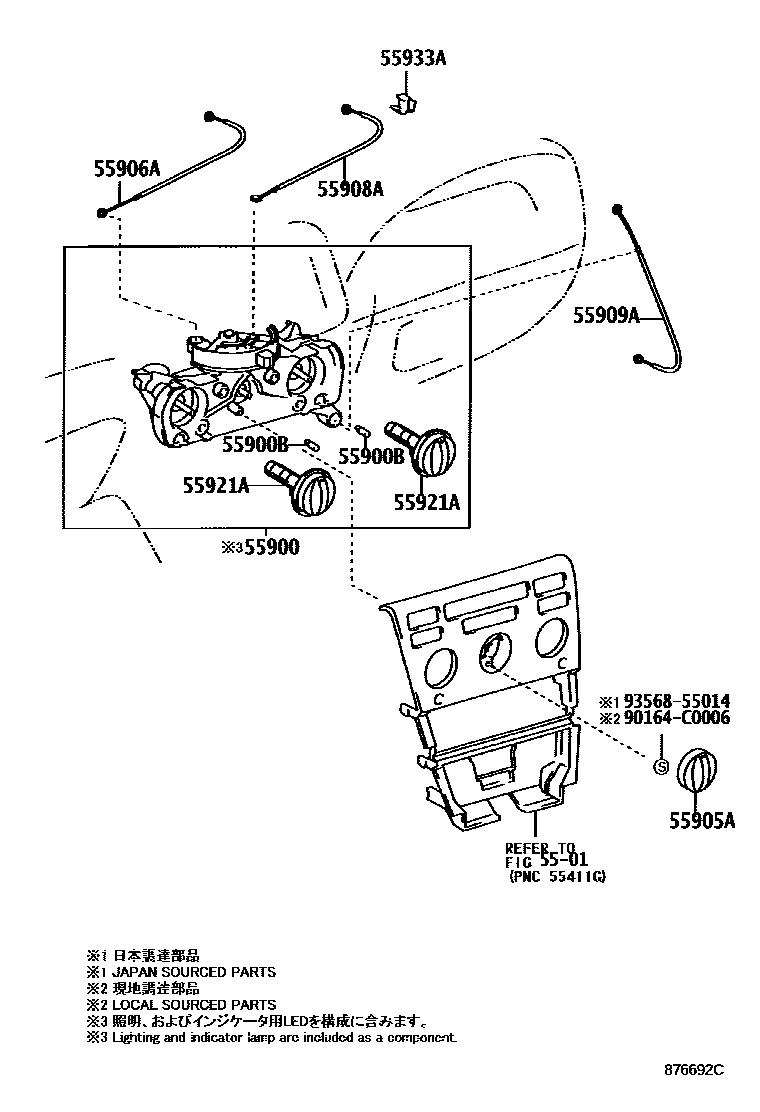

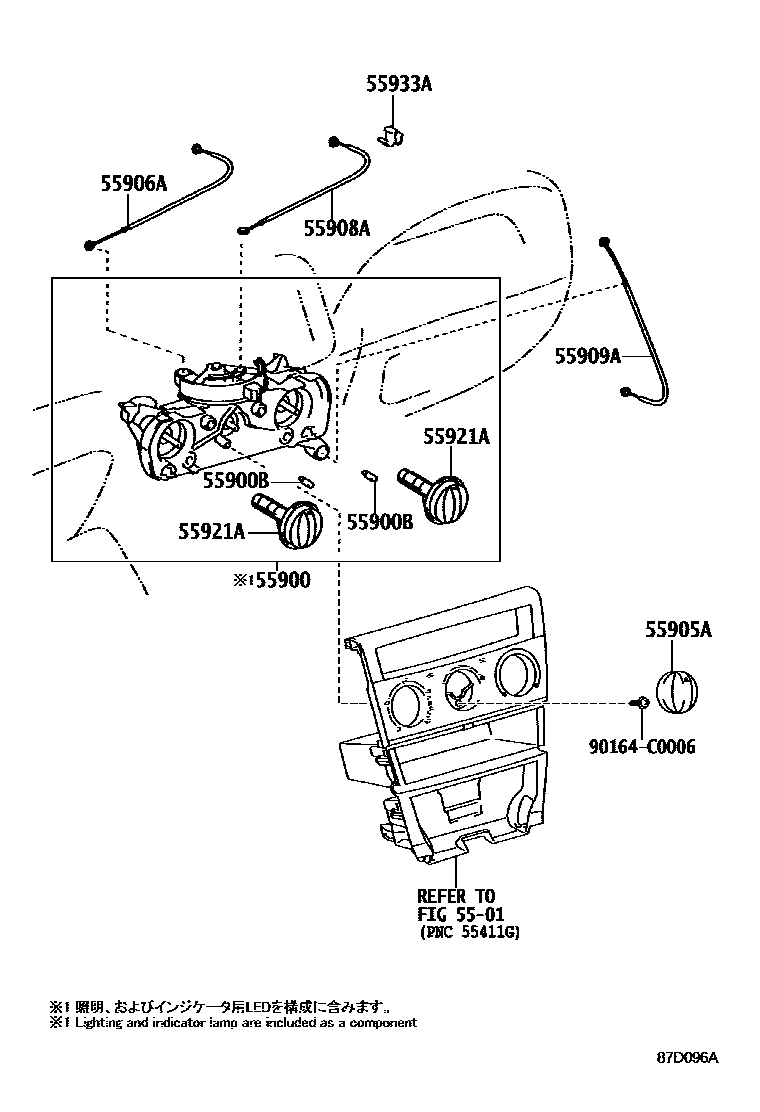

| 55900 | Air conditioning control assembly | 55900-1A070 · 55900-1A071 |
| 55900B | air conditioning control light bulb | 90011-01027 · 90011-01028 · 90011-01029 · 90011-01030 · 90981-11040 |

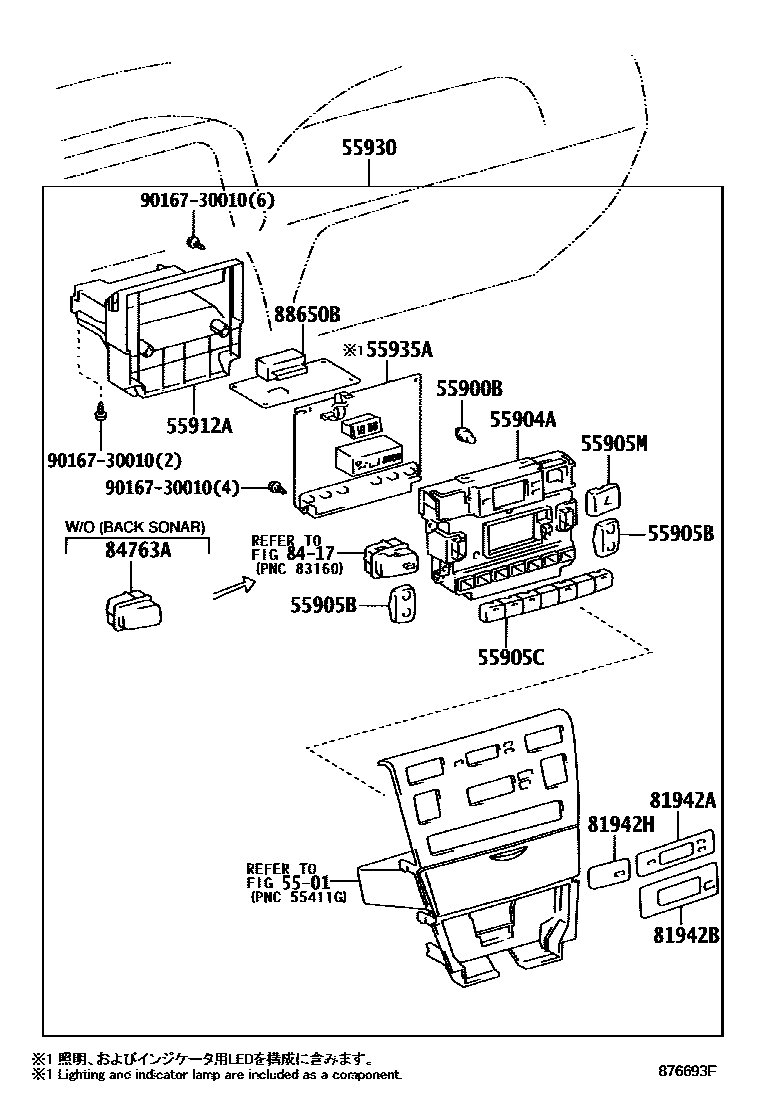

| 55904A | Heater control housing sub-assembly | 55904-02010 |
| 55905A | Heater control button | 55905-12740 · 55905-12741 |
| 55905B | Heater control button 2 | 55905-02130 · 55905-02140 |
| 55905C | Heater control button No. 3 | 55905-02150 |
| 55905M | Control lever handle sub-assembly | 55905-02120 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12400 · 55906-YK010 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12320 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12320 |
| 55912A | heater control housing | 55912-02010 |
| 55921A | Heater Controller Fixing | 55921-12161 |
| 55933A | Heater control cable clip | 55933-52010 |
| 55935A | Central instrument cluster module circuit | 55935-02010 · 55935-02020 |
| 81942A | Heater No. 1 control nameplate | 81942-02150 · 81942-02250 |
| 81942B | Heater No. 2 control nameplate | 81942-02160 · 81942-02260 |
| 81942H | Heater No. 3 control nameplate | 81942-02170 · 81942-02300 |
| 84763A | switch board | 84763-02050 |
| 87201 | No. 1 air duct sub-assembly | 87201-02220 |
| 87211M | Rear foot air duct | 87211-02200 |
| 87212 | No. 1 rear air duct | 87212-02080 |
| 87213 | No. 2 rear air duct | 87213-02080 |
| 87215F | No. 3 rear air duct | 87215-02060 |
| 87216B | No. 4 rear air duct | 87216-02050 |

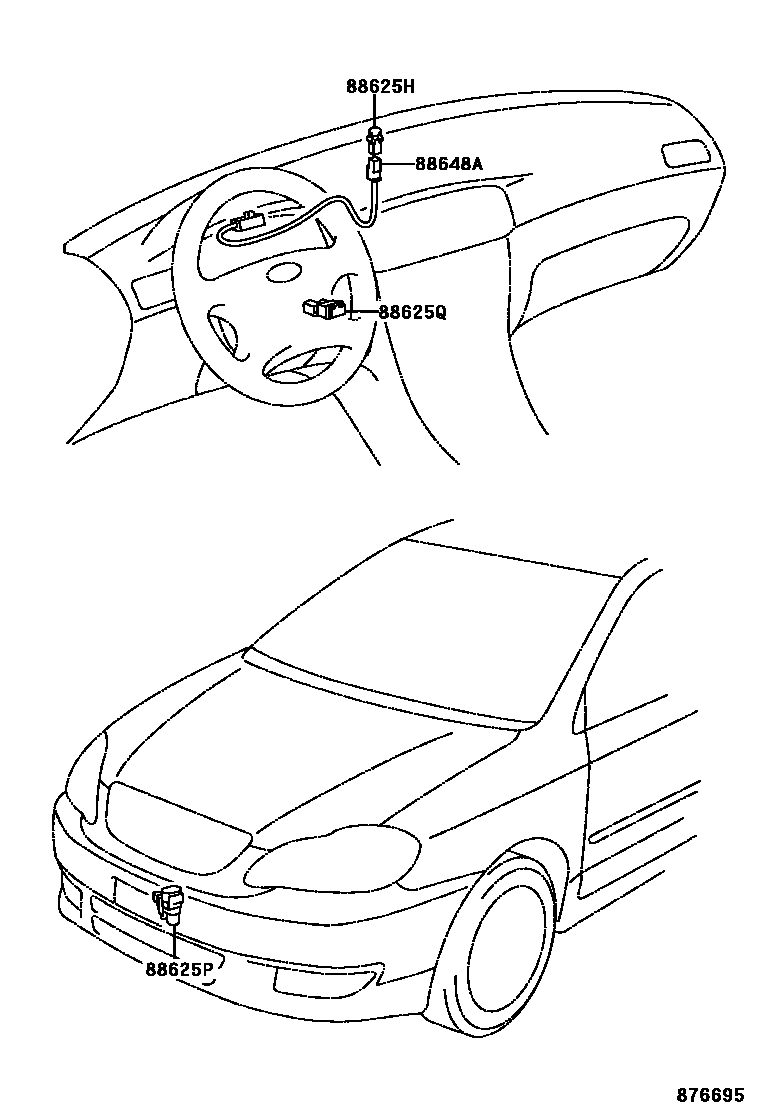

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-0D020 · 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-02250 |
| 88650B | Air conditioning amplifier assembly | 88650-1E500 |
