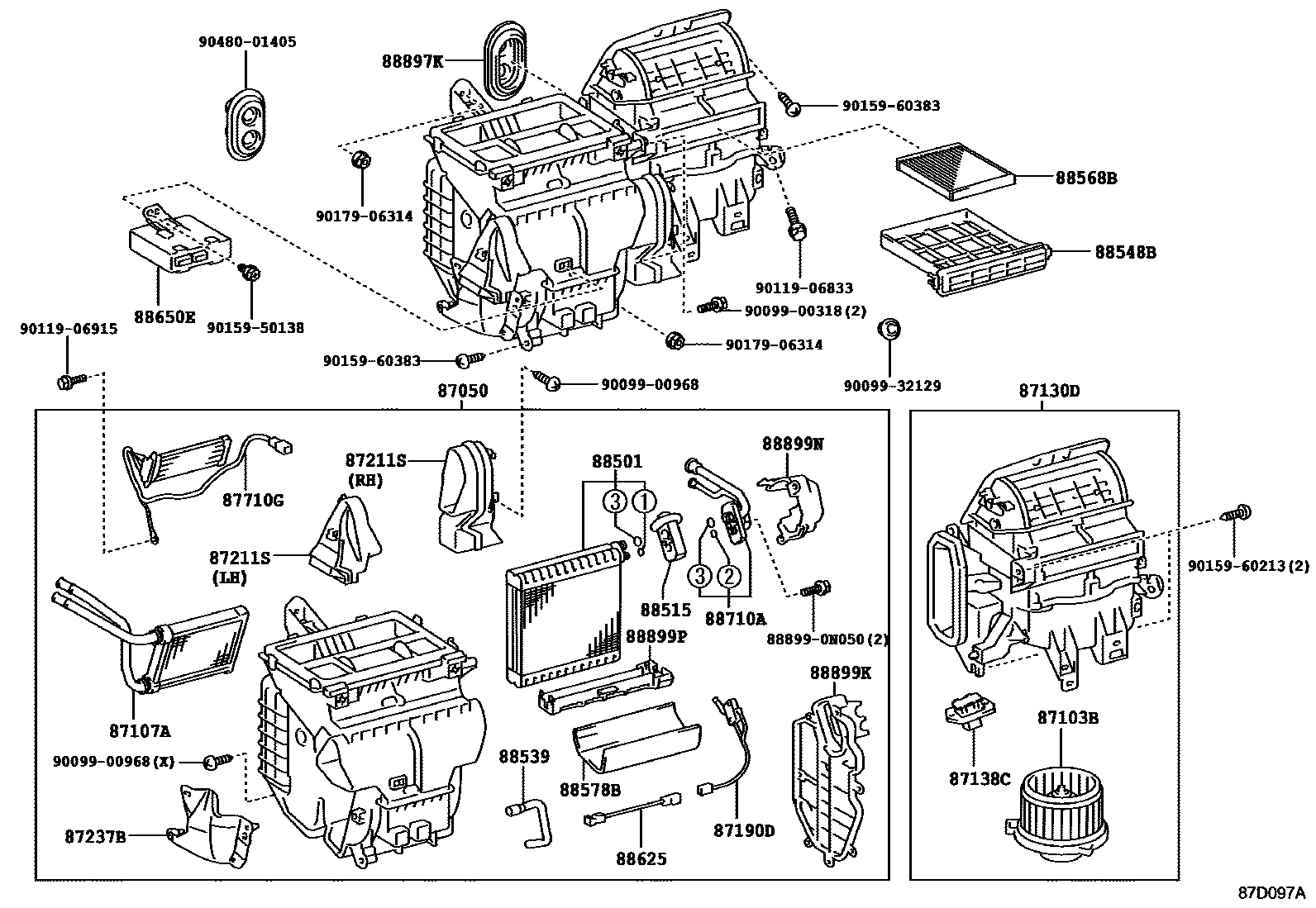

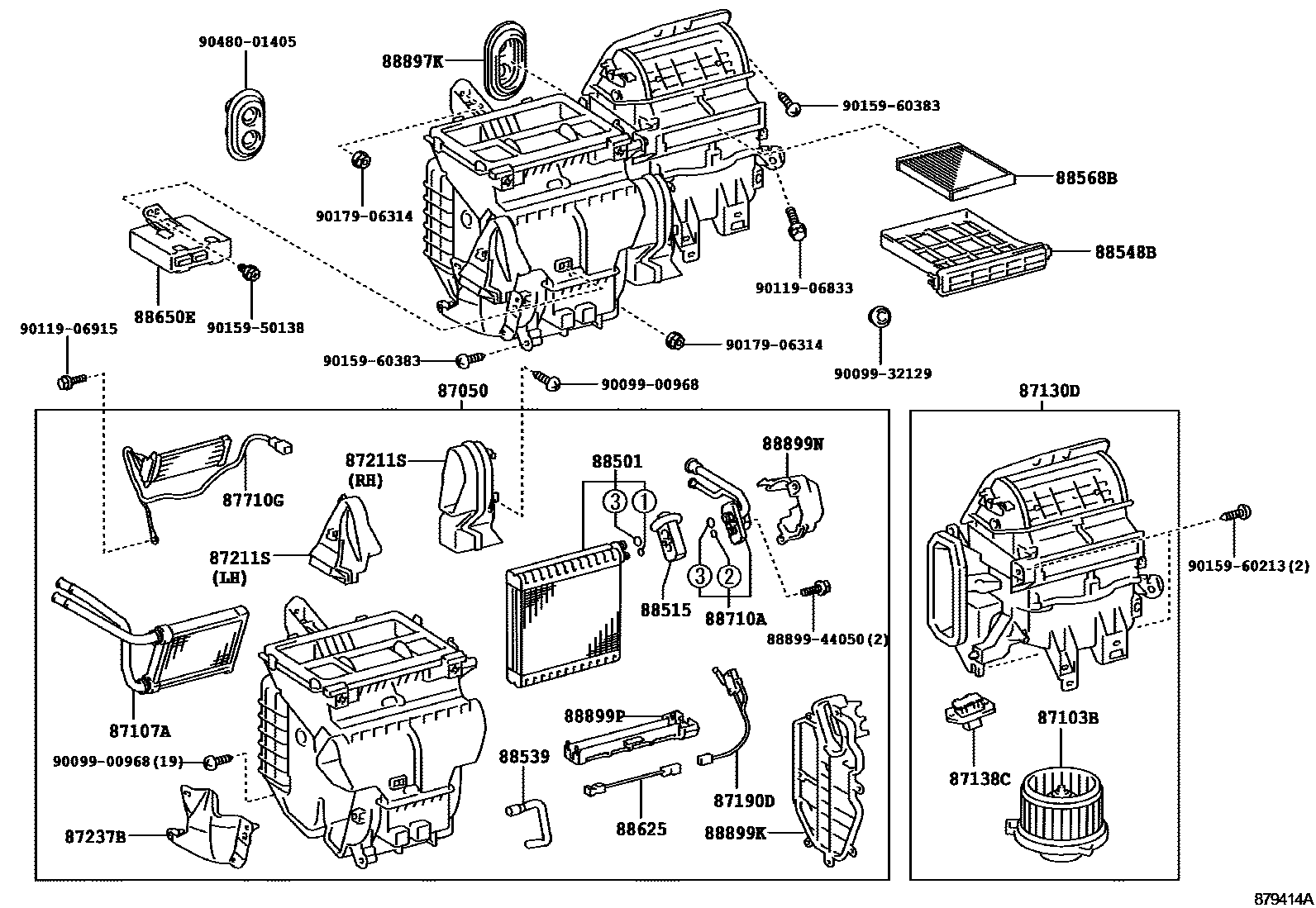

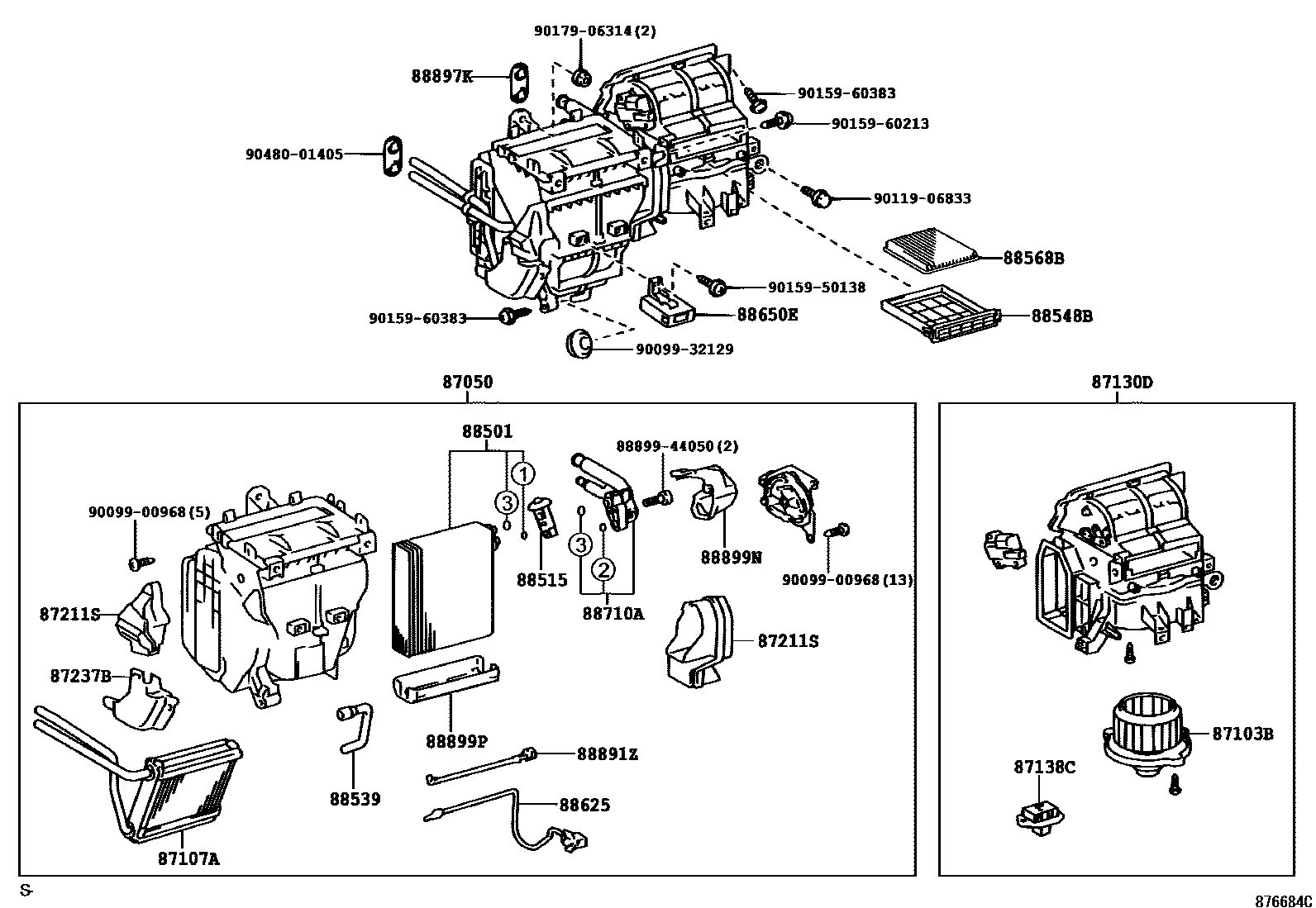

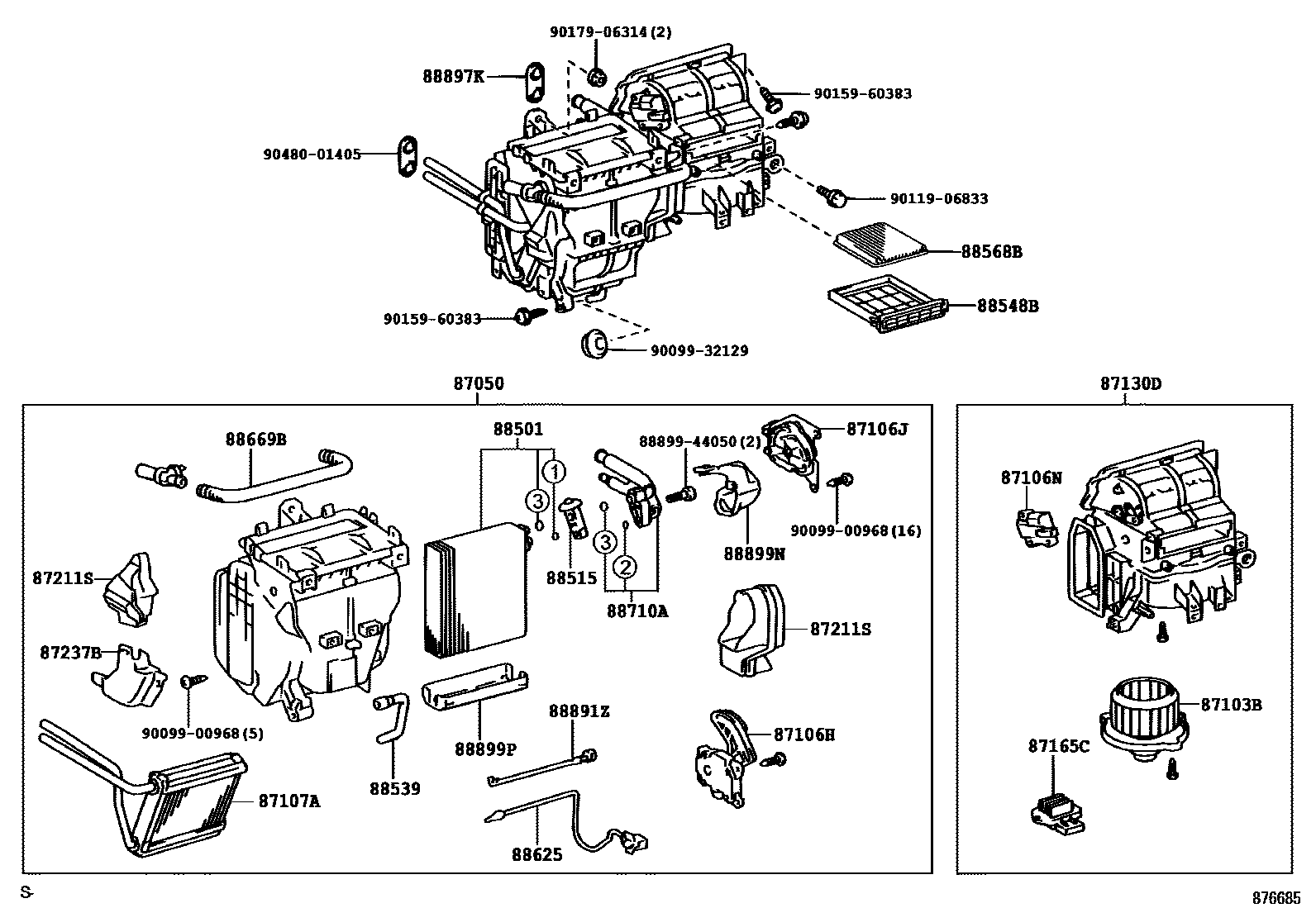

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-02670 · 87050-02680 · 87050-02C00 · 87050-02C01 · 87050-02P10 |
| 87103B | Blower motor sub-assembly with fan | 87103-02220 · 87103-02221 · 87103-02500 · 87103-12070 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-12131 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-12140 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-13010 |
| 87107A | Heater radiator device sub-assembly | 87107-02240 · 87107-12560 |
| 87130D | Blower assembly | 87130-02210 · 87130-02220 · 87130-02510 · 87130-02800 |
| 87138C | Blower resistor | 87138-20360 |
| 87165C | Blower motor control device | 87165-13010 |
| 87190D | Temperature control switch assembly | 87190-02040 |
| 87211S | air duct | 87211-12280 · 87211-12290 |
| 87237B | Heater connection cover | 87237-02040 · 87237-12010 |
| 87710G | Rapid heater assembly | 87710-02030 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02230 · 88501-02231 · 88501-02232 · 88501-12450 |
| 88515 | Cooler expansion valve | 88515-02280 · 88515-0N030 · 88515-60150 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-02240 · 88539-12180 |
| 88548B | air filter housing | 88548-02190 · 88548-52010 |
| 88568B | Air Cleaner | 88568-02040 |
| 88578B | Cooling unit seal No. 1 | 88578-12540 |
| 88625 | Cooler No. 1 Thermistor | 88620-02060 · 88620-02090 · 88625-60140 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-02510 · 88650-1E410 |
| 88669B | Cooler air hose | 88669-16060 |
| 88710A | Air conditioning pipe assembly | 88710-0Z040 · 88710-0Z041 · 88710-12550 |
| 88891Z | Cooler thermistor bracket | 88891-50060 |
| 88897K | Seals (for cooler tubes) | 90480-01434 |
| 88899K | Cover plate | 88899-02220 |
| 88899N | Cover plate | 88899-12440 · 88899-12510 |
| 88899P | Cover plate | 88899-02230 · 88899-12450 |
