Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.

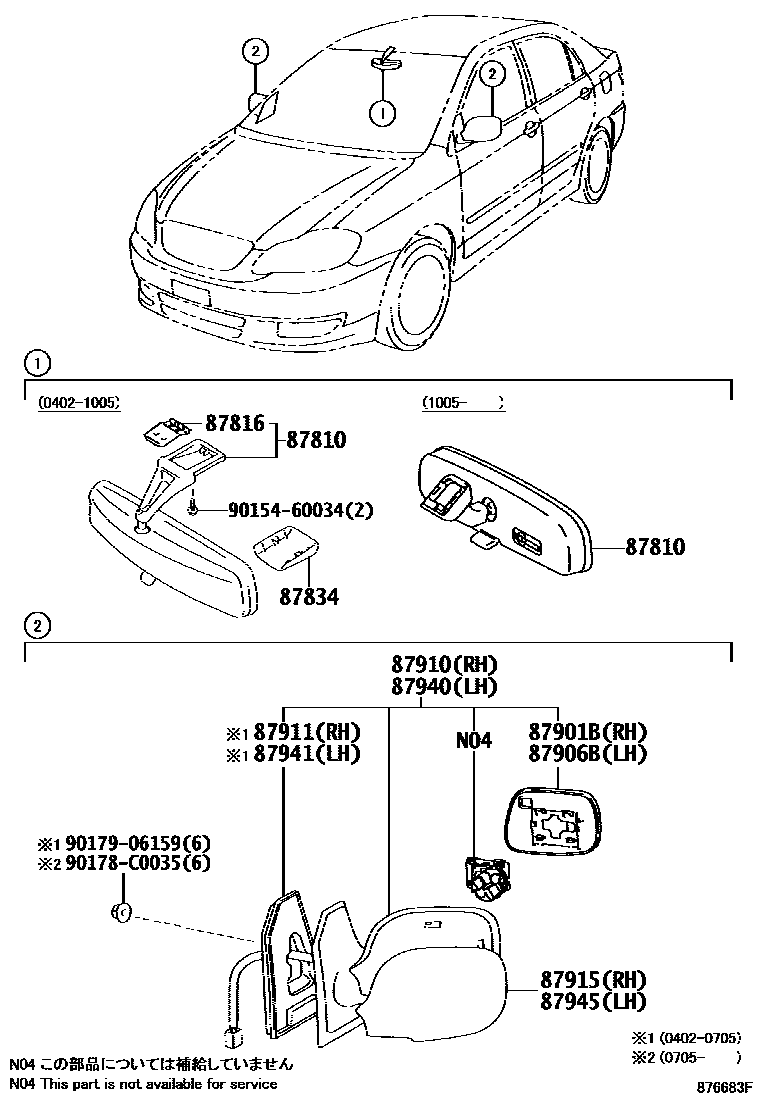

Toyota COROLLA 后视镜 EPC diagram — 876683F
后视镜 — 876683F (200402 – 201210)

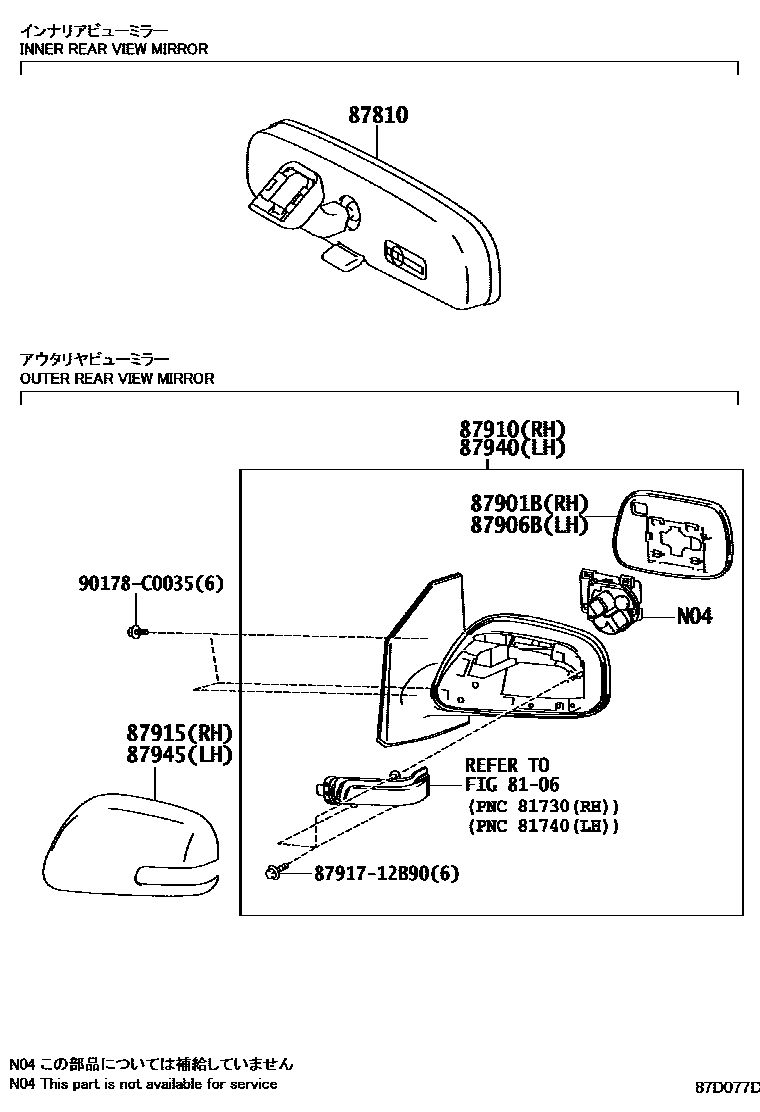

Toyota COROLLA 后视镜 EPC diagram — 87D077D
后视镜 — 87D077D (201210 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02190 · 87810-0D030 · 87810-YY010
87816Interior rearview mirror spring74372-30030
87901BRight exterior rearview mirror sub-assembly87931-02830 · 87931-1E860 · 87931-52320
87906BLeft exterior rearview mirror sub-assembly87961-02810 · 87961-1E670 · 87961-2A470
87910Right exterior rearview mirror assembly87910-02570 · 87910-02571 · 87910-02850 · 87910-02851 · 87910-02880 · 87910-YK010
87911Right exterior mirror pad87911-12320
87915Right exterior rearview mirror cover87915-02910 · 87915-02923 · 87915-0D902
87940Left exterior rearview mirror assembly87940-02560 · 87940-02561 · 87940-02830 · 87940-02831 · 87940-02860 · 87940-YK010
87941Left exterior mirror pad87941-12300
87945Left exterior rearview mirror cap87945-02910 · 87945-02923 · 87945-0D902
