Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 1 images and 2 PNC and OE references.

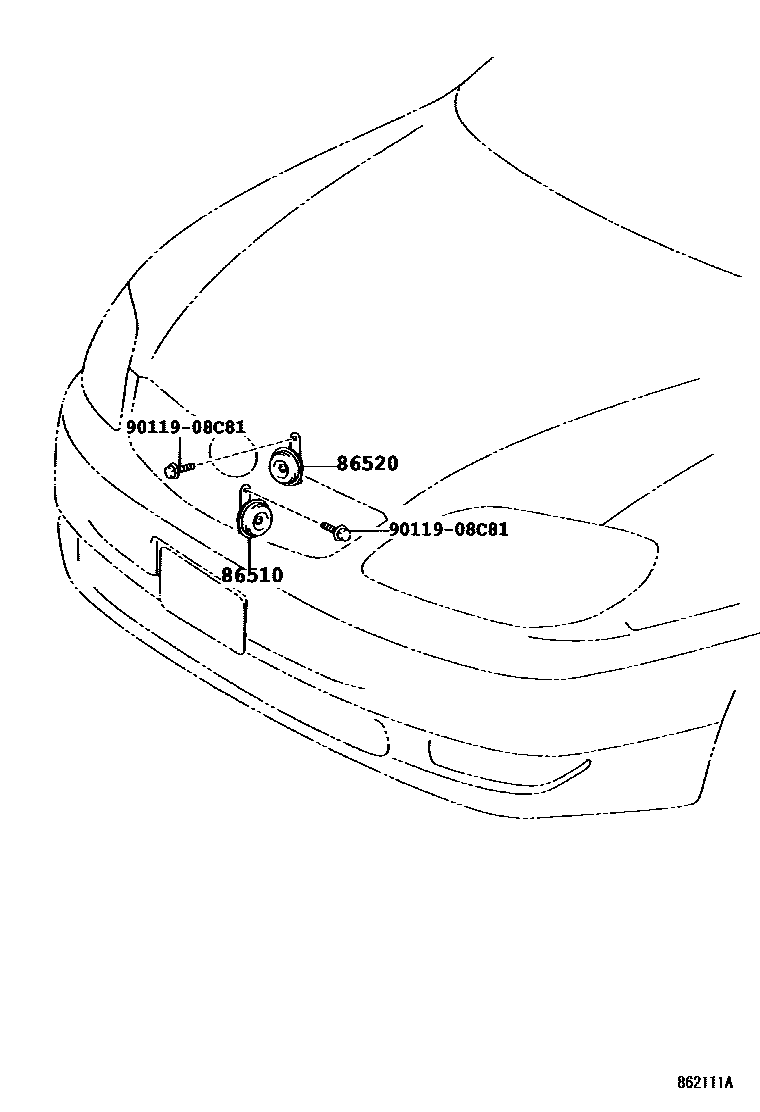

Toyota COROLLA 喇叭 EPC diagram — 862111A
喇叭 — 862111A (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-02070 · 86510-02071 · 86510-06100 · 86510-06101 · 86510-06130 · 86510-06170 · 86510-06171 · 86510-33170
86520Subwoofer assembly86520-02190 · 86520-02191 · 86520-06090 · 86520-06091 · 86520-06120 · 86520-06160 · 86520-06161 · 86520-35160
