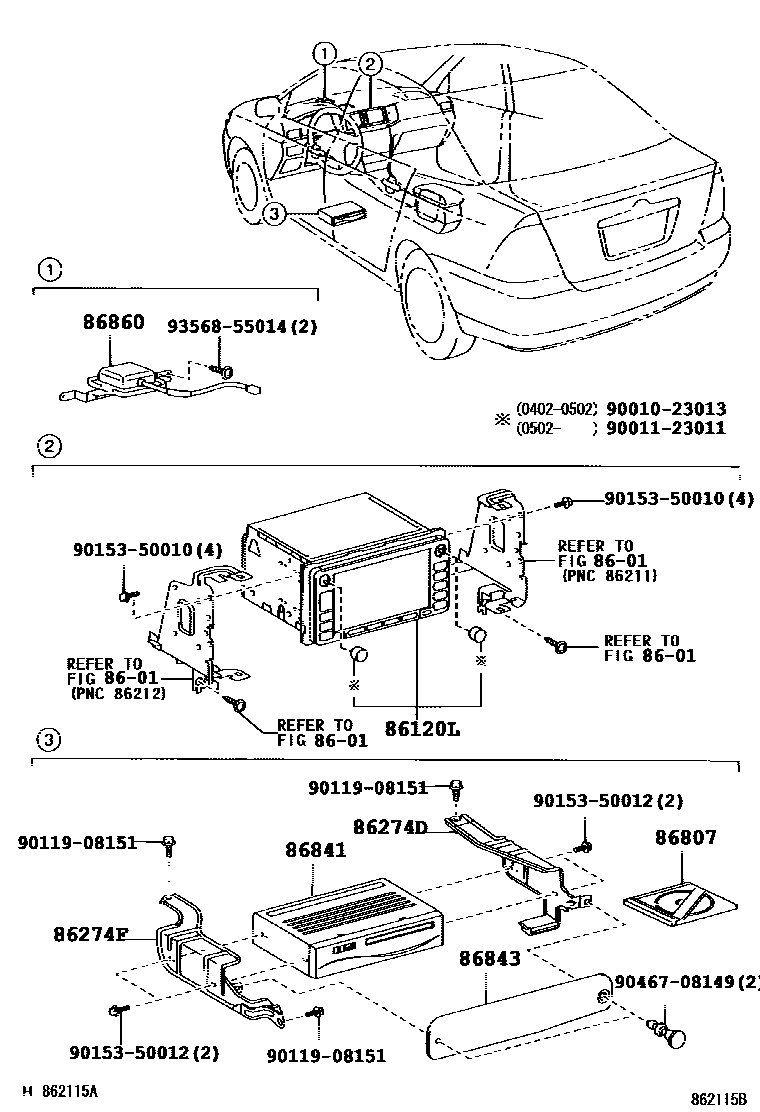

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-02500 · 86120-52131 |
| 86274D | CD player stand | 86274-13050 |
| 86274F | No. 2 CD player stand | 86274-13060 |
| 86807 | CD-ROM disc repair kit | 86807-0D012 · 86807-0D013 · 86807-0D014 · 86807-0N011 · 86807-0N012 · 86807-0N013 · 86807-0W021 · 86807-0W022 |
| 86841 | Navigation ECU | 86841-33090 · 86841-52010 · 86841-52011 |
| 86843 | Navigation ECU cover | 86843-32010 |
| 86860 | Navigation antenna assembly | 86860-12030 · 86860-12050 |
