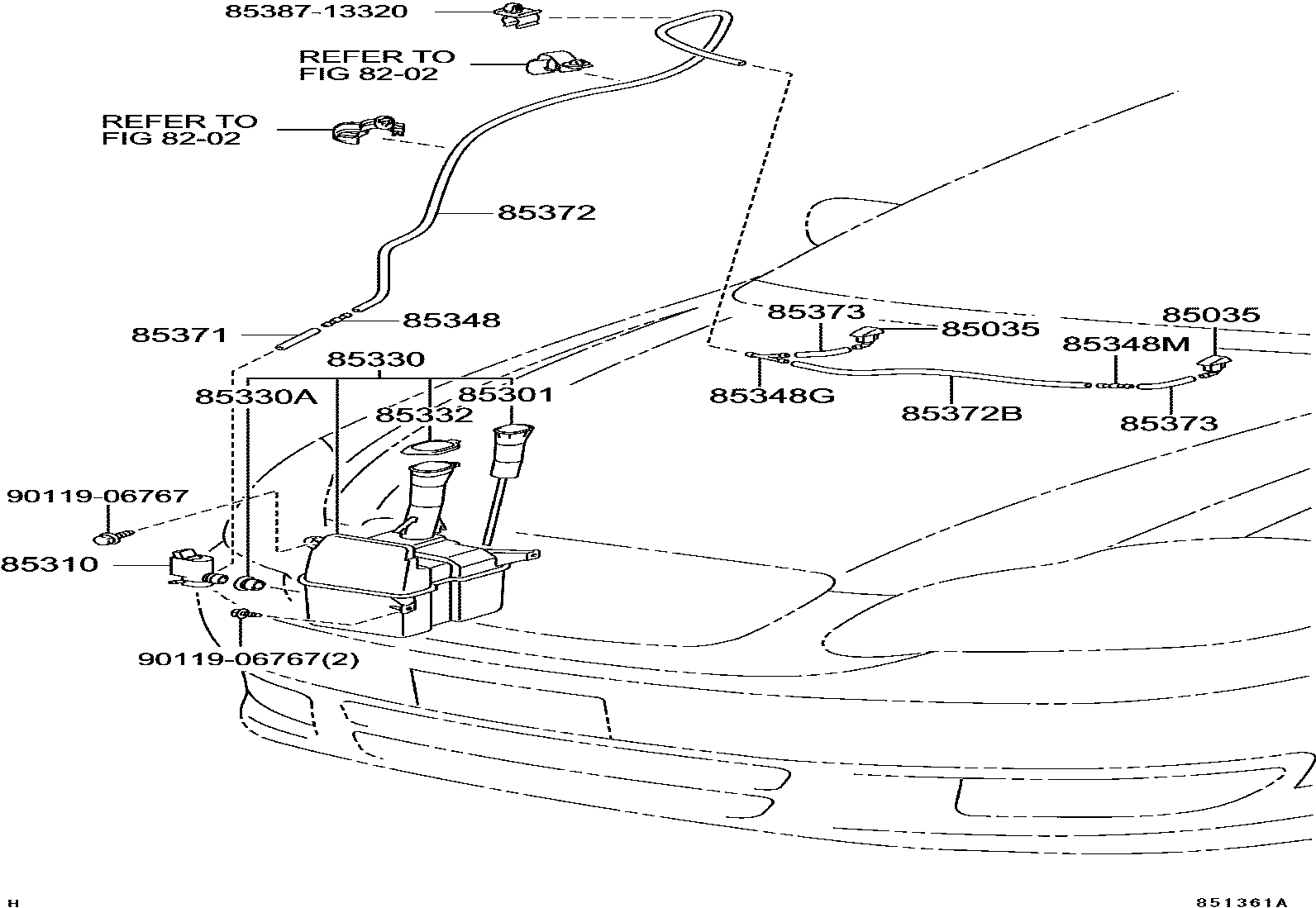

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12280 · 85381-44010 |
| 85301 | Cleaner water inlet sub-assembly | 85318-12450 |
| 85310 | Windshield washer motor and pump assembly | 85330-02020 |
| 85330 | Windshield washer fluid tank assembly | 85315-02200 |
| 85330A | Windshield washer fluid tank bushing | 90068-32006 |
| 85332 | Windshield washer fluid tank cap | 85316-26030 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0D030 |
| 85348G | Windshield washer hose connector No. 2 | 85378-02230 |
| 85348M | No. 3 windshield washer hose connector | 85375-0D030 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33044 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-59046 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-59045 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33043 |
