Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

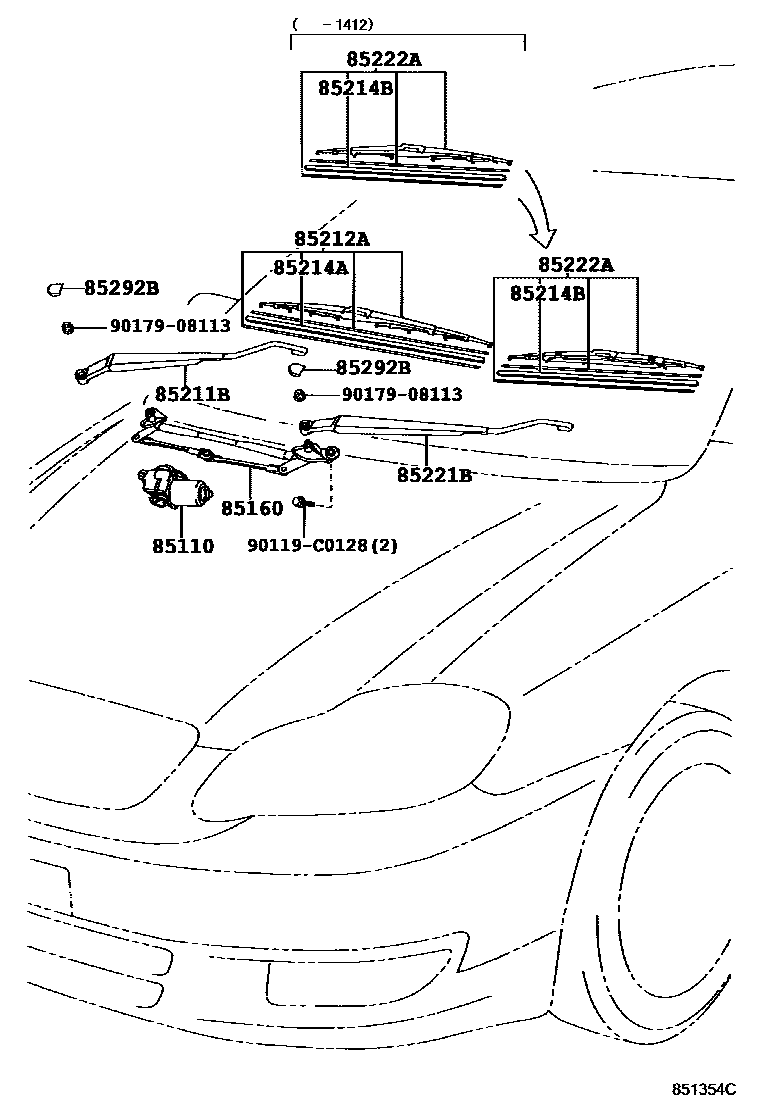

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-02260 · 85110-1A040 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02150 · 85150-YK010 |
| 85211B | Right front wiper arm | 85211-02090 · 85211-02250 |
| 85212A | Right front wiper blade | 85212-02140 · 85212-02141 · 85212-02210 |
| 85214A | Right wiper rubber strip | 85214-02090 · 85214-02091 |
| 85214B | Left wiper rubber strip | 85214-02180 |
| 85221B | Left front wiper arm | 85221-02100 · 85221-02260 · 85221-YK010 |
| 85222A | Left front wiper blade | 85222-02150 · 85222-02220 · 85222-YK010 |
| 85292B | Front wiper arm cap | 85292-12020 |
