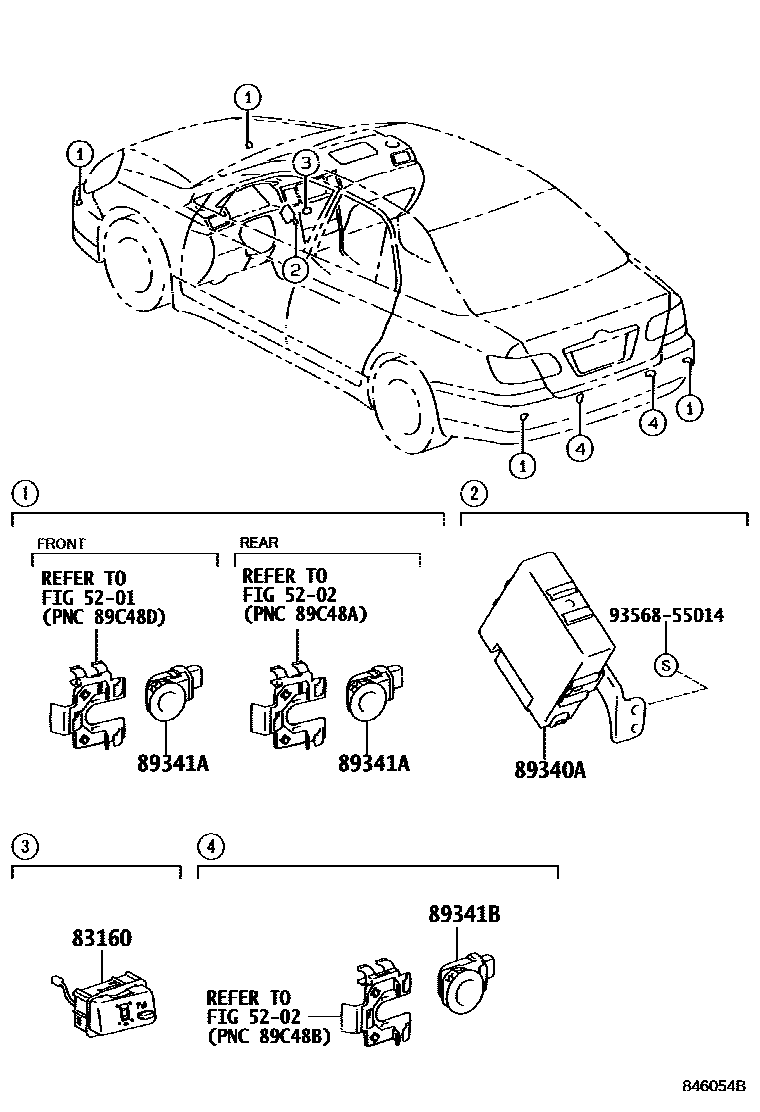

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83160 | Vehicle distance warning indicator light assembly | 83160-02010 |
| 89340A | Distance warning ECU assembly | 89340-12040 |
| 89341A | Ultrasonic sensor No. 1 | 89341-12080 · 89341-28370 · 89341-33030 · 89341-33080 · 89341-33090 · 89341-33100 |
| 89341B | Ultrasonic sensor No. 2 | 89341-33040 · 89341-33050 · 89341-33060 · 89341-33070 · 89341-52010 · 89341-52020 |
