Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 4 PNC and OE references.

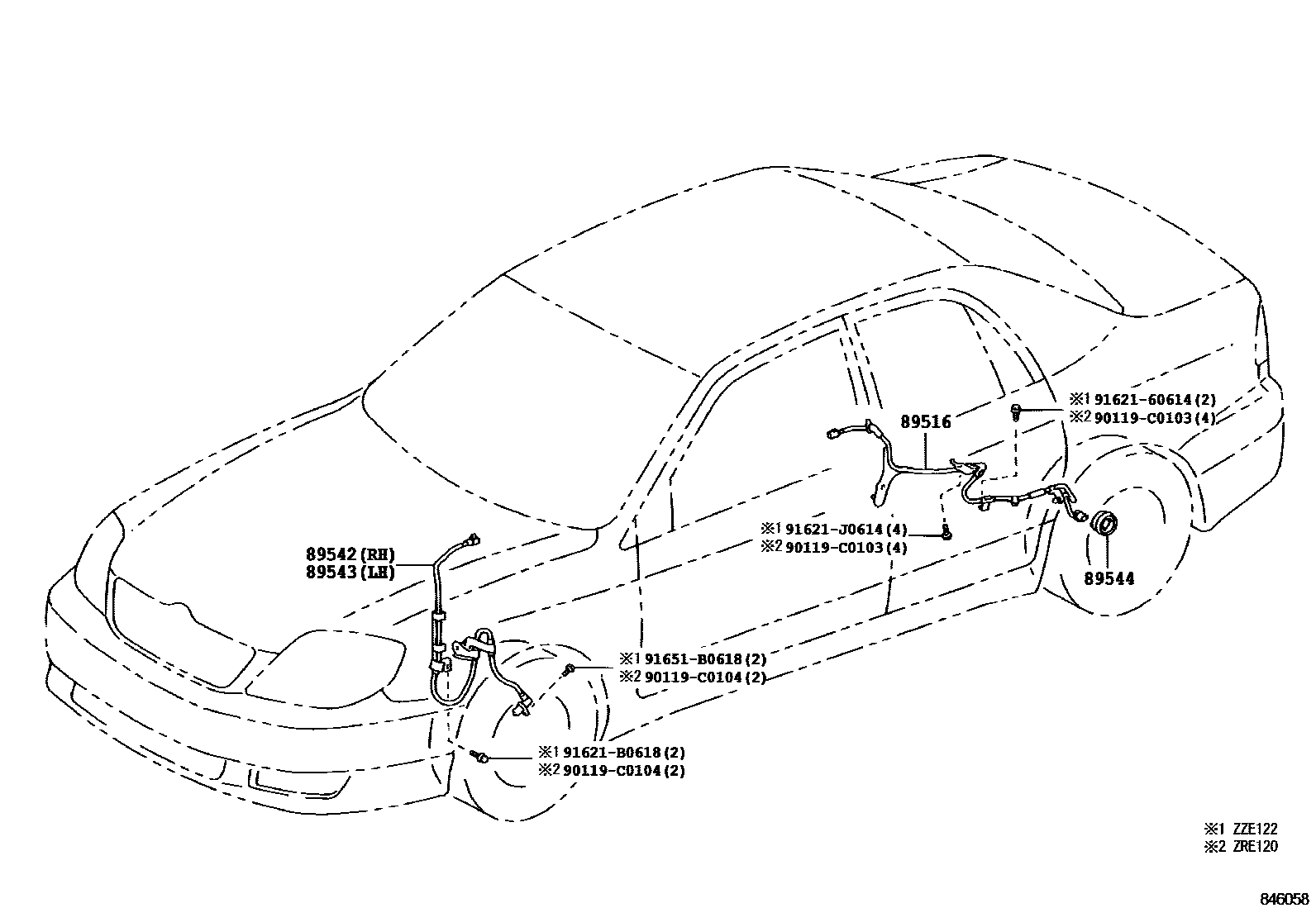

Toyota COROLLA ABS 和 VSC EPC diagram — 846058A
ABS 和 VSC — 846058A (200402 – 201210)

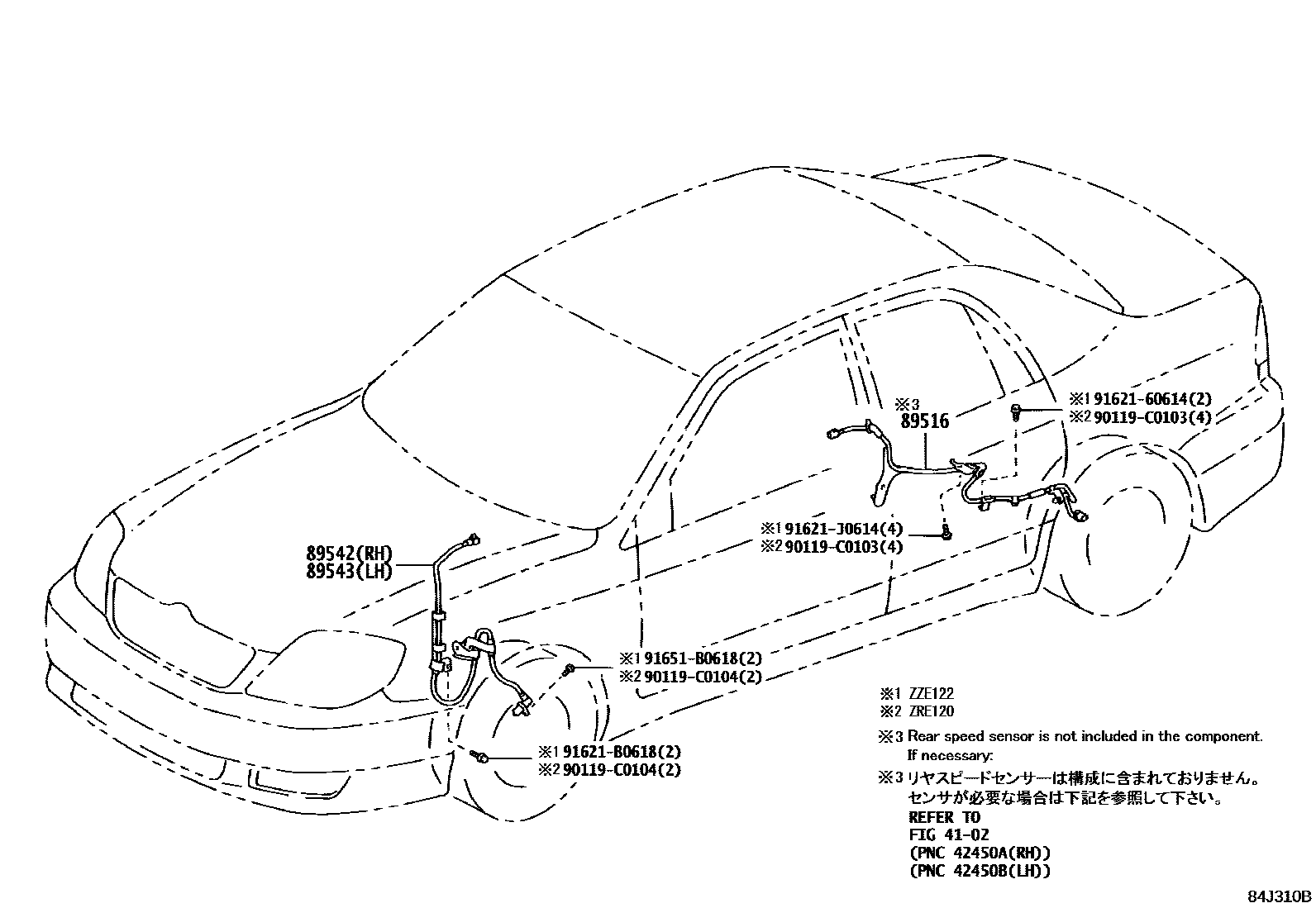

Toyota COROLLA ABS 和 VSC EPC diagram — 84J310B
ABS 和 VSC — 84J310B (201210 – 999999)

PNC and OE references

PNCPart nameOE numbers
89516Anti-skid control sensor wiring harness89516-12010 · 89516-12020
89542Right front wheel speed sensor89542-02100 · 89542-12070
89543Left front wheel speed sensor89543-02100 · 89543-12070
89544Anti-skid control sensor89544-20010
