Toyota COROLLA 超速档和电子控制变速器 — Figure 8410

Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 4 PNC and OE references.

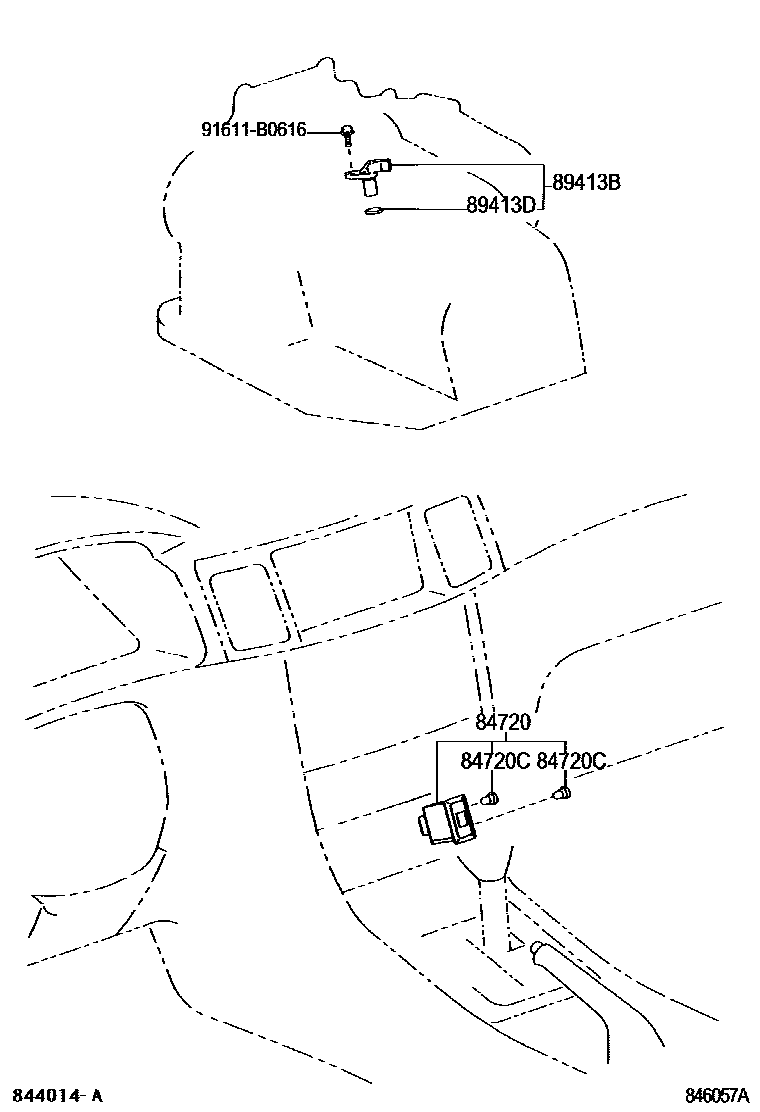

Toyota COROLLA 超速档和电子控制变速器 EPC diagram — 846057A
超速档和电子控制变速器 — 846057A (200402 – 200705)

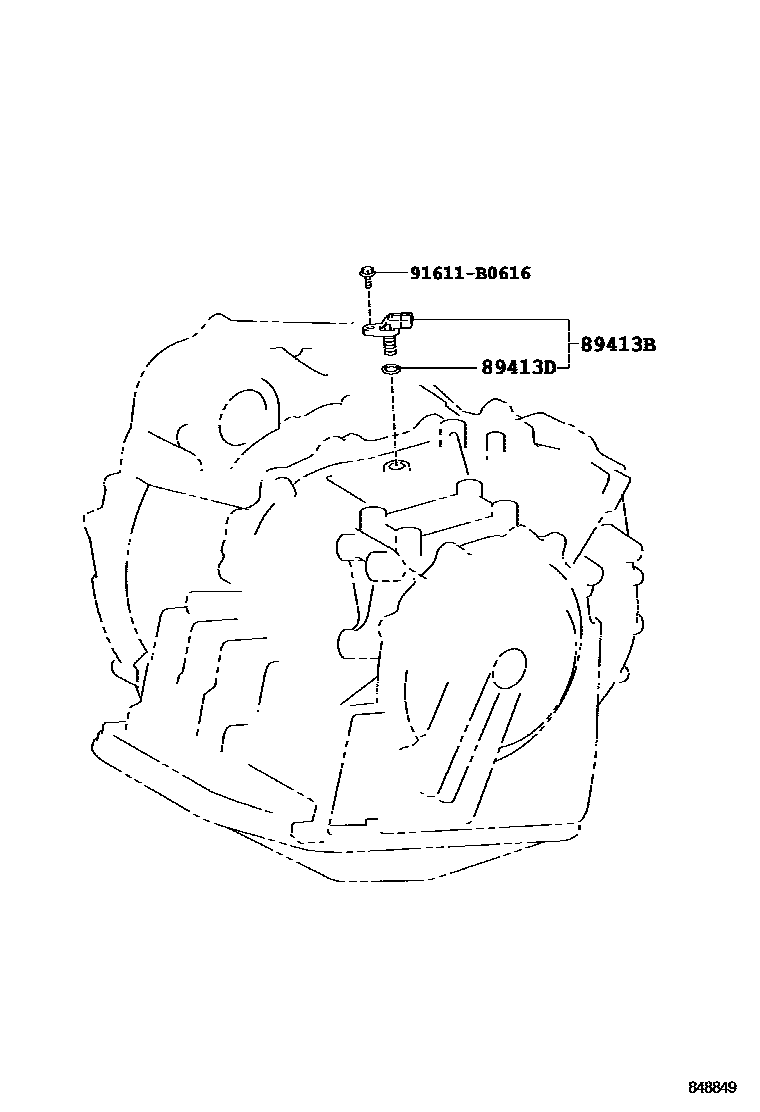

Toyota COROLLA 超速档和电子控制变速器 EPC diagram — 848849
超速档和电子控制变速器 — 848849 (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
84720Mode selection switch assembly84720-12080
84720CLight bulb (for mode selector switch)84999-10310 · 90010-01049
89413BTransmission speed sensor89413-32010
89413DO-ring (for transmission speed sensor)90301-11008
