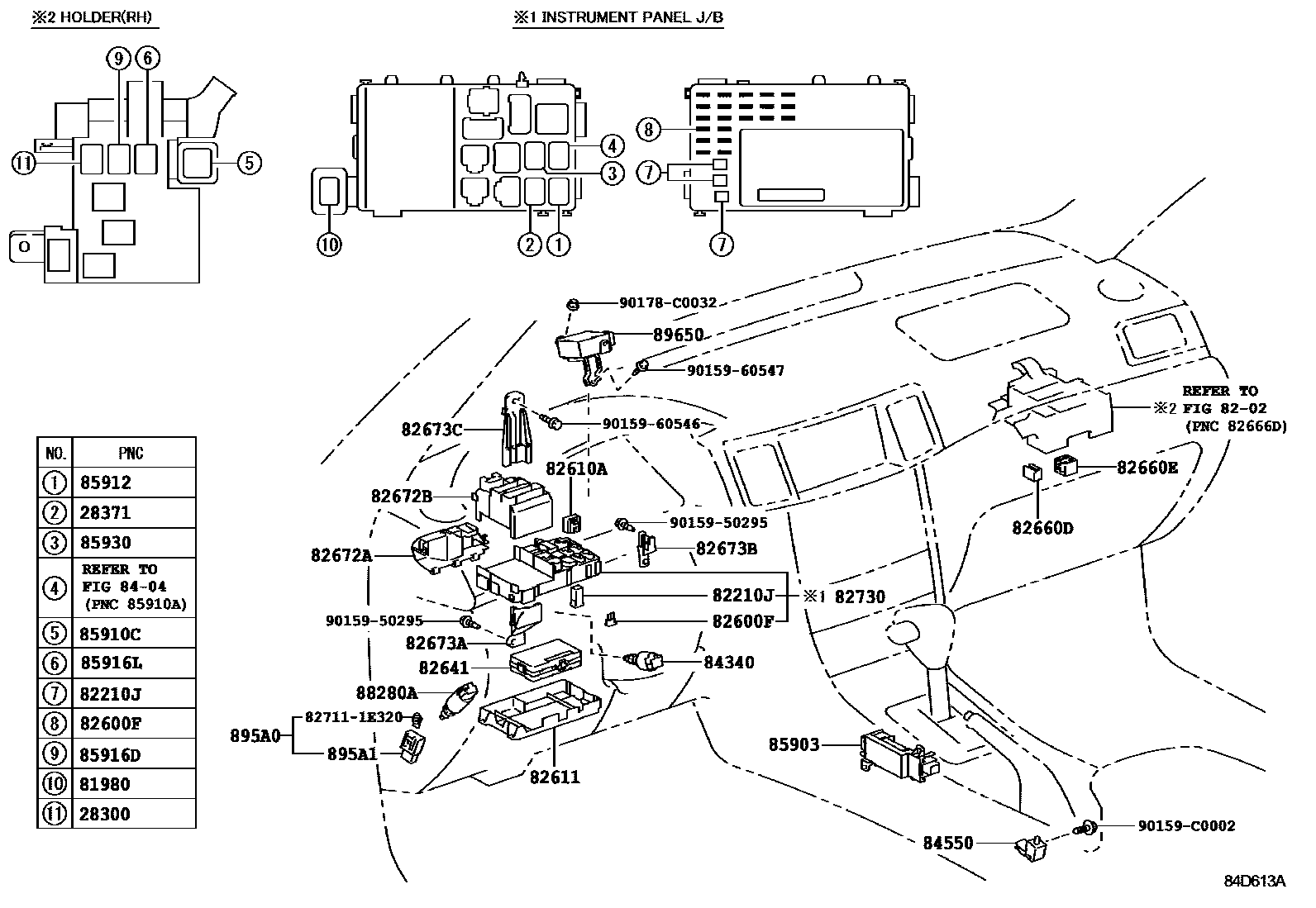

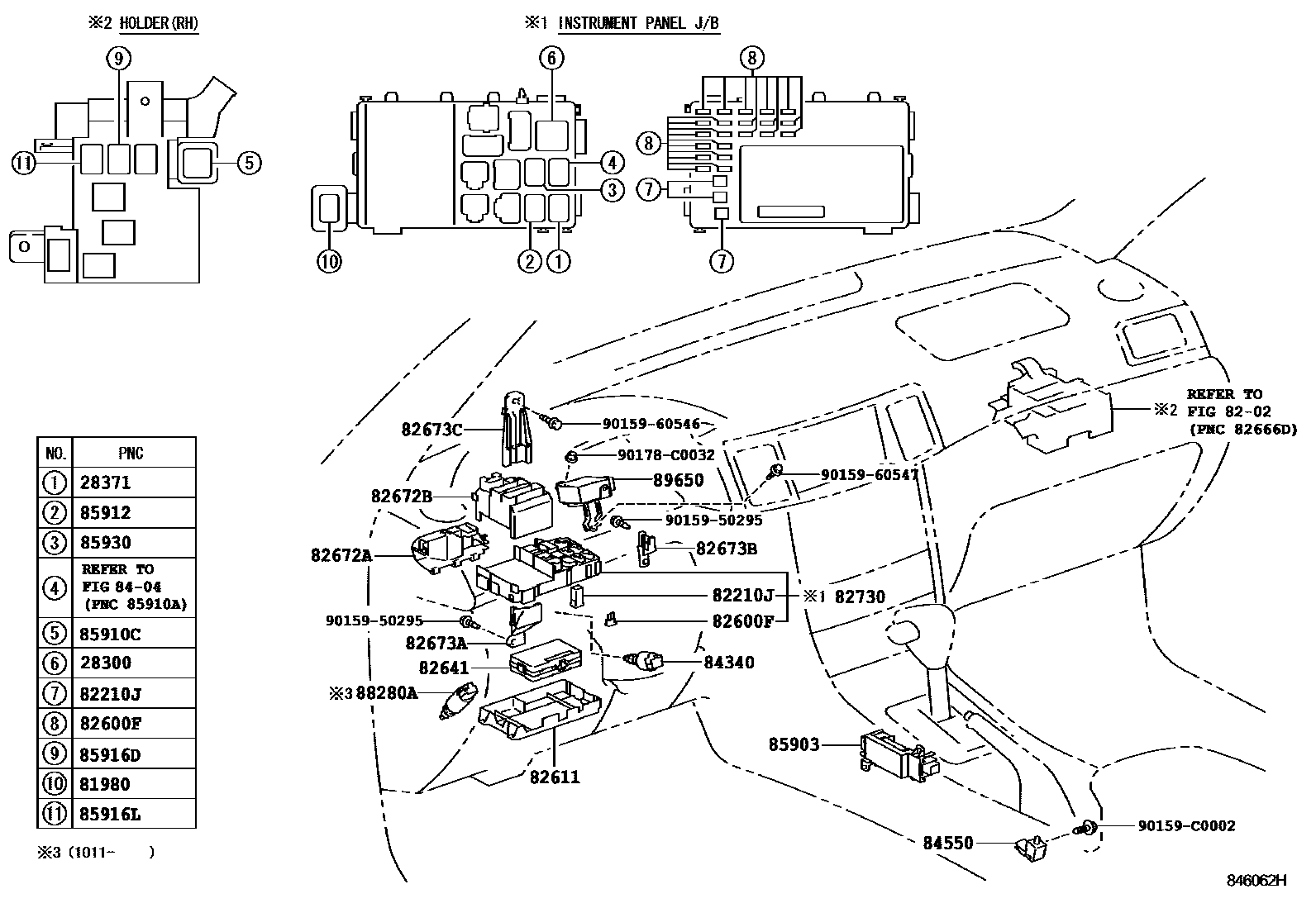

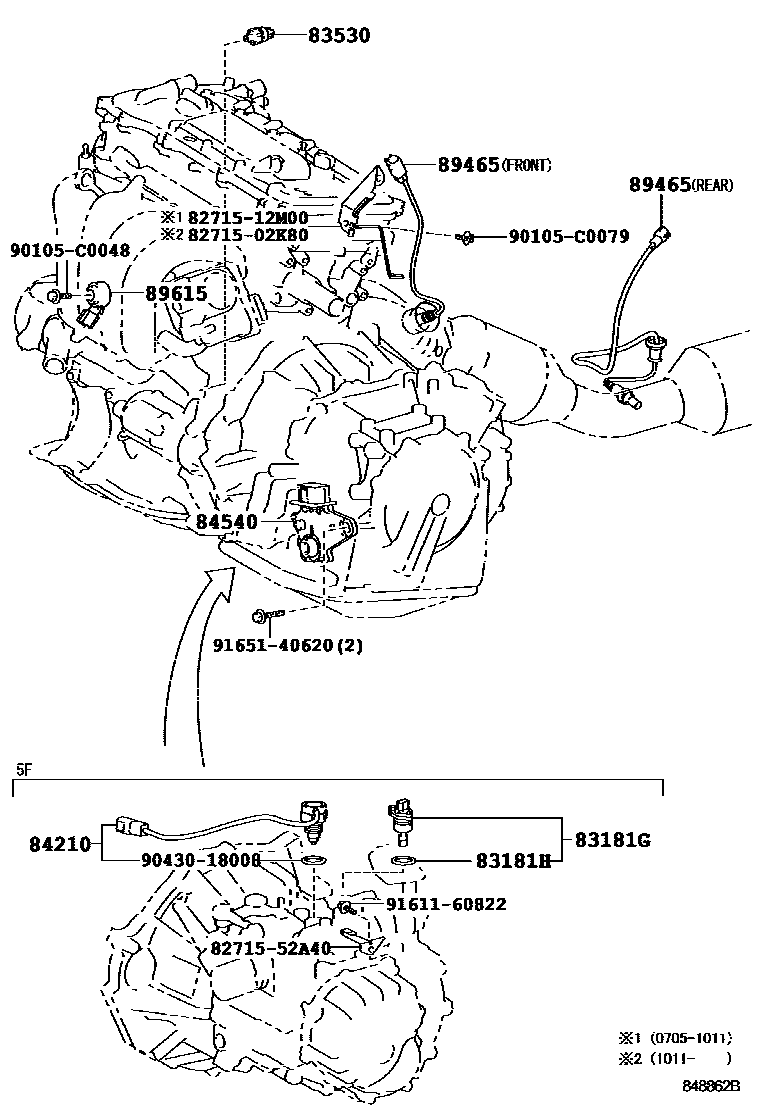

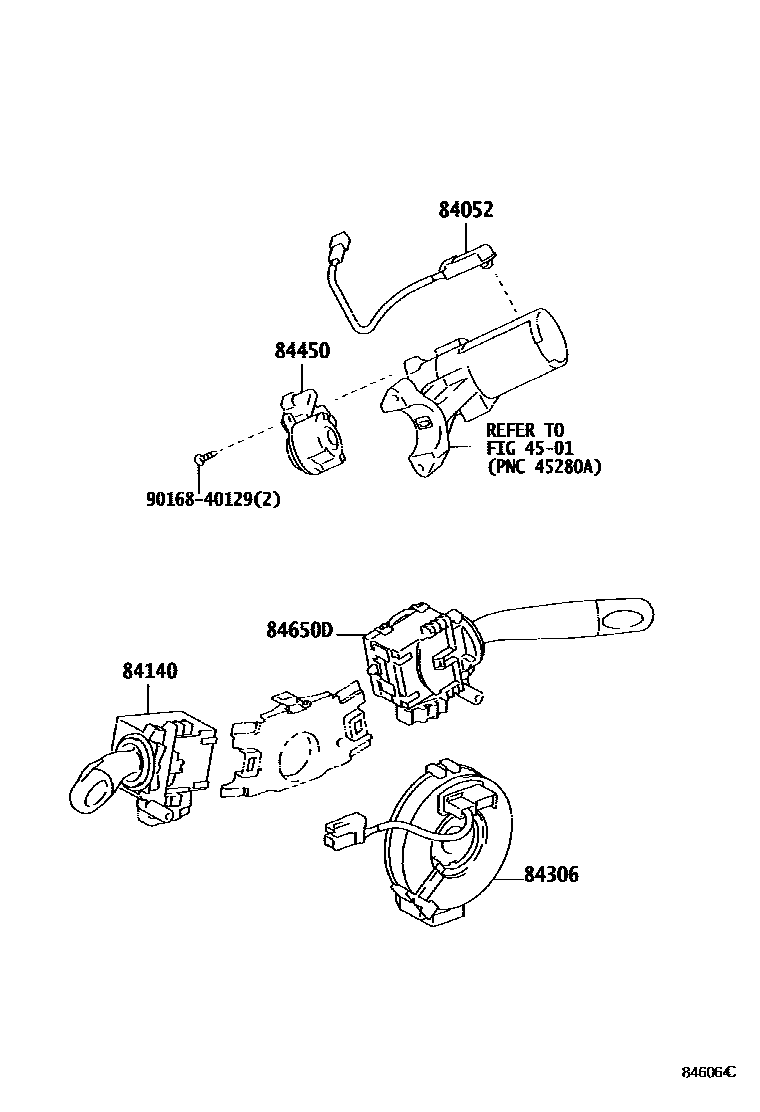

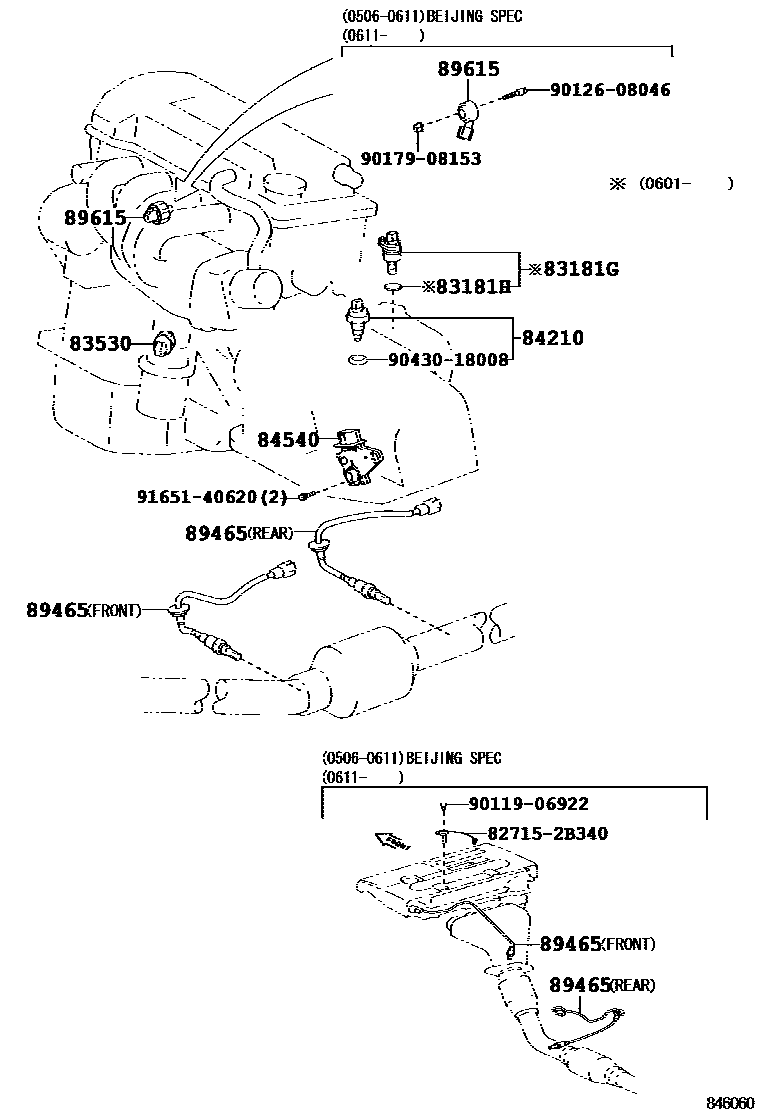

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 14 images and 85 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28371 | No. 1 ignition relay | 90987-T2005 |
| 81980 | Turn signal flasher relay assembly | 81980-02040 |
| 82210J | fuse | 90982-08190 · 90982-08246 · 90982-08274 · 90982-08280 · 90982-08281 · 90982-08283 · 90982-08284 · 90982-08285 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09012 · 90982-09013 · 90982-09021 |
| 82610A | Fuse box assembly | 82610-20080 |
| 82611 | fuse box cover | 82611-12140 · 82611-12150 · 82611-YK010 |
| 82616 | fuse puller | 82616-20010 · 82616-58010 |
| 82620A | Fuse box assembly | 82620-12290 |
| 82641 | Integrated relay No. 1 | 82641-12200 · 82641-12201 · 82641-12211 · 82641-12240 · 82641-12320 |
| 82660C | Relay assembly | 82660-52020 |
| 82660D | Relay assembly | 82660-26150 |
| 82660E | Relay assembly | 82660-37070 |
| 82662A | No. 1 relay box upper cover | 82662-12220 · 82662-12221 · 82662-12510 · 82662-YK010 |
| 82662B | No. 2 relay box upper cover | 82662-12230 · 82662-YK030 |
| 82662C | No. 3 relay box upper cover | 82662-12500 |
| 82663 | Relay box lower cover | 82663-12010 |
| 82663A | No. 2 relay box lower cover | 82663-12040 · 82663-13020 |
| 82663B | No. 3 relay box lower cover | 82663-12070 |
| 82672A | Junction box cover | 82672-12400 |
| 82672B | Junction box cover | 82672-12410 |
| 82673A | Junction box bracket | 82673-12050 · 82673-YK010 |
| 82673B | Junction box bracket | 82673-12060 · 82673-YK020 |
| 82673C | Junction box bracket | 82673-12080 · 82673-YK030 |
| 82730 | Instrument panel junction box assembly | 82730-12150 · 82730-12V80 · 82730-YK010 · 82730-YK020 |

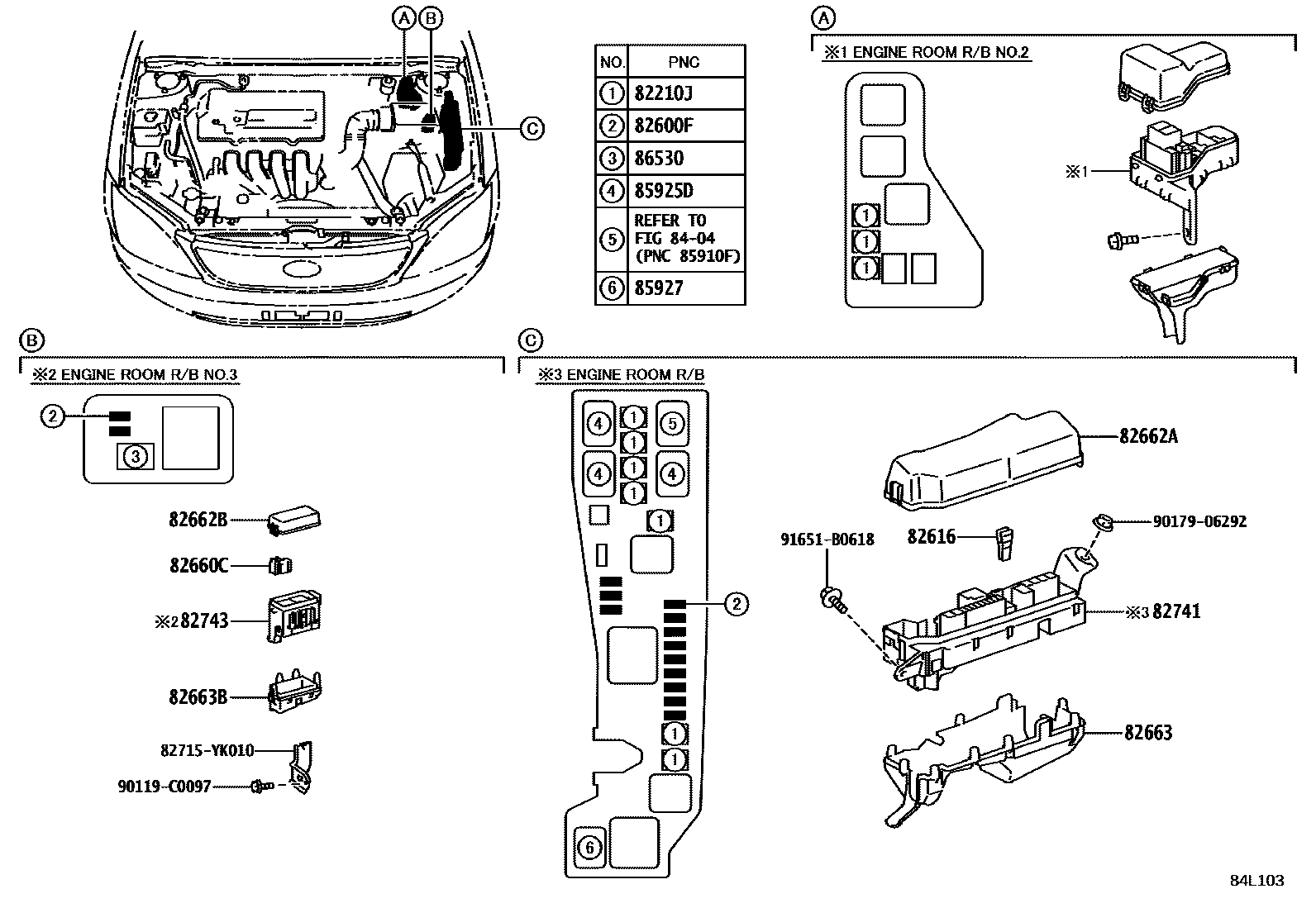

| 82741 | Engine room relay box | 82741-12020 |

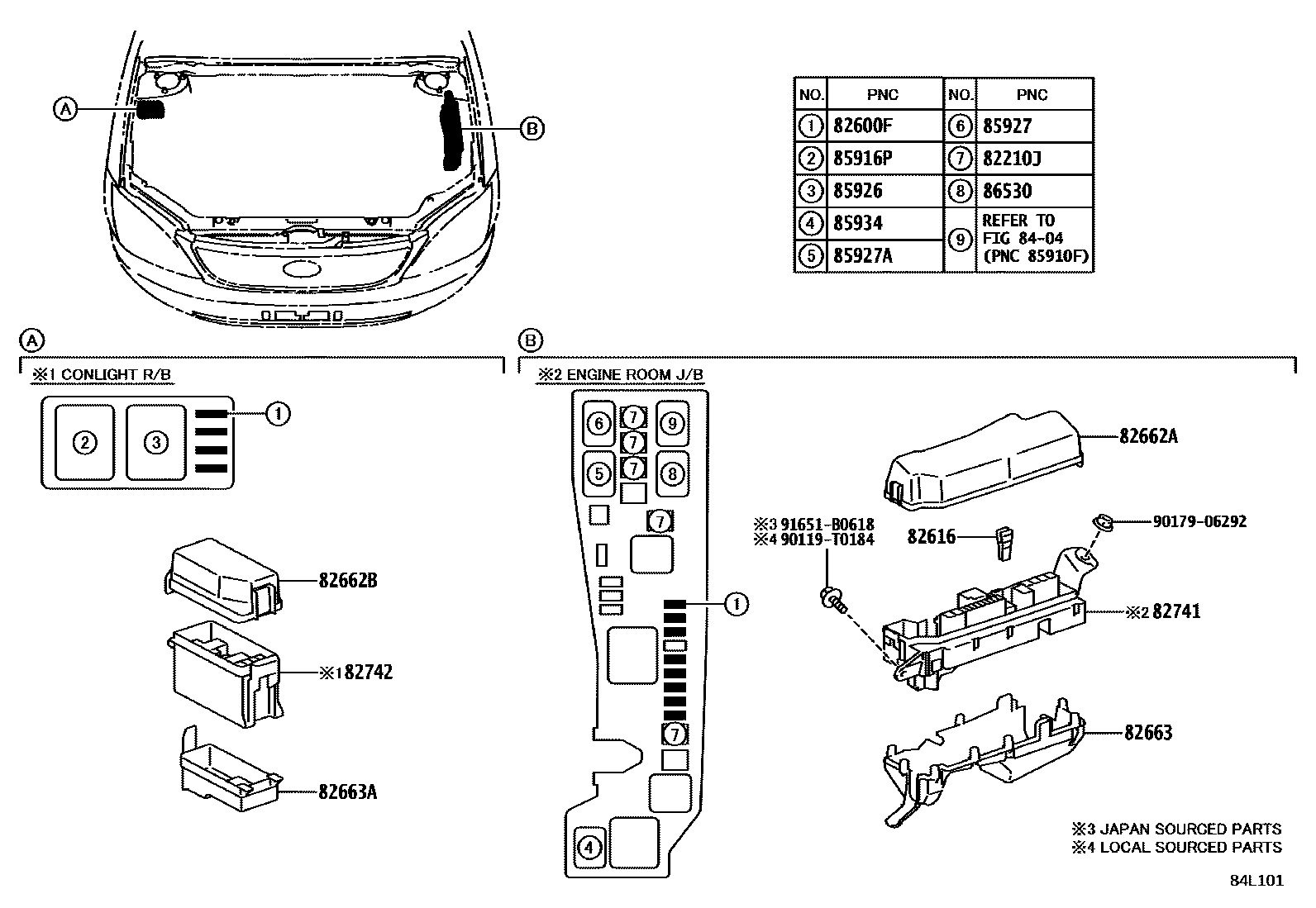

| 82742 | Engine room No. 2 relay box | 82741-12050 · 82741-13020 |
| 82743 | Engine room No. 3 relay box | 82741-12080 |
| 83181G | speedometer sensor | 83181-12020 |
| 83181H | O-ring (for speedometer sensor) | 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-02060 · 83320-02320 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-60010 |
| 84140 | Headlight dimmer switch assembly | 84140-02270 · 84140-02280 · 84140-02500 · 84140-13010 · 84140-13020 |
| 84152 | Headlight beam height adjustment switch | 84152-0P010 · 84152-0P011 · 84152-52130 |
| 84162A | Rear fog light switch | 84165-12060 |
| 84162C | Bulb (for rear fog light switch) | 90010-09012 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52010 |
| 84233 | Door control light switch assembly (for front door) | 84231-02130 · 84231-0R010 · 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02160 · 84231-0E070 · 84231-53010 |
| 84236 | Door control light switch assembly (for trunk) | 84231-12130 |
| 84306 | Spiral cable sub-assembly | 84306-0D021 |

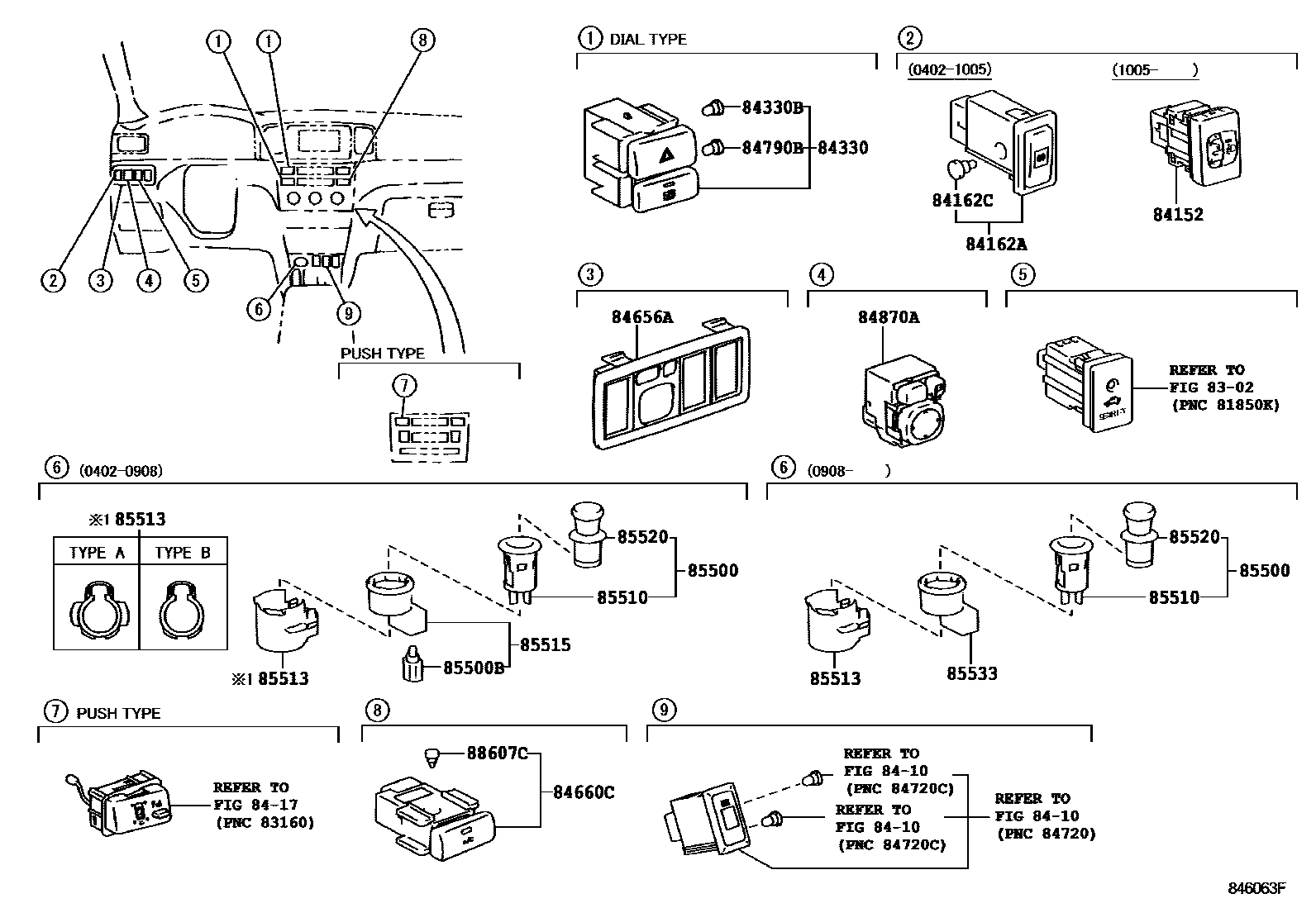

| 84330 | Hazard warning signal switch assembly | 84332-12450 |
| 84330B | Hazard warning signal switch light bulb | 84999-10310 |
| 84340 | brake light switch assembly | 84340-20060 · 84340-30130 · 84340-32050 · 84340-47010 · 84340-47020 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84540 | Neutral start switch assembly | 84540-46010 · 84540-52010 · 84540-52050 |
| 84550 | Parking brake switch assembly | 84550-02050 · 84550-33010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02400 · 84652-02401 · 84652-0D020 · 84652-0D021 |
| 84660C | Cooler switch | 84660-12190 · 84660-YK010 |
| 84790B | Bulb (for rear window defogger switch) | 90010-01060 |

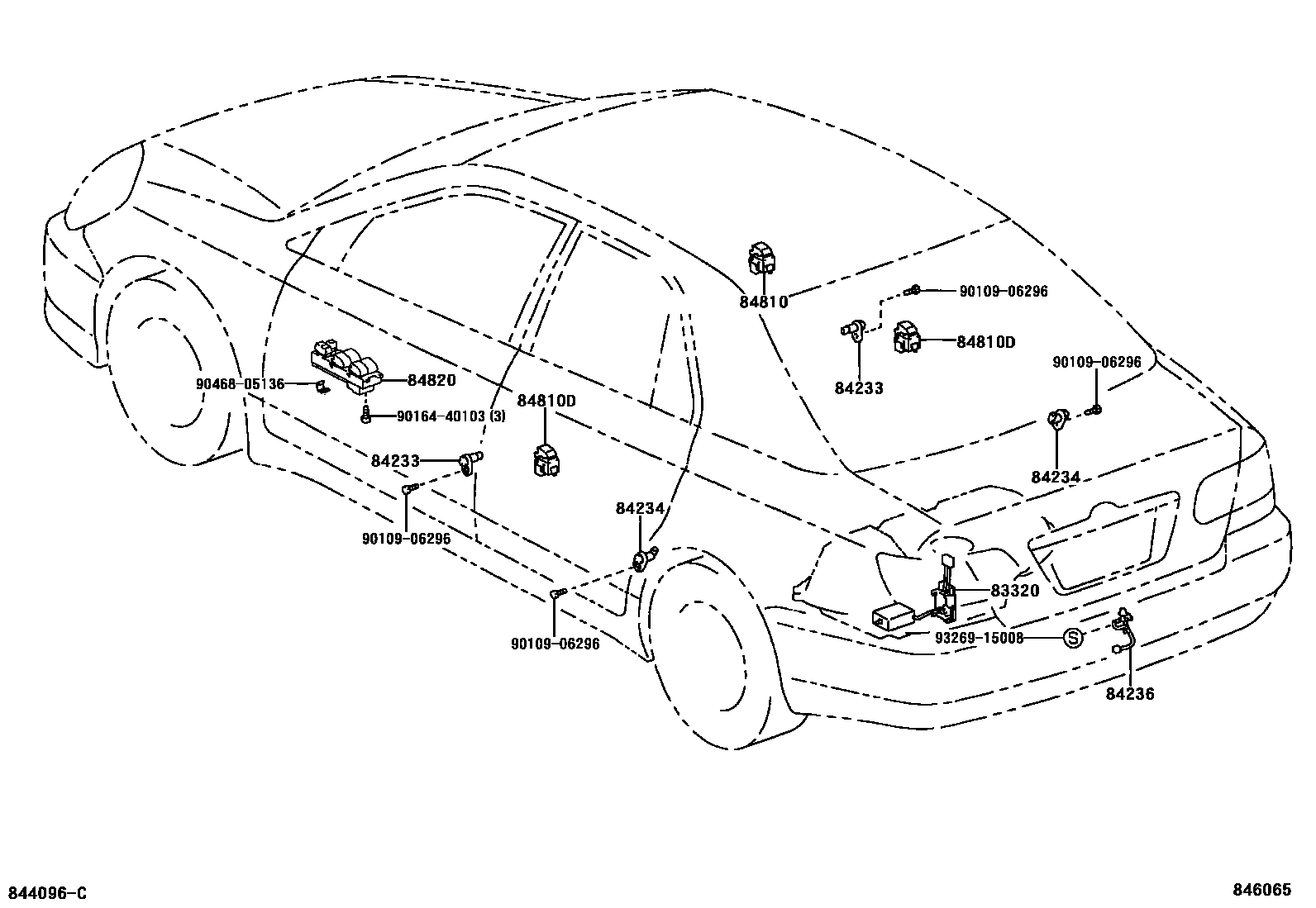

| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-02150 · 84820-02250 · 84820-12480 |

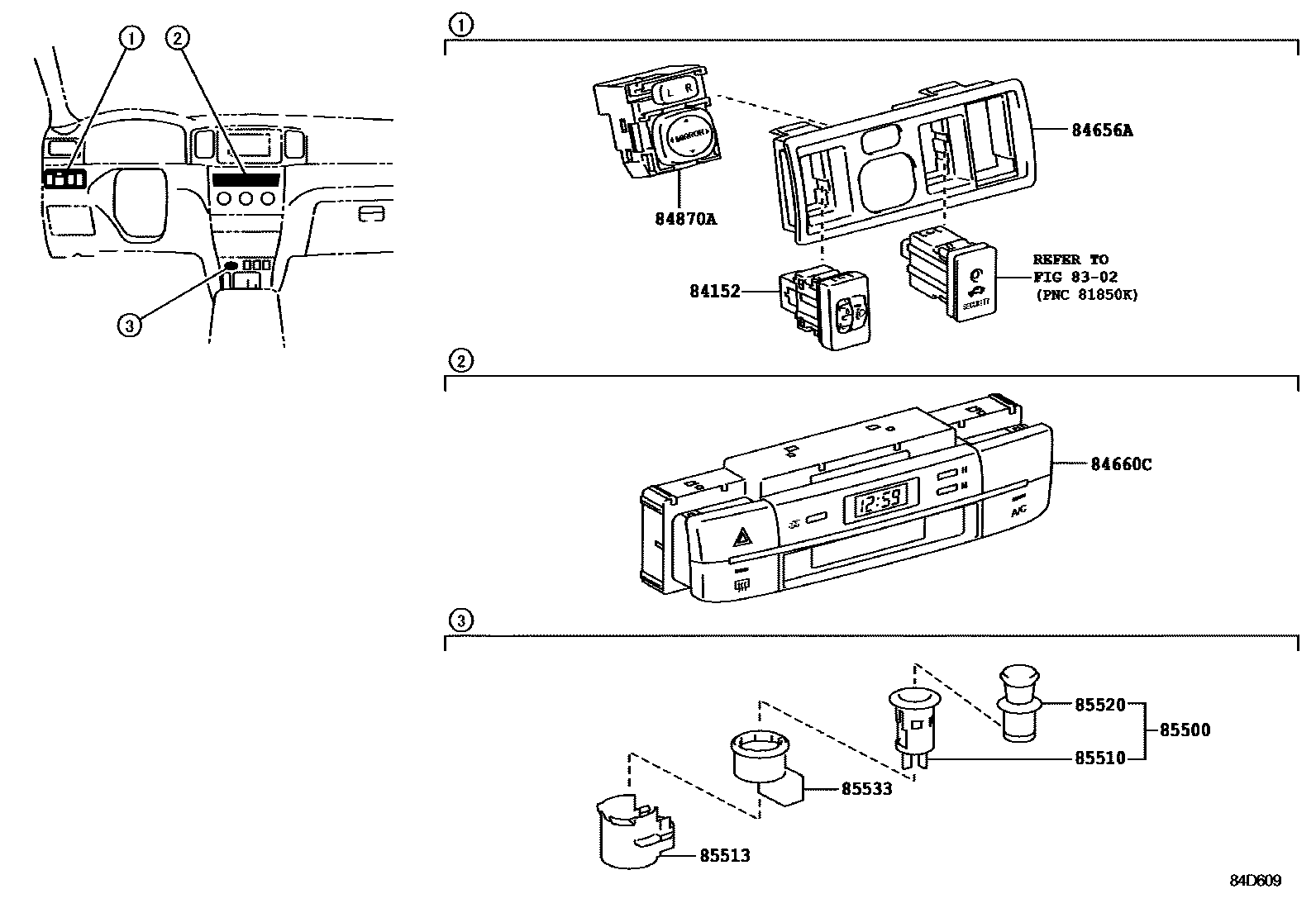

| 84870A | Exterior rearview mirror switch assembly | 84872-02080 · 84872-0D030 · 84872-52030 · 84872-52040 |
| 85500 | Cigarette lighter assembly | 85500-12240 |
| 85500B | Cigarette lighter bulb | 90010-01065 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-16040 |
| 85513 | Cigarette lighter cover | 85513-12020 · 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-12110 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-26010 |
| 85903 | Shift lock control ECU sub-assembly | 85903-12030 |
| 85910C | Relay assembly (for heater blower motor) | 90987-T4002 |
| 85912 | defogger relay | 90080-87010 · 90987-T2005 |
| 85916D | fog light relay | 90987-T2005 |
| 85916L | Rear fog light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2004 |
| 85925D | PTC heater relay | 90987-T2004 · 90987-T2005 |
| 85926 | Headlight dimmer relay | 90987-T2005 |
| 85927 | cooling fan relay | 90987-02027 · 90987-T2005 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 · 90987-T4001 |
| 85928B | Cooling fan resistor | 85928-12010 |
| 85930 | Electric window relay assembly | 90987-T2005 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 86530 | Speaker relay assembly | 90987-T2005 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 88607C | Indicator light sub-assembly | 90010-03044 |

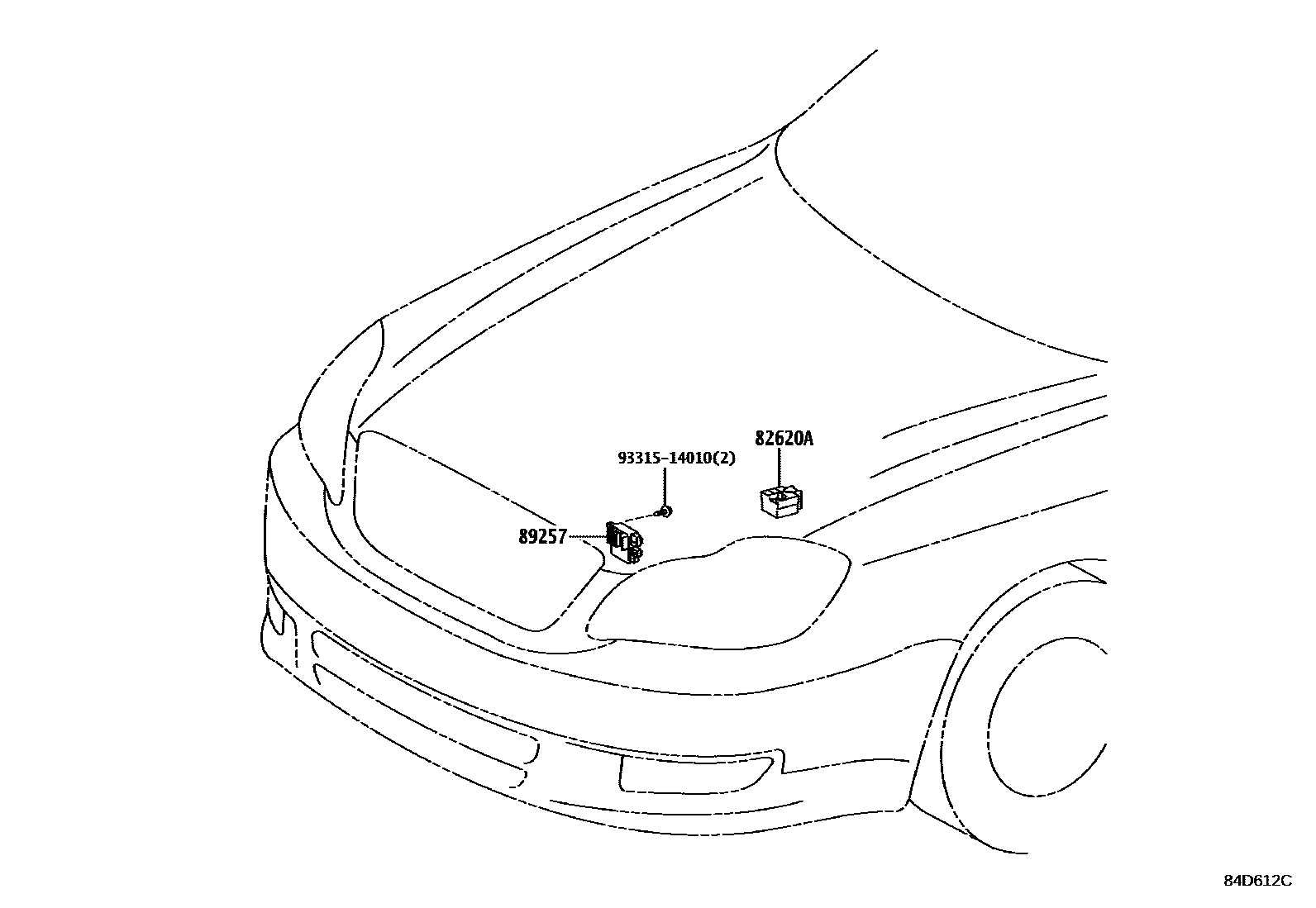

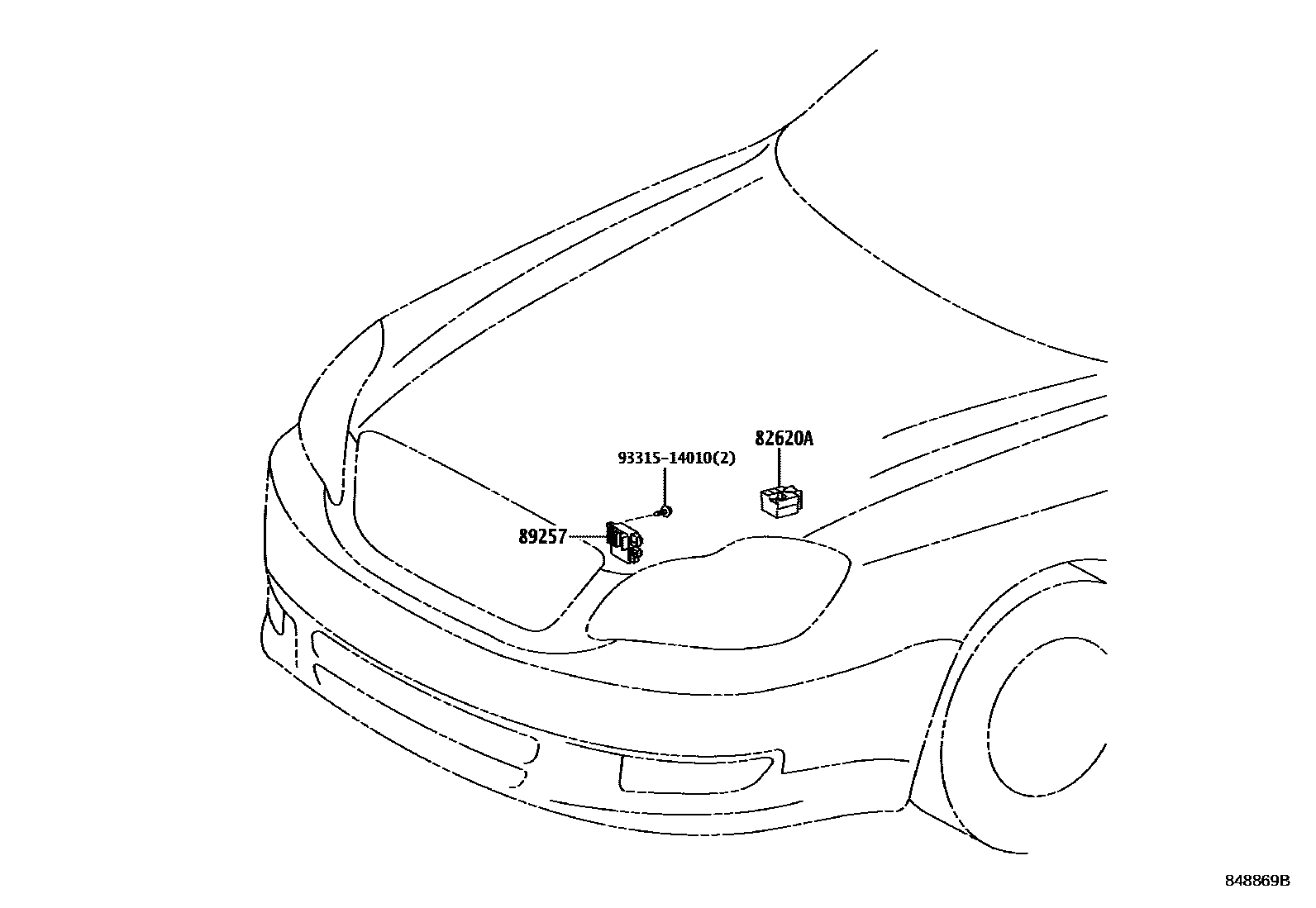

| 89257 | Cooling fan ECU | 89257-12010 |

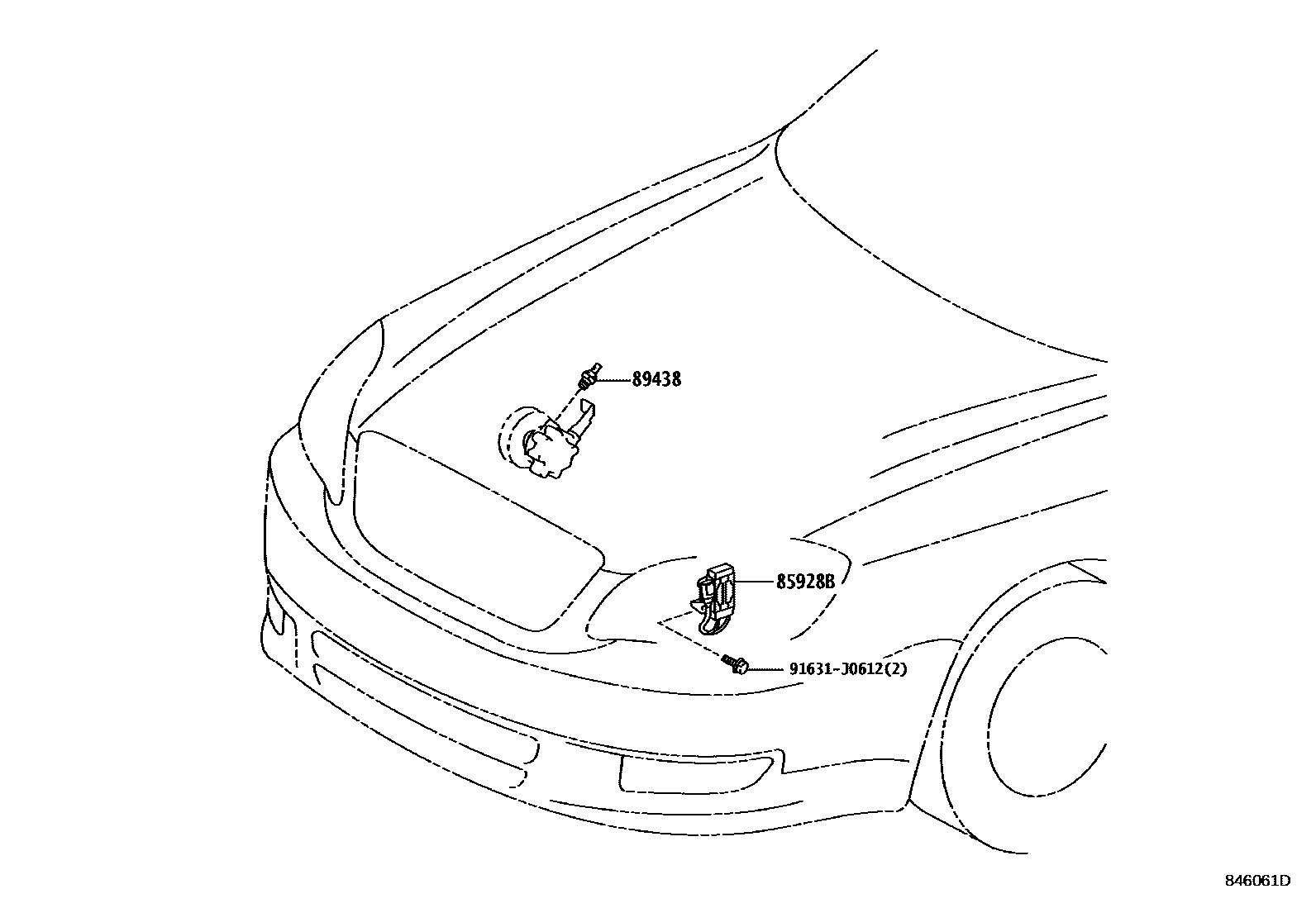

| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-02370 · 89465-12620 · 89465-12700 · 89465-12750 · 89465-12760 · 89465-12880 · 89467-52060 |
| 895A0 | Brake light control relay assembly | 895A0-46020 |
| 895A1 | brake light control relay | 895A1-46020 |
| 89615 | knock control sensor | 89615-12120 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-02350 · 89650-02351 |
