Toyota COROLLA 仪表 — Figure 8301

Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 4 PNC and OE references.

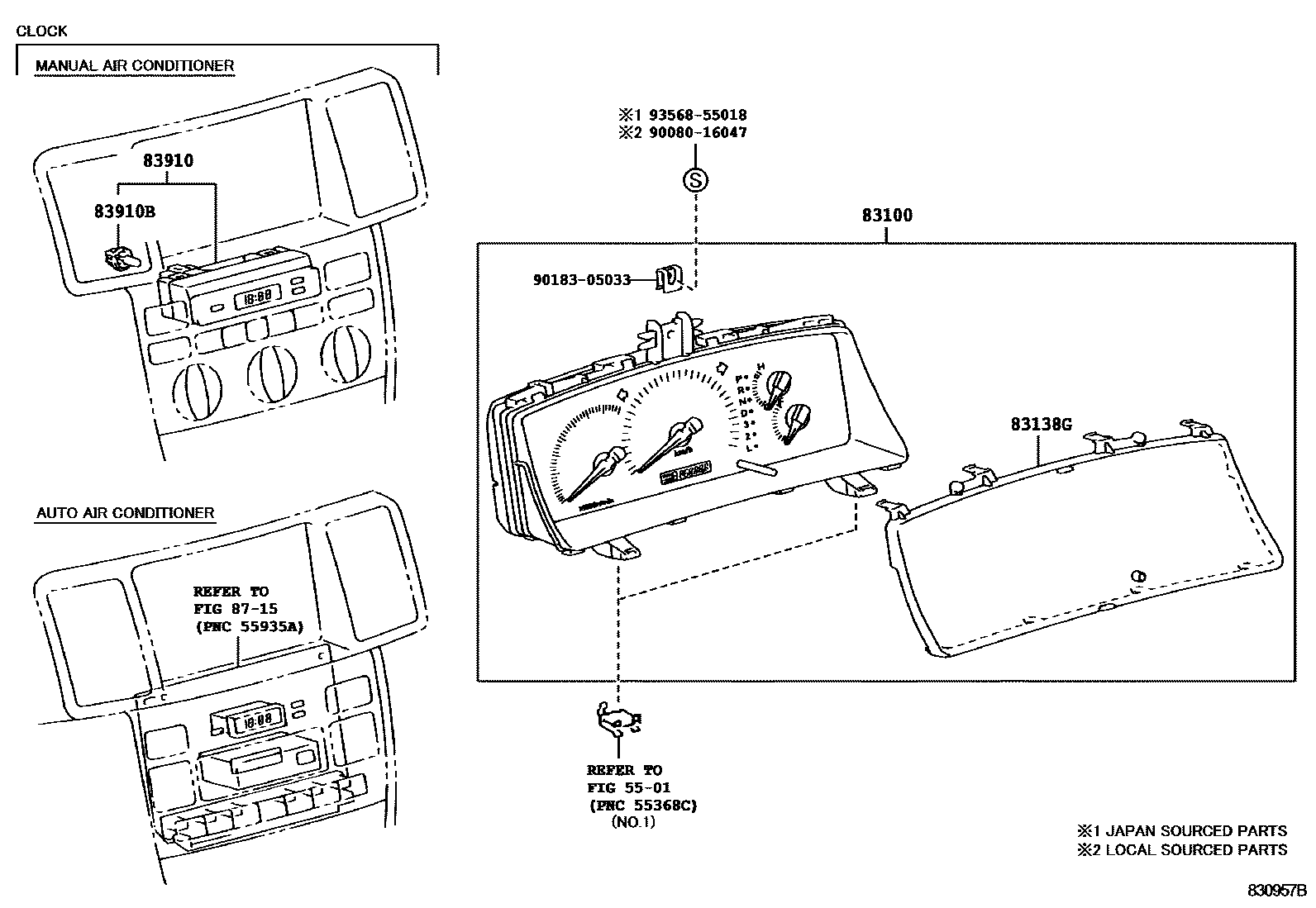

Toyota COROLLA 仪表 EPC diagram — 830957B
仪表 — 830957B (200402 – 201210)

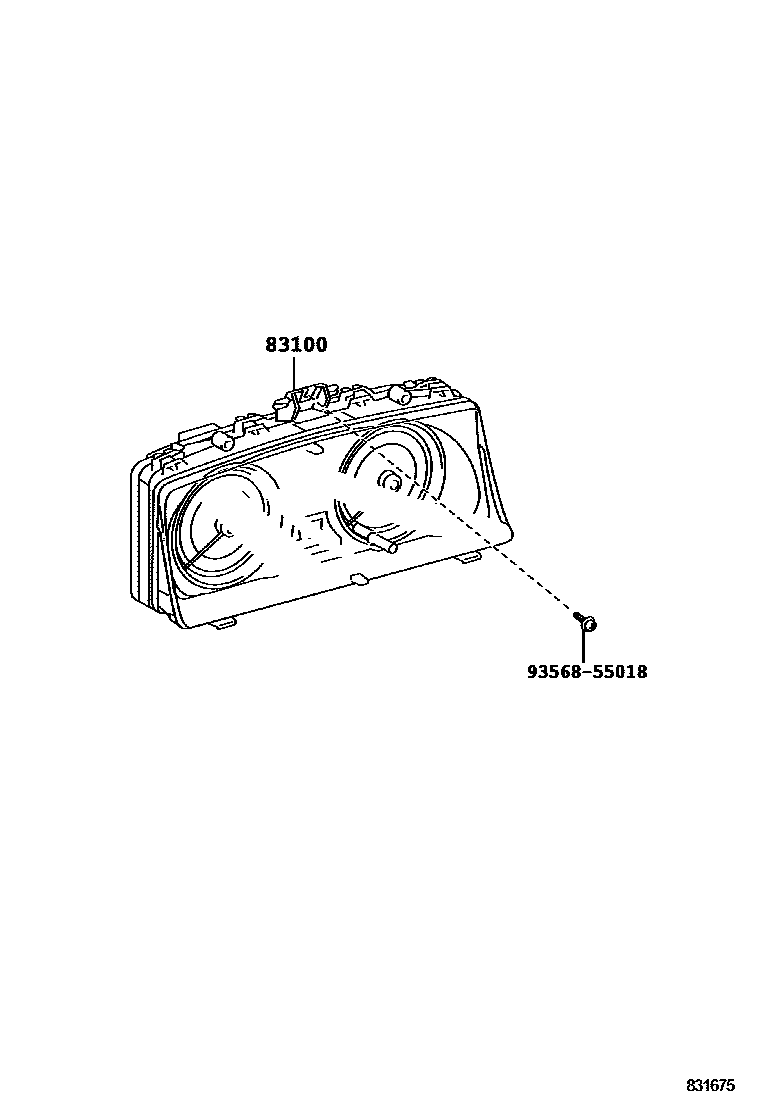

Toyota COROLLA 仪表 EPC diagram — 831675
仪表 — 831675 (201210 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-02E70 · 83800-02G10 · 83800-02T40 · 83800-02V20 · 83800-02V30 · 83800-02V40 · 83800-YK010 · 83800-YK020 · 83800-YK030
83138GInstrument cluster glass83852-02590 · 83852-02E70 · 83852-02V20 · 83852-YK010
83910clock assembly83910-02120 · 83910-02121 · 83910-02122 · 83910-12560
83910Bclock indicator light bulb90010-07018
