Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 2 PNC and OE references.

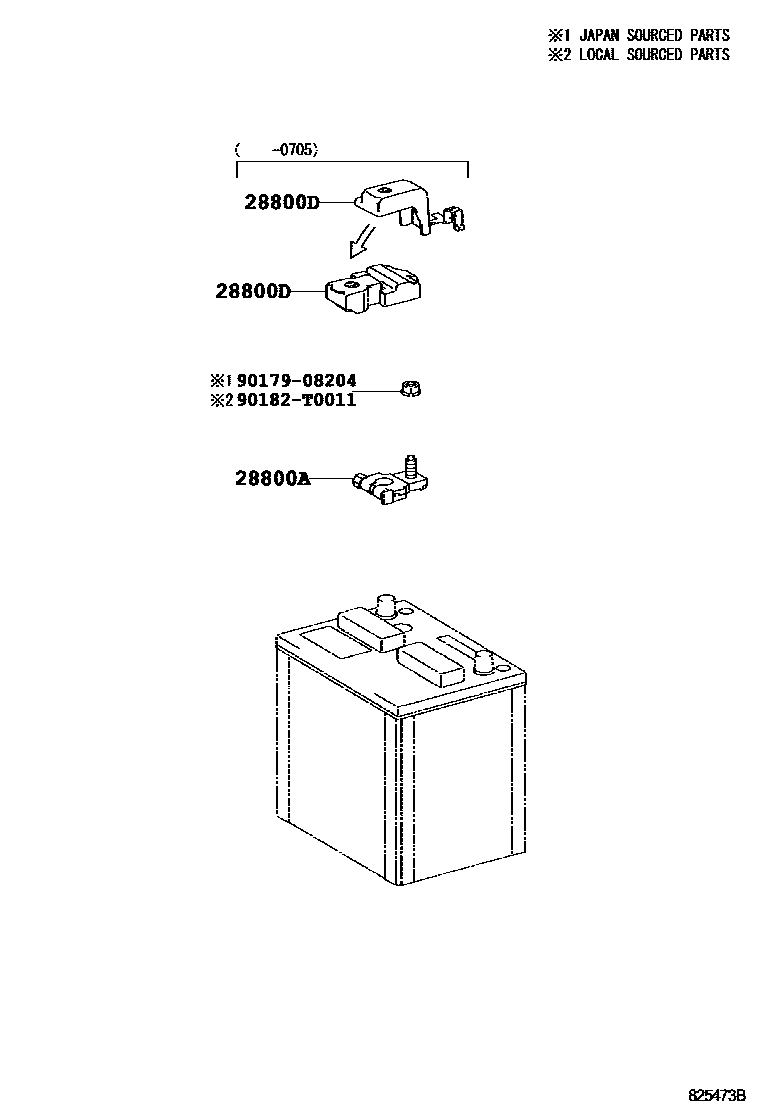

Toyota COROLLA 蓄电池和蓄电池电缆 EPC diagram — 825473B
蓄电池和蓄电池电缆 — 825473B (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800Abattery positive terminal90982-05056
28800DConnector cover (for battery terminals)82621-12010 · 82821-12500
