Toyota COROLLA 后牌照灯 — Figure 8113

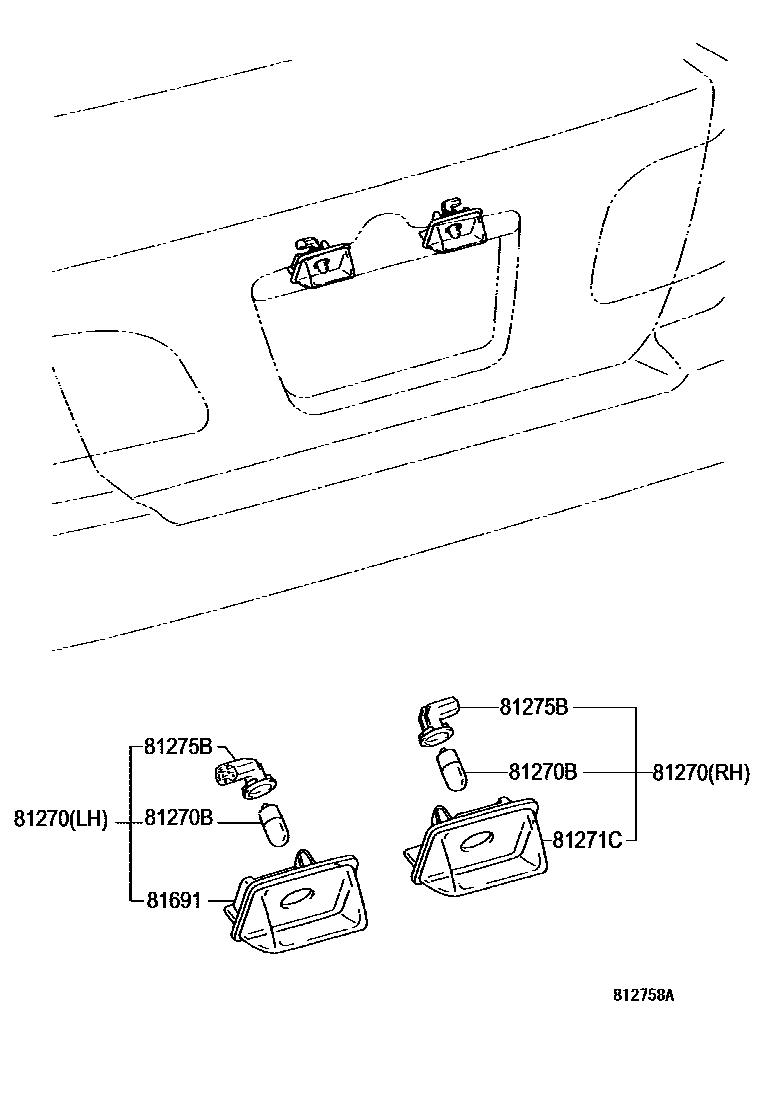

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-02111 · 81270-02112 · 81270-02113 · 81270-02180 · 81270-YK010 · 81690-02091 · 81690-02092 · 81690-02093 · 81690-02120 · 81690-YK010 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271C | Right license plate light shade and cover | 81271-02180 · 81271-8C003 |
| 81275B | License plate light lamp holder plug | 81275-12501 · 81275-8C000 |
| 81691 | Left license plate light shade and cover | 81691-02120 · 81691-8C002 |
