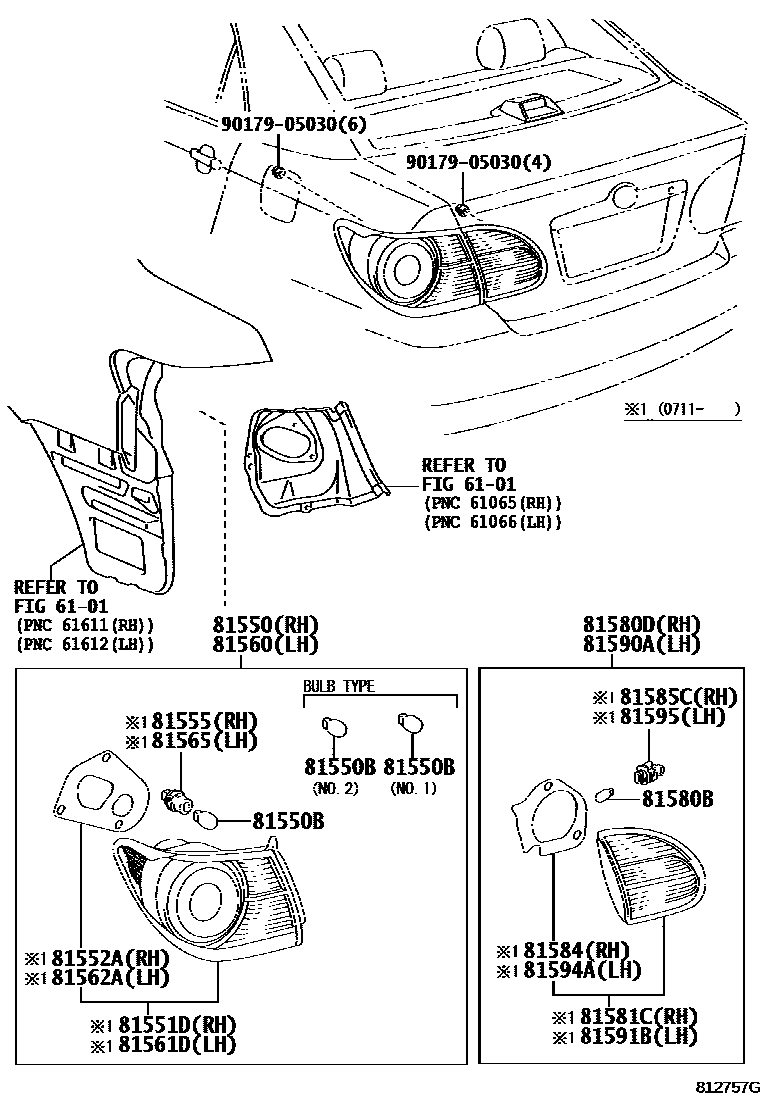

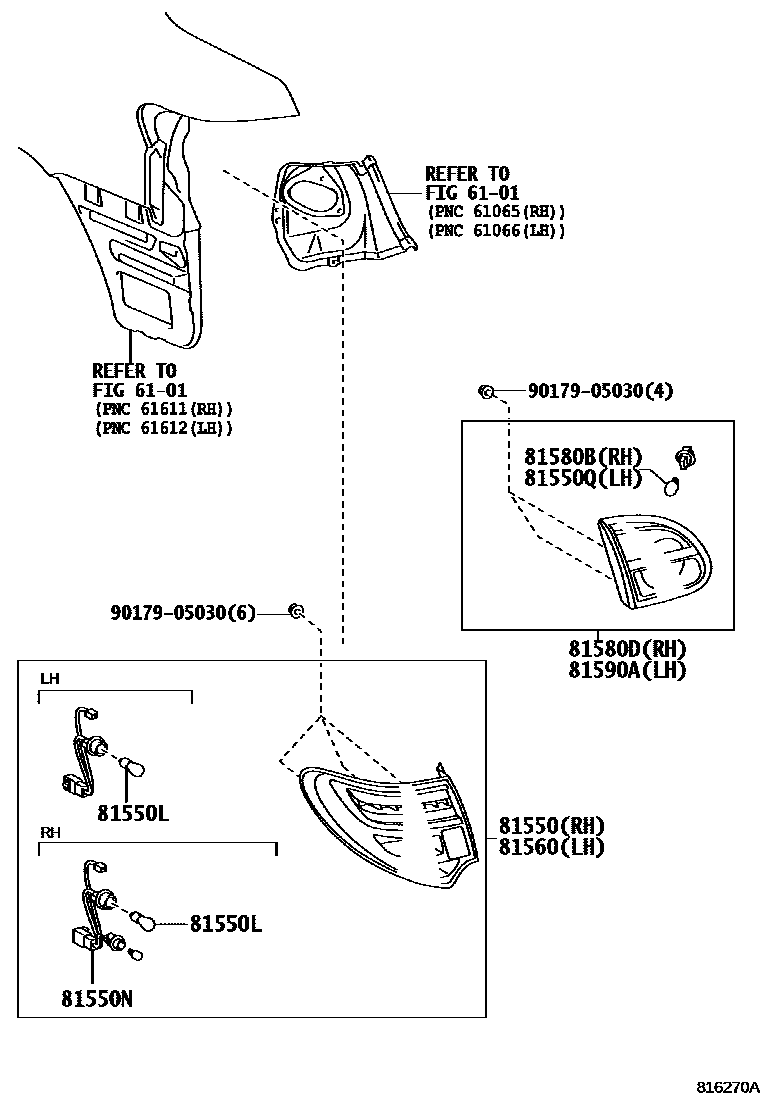

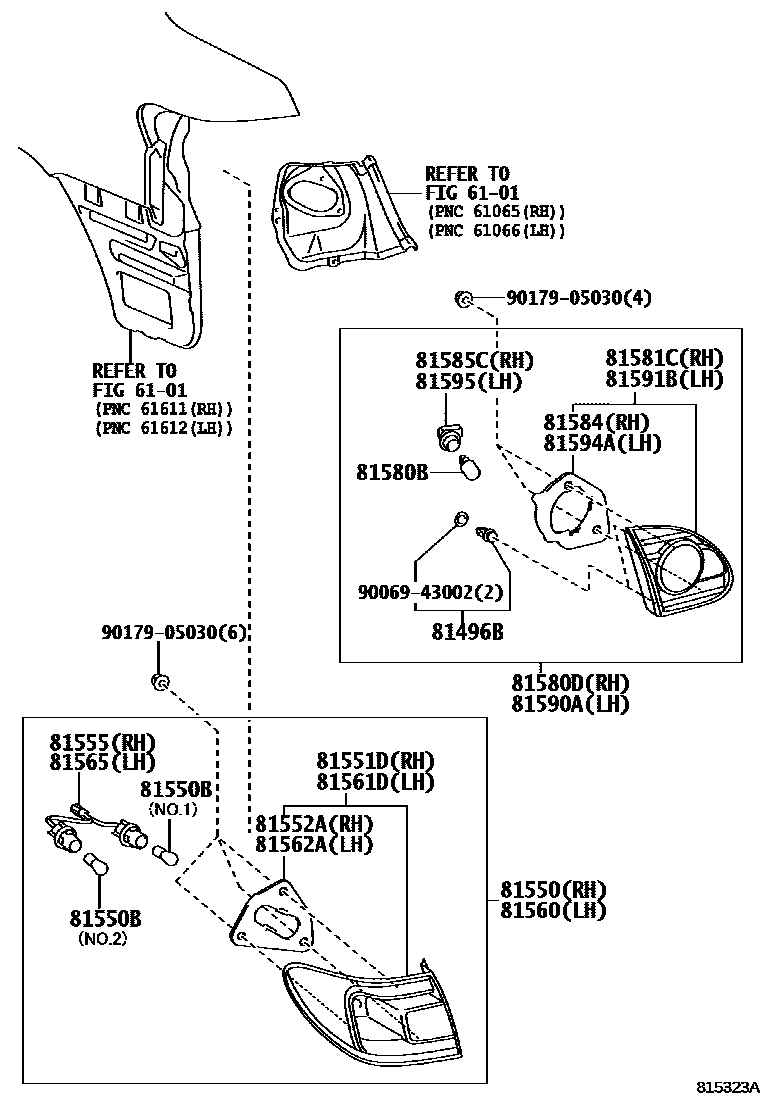

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496B | Rear light guide block | 90069-49010 |
| 81550 | Right rear combination light assembly | 81550-02330 · 81550-02331 · 81550-02430 · 81550-02431 · 81550-02490 · 81550-YK010 · 81550-YK020 |
| 81550B | Bulb (for rear combination lights) | 90981-15009 · 99132-11210 · 99132-21210 |
| 81550L | Rear turn signal light bulb | 99132-11210 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02490 · 81551-YK010 |
| 81552A | Right rear combination light gasket | 81552-02490 · 81552-YK010 · 81552-YK020 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02490 · 81555-YK010 · 81555-YK020 |
| 81560 | Left rear combination light assembly | 81560-02330 · 81560-02331 · 81560-02430 · 81560-02431 · 81560-02490 · 81560-YK010 · 81560-YK020 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02490 · 81561-YK010 |
| 81562A | Left rear combination light gasket | 81552-02490 · 81552-YK010 · 81562-YK020 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02490 · 81555-YK010 · 81565-YK020 |
| 81580B | Bulb (for rear light) | 90981-11059 · 90981-13043 · 90981-15009 |
| 81580D | Right rear light assembly | 81580-02100 · 81580-02101 · 81580-02170 · 81580-02171 · 81580-02240 · 81580-YK010 · 81580-YK020 |
| 81581C | Right rear light lampshade and lamp body | 81581-02240 · 81581-YK010 · 81581-YK020 |
| 81584 | Right rear light seal | 81584-02240 · 81584-YK010 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02240 · 81585-YK010 |
| 81590A | Left rear light assembly | 81590-02120 · 81590-02121 · 81590-02170 · 81590-02171 · 81590-02230 · 81590-YK010 · 81590-YK020 |
| 81591B | Left rear light shade and body | 81591-02230 · 81591-YK010 · 81591-YK020 |
| 81594A | Left rear light gasket | 81584-02240 · 81584-YK010 |
| 81595 | Left rear light lamp holder and wiring harness | 81595-02230 · 81595-YK010 |
