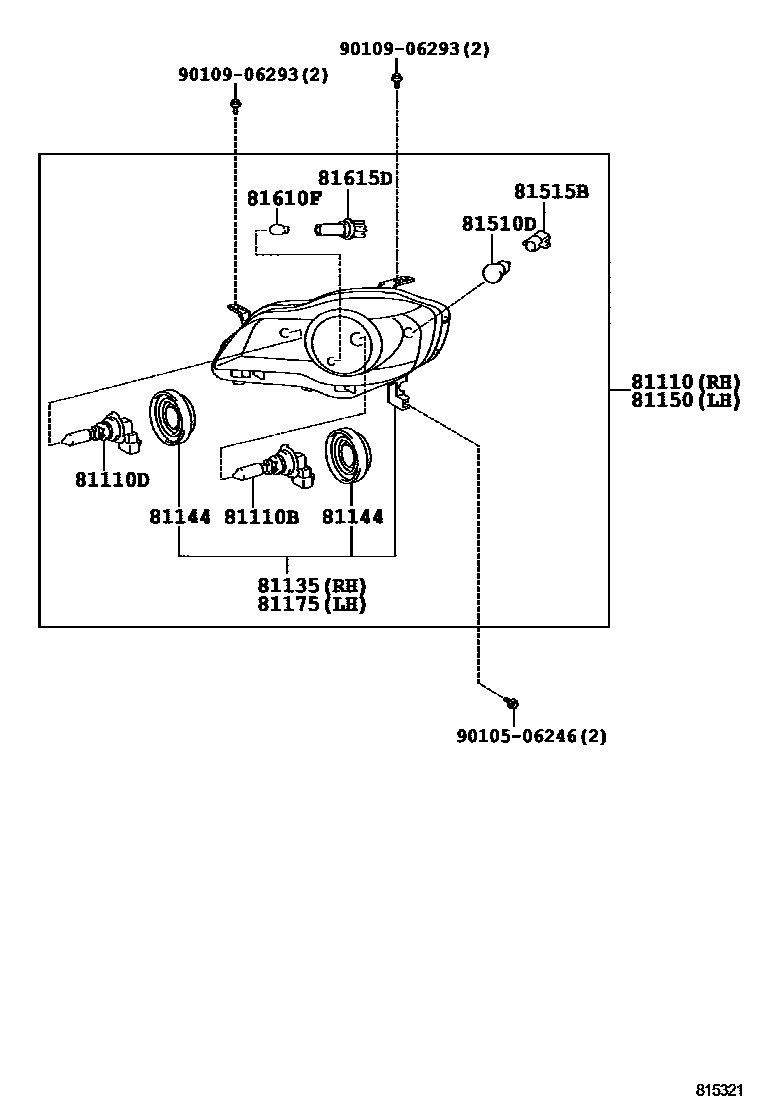

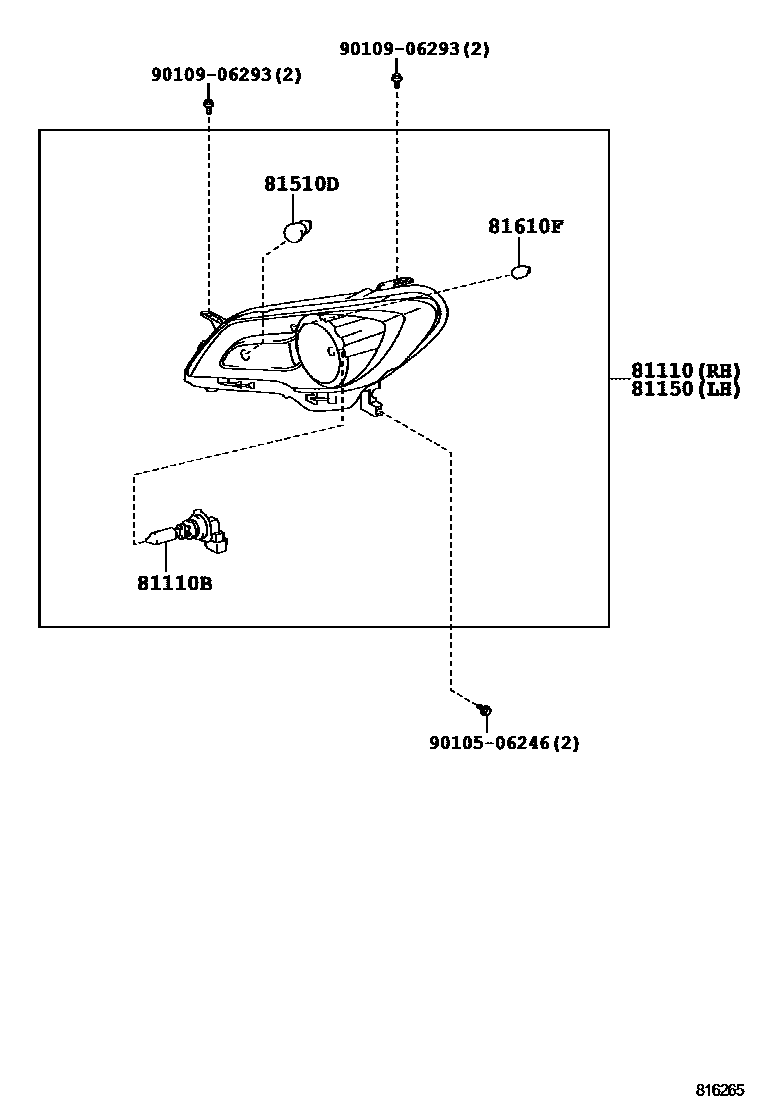

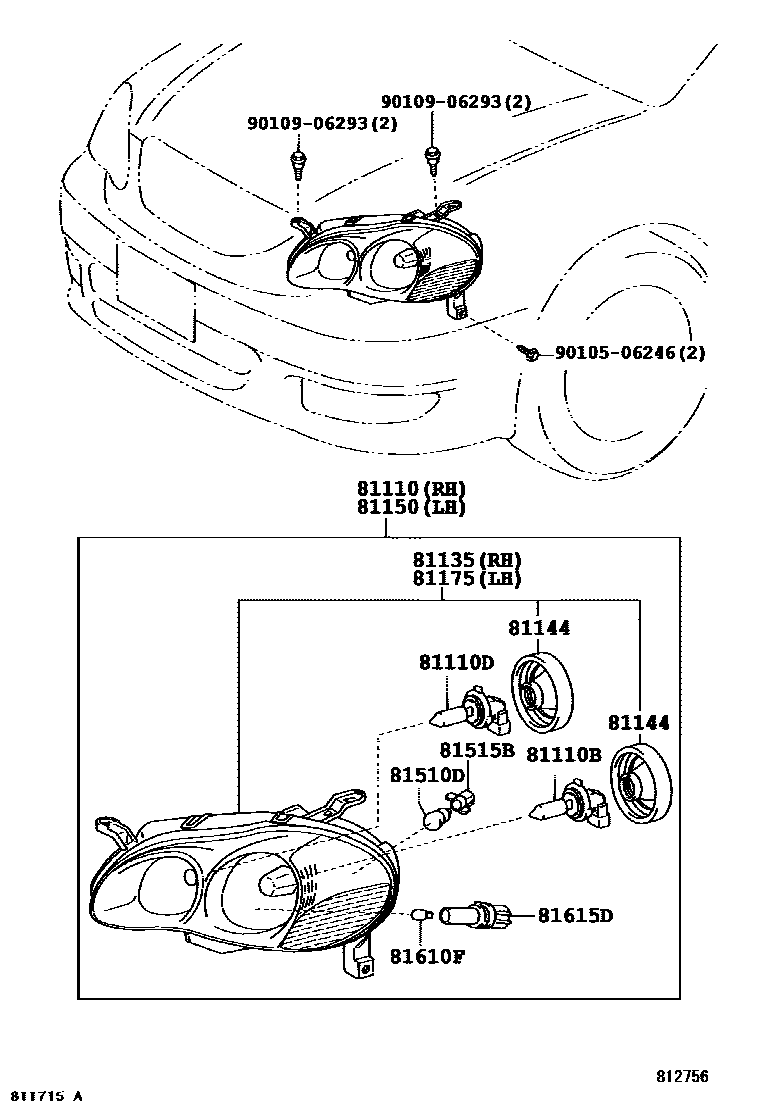

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02400 · 81110-02640 · 81110-02641 · 81110-YK010 · 81110-YK020 · 81110-YK040 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 · 90981-13047 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 · 90981-13046 |
| 81135 | Right headlight assembly assembly | 81130-02400 · 81130-02640 · 81130-YK010 |
| 81144 | No. 1 headlight cover | 81135-02400 · 81135-YK010 |
| 81150 | Left headlight assembly | 81150-02370 · 81150-02640 · 81150-02641 · 81150-YK010 · 81150-YK020 · 81150-YK040 |
| 81175 | Left headlight assembly assembly | 81170-02370 · 81170-02640 · 81170-YK010 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15009 |
| 81515B | Front turn signal lamp holder | 81128-02400 · 81128-YK010 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-02400 · 81138-YK010 |
