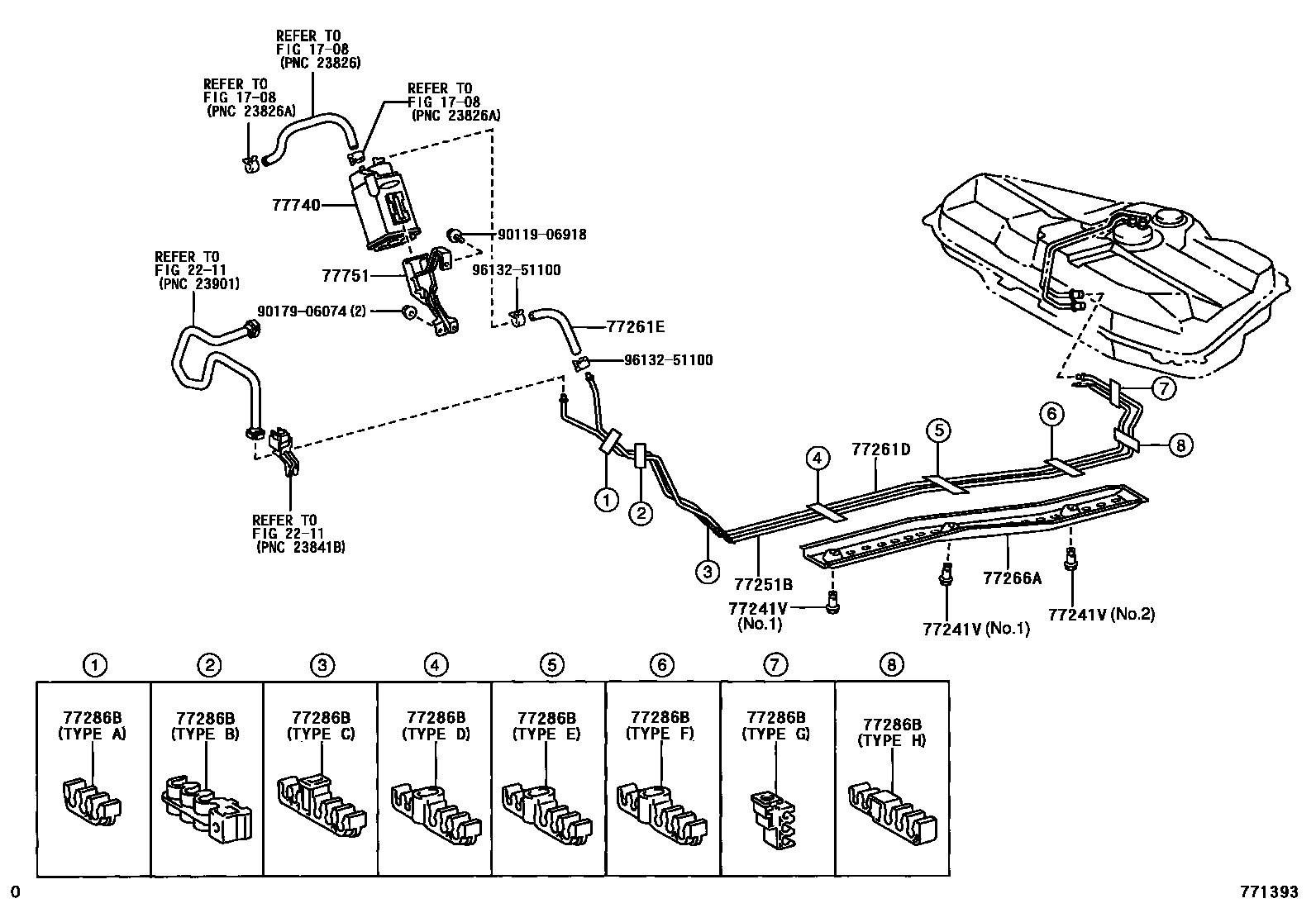

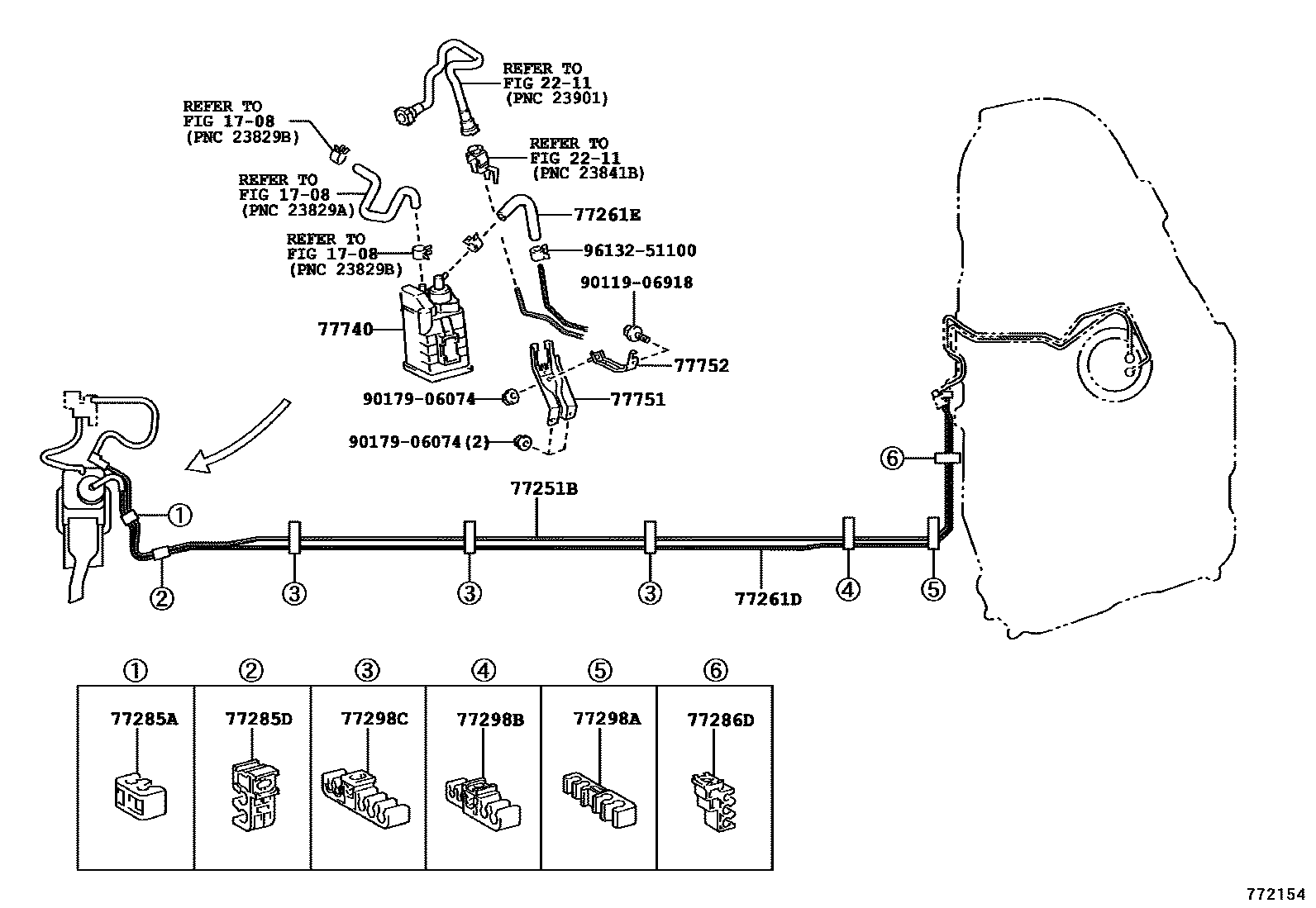

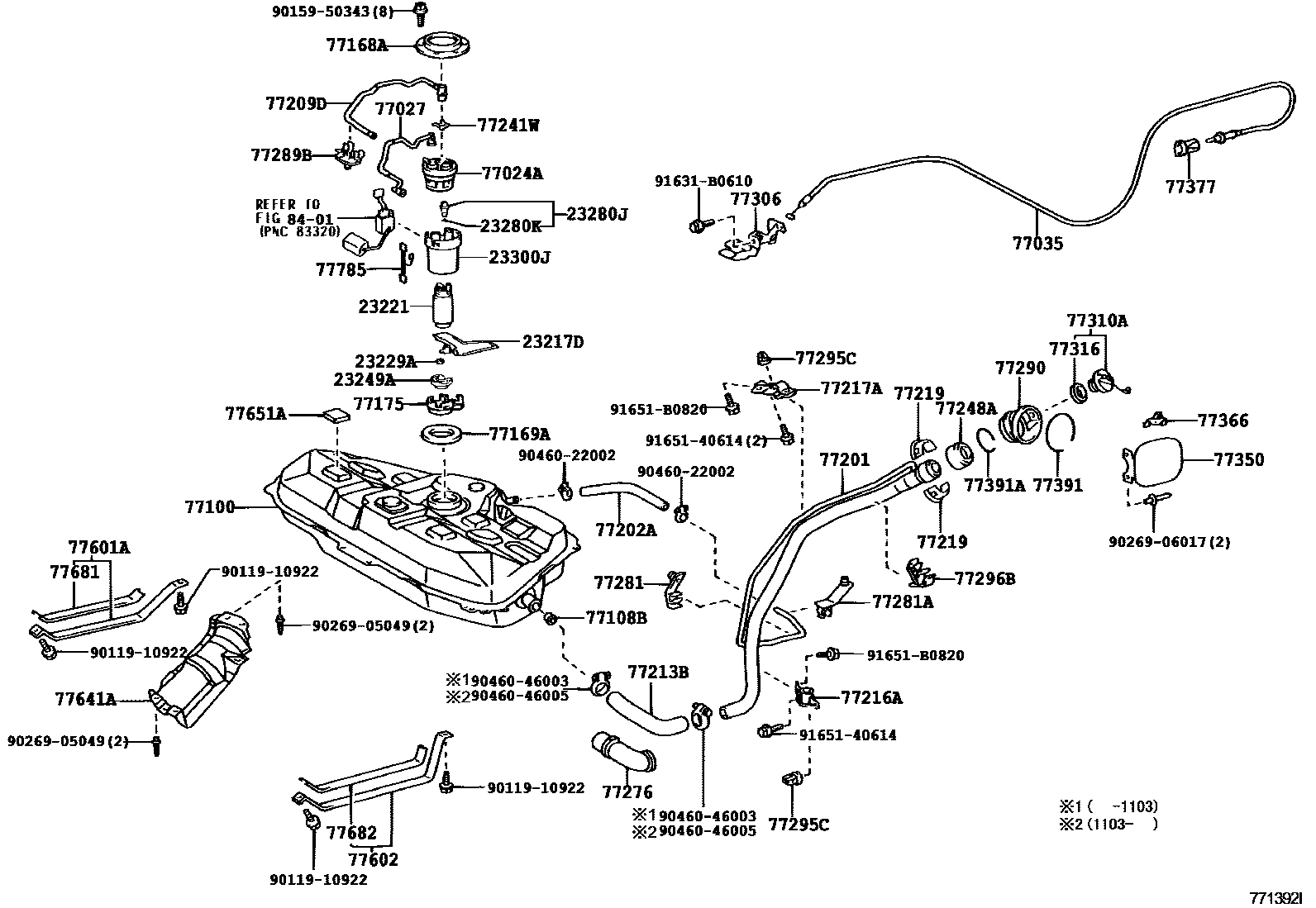

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 3 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-21030 |
| 23221 | fuel pump | 23221-0D110 |
| 23229A | Clip (for fuel pump filter) | 23229-16010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-46180 |
| 23280J | Fuel pressure regulator assembly | 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23300J | fuel filter assembly | 23300-0D030 · 23300-0D060 |
| 77024A | Fuel absorber sub-assembly | 77024-02060 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-12020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02180 · 77035-02181 · 77035-02182 · 77035-02183 |
| 77100 | fuel tank assembly | 77001-02240 · 77001-02480 · 77001-02481 |
| 77108B | Fuel tank refueling check valve sub-assembly | 77108-12040 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-47010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-02110 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13034 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-12160 |
| 77213B | Fuel tank to filler pipe hose | 77213-32070 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-32060 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32050 |
| 77219 | Fuel tank filler pipe cap | 77219-20070 |
| 77241V | Pipe joint clip | 77241-12240 · 77241-12250 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77248A | Fuel tank filler pipe cap holder | 77248-20030 |
| 77251B | main fuel pipe | 77251-02290 · 77251-02360 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02230 · 77261-02300 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 95337-06013 |
| 77266A | No. 1 fuel line protection device | 77266-12120 |
| 77276 | Fuel hose protector | 77276-02030 · 77276-12050 · 77276-12120 |
| 77281 | No. 1 main fuel pipe bracket | 77281-32040 |
| 77281A | Fuel filler pipe clamp | 77281-12070 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-50040 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-12060 · 77286-47020 · 77289-20060 · 77298-12060 · 77298-12070 · 77298-12080 · 77298-12090 · 77298-20080 |
| 77286D | No. 2 fuel pipe clamp | 77286-12060 |
| 77289B | No. 3 fuel pipe clamp | 77289-12030 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-02070 · 77291-02150 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-12030 |
| 77298A | No. 4 fuel pipe clamp | 77298-12120 |
| 77298B | No. 4 fuel pipe clamp | 77298-52070 |
| 77298C | No. 4 fuel pipe clamp | 77298-68010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02090 |
| 77310A | Fuel tank cap assembly | 77300-0F010 · 77300-28010 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-16010 · 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-02180 · 77350-12450 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-12230 |
| 77602 | Fuel tank upper shell sub-assembly | 77602-12180 |
| 77641A | No. 1 fuel tank protective shell | 77641-12160 |
| 77651A | No. 1 fuel tank liner | 77651-0R030 · 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77681-34030 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77740 | Carbon canister assembly | 77740-02140 · 77740-02160 · 77740-02200 |
| 77751 | Carbon canister base bracket | 77705-12110 · 77750-12170 · 77751-02140 |
| 77752 | Carbon canister base bracket | 77752-02120 |
| 77785 | fuel pump wiring harness | 77785-06030 |
