Toyota COROLLA 侧防护条 — Figure 7503

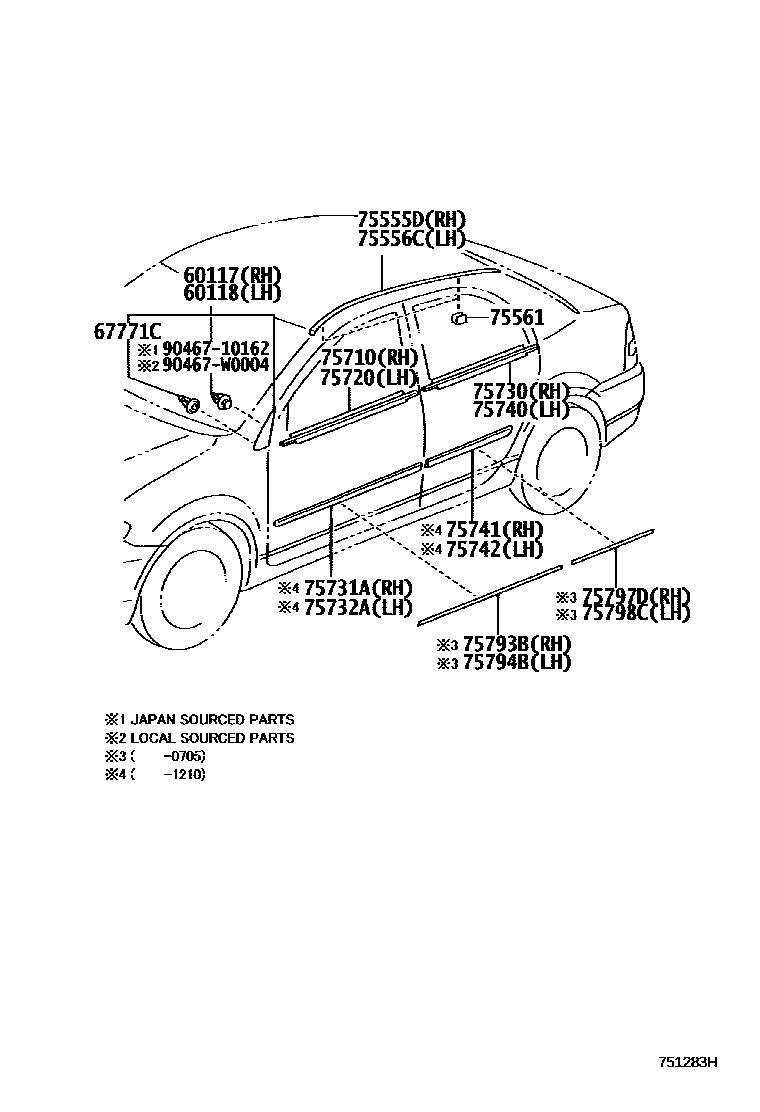

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-02030 · 60117-02100 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-02030 · 60118-02100 |
| 67771C | Front pillar cover fixing parts | 67772-95J03 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02130 · 75555-02131 · 75555-12120 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02130 · 75556-02131 · 75556-12120 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52020 |
| 75710 | Right front door waistline protection strip assembly | 75710-02120 · 75710-02121 · 75710-02200 · 75710-12742 |
| 75720 | Left front door waistline protection strip assembly | 75720-02120 · 75720-02121 · 75720-02200 · 75720-12742 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02110 · 75730-02111 · 75730-02180 · 75730-12262 |
| 75731A | Right front door outer protective strip | 75071-02900 · 75731-02900 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02110 · 75740-02111 · 75740-02180 · 75740-12352 |
| 75741 | Right rear door outer protective strip | 75075-02900 · 75741-02900 |
| 75742 | Left rear door outer protective strip | 75076-02900 · 75742-02900 |
| 75793B | Right front door outer protective strip insert | 75793-02010 |
| 75794B | Left front door outer protective strip insert | 75794-02010 |
| 75797D | Right rear door outer protective strip insert | 75797-02010 |
| 75798C | Left rear door outer protective strip insert | 75798-02010 |
