Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 9 PNC and OE references.

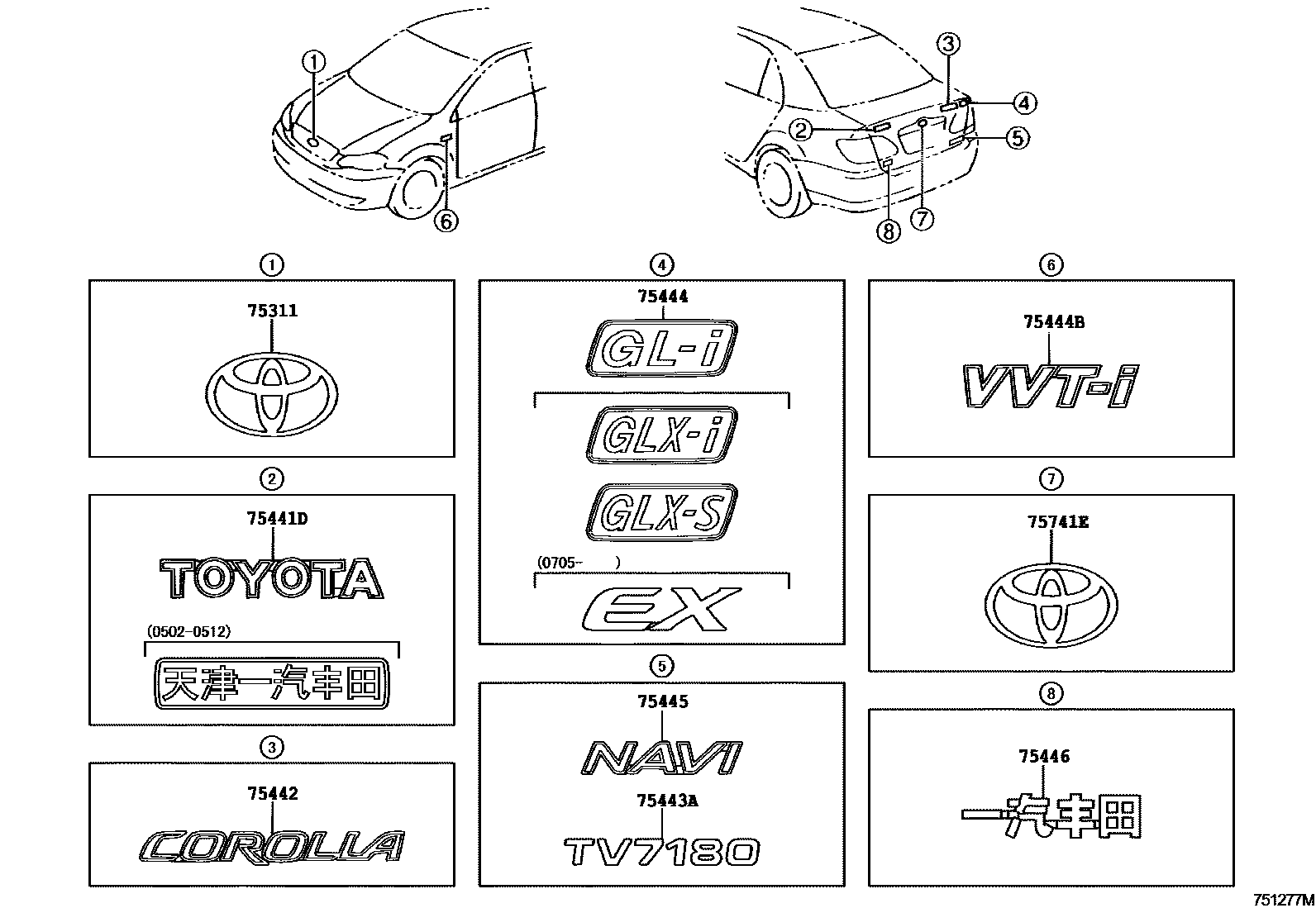

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751277M
丰田徽标和铭牌(车外和车内) — 751277M (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-02090 · 75311-02240 · 75431-02060
75441DTrunk door No. 1 name plate75441-02100 · 75441-02130 · 75441-12890
75442Trunk door number plate No. 275442-02120 · 75442-02190
75443ATrunk door No. 3 nameplate75446-12180
75444Trunk door No. 4 nameplate75443-02290 · 75444-02280 · 75444-02290 · 75444-02300
75444BFront fender nameplate75444-02310 · 75447-0D090
75445Trunk door No. 5 name plate75445-02050
75446Trunk door No. 6 nameplate75441-02150
75741Elogo75431-YK010 · 90975-02009
