Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

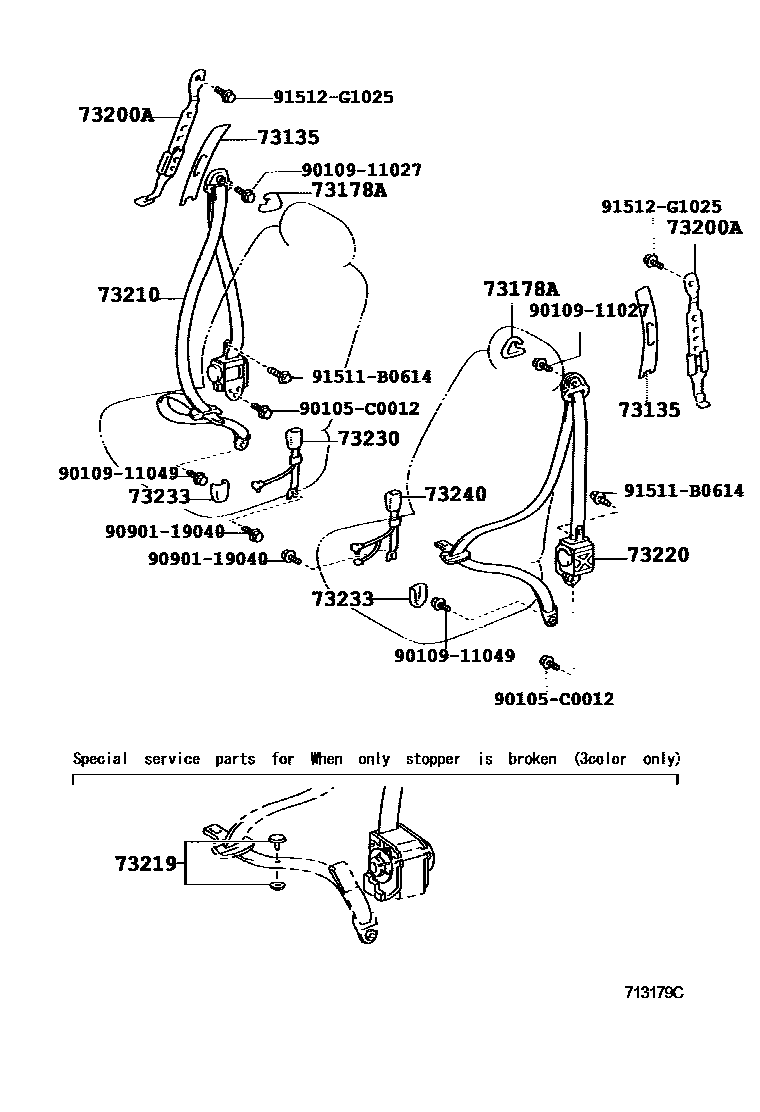

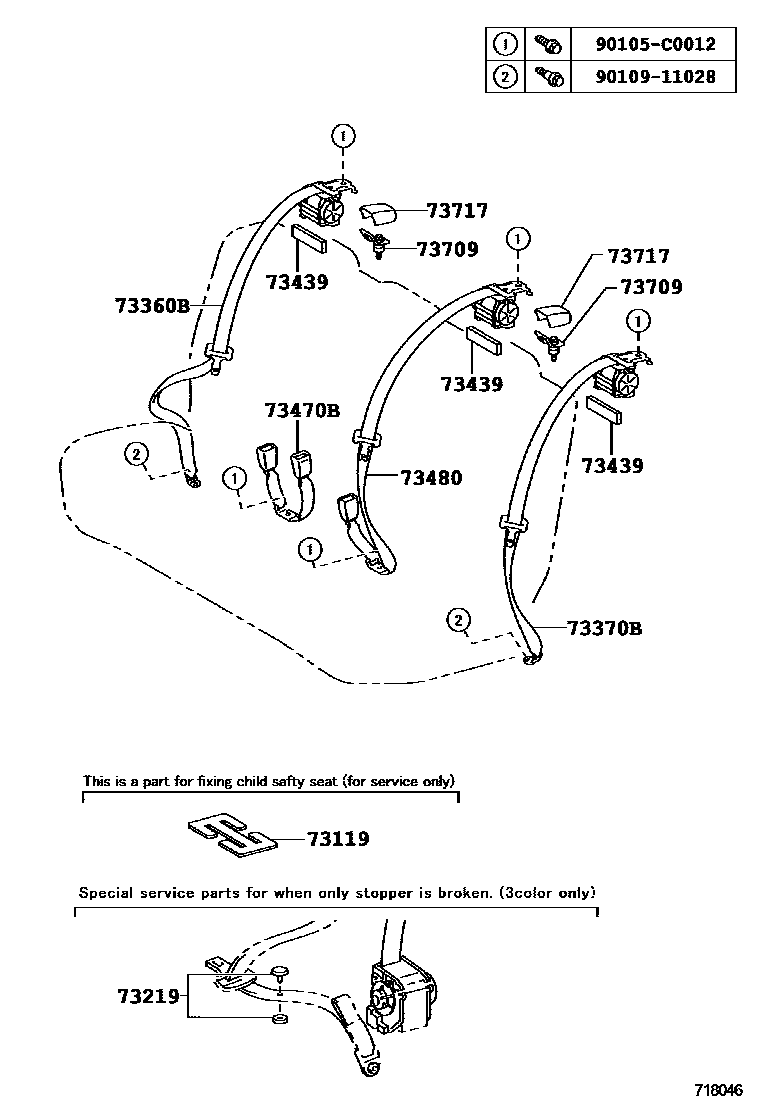

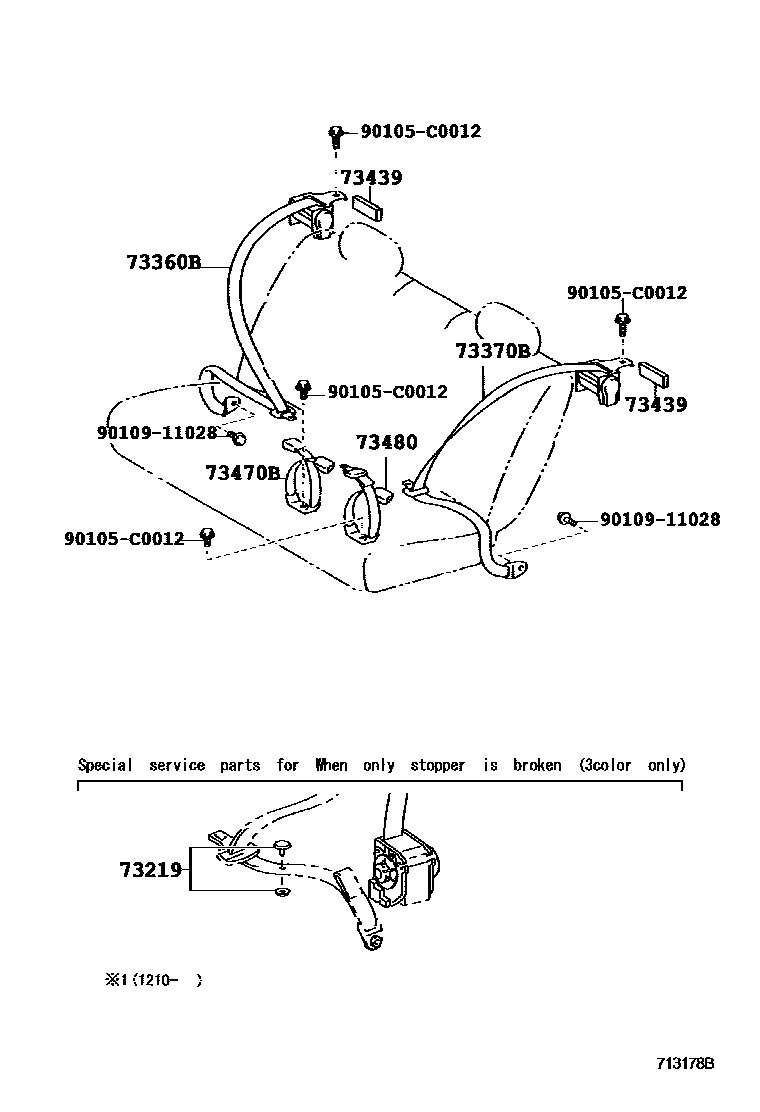

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73119 | seat belt clip | 73119-22010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73439 | Rear seat belt retractor cushion | 73439-12040 · 73439-YK010 |
| 73709 | Tie anchor bracket sub-assembly | 73708-12092 · 73708-YK010 |
