Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

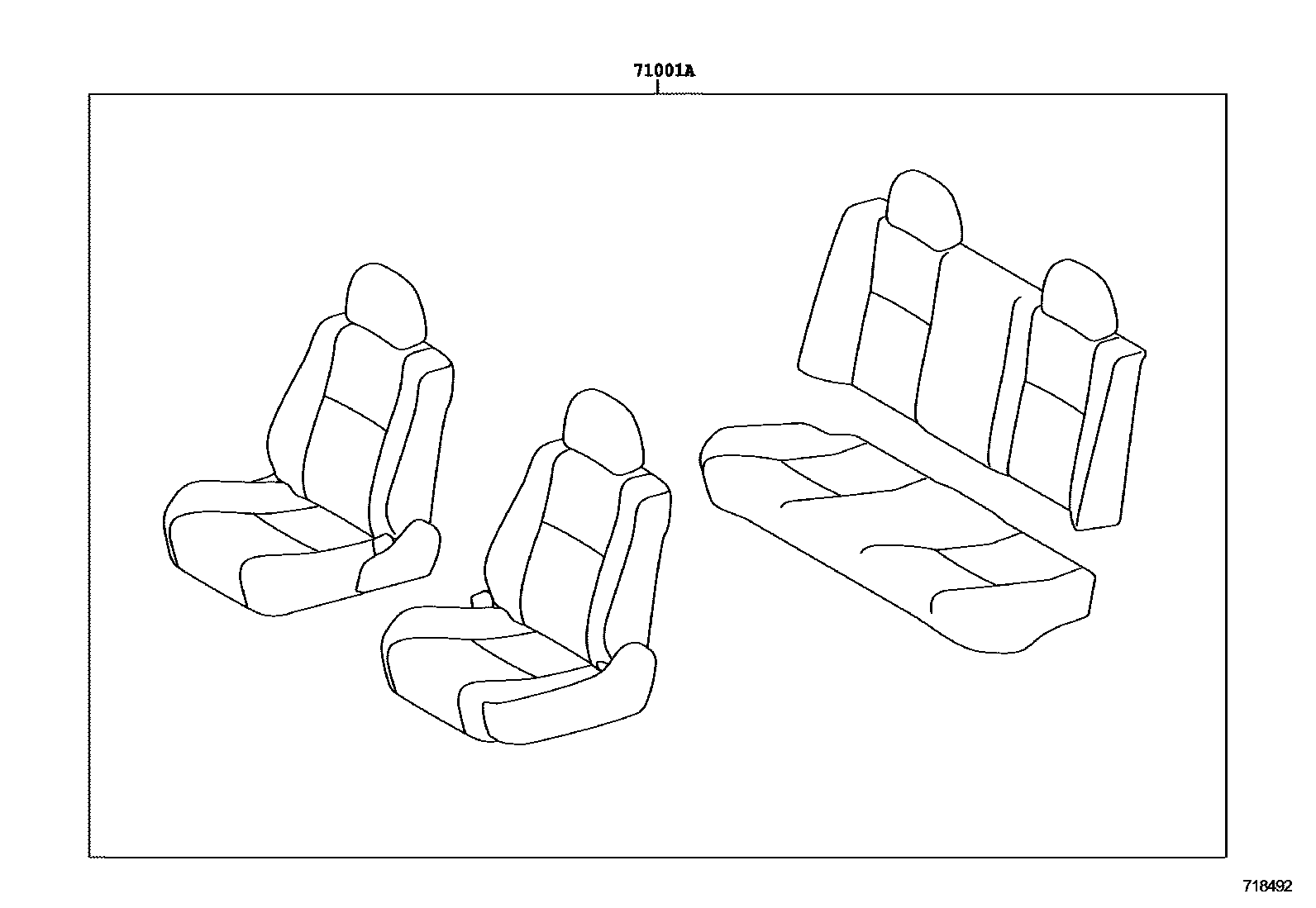

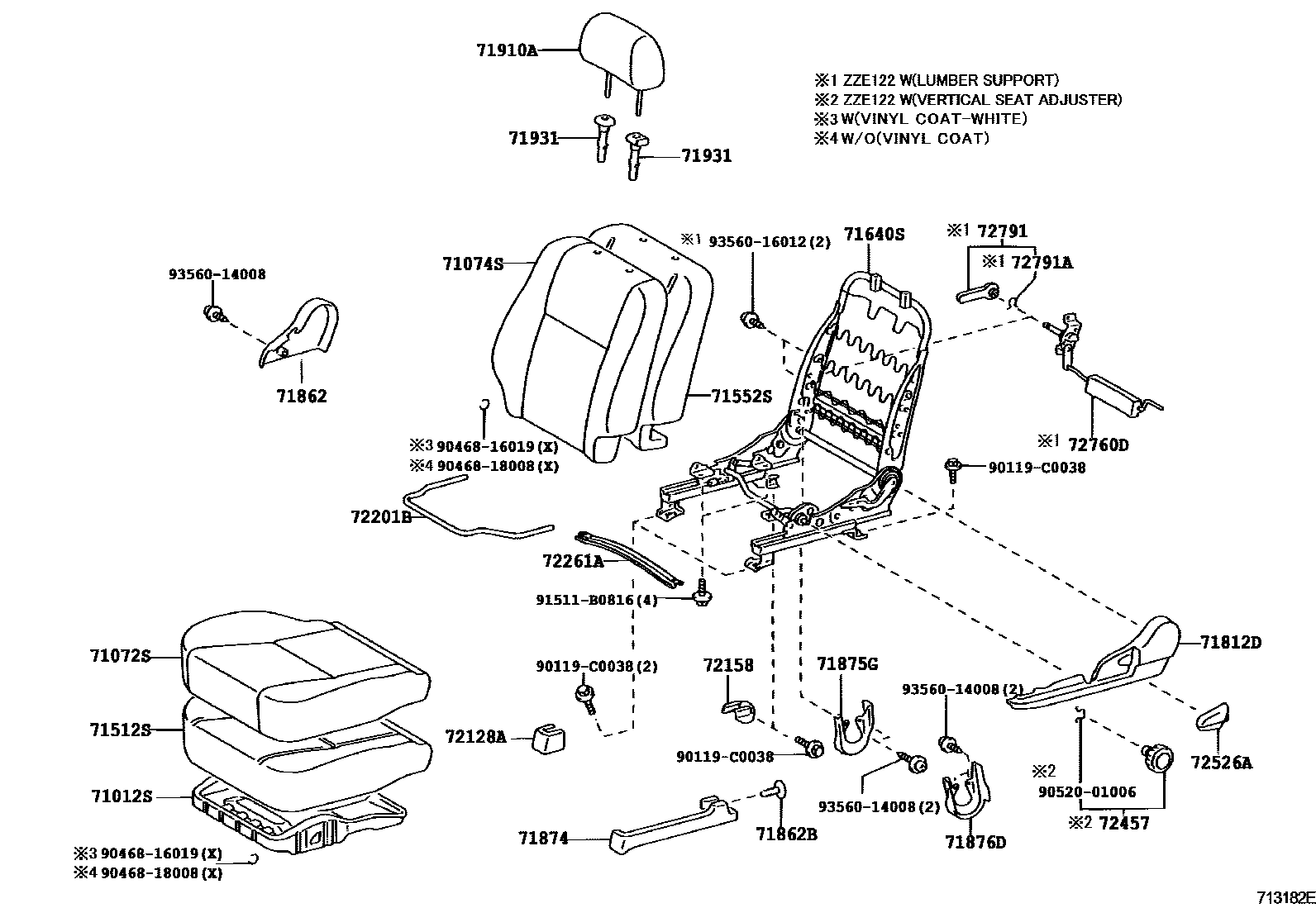

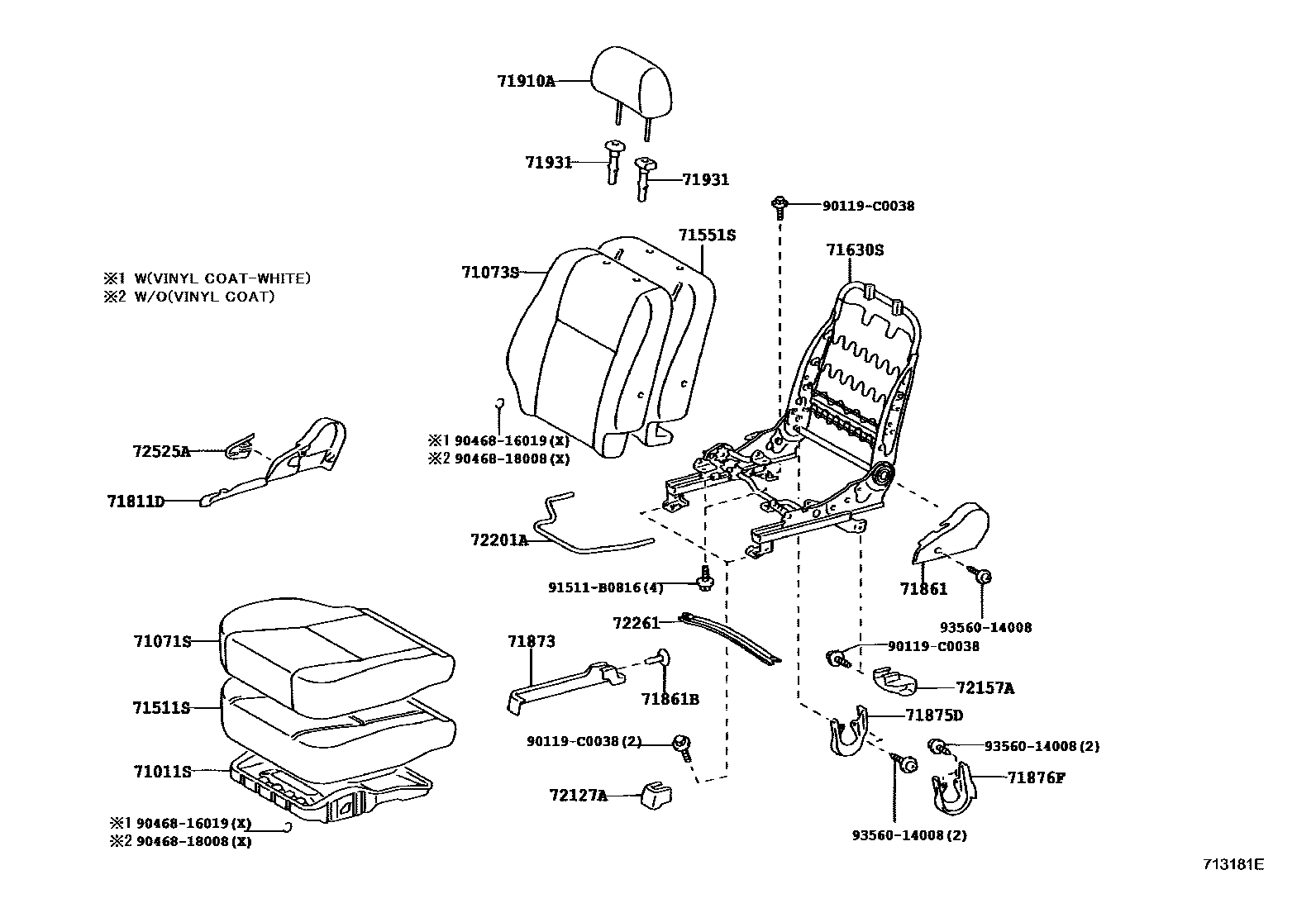

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-0D010 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-02070 · 71011-0D010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-02270 · 71511-02290 · 71511-YK010 · 71511-YK030 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-02270 · 71511-02280 · 71511-02300 · 71511-YK020 · 71511-YK040 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02390 · 71551-02391 · 71551-02400 · 71551-02401 · 71551-YK010 · 71551-YK020 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02200 · 71552-02201 · 71552-02210 · 71552-02211 · 71552-YK010 · 71552-YK020 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02130 · 71630-02131 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02070 · 71640-02071 · 71640-02180 · 71640-02181 · 71640-02320 · 71640-02321 |
| 71931 | Front seat headrest bracket | 71930-02340 · 71930-0D110 |
| 72201A | Right seat slide rail handle sub-assembly | 72211-0D030 |
| 72201B | Left seat slide rail handle sub-assembly | 72211-0D030 |
| 72261 | Right seat slide rail reinforcement | 72261-0D010 |
| 72261A | Left seat slide rail reinforcement | 72261-0D010 |
| 72760D | Left lumbar support adjuster assembly | 72760-02020 |
| 72791A | Shaft snap ring (for lumbar support rod) | 90520-01274 |
