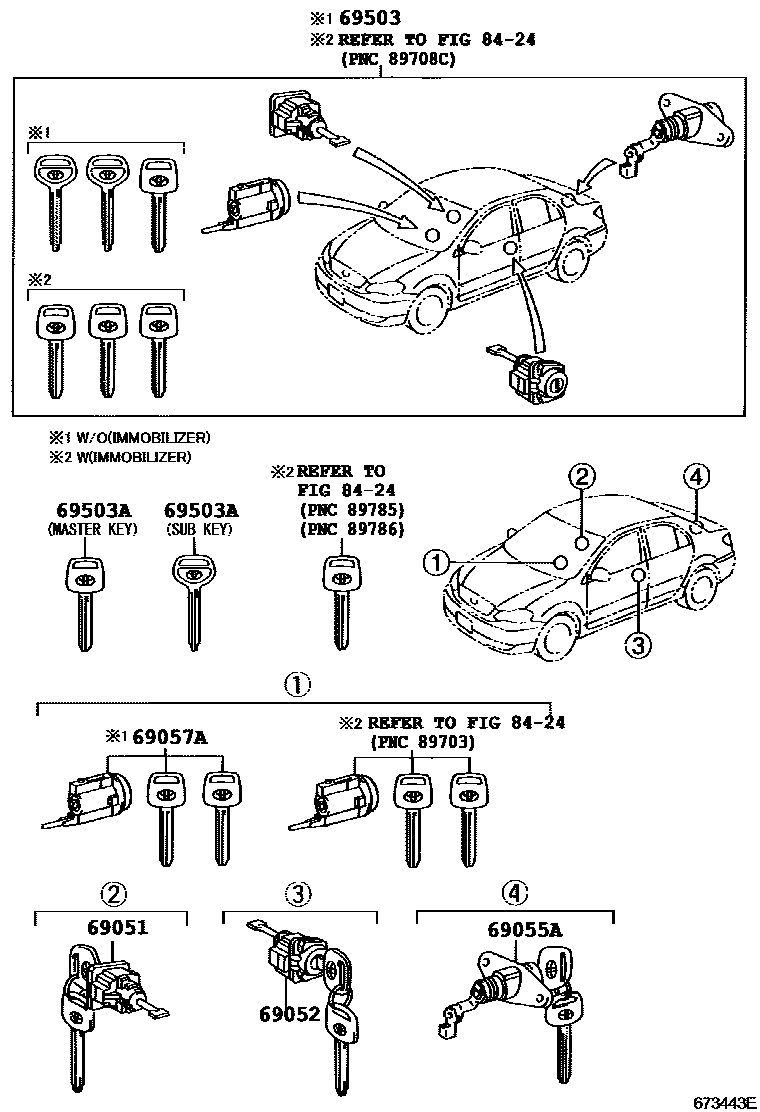

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02030 · 69051-02140 |
| 69052 | Left door lock cylinder and key assembly | 69052-02110 · 69052-02140 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02130 · 69055-02140 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02250 |
| 69503 | Door lock cylinder components | 69005-02360 |
| 69503A | external tooth key | 90999-00186 · 90999-00188 · 90999-00199 |
