Toyota COROLLA 后门锁和后门把手 — Figure 6706

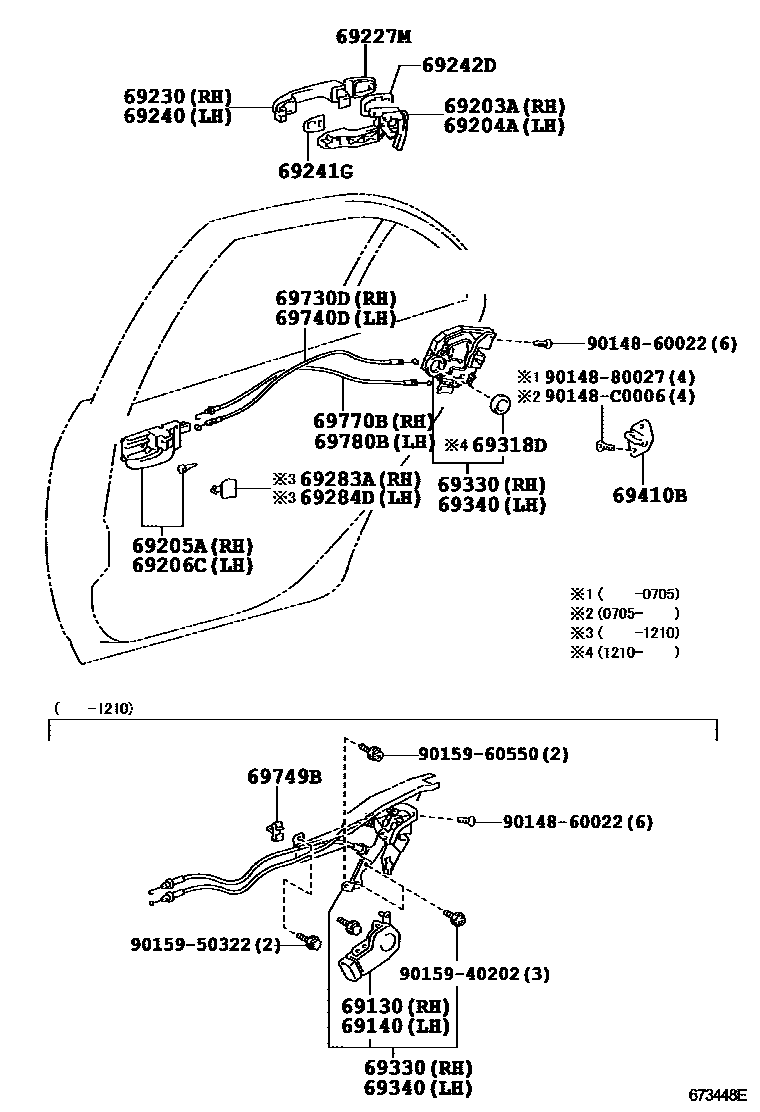

Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-12040 · 69130-12070 |
| 69140 | Left rear door lock actuator assembly | 69140-12040 · 69140-12070 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02080 · 69203-02190 · 69203-YK010 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02080 · 69204-02190 · 69204-YK010 |
| 69227M | Rear door outer handle cover | 69227-02080 |
| 69230 | Right rear door outer handle assembly | 69210-02080 |
| 69240 | Left rear door outer handle assembly | 69210-02080 |
| 69241G | Rear door front exterior handle pad | 69241-02070 |
| 69242D | Left rear door outer handle pad | 69242-02070 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-02160 · 69050-02161 · 69050-02310 · 69050-YK010 |
| 69340 | Left rear door lock assembly | 69060-02150 · 69060-02151 · 69060-02310 · 69060-YK010 |
| 69410B | Rear door lock plate assembly | 69410-0D020 |
| 69730D | Right rear door lock remote control cable assembly | 69730-YK010 |
| 69740D | Left rear door lock remote control cable assembly | 69730-YK010 |
| 69749B | Rear door lock link clamp | 69749-32040 |
| 69770B | Right rear door inner lock cable assembly | 69770-YK010 |
| 69780B | Left rear door inner lock cable assembly | 69770-YK010 |
