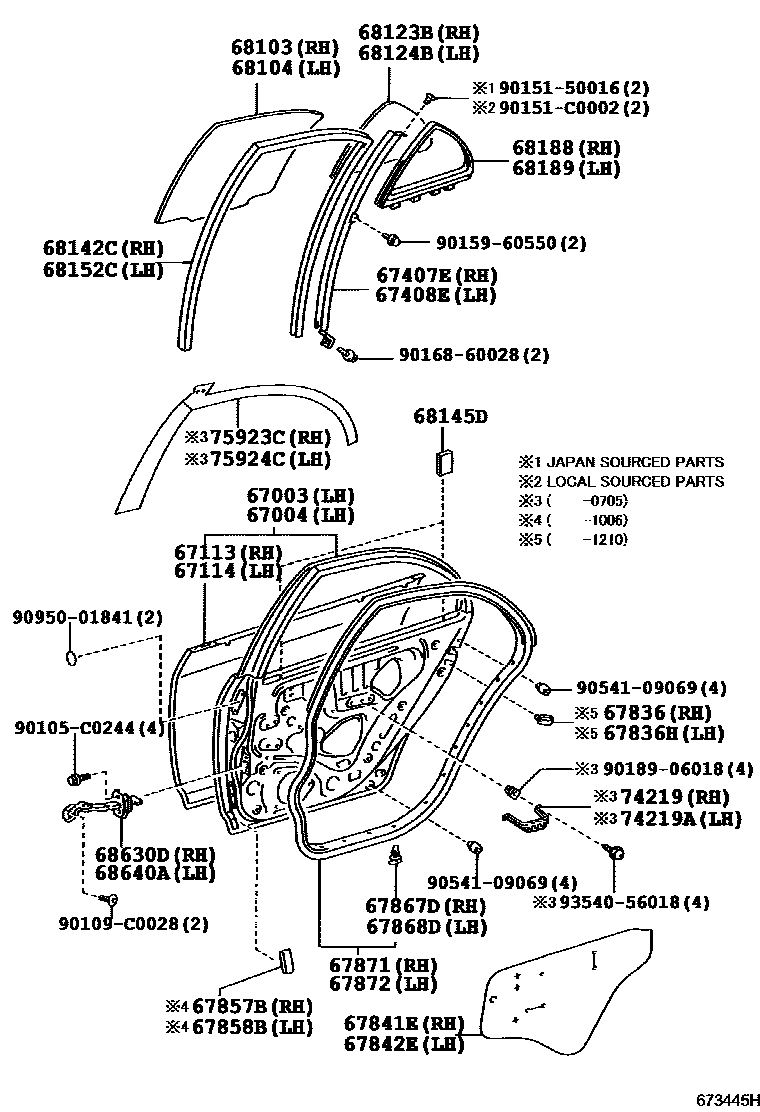

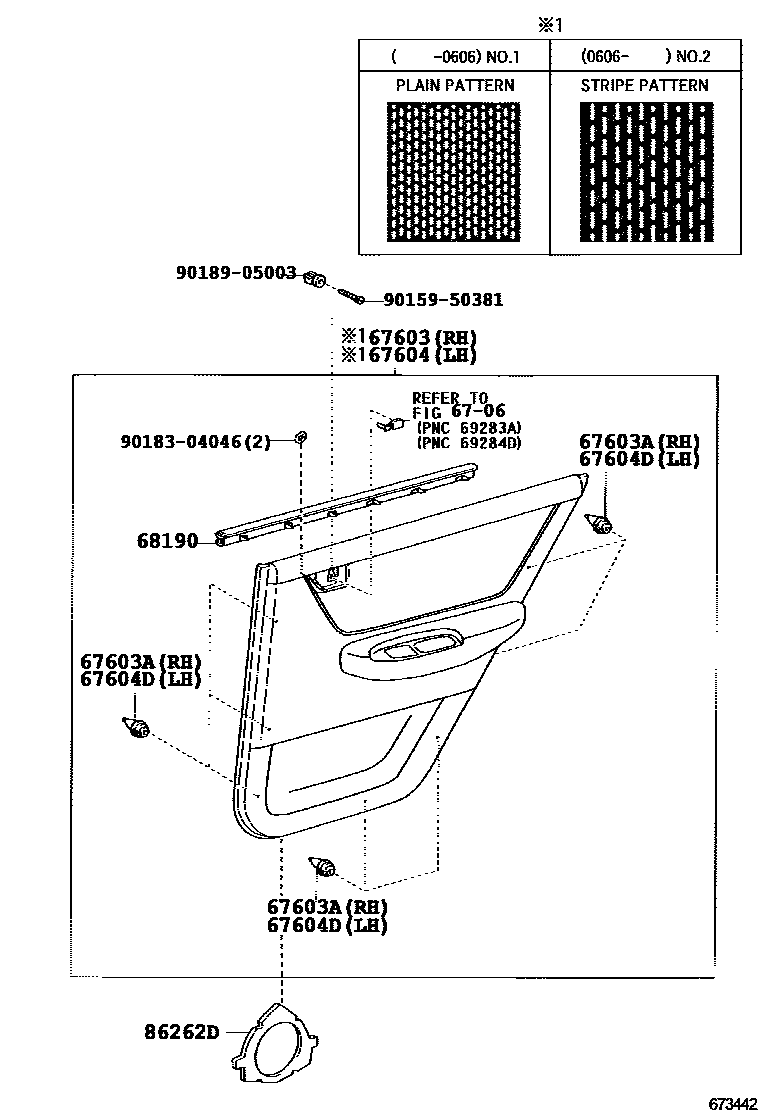

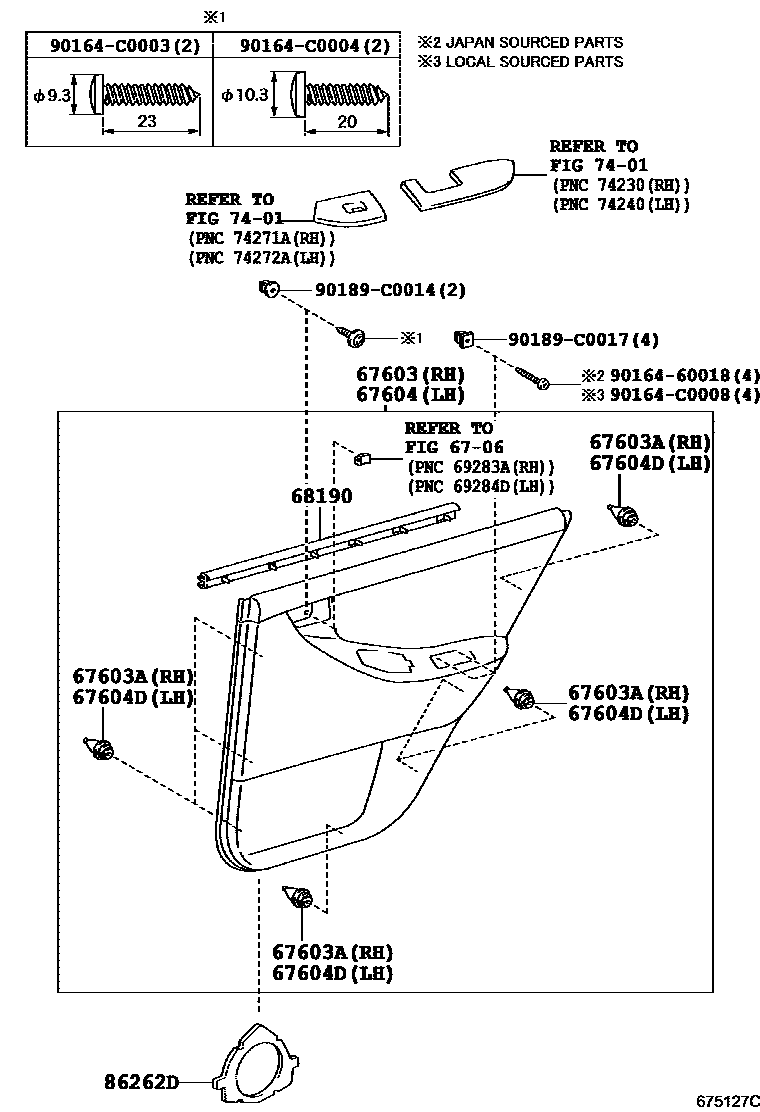

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02240 · 67003-02370 · 67003-YK010 |
| 67004 | Left rear door panel sub-assembly | 67004-02250 · 67004-02370 · 67004-YK010 |
| 67113 | Right rear door outer panel | 67113-02100 |
| 67114 | Left rear door outer panel | 67114-02100 |
| 67407E | Right rear door window divider sub-assembly | 67407-02080 · 67407-12260 |
| 67408E | Left rear door window divider sub-assembly | 67408-02080 · 67408-12260 |
| 67603A | Fixings (for rear door trim) | 67771-12050 · 90467-10161 |
| 67604D | Left rear door trim panel fixing | 67771-12050 · 90467-10161 |
| 67836 | Right rear door lock child restraint cover | 67836-02040 · 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-02040 · 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-02060 · 67841-YK010 |
| 67842E | Left rear door access hole cover | 67842-02040 · 67842-YK010 |
| 67857B | Right rear door panel protector | 67857-02030 |
| 67858B | Left rear door panel protector | 67858-02030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-02120 · 67871-12500 |
| 67872 | Left rear door sealing strip | 67872-02120 · 67872-12500 |
| 68103 | Right rear door glass sub-assembly | 68113-02180 · 68113-02181 · 68113-YK010 |
| 68104 | Left rear door glass sub-assembly | 68114-02170 · 68114-02171 · 68114-YK010 |
| 68123B | Right rear door corner window glass | 68123-02150 · 68123-02151 · 68123-YK010 |
| 68124B | Left rear door corner window glass | 68124-02150 · 68124-02151 · 68124-YK010 |
| 68142C | Right rear door glass lift slot | 68142-02230 · 68142-12260 · 68142-YK010 |
| 68145D | Rear door window cushion | 69759-02090 |
| 68152C | Left rear door glass lift slot | 68152-02230 · 68152-12170 · 68152-YK010 |
| 68188 | Right rear door corner window seal | 68188-02080 |
| 68189 | Left rear door corner window seal | 68189-02080 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-02210 · 68173-12290 · 68174-02180 · 68174-12150 |
| 68630D | Right rear door opening limiter assembly | 68630-02100 · 68630-02101 |
| 68640A | Left rear door opening limiter assembly | 68640-02100 · 68640-02101 |
| 74219 | Right rear door armrest reinforcement | 74219-02010 |
| 74219A | Left rear door armrest reinforcement | 74219-02010 |
| 75923C | No. 2 right side light-shielding film | 75923-02060 |
| 75924C | No. 2 left shading film | 75924-02060 |
| 86262D | Rear door speaker cover | 86262-02020 · 86262-12010 |
