Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

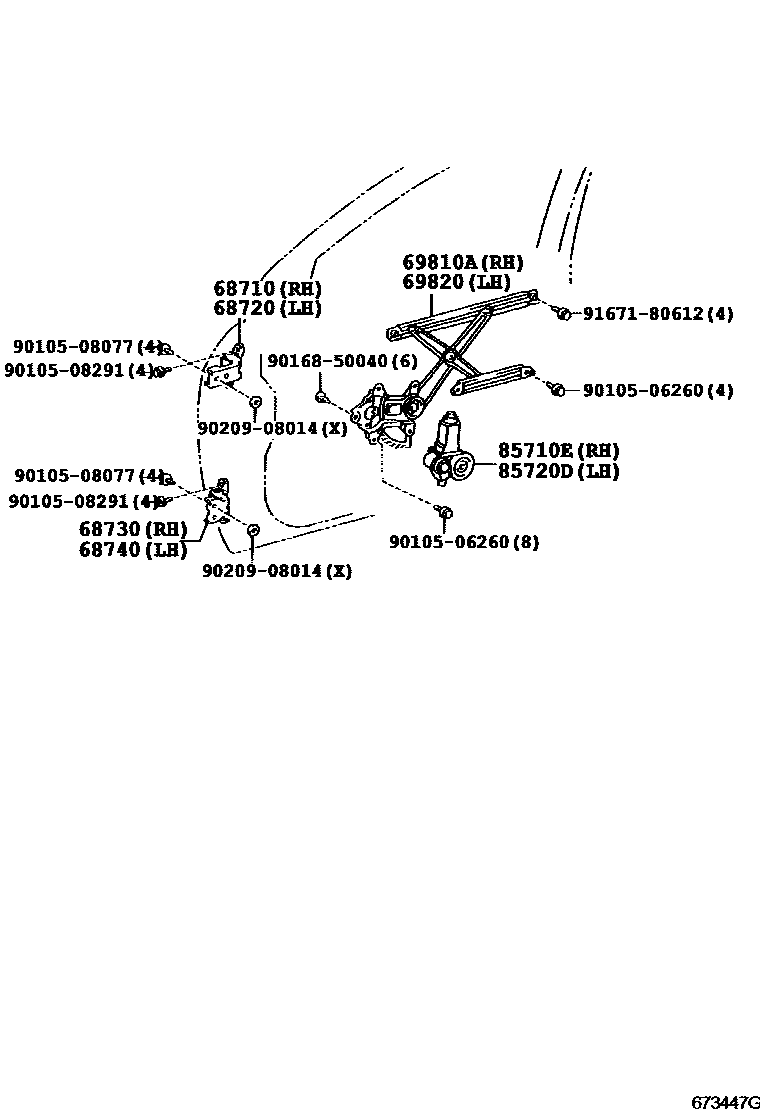

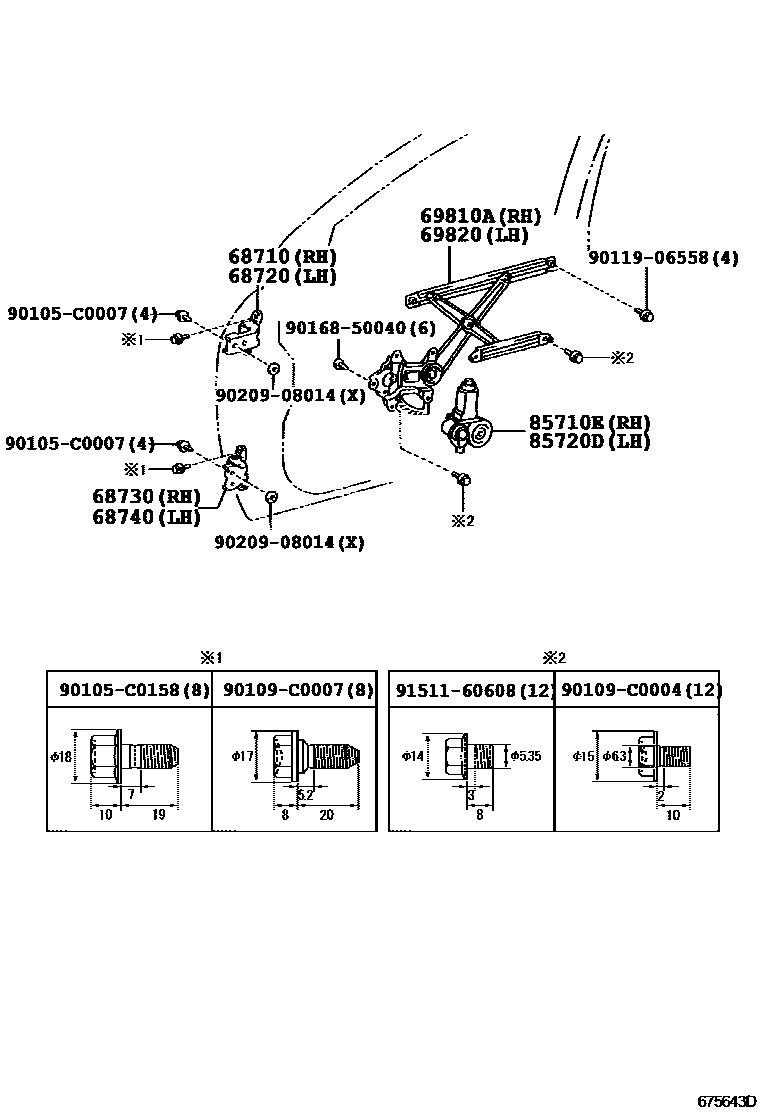

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02030 · 68710-02031 |
| 68720 | Left front door upper hinge assembly | 68720-02030 · 68720-02031 |
| 68730 | Right front door lower hinge assembly | 68730-0D020 · 68730-0D021 |
| 68740 | Left front door lower hinge assembly | 68740-0D020 · 68740-0D021 |
| 69810A | Right front door window lift assembly | 69801-02120 |
| 69820 | Left front door window lift assembly | 69802-02130 |
| 85710E | Right power window lift motor assembly | 85710-02170 |
| 85720D | Left electric window lift motor assembly | 85720-02170 |
