Toyota COROLLA 前门锁和车门把手 — Figure 6703

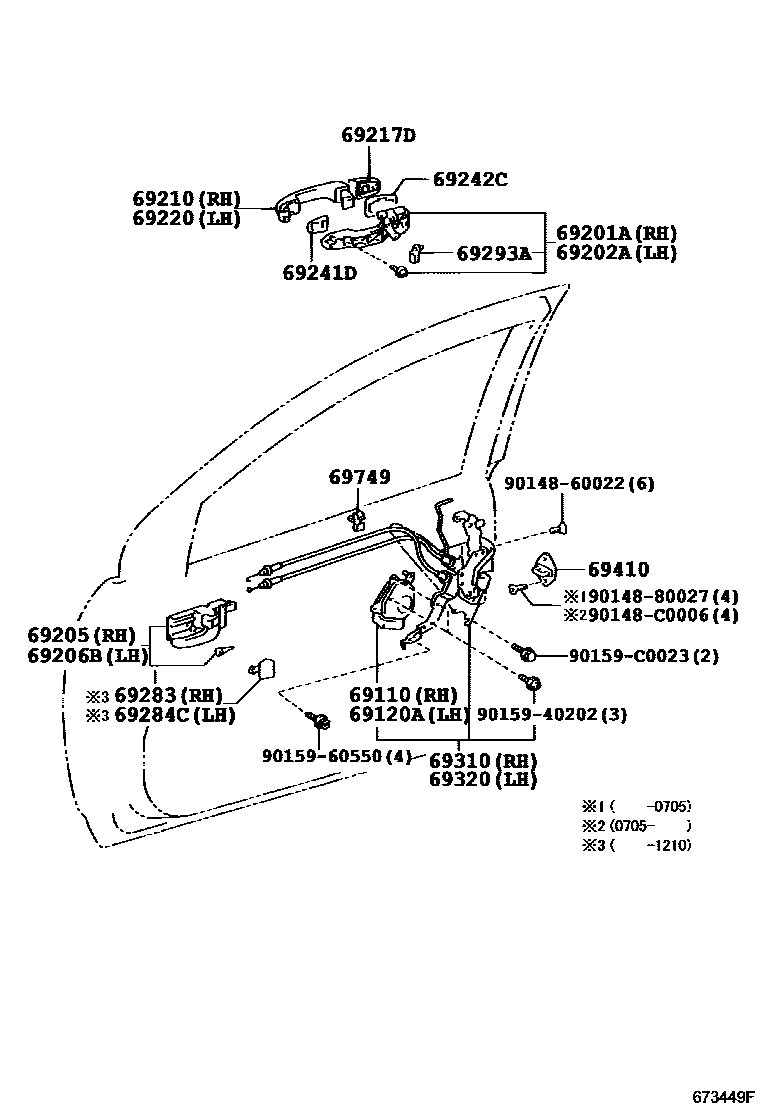

Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-12080 |
| 69120A | Left front door lock actuator assembly | 69120-12080 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02080 · 69201-02200 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02060 · 69202-02130 |
| 69210 | Right front door outer handle assembly | 69210-02080 |
| 69217D | Front door outer handle cover | 69217-02130 |
| 69220 | Left front door outer handle assembly | 69210-02080 |
| 69241D | Right front door outer handle pad | 69241-02070 |
| 69242C | Left front door outer handle pad | 69242-02070 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69030-02200 · 69030-02201 · 69030-02202 · 69030-02203 |
| 69320 | Left front door lock assembly | 69040-02190 · 69040-02191 · 69040-02192 · 69040-02193 |
| 69410 | Front door lock plate assembly | 69410-0D020 |
| 69749 | Front door lock link clip | 69749-32040 |
