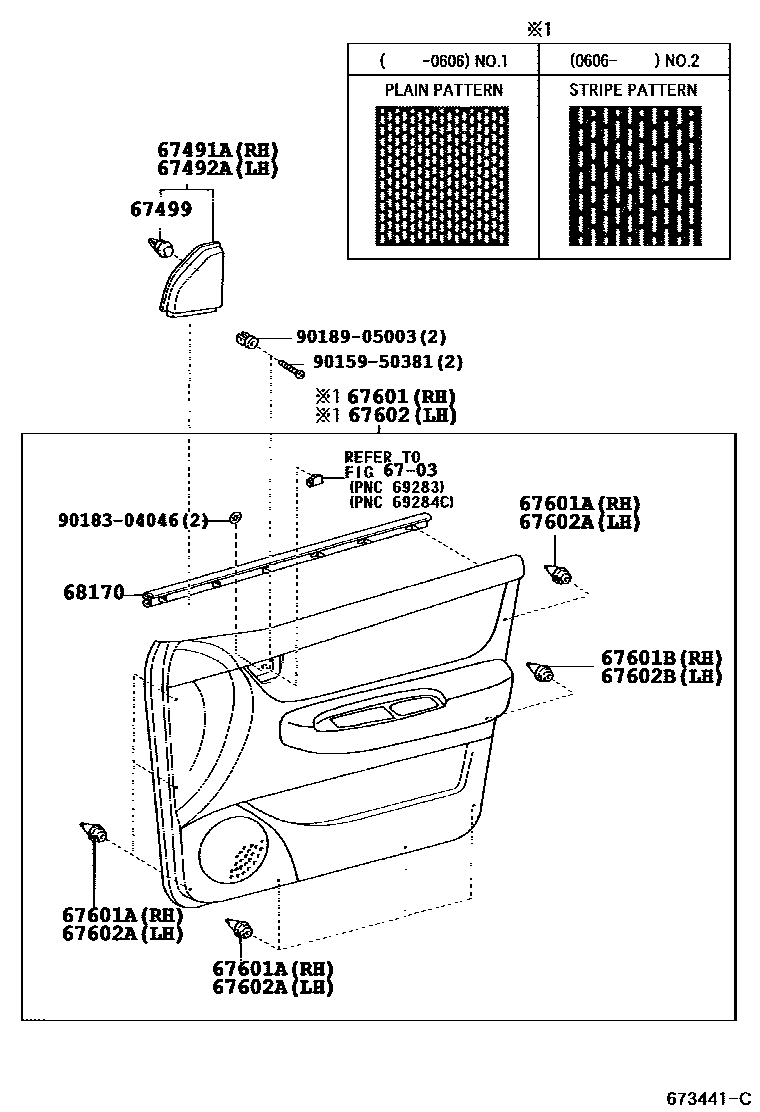

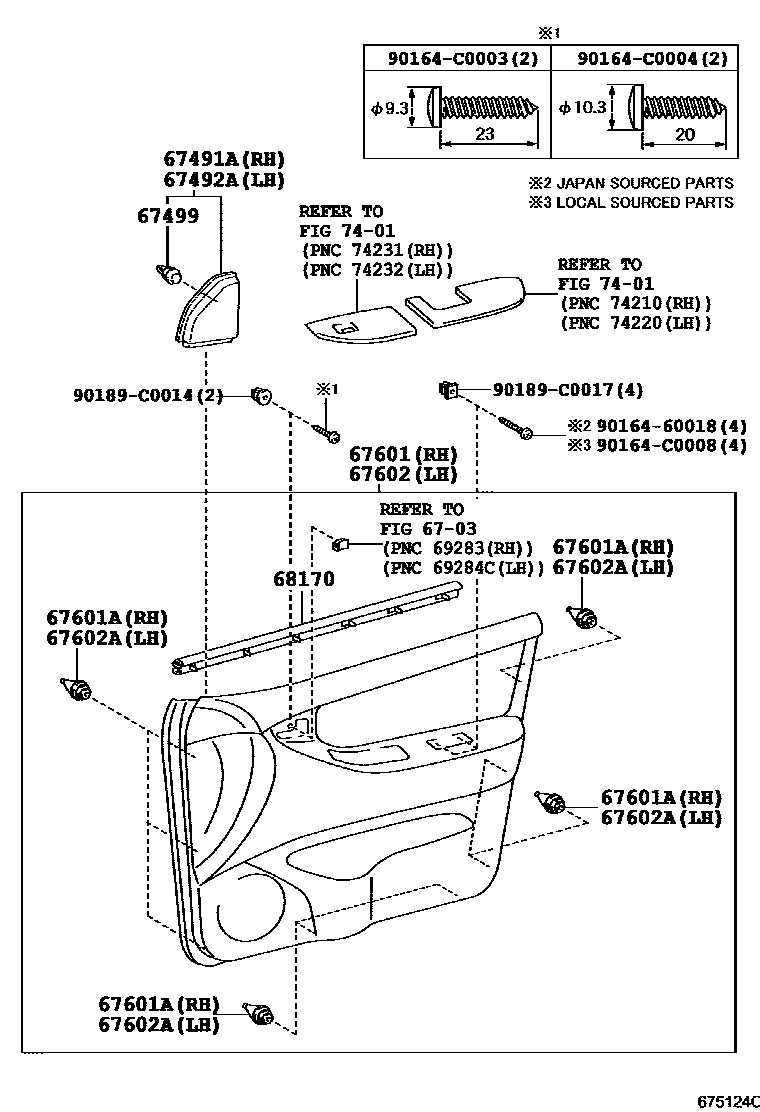

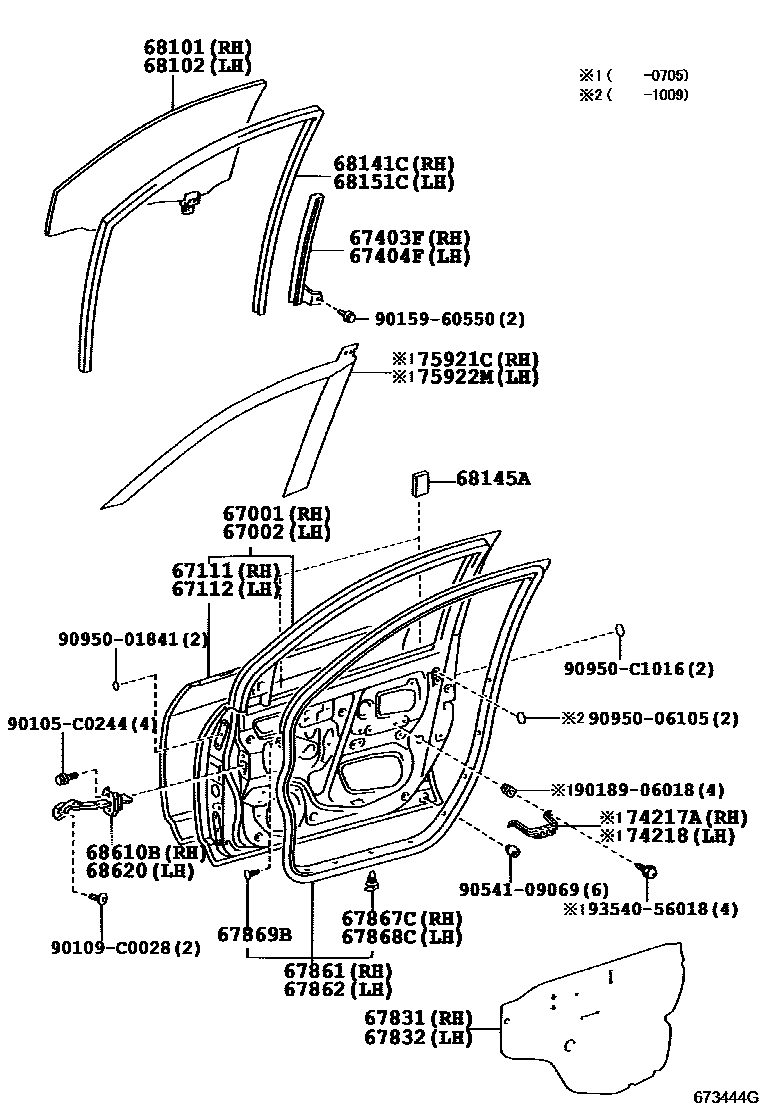

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02250 |
| 67002 | Left front door panel sub-assembly | 67002-02250 |
| 67111 | Outer right front door panel | 67111-02120 |
| 67112 | Outer left front door panel | 67112-02120 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-02080 · 67403-12220 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-02080 · 67404-12200 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12460 · 67491-12480 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12460 · 67492-12480 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-12060 |
| 67601A | Fixings (for front door trim) | 67771-12050 · 90467-10161 |
| 67601B | Catch (for front door trim panel) | 67771-32140 |
| 67602A | Left door trim panel fixing | 67771-12050 · 90467-10161 |
| 67602B | No. 2 left door fixing piece | 67771-32140 |
| 67831 | Right front door access hole cover | 67831-02090 · 67831-02270 · 67831-12630 · 67831-YK010 |
| 67832 | Left front door access hole cover | 67832-02090 · 67832-02270 · 67832-12410 · 67832-YK010 |
| 67861 | Right front door seal | 67861-02150 · 67861-12A00 |
| 67862 | Left front door seal | 67862-02150 · 67862-12A00 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-12050 |
| 68101 | Right front door glass sub-assembly | 68101-02200 · 68101-02201 · 68101-YK010 · 68101-YK011 |
| 68102 | Left front door glass sub-assembly | 68102-02200 · 68102-02201 · 68102-YK010 · 68102-YK011 |
| 68141C | Right front door glass lift channel | 68141-02290 · 68141-12511 · 68141-12512 · 68141-YK010 |
| 68145A | Front door window cushion | 69759-02090 |
| 68151C | Left front door glass lift channel | 68151-02270 · 68151-12211 · 68151-12212 · 68151-YK010 |
| 68170 | Front door glass inner sealing strip assembly | 68171-02230 · 68171-12320 · 68172-02220 · 68172-12240 |
| 68610B | Right front door opening limiter assembly | 68610-0D020 · 68610-0D021 |
| 68620 | Left front door opening limiter assembly | 68620-0D020 · 68620-0D021 |
| 74217A | Right front door armrest reinforcement | 74217-02010 |
| 74218 | Left front door armrest reinforcement | 74218-02010 |
| 75921C | No. 1 right side light-shielding film | 75921-02050 |
| 75922M | No. 1 left shading film | 75922-02050 |
