Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

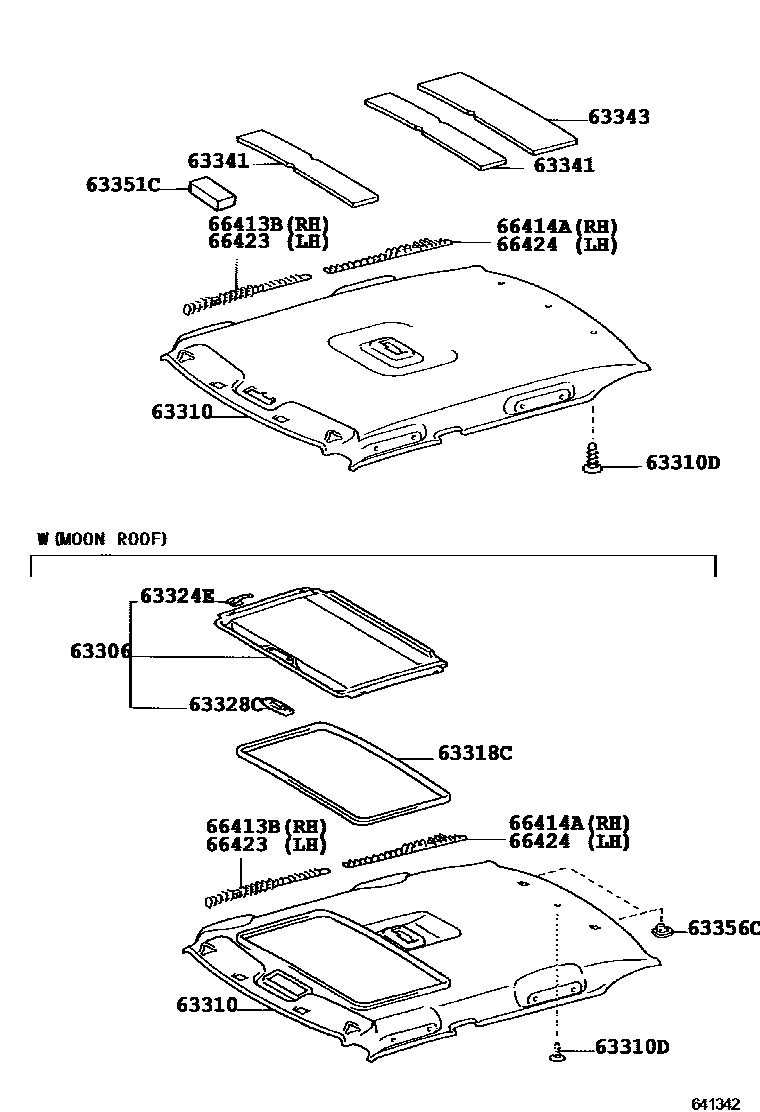

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63324E | Sunshade locking spring | 63324-0D010 |
| 63341 | No. 1 roof silencer mat | 63341-0D010 |
| 63343 | No. 3 roof muffler pad | 63341-0D010 · 63343-0D010 |
| 63351C | roof lining pads | 63351-02120 · 63351-YK010 |
| 66413B | Right front longitudinal member spacer | 66413-02250 |
| 66414A | Right rear longitudinal member spacer | 66414-02270 |
| 66423 | Left front longitudinal member spacer | 66423-02250 |
| 66424 | Left rear longitudinal member spacer | 66424-02270 |
