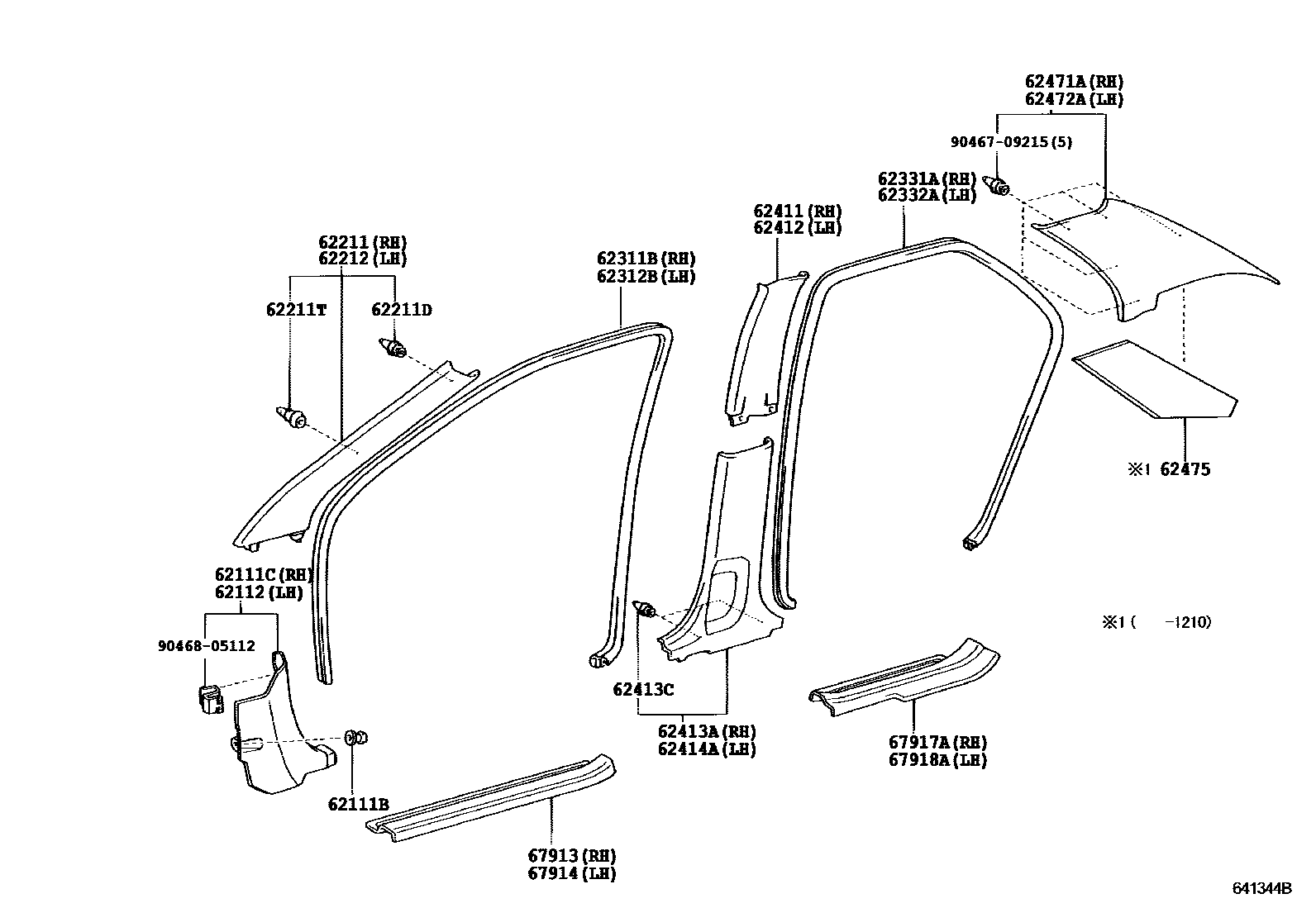

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06120 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10188 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10192 |
| 62311B | Right front door opening waterproof tape | 62311-YK020 |
| 62312B | Left front door opening waterproof tape | 62312-YK020 |
| 62331A | Right rear door opening waterproof tape | 62331-YK020 |
| 62332A | Left rear door opening waterproof tape | 62332-YK020 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-09215 |
| 62475 | Roof side interior trim panel lining | 62475-02140 |
