Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

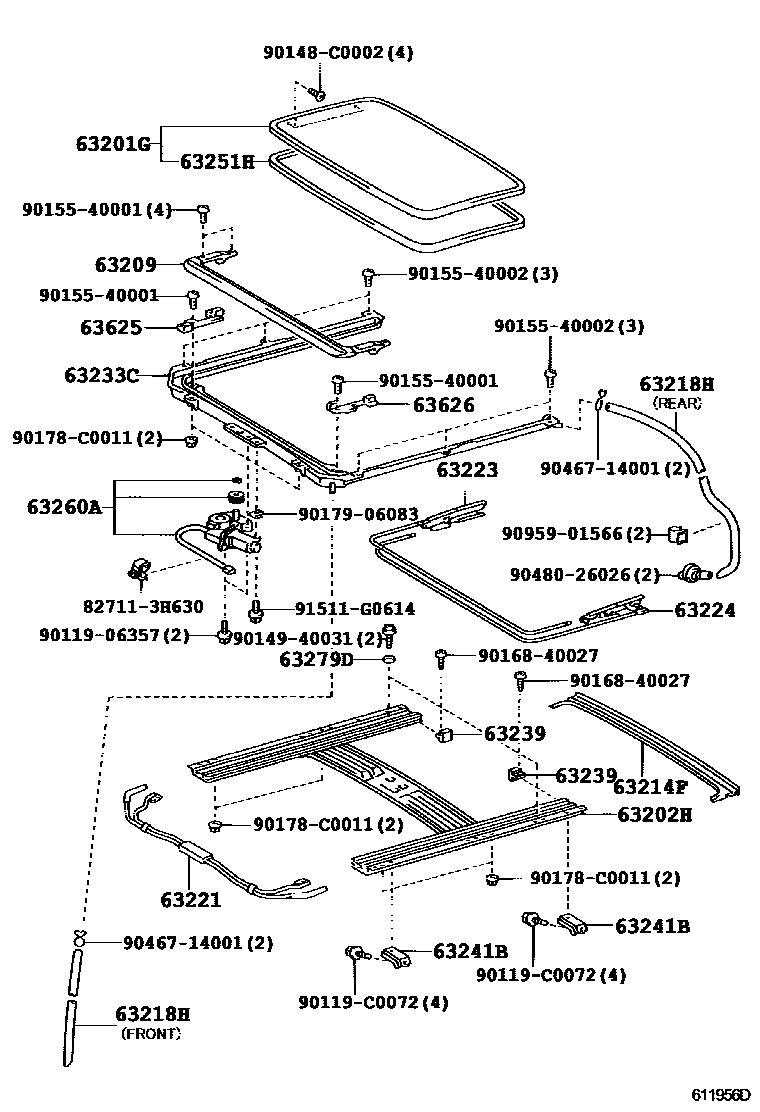

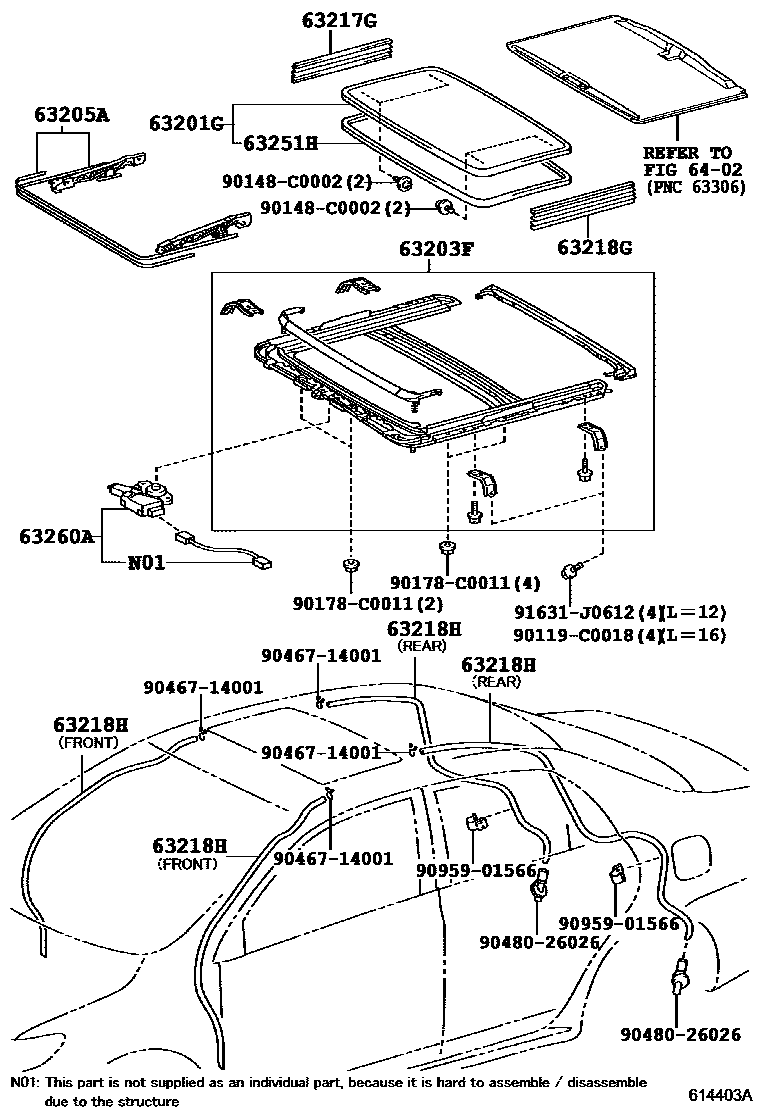

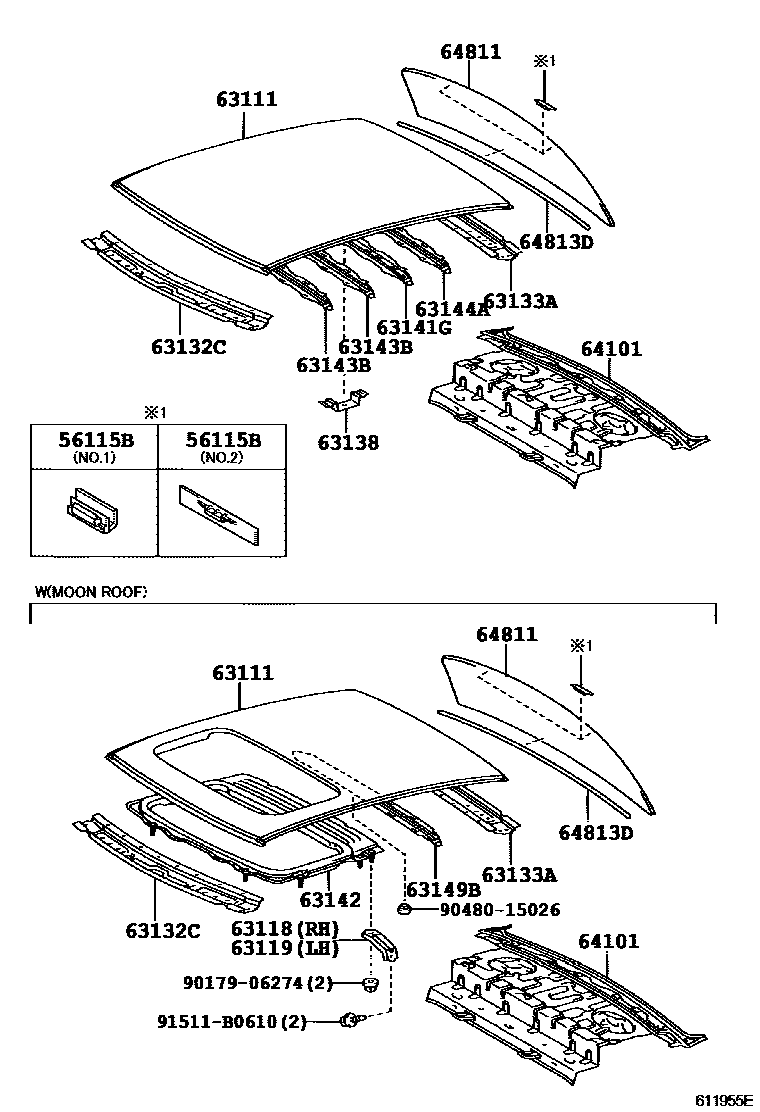

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 · 56116-22050 |
| 63111 | roof panel | 63111-02200 · 63111-02210 · 63111-YK010 |
| 63118 | Right roof panel bracket | 63118-12100 |
| 63119 | Left roof panel bracket | 63118-12100 |
| 63132C | Windshield inner roof panel | 63132-12240 |
| 63133A | upper frame of back window | 63133-12260 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-12260 · 63141-YK010 |
| 63142 | No. 2 roof panel reinforcement | 63142-12100 · 63142-YK010 |
| 63143B | No. 3 roof panel reinforcement | 63143-12100 · 63143-YK010 |
| 63144A | No. 4 roof panel reinforcement | 63144-12080 |
| 63149B | No. 1 rear roof panel reinforcement | 63149-12020 · 63149-YK010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-12262 · 63201-YK011 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-02030 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-YK010 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-YK010 |
| 63209 | Roof deflector sub-assembly | 63209-12170 |
| 63214F | Roof rear drain channel | 63214-02030 |
| 63217G | Right sliding sunroof trim | 63217-02030 · 63217-06050 · 63217-0R010 |
| 63218G | Sliding sunroof trim, left | 63217-02030 · 63217-06050 · 63217-0R010 |
| 63218H | Sliding skylight drain hose | 63249-12320 · 63249-12330 · 63249-12331 · 63249-YK010 |
| 63221 | Sliding sunroof cable duct | 63221-12100 |
| 63223 | Right sliding sunroof transmission cable | 63223-02030 · 63223-02031 |
| 63224 | Left sliding sunroof transmission cable | 63224-02030 · 63224-02031 |
| 63233C | Sliding skylight shelf | 63233-02030 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-12110 |
| 63251H | Sliding skylight seal | 63251-02050 · 63251-12161 · 63251-YK010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12110 · 63260-YK900 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63625 | Right sliding sunroof guide block | 63625-12050 |
| 63626 | Left sliding sunroof guide block | 63626-12050 |
| 64101 | Upper back panel sub-assembly | 64101-02150 · 64101-02151 · 64101-02160 · 64101-12741 · 64101-12751 · 64101-YK010 · 64101-YK011 |
| 64811 | back window glass | 64811-02240 · 64811-02241 · 64811-YK010 |
| 64813D | Back window glass adhesive seal | 64813-02010 |
